Biodegradable PP PE PET EPS Hdpeplastic pellet granules making machine for plastic recycle sale

Supplier: Jiangsu Fangsheng Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Sion chen
Price: $80000.00 /set
Min. Order: 1 set

Click here to contact

Product details

CE Certificate:	YES;	Voltage:	220V/50Hz;
Core Components:	PLC,Engine,Bearing,Motor,Gear;	Power (kW):	80-150KW;
Output (kg/h):	300 - 1000 kg/h;	Payment Terms:	L/C T/T;
Brand Name:	Fangsheng,Fangsheng;	ISO9001:2008:	YES;
Local Service Location:	Canada,Germany,Philippines,Russia,Thailand,South Africa;	Certification:	CE ISO TUV;
Showroom Location:	Canada,Germany,Philippines,Russia,Thailand,South Africa;	Condition:	New;
Supply Ability:	100 Set/Sets per Year PET pelletizing extruder;	Dimension(LWH):	1244M;
Weight:	20t;	Plastic Processed:	HDPE,HDPE/PP,PA,PE/PP,Lldpe,Polystyrene,ABS/PP,PP,PVC,LDPE,ABS,PET,EVA,PC,Polylactic Acid,EPS;
Port:	shanghai;	Warranty:	1 Year;
Screw Speed (rpm):	30 - 120 rpm;	Screw Design:	Single;
Applicable Industries:	Manufacturing Plant;	Place of Origin:	China;
Warranty of core components:	1 Year;	Delivery Time:	1-2months;
Type:	PET pelletizing extruder,Recycling Granulator;	Marketing Type:	New Product 2020;
After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	After Warranty Service:	Video technical support,Online support,Spare parts;
Video outgoing-inspection:	Provided;	Packaging Detail:	standard wood case and PE stretch wrapping film for PET pelletizing extruder;
Machinery Test Report:	Provided;	Payment Terms:	L/C,Western Union,T/T;

Product Overview

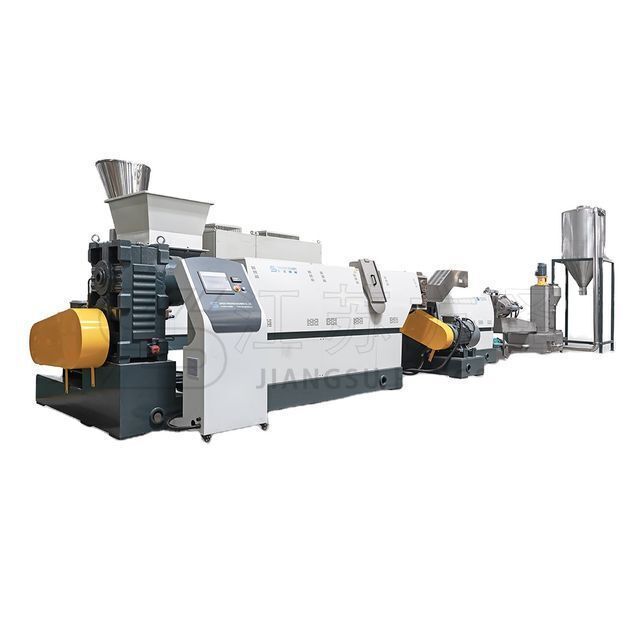

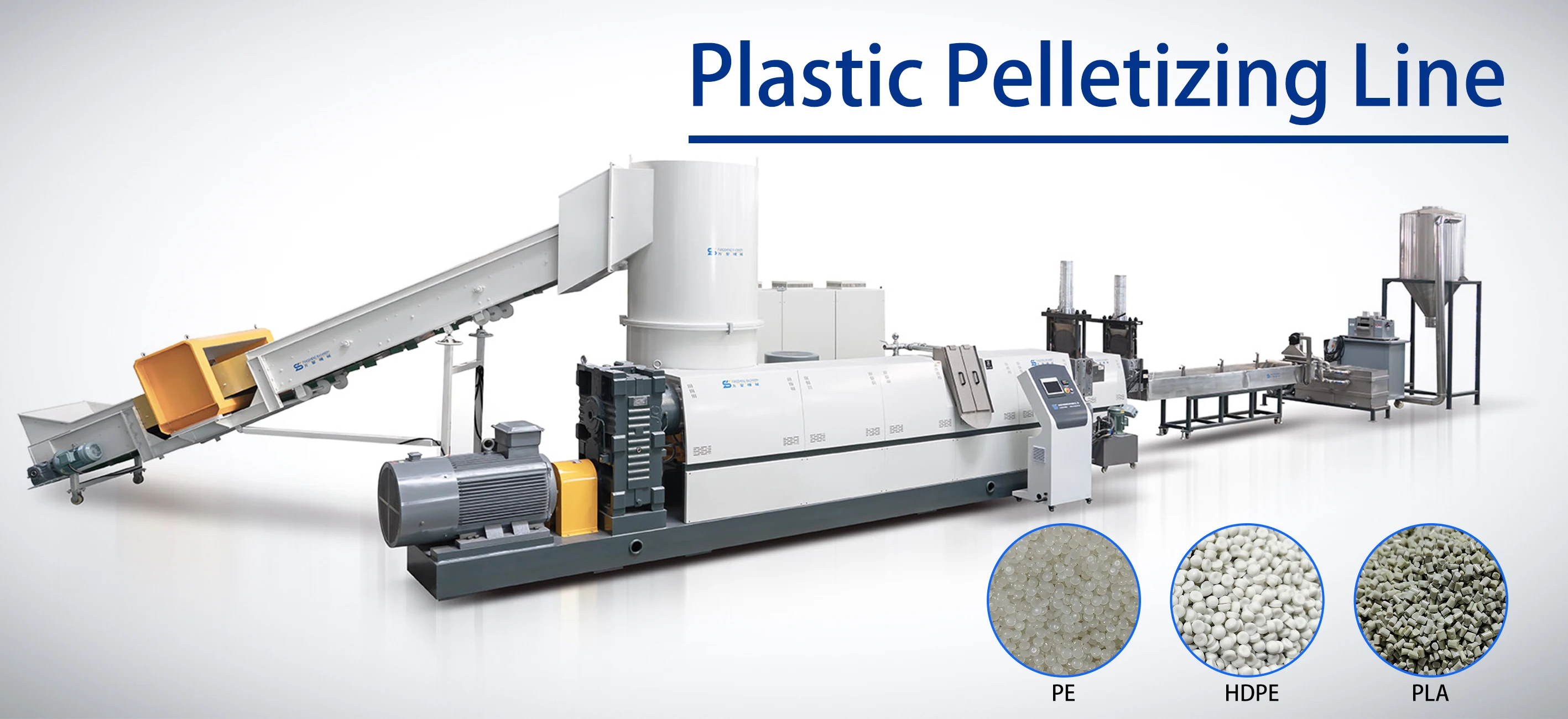

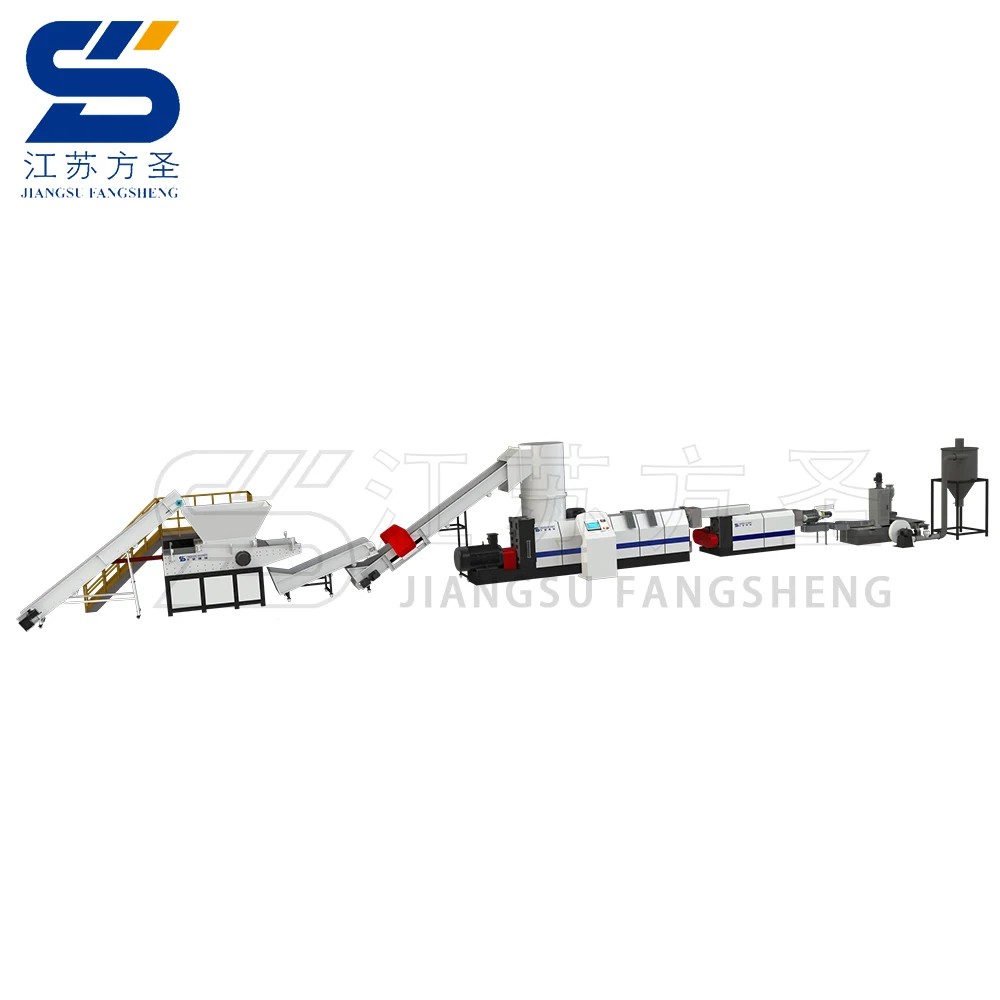

Biodegradable PP PE EPS Hdpeplastic pellet granules making machine for plastic recycle

To meet the market demand, Jiangsu Fangsheng Machinery developed and launched environmental plastic granulation line.

●It is different from traditional granulation line.This pelletizing line pays more attention to protecting the physical properties of environmental plastics, can maintain the plasticity, toughness and durability of the original environmental plastics as far as possible.

●The equipment adopts air-cooled cooling mode, including agglomerate feeding, heating extrusion screw, hot cutting device, fast air cooling system, pellet collection device and electric cabinet control system.

●In the heating and plasticizing process of raw material, strict temperature control technology ensures that the molecular structure of materials will not be damaged as much as possible during the heating process. The advanced air cooling method can ensure that the material does not contact with water, and also protect the physical properties of the material.

Detail Specification

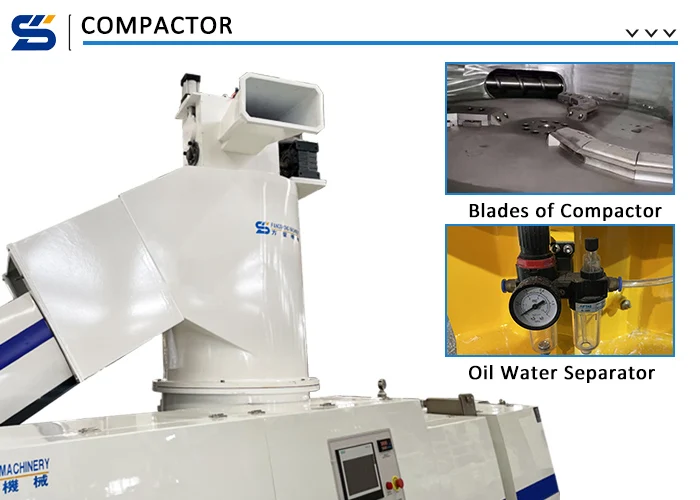

Compactor

●The rotatory blades of compactor will cut up incoming scraps. ● Frictional heating which caused by high speed rotatory blades and stationary blades will heat and let scraps shrinking just below their agglomerating point. ● Optimal designed guide structure compacts the material and directs it into extruder screw.

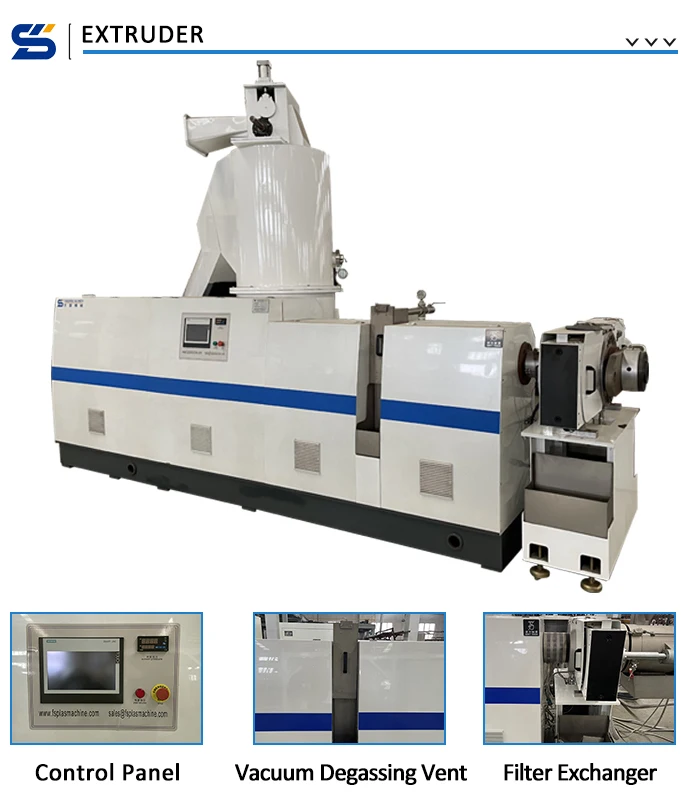

Extruder Machine

●A specialized single screw extruder applied to gently melt the pre-compacted material. ●The plastic scraps will be well melted, plasticized in the extruder. ●With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.

Technology Parameter

FS series single-stage pe pp film compactor-granulator machine(with agglomerator)

Model

Extruder

Screw diameter(mm)

L/D ratio

Power(kw)

Productivity(PE)(kg/h)

Productivity(PP)(kg/h)

FSJ70

70/33

φ70

33:1

110

110-150

100-130

FSJ85

85/33

φ85

33:1

155

180-250

150-200

FSJ100

100/33

φ100

33:1

210

280-350

250-300

FSJ130

130/33

φ130

33:1

300

480-550

400-480

FSJ160

160/33

φ160

33:1

370

650-750

550-650

FSJ180

180/33

φ180

33:1

460

800-1000

750-850

Main Parameters

Successful Project

We Provide Excellent After-sales Service

● When all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory. ● After the commissioning, we will package the equipment by the standard export package for shipment. ● After appointment with the customer, our engineers will go to the customers' factory for installation and training. ● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

OUR COMPANY

FAQ

1.Your company is a transactional company or an industrial manufacture factory? ● Fangsheng Machinery is an industrial manufacture factory which locates in Zhangjiagang city. ● If you interested in our products and we can fulfill your request , you may pay a visit to our company. 2.All of your products are made by your self or compacted via purchasing the others? ● We have independent technical team who focus on making machines, all the products are made by our technical team. ● All the machines are manufactured with high quality, we choose our material very strict,all the material come to our factory must pass the test substandard goods are returned to the supplier. 3.Do you have any other services about your products? ● We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system. 4.How do you make the quotation for clients? ● The price depends on quality and performance, but the clients should be satisfied first. 5:Do you have any after sales service? ● When all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory. ● After the commissioning, we will package the equipment by the standard export package for shipment. ● After appointment with the customer, our engineers will go to the customers' factory for installation and training. ● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
