Oreelaser metal laser cutter CNC fiber laser cutting machine sheet metal
-
Supplier: Shandong Oree Laser Technology Co., Ltd. -
Region: Shandong, China -
Contact: Mr Oree laser -
Price: $28000.00 / 1 - 2 sets
$20000.00 / >=3 sets -
Min. Order: 1 set
Product details
| Marketing Type: | Hot Product 2019; | Video outgoing-inspection: | Provided; |
| Product name: | CNC fiber laser cutting machine sheet metal; | Model: | OR-FM; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant; | Warranty of core components: | 2 years; |
| Function: | Cutting Metal Materials; | Brand Name: | OreeLaser; |
| Control System Brand: | Cypcut; | Certification: | ce,ISO; |
| Applicable Material: | Metal; | Place of Origin: | Shandong, China; |
| Port: | Qingdao; | Cooling Mode: | WATER COOLING; |
| Laser Type: | Fiber Laser; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,trade assurance; |
| Laser power: | 1000W /1500W/ 2000W / 3000W; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Cutting Speed: | 120m/min; | Package Preview: | ; |
| Color: | White And Black; | Core Components: | Motor,Engine; |
| Keyword: | Fiber Laser Cutting Machiens; | Condition: | New; |
| Machinery Test Report: | Provided; | Warranty: | 3 years; |
| Servo Motor Brand: | Yaskawa; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Field maintenance and repair service,Video technical support; |
| Application: | LASER CUTTING; | Graphic Format Supported: | AI,BMP,Dst,Dwg,DXF,DXP,LAS,PLT; |
| Guiderail Brand: | HIWIN; | Laser Head Brand: | WSX; |
| Working area: | 1500*3000mm 1500*4000mm; | Weight (KG): | 5000 KG; |
| Supply Ability: | 300 Sets per Month CNC fiber laser cutting machine sheet metal; | Type: | Water Cooling; |
| Control Software: | Cypcut; | Local Service Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,South Korea,Chile,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Nigeria,Uzbekistan; |
| CNC or Not: | Yes; | Cutting Thickness: | 0-30mm; |
| Laser Source Brand: | MAX; | Packaging Detail: | 1. Whole film packaging machine; 2.Anti-collision package edge; 3.Fumigation-free plywood wooden box with iron binding belt; |
| Cutting Area: | 1500*3000mm 2000*4000mm; | Showroom Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Argentina,South Korea,Chile,Colombia,Sri Lanka,Bangladesh,South Africa,Nigeria,Japan,Malaysia,Australia; |
| Key Selling Points: | Competitive Price; |

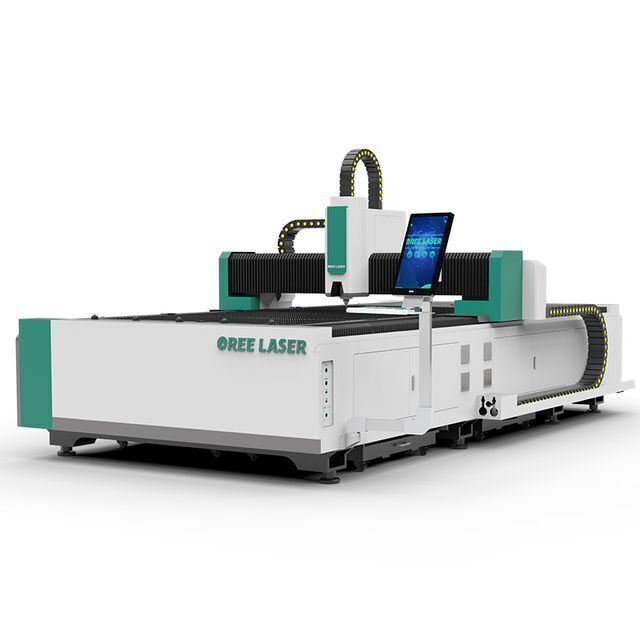

Oreelaser metal laser cutter CNC fiber laser cutting machines sheet metal

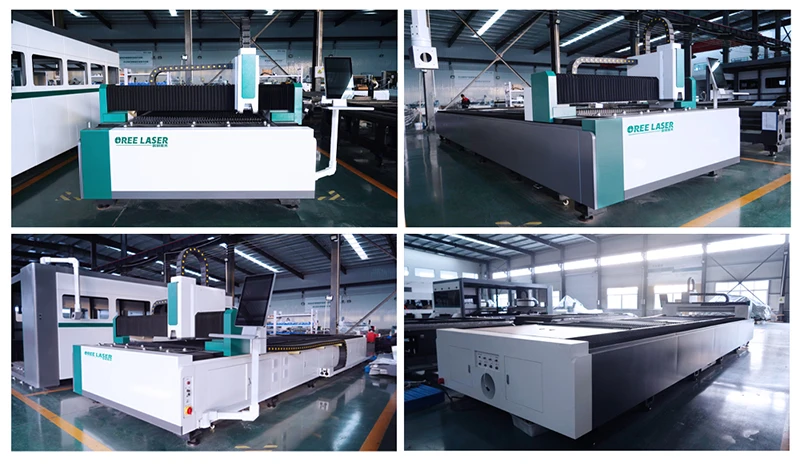

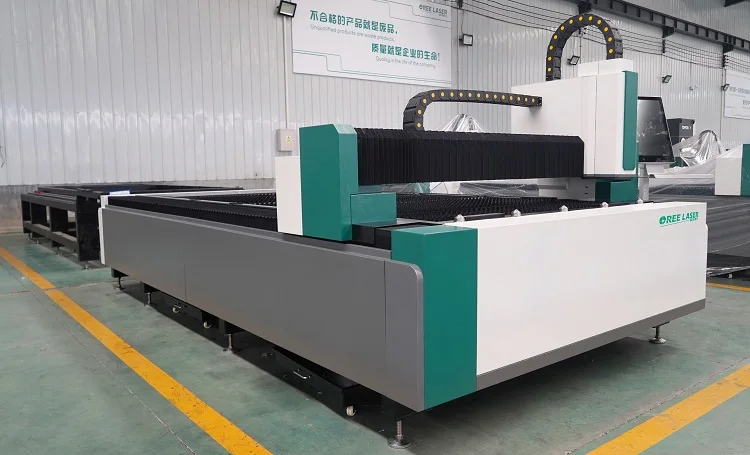

Product Description
The OR - FM is an ideal entry level planar laser cutting machine.Don't need to input the high purchase cost and training cost, laser cutting can be realized.
Machine Features：
1. High-performance laser device associated with stable operation system enables optimal cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single countertop make plates loading and unloading available during cutting, which improves the processing eficiency.
4. Large-size closed enclosure improves dedusting effects and avoids optical pollution.
5. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
6. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.
7. It could ut mental in various materials and realize excellent and stable cutting effects.
1. High-performance laser device associated with stable operation system enables optimal cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single countertop make plates loading and unloading available during cutting, which improves the processing eficiency.
4. Large-size closed enclosure improves dedusting effects and avoids optical pollution.
5. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
6. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.
7. It could ut mental in various materials and realize excellent and stable cutting effects.
Specification
Model | OR-FM 3015 | OR-FM 4020 | |
Working Area | 3000*1500mm | 4000*2000mm | |
Applicable Materials | Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate | Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate | |
Laser Power | 1000w/1500w/2000w/3000w/4000W/6000W | 1000w/1500w/2000w/3000w/4000W/6000W | |
Materials Thickness | Max 40mm | ||

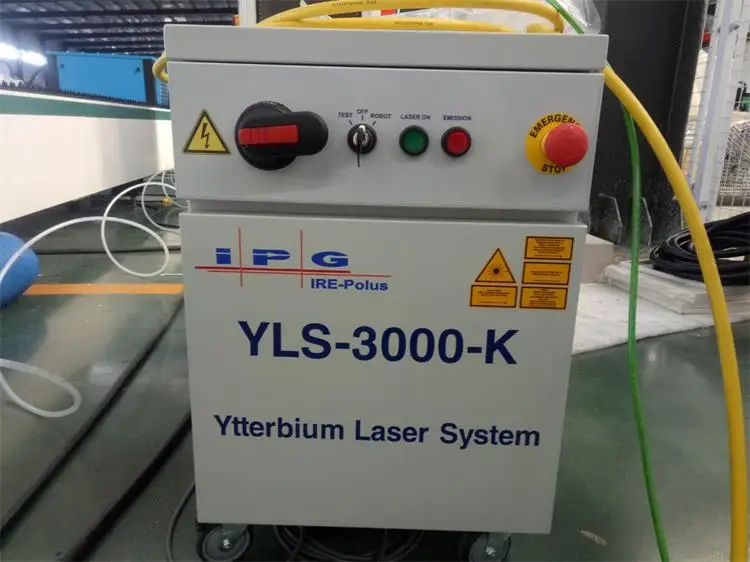

Laser source | IPG/MAX | ||
Laser head | PAYTOOLS/PRECITEC | ||
Dimensions(L*W*H) | 4550*2300*2000mm | 5580*2300*2000mm | |
Weight | 4200KG | 4700KG | |
Repeat Positioning Accuracy | ±0.02mm | ||
Accuracy of Positioning | ±0.03mm | ||
Max. Movement Speed | 120m/min | ||
Max Acceleration | 1.5G | ||
Power Consumption | <10KW | ||
Specified voltage and frequency | 380V/50Hz/60Hz/60A(Customizable) | ||
Auto-focus laser head
The laser head is made of high quality materials in accordance with advanced technology. It is strcng and curable it can achieve 'onine' measure ment during the production process, and the measurement is accurate and rapid.
Cypcut plane control system(2000)
CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting
industry,easy to use, rich in functions, suitable for various processing occasions.

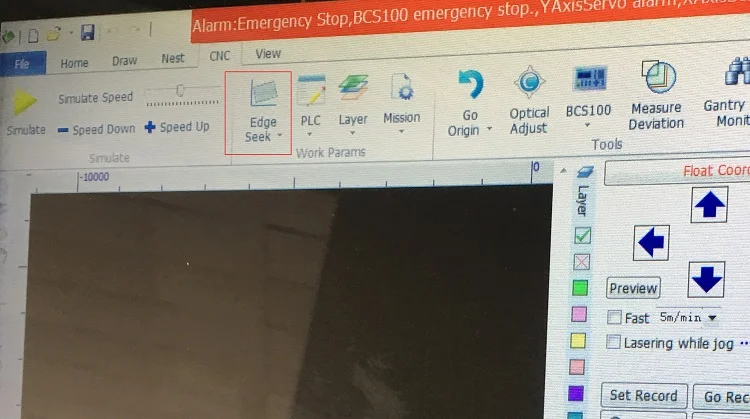

Edge finding aid
Dual-drive deviation self-correcting two-stage capacitive edge seeking
industry,easy to use, rich in functions, suitable for various processing occasions.
Edge finding aid
Dual-drive deviation self-correcting two-stage capacitive edge seeking
Keep the accuracy of the machine tool for a long time, unchanged for 50 years
Yaskawa Servo Moto
1.Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;
2.Rotating speed: high speed performance, general rated speed can reach 2000~3000 rpm;
2.Rotating speed: high speed performance, general rated speed can reach 2000~3000 rpm;

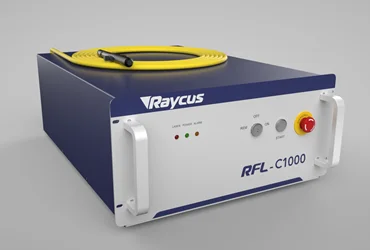

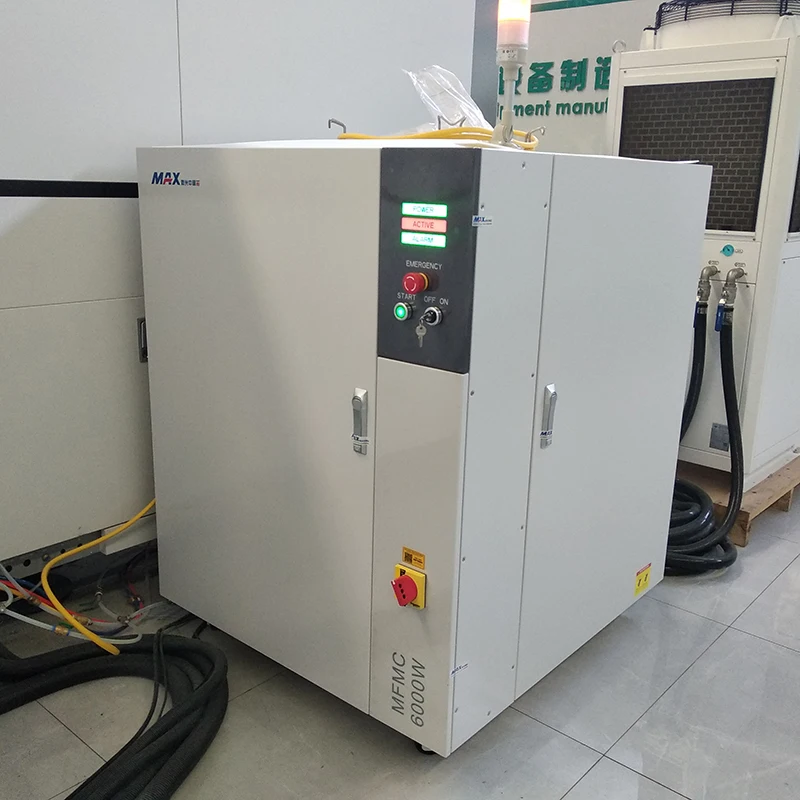

Higher photoelectric conversion efficiency, more stable beam quality, stronger anti-high-reflection ability, to achieve better cutting results
Application and samples
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel , Mild Steel Plate(tube), Carbon Steel, Alloy Steel Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Different cutting thickness depends on different laser power selection in sheet metal laser cutting machine.
Different cutting thickness depends on different laser power selection in sheet metal laser cutting machine.
Packing & Delivery
Professional package of laser cutting machine:
1. Whole film packaging tube laser cutting machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
Company Profile
We have passed the international certifications such as CE certification, ISO9001 quality management system certification, Alibaba SGS enterprise certification and design patents.Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of laser products.

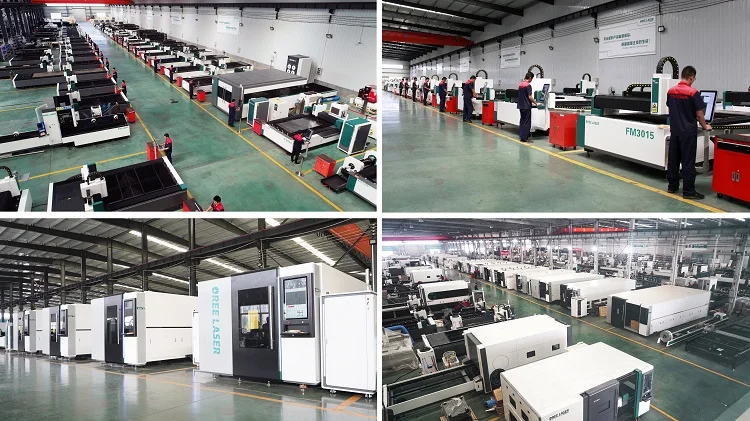

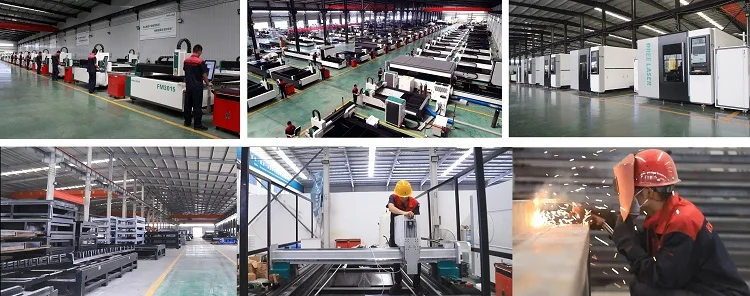

Oree Laser, a high-tech enterprise specializing in R&D, production and sales, has more than 15 years of experience in the laser industry. Its products mainly cover fiber laser cutting machine, laser engraving machine,laser marking machine,and laser welding machine. Our factory covers an area of 42,000 square meters, and contains nearly 1,000 employees, which maximally shorten product cycle time and guarantee the delivery of products. Our products are exported to more than 80 countries and regions around Asia, Europe, Africa and Oceania. In addition, we have more than 100 professional after-sales personnel, providing 24-hour online and offline technical services in 12 languages. In a word, we are committed to helping customers improve their economic efficiency and providing comprehensive laser application solutions for users around the world.
We have passed the international certifications such as CE certification, ISO9001 quality management system certification, Alibaba enterprise certification and design patents.
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of laser products.
Service Team& feedback
After-sales service & Customer visiting:
1.fiber laser cutting machine 3 years warranty except consumable parts;
2.Plenty of technical support online is available;
3.Quick Back-up Parts Available&Technical Assistance;
4."Training Video","Instruction Book",and"Operation Manual"will be offered;
Since its establishment 20 years ago, oree laser has traveled to all corners of the world, participated in more than 200 exhibitions and served more than 10,000 customers
FAQ and Contact US
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: Are you factory or trading company?
A: We are a factory with many experience.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
Q: How do your factory do regarding quality control?

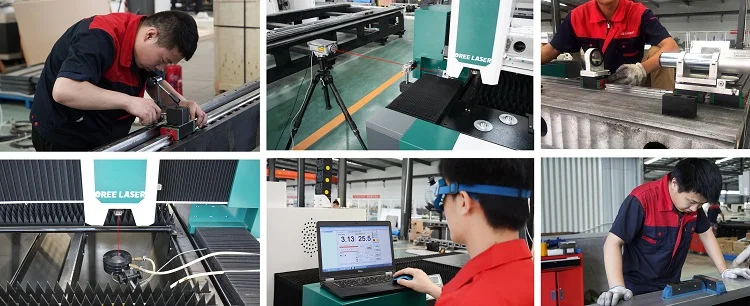

A: Quality is priority. Each OREE laser machine will be tested by 24 items. After all the 24 items passed, then our QC do 48~72 hours reliability test. Our laser machines has gained CE.
