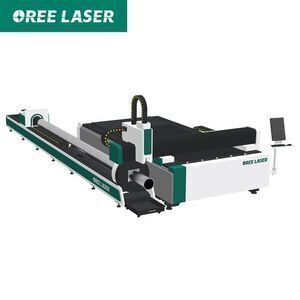

High Efficiency Metal Tube Pipe Steel Sheet CNC Fiber Laser Cutting Machine

Product details
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Key Selling Points:Competitive Price;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Certification:CE, ISO, GS, SGS;
Application:Industrial Metal Cutting;Machinery Test Report:Provided;
Package Preview:;Showroom Location:Egypt,United Kingdom,United States,Italy,Philippines,Saudi Arabia,Indonesia,Pakistan,India,Russia,Morocco,Kenya,Chile,UAE,Colombia,Sri Lanka,Romania,Bangladesh,South Africa,Ukraine,Uzbekistan,Tajikistan,Australia;
Product name:Fiber Laser Cutting Machine Tube;Brand Name:Oree laser;
Control system:Cypcut;Weight (KG):5500;
Supply Ability:200 Set/Sets per Month;Condition:New;
Marketing Type:New Product 2020;Cutting Thickness (mm):30;
Warranty:3 years;After-sales Service Provided:Field maintenance and repair service,Video technical support;
Local Service Location:Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Chile,Colombia,Algeria,Sri Lanka,Romania,South Africa,Kazakhstan,Ukraine,Uzbekistan;Place of Origin:Shandong China;
Type:Circular Cutting Machine;Cutting Speed:80m/min;
Packaging Detail:Professional package of fiber laser cutter: 1. Whole film packaging machine; 2. Anti-collision package edge; 3. Fumigation-free plywood wooden box and pallets with iron binding belt.;Cutting material:Metal Stainless Steel Carbon Steel;
Cutting thickness:0-30mm;Video outgoing-inspection:Provided;
Warranty of core components:3 years;Voltage:380V;
Core Components:Motor;Keyword:Fiber Laser Cutting Machine;
Rated Power:25KW;Automation:Automatic;
Year:2021;Material / Metal Processed:Stainless Steel,Carbon Steel,Aluminium Alloy;
Weight:4200KG;Dimension(L*W*H):4550*2300*2000mm;
Port:Qingdao Port; Tianjin port; Shanghai Port;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Color:White-gree;
Related Products
High Efficiency Metal Tube Pipe Steel Sheet CNC Fiber Laser Cutting Machine




Dual-use metal sheet pipe fiber laser cutting machine OR-FT Exchanged platform fiber laser cutting machine OR-E All covered flatable fiber laser cutting mchine OR-P
Product Description






Model
OR-FHT 3015

Working Area
3000*1500mm
  Applicable Materials Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate
  Laser Power 2000W
  Materials Thickness Max 40mm
  Laser source MAX(IPG/RAYCUS/ needs to contact with customer service)
  Laser head
PAYTOOLS/PRECITEC(needs to contact with customer service)
  Dimensions(L*W*H) 4550*2300*2000mm

Weight
4200KG

Repeat Positioning Accuracy
±0.02mm

Accuracy of Positioning
±0.03mm

Max. Movement Speed
140m/min

Max. Cutting Speed
120m/min

Max Acceleration
1.5G

Power Consumption
<10KW

Specified voltage and frequency
380V/50Hz/60Hz/60A(Customizable)



The OR - FHT is an ideal entry level planar laser cutting machine.

Don't need to input the high purchase cost and training cost, laser cutting can be realized.

Yaskawa Servo Moto

1.Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;



2.Rotating speed: high speed performance, general rated speed can reach 2000~3000 rpm;



3.Adaptability: high strong anti-overload capability, load three times the rated torque, suitable for occasions with transient load fluctuations and fast start required

4.Stable: smooth operation at low speed

Software control

Higpositioning accuracy, Long life time.

Laser head Automatic focusing

 quickly change the focusing mirror of different focal lengths, adapt to a variety of power processing, to meet the cutting of different thickness plates.



 quickly and accurately focus work more time-saving and better.

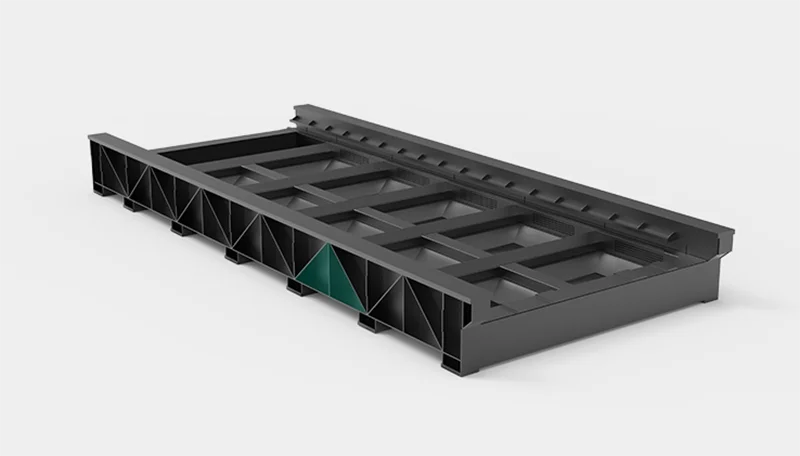

The welding bed

Flake graphite cast iron with a minimum tensile strength of 200 MPa.

Keep the accuracy of the machine tool for a long time, unchanged for 50 years.

Applicable Materials

Widely used in advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc. IndustryClick on the inquiry

Warranty and Service

The after-sales service of OREELASER

1. 12 languages 24 hours Quick Feedback;

2. "Training Video", "Instruction Book", and "Operation Manual" will be offered;

3. Brochures for simple trouble-shootings of the machine is available;

4. Plenty of technical support online is available;

5. Quick Back-up Parts Available & Technical Assistance;

6. Free training service is available.

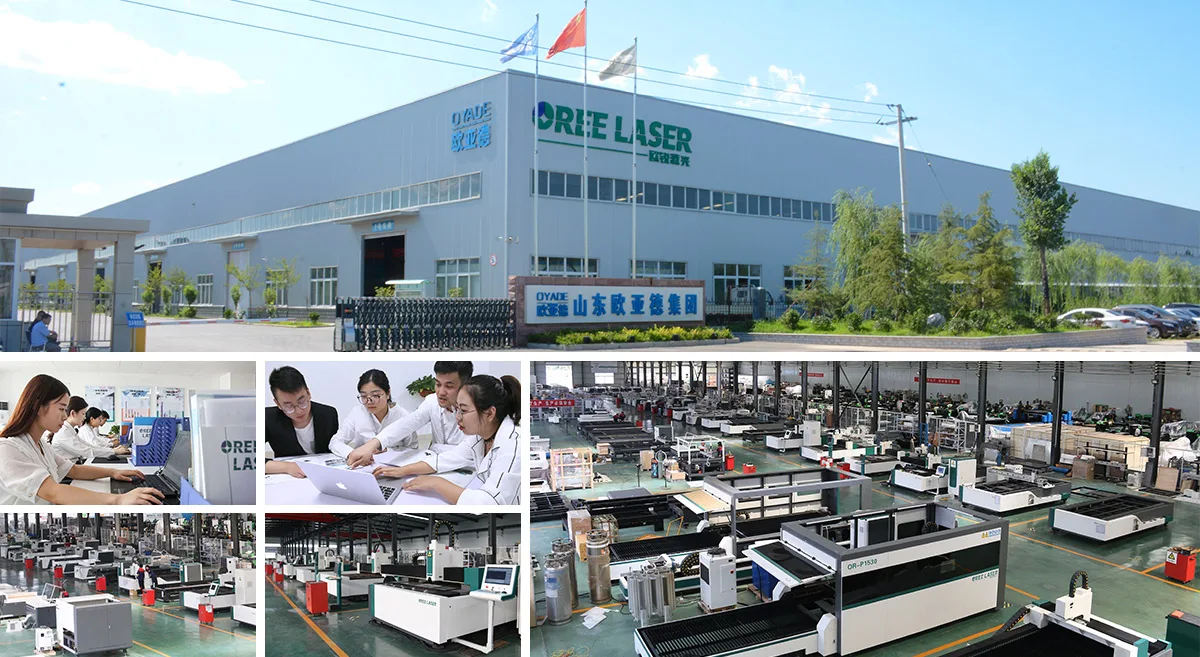

Company& Exhibition



Packaging & Shipping



Professional package of laser cutting machine:

1. Whole film packaging machine;

2. Anti-collision package edge;

3. Fumigation-free plywood wooden box and pallets with iron binding belt.

FAQ

Q:What's the OEM serivce of OREE LASER?

A:1. Customized and OEM orders are welcome if you need;

2. All the OEM services are free, customer only need to provide us with your logo drawing,

function requirements, colors etc;

3. No MOQ required.



Q: What's the QC system or OREE LASER?

A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001 and ISO 14001;
5. Certified according to CE standards.
