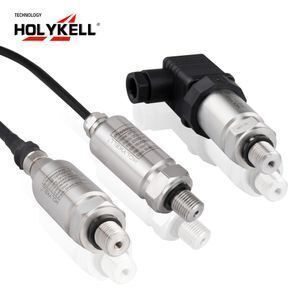

Holykell OEM HPT200 CE ATEX approved piezoelectric 0-5V oil Pressure Transducer

Supplier: Holykell Technology Company Limited
Region: Hunan, China
Contact: Ms Bonnie Liu
Price: $49.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Temp Compensation:	-20℃-120℃;	Place of Origin:	Hunan China (Mainland);
Port:	all prots of china;	Brand Name:	Holykell;
Product Name:	oil Pressure Transducer;	Pressure range:	0-10Bar.....1000 Bar Optional (sputtered film);
Model Number:	HPT200 Pressure Transducer;	Application:	Water Oil Air Pressure Measurement, pressure transducer;
Burst pressure:	300% F.S.;	Working Temp:	-50℃-120℃;
Output:	4-20mA(2 Wires)/0-5V/0-10V/0.5-4.5V RS485;	Accuracy:	≤ ±1.0%F.S.;≤ ±0.5%F.S.;≤ ±0.25%F.S (customized);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Power supply:	12-36V DC/5VDC;
Supply Ability:	300000 Piece/Pieces per Year Oil Pressure Transducer;	Packaging Detail:	standard export packing, no damage to product for CE ATEX approved piezoelectric 0-5V oil Pressure Transducer;
Type:	Gauge pressure; Differential pressure; Negative pressure optional.;

HPT200 CE ATEX approved piezoelectric 0-5V oil Pressure Transducer

Specifications

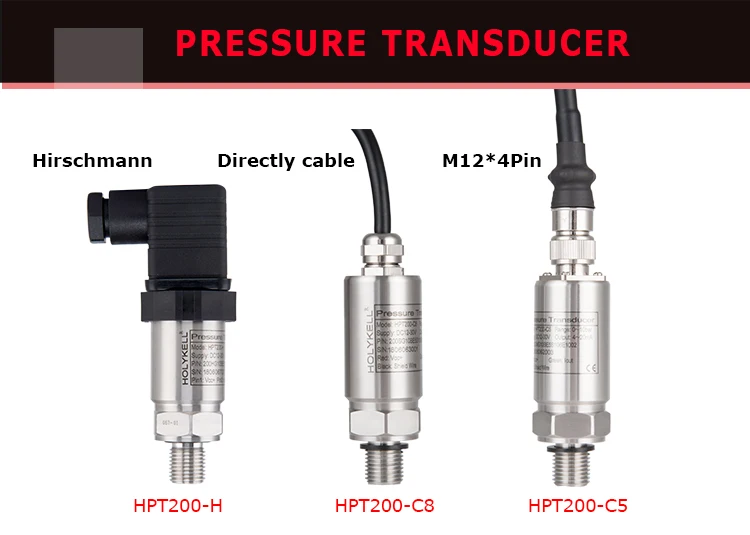

HPT200-H HPT200 CE and ATEX approved 4-20 mA 0-5V Pressure Transducer with temperature output for water monitoring for oil pressure use high quality imported piezoresistive pressure sensor (or flush ceramic sensor) with isolated stainless steel diaphragm as signal sensing element, through automatic testing, laser trimming compensating zero and sensitivity in wider temperature range the amplifier circuit is in stainless steel housing, transforming sensor signal into standard output signal. Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable, having excellent flexibility, sensitivity and diversity. The product is widely used for pressure measure and control of petroleum, chemi-industry, metallurgy, power station and hydrology, etc.

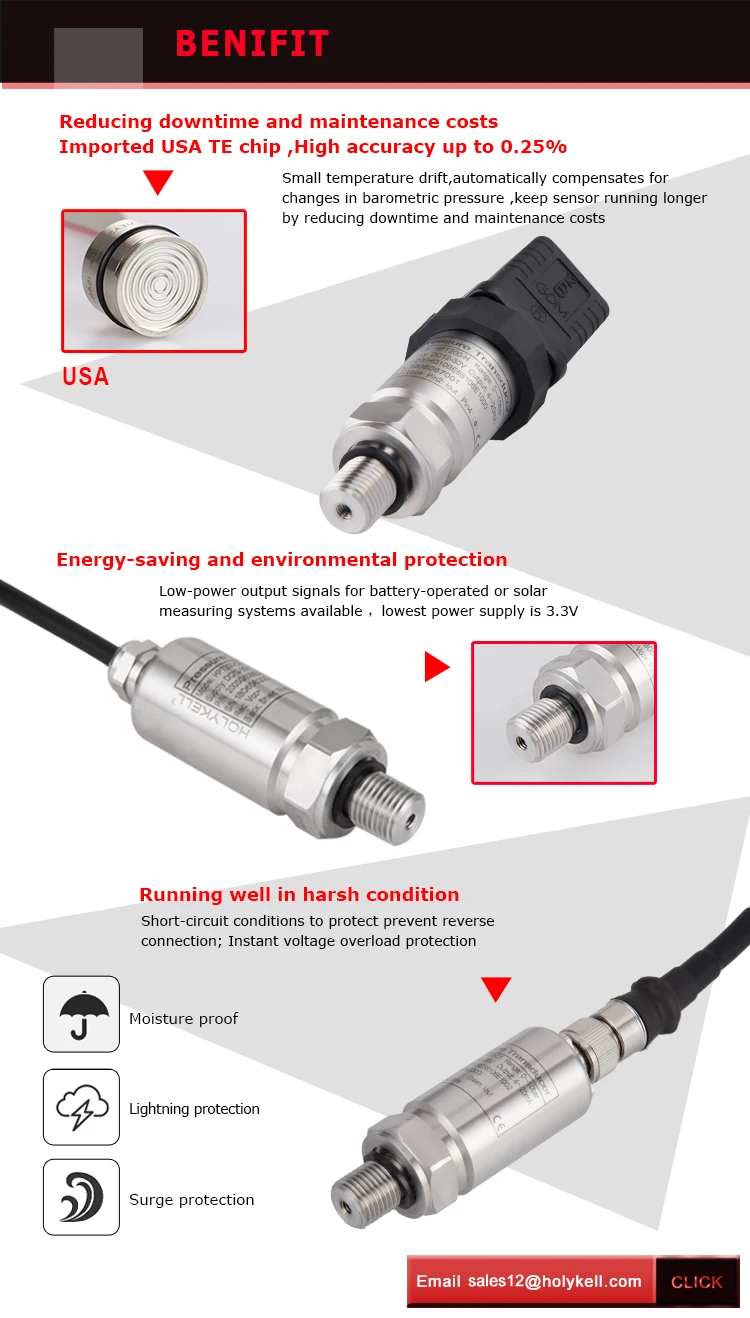

Benefit from Holykell Water Pressure Transmitter?

Feature	Advantage	Benefit
It offers process connection ,electronic connection range accuracy options	all the standard industry output signals, the most common international process connections and a wide number of electrical connections	it can be suited to the widest range of applications.
Lightning surge reverse protection	short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection	running reliable and long-lasting in harsh condition
The vent with a filter	breath atmosphere and protect moisture enter transducer	without maintenance, even in the most humid environments.
USA TE Chip,Digital PCB board	High accuracy 0.25%,Small temperature drift,automatically compensates for changes in barometric pressure	Stability,keep sensor running longer by reducing downtime and maintenance costs
Lowe-Power output signals	Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V	energy-saving and environmental protection
316L diaphragm	Anti-corrision ,wear resistance , shock resistance	make it suitable for immersion for a long time in most industrial liquids
Suction water filter design	8 pore design Anti-blocking Prevent plugging rate increases more than 80%	Simple maintenance ,easy to cleaning and installation

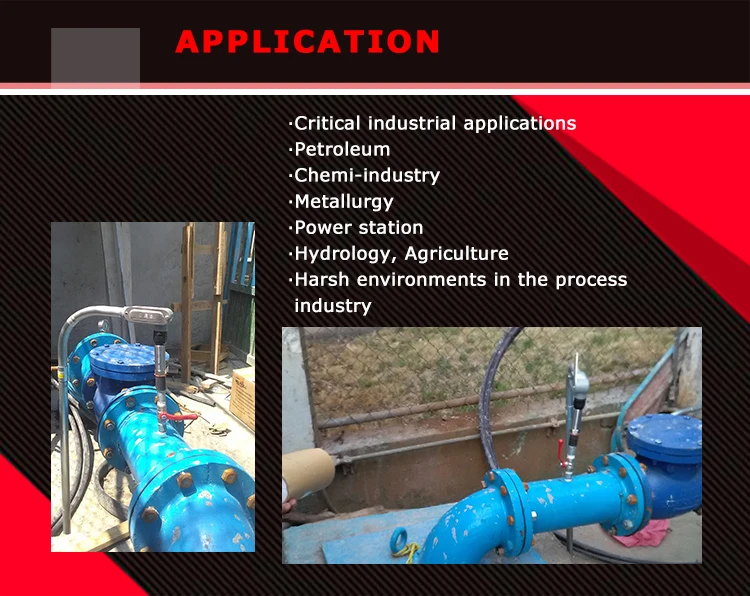

Application

Critical industrial applications

Petroleum

Chemi-industry

Metallurgy

Power station

Hydrology, Agriculture

Harsh environments in the process industry

Company Information

Holykell Technology Co.,Ltd is a high-tech company integrating R&D, production and distribution. The company has a purification plant of 5000m2, an annual output of 1 million production line of pressure sensor, transmitter and intelligent digital instrumentation. Now the company has more than 120,000 customers worldwide, the products have been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries. Holykell can provide a cost effective solution for pressure monitoring for a variety of applications. Welcome to your inquiry.

Factory Experience :

More than 17 years of experience in Level sensor industry.
Large stock :

within 24 hours delivery for standard specifications.
Supply Ability :

At least 50000 pcs per Month.
Supply Area :

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa

Certificate :

CE, ROSH, ATEX Audited by TÜV Rheinland and ECM FCC

OEM/ODM : Accept.

Our Services

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.

♦ Trade Assurance: 558 Transactions, total amount is above $ USD 38,0000+ (2018.01.01-2018.06.01)

♦ Near 50% buyers found pressure transmitter and contact us, Holykell in ALIBABA

♦ View Holykell 6000+, Send inquiry 300+, Quote 400+ (half of 2018 years)

OEM / ODM services

To meet the user diversified requirement, Holykell have established a set of customer service and technical support system with OEM / ODM order as the center, and responded and Handle the customer's requirements in a timely manner to ensure accurate delivery time and product quality.

Order services

Fastest reply:Professional sales engineers 30mins 7/24 online services

Payment terms:T/T ,Western union, Paypal, Credit Card, L/C, Escrow others

Fast delivery: within 24 hours release the cargo (normal spec.), Customized 7-12 days after payment .

MAINTENANCE & AFTER-SALES SERVICES

Customer Feedback:

One Sales engineers and One technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.

Warranty period: 18 months

Product life-long maintenance:

Holykell can provide you with the maintenance of the whole life of the sensors

FAQ

1.Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page. Or contact us directly. You will get the reply within 12hours, and the quotation will send to you according to your requirements.

2. Q: What's the delivery time for HPT200 series? A: According to the specification and quantity of your order, generally 10 days for normal standard products

within 10pcs.

3 Q: What's the advantage of your products HPT200?

A: Filling plastic sealed, adjustable potentiometer, imports of silicon, two mine structure,anti-lightning surge
4000V, withstand voltage of insulation 500V. Appearance and quality can be equated with the one of big

foreign imported products.

4 Q:Are you manufacturer or trading company?

A: We are manufacturer with 16 years of experience.Our plant add is 2/F, Block 1, No. 100, Luyun Road, High-Tech Development Zone, Changsha, Hunan, China (Mainland). Welcome to visit our company.

5 Q: Do you have overseas distributor?

A: Yes,we have distributors in United States, Israel, Austrilia and Iran etc.

6 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.

7 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.

8 Q: What is the warranty of your products?

A: Normal is 18 months.

9 Q: Do you have products with HART or RS485 signals?

A: Yes,we have.

10 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
