Mini Size High Resolution 640x512 Thermal Imaging Camera Module For Temperature Measurement with Excellent Quality Image

Click here to contact
Product details
Place of Origin:Hubei China;Brand Name:Guide;
Analog Video:PAL/NTSC;Pixel Pitch:12μm;
Temperature Range:-20°C~150°C, 100°C~550°C;Type:Wafer Level Package;
Packaging Detail:Standard Export Package;Model Number:COIN612R;
Payment Terms:Western Union,T/T,MoneyGram;SDK:Support ARM/Windows/Linux SDK, Full Screen Thermography;
Lens Type:WLO;Port:Wuhan;
Supply Ability:10000 Set/Sets per Month;Frame Rate:25Hz/30Hz/50Hz/60Hz;
Resolution:640*512;Start-up Time:<3s;
NETD:≤40mK;
Products Description
Mini Size High Resolution 640x512 Thermal Imaging Camera Module For Temperature Measurement with Excellent Quality Image

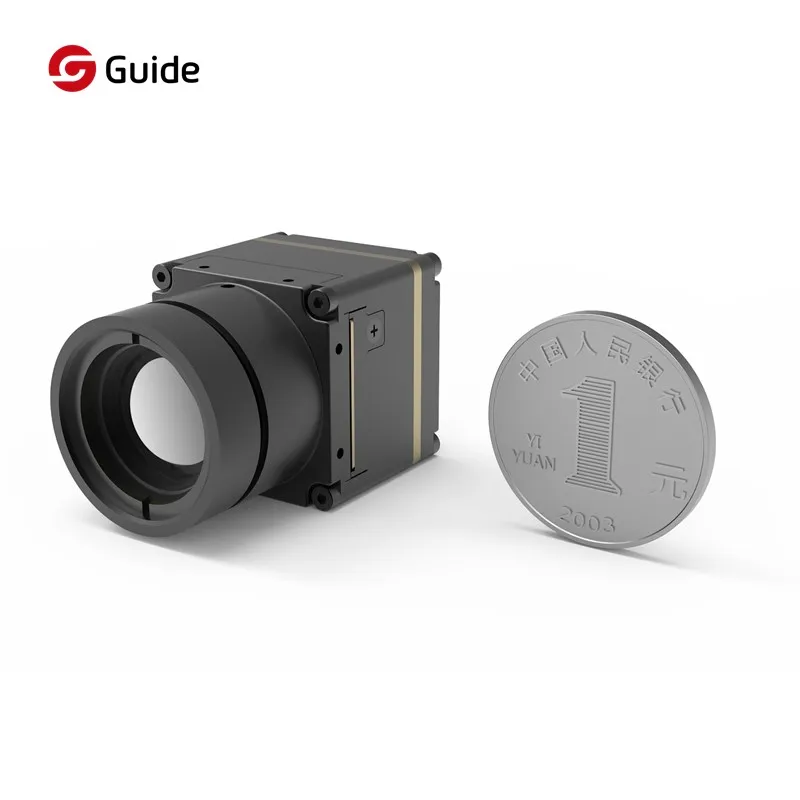

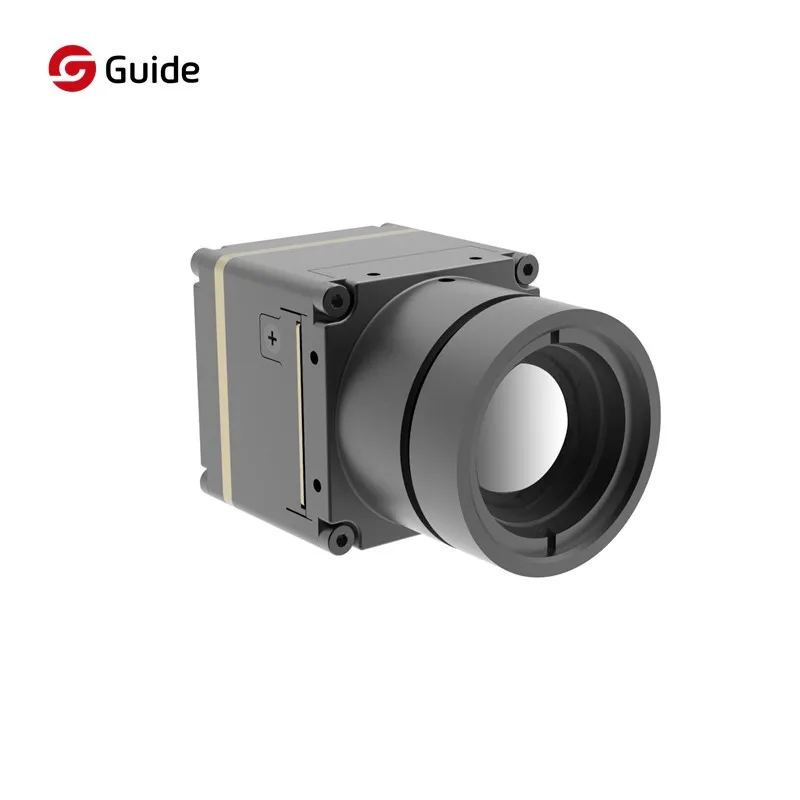

COIN612 is one of the COIN series infrared modules developed by Guide Group. It integrates 640x512@12μm wafer level package (WLP) infrared detector, high performance signal processing circuit and image processing algorithm. The COIN612 infrared module features in sharp and crisp image presentation, compact size and low cost.
It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.

Its lightweight and flexible features with various industry standard interfaces make it beneficial to OEM customers for secondary development and integration in all kinds of thermal imagers.

Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for COIN series to be integrated into more terminal products and greatly reduces the cost for customers.
Product Features

- Mini Size: 25.4x25.4x14.1mm
- Light Weight
- NETD<40mk
- High Quality Image
- Low Power Consumption
- Rapid Development & Integration
Application
Product Paramenters
Model
COIN612/R
IR Detector Performance
Resolution
640x512
Pixel Pitch
12μm
Spectral Range
8~14μm
NETD
<40mk
Image Processing
Frame Rate
25Hz/30Hz/50Hz/60Hz
Start-up Time
<3s
Analog Video
PAL/NTSC
Digital Video
RAW/YUV/BT656
Dimming Mode
Linear/Histogram/Mixed
Digital Zoom
1~8X Continual Zoom, Step Size 1/8
Image Display
Black Hot/White Hot/Pseudo Color
Image Direction
Horizontally
Image Algorithm
NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface
30pin_HRS
Communication Mode
RS232-TTL, 115200bps
Supply Voltage
3.5~5.5V
Typical Power Consumption
<0.75W
Temperature Measurement
Operating Temperature Range
-10°C~50°C
Temperature Measurement Range
-20°C~150°C, 100°C~550°C
Temperature Accuracy
±3°C or ±3% (Take the Maximum Value)
SDK
Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm)
25.4x25.4x14.1 (With Shutter)
Weight
Module: 13g±0.5g (With Shutter)
Module+8.8mm Lens: 22.4g±0.5g
Module+13mm Lens: 41g±0.5g
Module+19mm Lens: 43.9g±0.5g
Environmental Adaptation
Operation Temperature
-40°C ~ +70°C
Storage Temperature
-45°C ~ +85°C
Humidity
5%~95%, Non-condensing
Vibration
Random Vibration 5.35grms, 3 Axis
Shock
Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens
Fixed Focus Athermal: 8.8mm/13mm/19mm
Recommend Products
Company Profile
Guide Sensmart Tech Co., Ltd

Guide Sensmart is the subsidiary of Guide Infrared (SZ:002414), the world leading infrared thermal imaging systems provider.Leveraging the company’s 20 years' experience in the infrared industry and mass production capacity, Guide Sensmart develops affordable infrared thermal imaging cameras and solutions. We have two subsidiaries in Germany and Belgium which are dedicated to provide more effective service and technical support to the overseas clients.

Intending to make infrared technology more friendly and accessible to the public, Guide Sensmart focuses on making everyday use products designed to make electric power inspection; facilities maintenance; industrial automation; fever screening; security monitoring; law enforcement; search and rescue, as well as outdoor night vision.

Why Choose us
Professional
We are the NO.1 biggest manufacturer of infrared thermal imaging products in China , with 20 Years' experience in infrared thermal imaging industry.
Cost-effective
Guide;s self-developed infrared cores and complete chain of infrared thermal products realize the low-cost and mass production capacity.
Market Share
NO. 2 market share in the global commercial infrared thermal imaging products markets according to Yole report.
Extended Warranty
Most of our products provide the
1+1 years warranty policy.
Verified Supplier
Guide Sensmart is officially verified by alibaba.com
Reliable Transaction
Alibaba Trade Assurance payment terms makes the business deal safer faster and more reliable.
Exhibition
FAQ
1. Are you the manufacturer or trading company?
A: We, Guide Sensmart, design, develop, manufacture, and distribute the infrared-related products around the world.We are NO.1 manufacturer of commercial thermal imaging devices in China with an annual production capacity of over 500,000 units.

2. Do you have any certificates?
A: Our company passed ISO 9001 quality system.
All our products passed CE, RoHS, FCC verification and more.
Furthermore, we have over 216 patents so far.

3. What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity,for large quantity please contact us.

4. What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.

5. What is the shipping method?
A: Usually shipped by express (DHL, FEDEX UPS and etc).

6. How can I place order?
A: You can contact us by send inquiry about your order details, or place order online.

7. How long is the warranty?
A: Most of our products provide the 1+1 years warranty policy.

8. Do you accept OEM or ODM?
A: Yes, it depends on the quantity.

For other questions we will reply you as soon as possible while receiving your inquiry.
