Clear Image Quality 640x512@12um Infrared Thermal Camera Module For Industrial Inspections

Click here to contact
Product details
Pixel Pitch:12μm;Temperature Range:-20°C ~ +550°C;
Type:Wafer Level Package;Analog Video:PAL/NTSC;
Packaging Detail:Standard Export Package;Frame Rate:25Hz/30Hz;
Place of Origin:Hubei China;Brand Name:Guide;
Supply Ability:10000 Set/Sets per Month;Model Number:PLUG612R;
Start-up Time:<15s;Port:Wuhan;
Payment Terms:Western Union,T/T,MoneyGram;Dimension (mm):44.5x44.5x36.6;
NETD:<30mk;Resolution:640*512;
Products Description
Clear Image Quality 640x512@12um Infrared Thermal Camera Module For Industrial Inspections

PLUG612R is one of the PLUG series uncooled infrared modules developed by Guide Group. It consists of 640x512@12μm uncooled infrared detector, full series of optical components, professional signal processing circuit and image
processing algorithm.

PLUG612R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography andpresent a clear thermal image.

We are committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.
Product Features

- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability
Application
Product Paramenters
Model
PLUG612R
IR Detector Performance
Resolution
640x512
Pixel Pitch
12μm
Spectral Range
8~14μm
NETD
<30mk
Image Processing
Frame Rate
25Hz/30Hz
Start-up Time
<10s
Analog Video
PAL/NTSC
Digital Video
Y16/YUV/BT656/LVDS
Extension Component
USB/Camerlink
Dimming Mode
Linear/Histogram/Mixed
Digital Zoom
1~8X Continual Zoom, Step Size 1/8
Image Display
Black Hot/White Hot/Pseudo Color
Image Direction
Horizontally/Vertically/Diagonally Flip
Image Algorithm
NUC/AGC/IDE
Electrical Specification
Standard External Interface
50pin_HRS Interface
Communication Mode
RS232-TTL, 115200bps
Supply Voltage
4~6V
Temperature Measurement
Operating Temperature Range
-10°C~50°C
Temperature Range
-20°C~150°C, 100°C~550°C
Temperature Accuracy
±2°C or ±2% (Take the Maximum Value)
SDK
ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm)
44.5x44.5x36.6
Weight
≤85g
Environmental Adaptation
Operation Temperature
-40°C ~ +70°C
Storage Temperature
-45°C ~ +85°C
Humidity
5%~95%, Non-condensing
Vibration
Random Vibration 5.35grms, 3 Axis
Shock
Half-sine Wave, 40g/11ms, 3 Axis 6 Direction

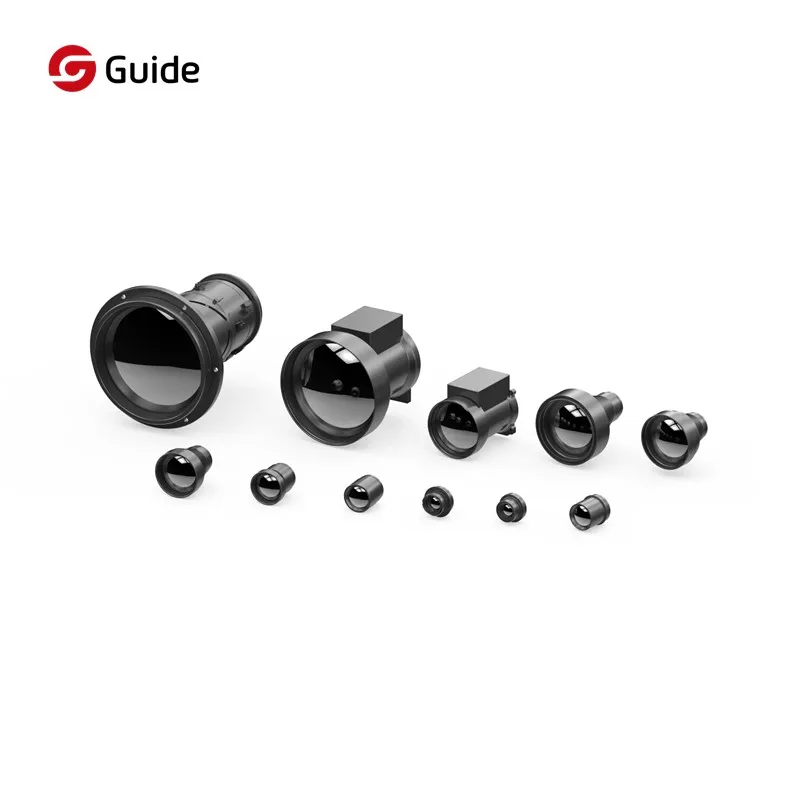

Optics
Optional Lens
Fixed Focus Athermal: 13mm/19mm/24mm
