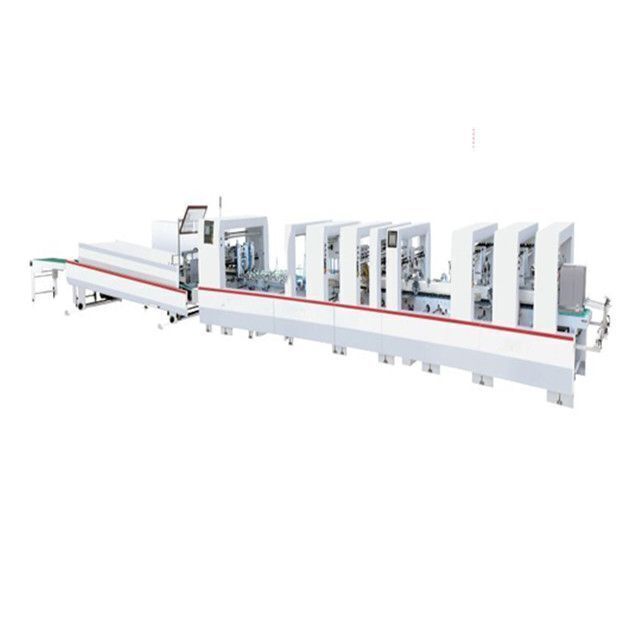

Automatic High Speed Folder Gluer Machine With Pre-Fold Bottom Crash Folding Gluing Boxes

Product details
Driven Type:Electric;Packaging Type:Cartons,case;
Port:SHANGHAI;Packaging Material:Paper;
Warranty:1 Year;Certification:CE;
Packaging Detail:W/C;Application:Food,Beverage,Commodity,Chemical,Machinery & Hardware,APPAREL;
Brand Name:CHAMPION;Place of Origin:CHINA;
Payment Terms:L/C,T/T;Applicable Industries:Printing Shops;
Supply Ability:10 Unit/Units per Month;Package Preview:;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Voltage:380;
Automatic Grade:Automatic;Condition:New;
Type:Gluing Machine;
Product Description

Dear sir:


Pls find our specification and payment term as below :


Payment

TT / LC

Delivery

60-120 days

if there is any question , please feel free to contact us.

FEEDER SECTION

  • Side plates & feed gate with pneumatic hoisting device for easy operation.
  • Sheet holding sticks with vibration system for smooth and consistent feeding.
  • Independent A/C motor with variable speed adjustment for even distance of sheets.



PRE-FOLDING SECTION

  • Tow-carrier-belt structure, Pre-folding device for left 180º and right 135º, effectively perform the 1st & 3rd folding line of the products, make auto filling easier.
  • Segmented upper-carrier-belt with special design, no need for belt tension adjustment, make adjustments flexibly and effectively.
  • Special design for upper-carrier-belt to prevent damage on elastic press foot while sheets blocking up caused by improper operation.

BOTTOM LOCK SECTION

  • Three-carrier-belt structure and segmented upper-carrier-belt, same function with pre-folding section, suitable for different boxes production.
  • Easy install with bottom lock accessories, more friendly for operation.
  • Modular design for bottom lock accessories, easier for adjustment.
  • Equip with two mechanical upper gluing device (left and right), Special design avoids glue splashing at high speed production and easy removal for cleaning and maintenance.

FOLDING SECTION

  • Equip with two mechanical lower gluing device (left and right), Special design avoids glue splashing at high speed production and easy removal for cleaning and maintenance.
  • Special telescopically design for outer-fold-belt, adjustable position for different products, no need for belt tension adjustment with less adjustment time.
  • Special blocking belt structure of folding belt, reduces wear, increases belt life.
  • Special pressing wheel structure of folding belt, easier for adjustment.

TROMBONE SECTION

  • High speed counting kicker for easy counting productivity.
  • Upper and lower belts are adjustable telescopically, easy operation.

CONVEYOR SECTION

  • Lengthened conveyor structure for more firmly glued on products.
  • Extra sponge belt for giving better pressing at indentation area of box stacks.
  • Pneumatically pressure conveyor, easy adjustment and give better glued effect.
  • Synchronization with main machine under auto mode, to increase stability of box stacks.






Sheet type200-450g cardboard

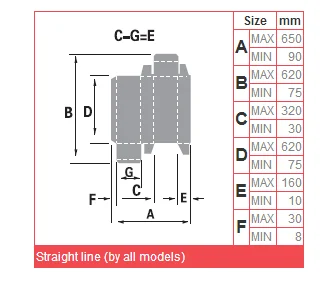

Box typeStraight line / Double wall / Crash-lock bottom
Max. speedMax. 300m / min
Glue typewater base glue
Max. sheet width650mm
Power required11.7Kw / AC380V / 50HZ
Machine weight5500Kg



 Options:

  • Feeding Suction Device
  • UV Grinder
  • Plasma Equipment for OPP Filmed Box
  • CCD Monitor System
  • CD Box Device
  • Special Box Device
  • Cold or Hot Gluing Gun System
