Fully Automatic and High Speed Vertical for Laminating Machine

Product Description

Introduction

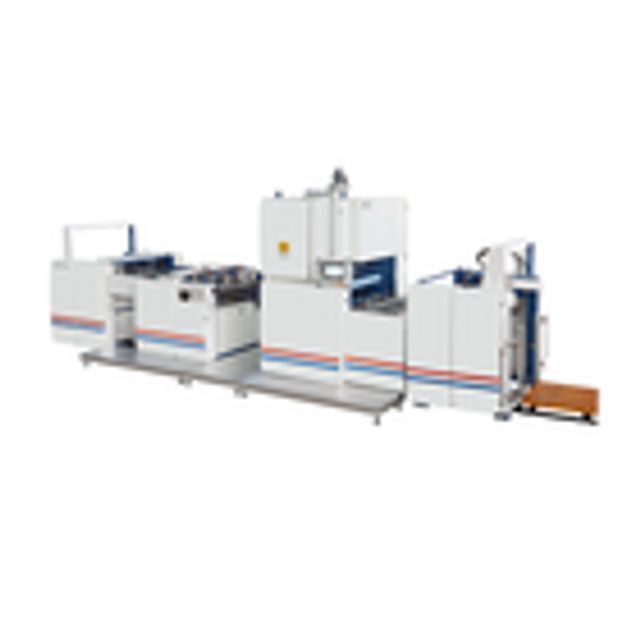

CLFM-1100C fully automatic vertical lamination machine is designed for waterbased glue and thermal lamination multi-functions.
Features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, touch screen easy to operate.
Configuration & Functions:
1. Automatic High Speed Feeder: Adopt high speed pneumatic offset feeder, speed up to 100m/min. Pre-stacking system can realize non-stop feeding, obviously improving work efficiency.
2. High Accuracy Lap Control: Servo-controlled lap within ±2mm, synchronizes with feeder, high accuracy front lay and pnuematic side lay regulator ensure accurate and stable position.
3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper overlap.
4. Drying And Heating System:The 800mm diameter large heating roller equipped with Electromagnetic Heating Device, at the same time supported with Hot Air Cycle System, can realize high speed booting and heating in 5~10 minutes, 2 times than traditional oil heating device meanwhile save much power consumption.
5. Automatic Hydraulic System: The hydraulic system automatically provides stable and large pressure to ensure high quality of lamination.
6. Man-machine Interface System:Equipped with 10 inch color touch screen, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.
7. Air Shaft and Tension Control System:Adopt air shaft, easy to load film, accurate film position by the graduation of the air shaft. At the same time the intelligent tention system easy to control the tention of film, increase laminating performance.
8. High Accurate Slitting System:Equipped with the latest technology hot knife cutting system in the industry, assisted with dics knife, which can quickly and perfectly cut all kinds of films such as PET, PVC, BOPP, aluminized film and so on.
9. Anti-Curvature System: Adopt corrugrated delivery and anti-curvature system, especially designed for thin paper, avoid paper curvature.
10. Automatic Stacker:Equipped with IR sensor, automatically count the sheets. Three-direction high speed pneumatic stacker can collect the sheets automatically and flat without stopping.

Specification

Packing & Delivery

Company Profile

ASL is a leading manufacturer and supplier of l Print Finishing & Packaging Equipment in China, we established in 2004,most of staffs have more than 6 years experience in this business field We have our own production facilities in SHANGHAI city where unique graphical devices are produced following CE standard and European design, the plant includes a modern designing center ,CNC and assembly line, manufactured with strict quality control system. Meantime , we also start industry packaging products in 2006. and may supply series of products included auto die cutter , auto case maker, auto folder gluer ,sheet to sheet laminator, paper bag making machine, etc. Now a network of distributors in 18 countries included branch company in DUBAI and INDIA are benefit from our unique and cost-effective products. As a innovator we are planning to bring out online paper-handling and uv varnishing specialised installations in the future,believe it will create more and more opportunities for our cooperators.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2004,sell to Mid East(00.00%),Southeast Asia(00.00%),South America(00.00%),Eastern Europe(00.00%),Africa(00.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Printing Finishing & Packaging Equipment

4. why should you buy from us not from other suppliers?
We are specializing in Exporting & Manufacture kinds of post printing and packaging equipment since 2004 and become the No.1 supplier for Printing & Packaging equipment in CHINA. pls contact our office in DUBAI ,INDIA, MEXICO,VIETNAM ,INDONESIA .BRASIL .

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Arabic,French
