Hot New Welding Machine MIG MMA TIG With LED Display

Supplier: Taizhou Lemin Welding Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jack Ye
Price: $230.00 / 1 - 99 pieces
$205.00 / 100 - 299 pieces
$195.00 / >=300 pieces
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Input voltage:	220V;
Warranty:	1 YEAR;	Usage:	MIG Semi-automatic Welding Machines;
Wire Feeding Speed:	15m/min;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	Welding Machine Mig Welder Carbon Max Duty Metal Steel Training Power Technical Parts Dimensions packed in a honeycomb box;	No-load Voltage:	60V;
Dimension (L x W x H):	520320400mm;	Weight:	18kg;
Model Number:	XTRAMIG-200 SYN;	Min Material Thickness:	0.6mm;
Feature2:	Cost Performace;	Welding gas pressure:	available;
Feature1:	Portable;	Certification:	CE;
Package Preview:	;	Max Wire Diameter:	1.2mm;
Supply Ability:	5000 Piece/Pieces per Month;	Phase:	220V;
Port:	NingBo;	Welding rod:	0.6-1.2mm;
Max Material Thickness:	1.2mm;

Product Paramenters

Product Model:	XTRAMIG-200 SYN
Product Description:	IGBT INVERTER MIG-MAG/FLUX/TIG/MMA INVERTER WELDING MACHINE
Rated Input Voltage:	1phase, 230V +/- 15%
Rated input Power:	7.5Kw
Frequency:	50/60Hz
No-load Voltage:	60V
Rated Duty Cycle:	40%
Effenciency:	85%
Class of Insulation:	F
Protection Level:	IP21
Power Plug:	20A
Output Current:	MMA/ARC/STICK	20-200A
		MIG/MAG/FLUX	20-200A
		TIG/ LIFT TIG	20- 200A
Function Support:	HOT START	Available
		ANTI STICK	Available
		ARC FORCE	Available
		FLUX WELDING	Available
		PULSE WELDING	NOT Available
Size & Weight:	Product Dimension	570x280x450mm
		Poduct Weight	14Kg
		Package Dimension	620x320x480mm
		Package Weight	18Kg
Accessories:	Standard Accessories：	- 1x MB15AK MIG TROCH with 3m cable
				- 1x 200A Electrode Holder with 2m cable
				- 1x 300A Ground Clamp with 2m cable
				- 1x Welding mask
				- 1x Chipping Hammer/Brush
				- 1x Manul Book
		Optional Accessories：	- WP17V LIFT TIG Torch with 4m cable.
		Optional Accessories：		- Others
	* NOTE: the optional accessories is required extra cost, if you need them, please inquiry factory before placing order *

Products Description

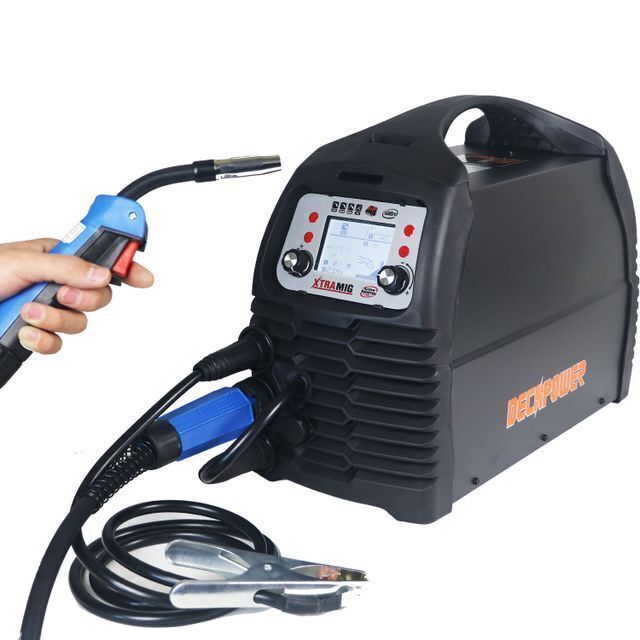

XTRAMIG-200 SYNERGY MULTI-FUNCTION IGBT INVERTER WELDING MACHINE

The latest DECAPOWER multi-function Synergy series microprocessor controlled inverter welding machine can satisfy your demands totally ! ALL IN ONE: GAS MIG/MAG welding, NO-GAS Flux cored wire welding, Braze MIG welding, Aluminium Wire welding, Copper Wire Welding, Stainless Steel wire welding, SPOTWelding, 2T/4T Welding, ARC Stick welding, DC lift TIG welding.

The quick SYNERGIC regulation of the welding parameters, makes this product easy to use. The intelligent and automatic control of the arc, moment by momment, maintains high welding performance in all working conditions, with different matrials and/or gases.The operator can also inervene manually along the arc length.

Details Images

LCD Visual Operation Interface

XTRAMIG-200 SYN adopt LCD displayer integrated microprocessor control system.

With buttion and knob selection,it can easily and accurately achieve all functions:

1) Operation Mode: SYN-MIG/ MAN-MIG/ MMA/ TIG

2) Material Selection: Fe / Ss / Al / CuSi/ CuAl/ Flux

3) Wire Dia. Selection: 0.6/0.8/0.9/1.2

4) Gas Selection: CO2 / Ar / CO2+Ar

Wire Feeding System

XTRAMIG-200 SYN adopt advanced MCU control wire feeding system. Under SYN mode, the wire feeding speed will be adjusted automatically according to the welding current and voltage.

> The wire feeder is powerful for supporting Max. 5kg wire reel.

> 2 Roller wire feeder guarantee the smooth feeding for stable welding.
