Place of Origin: | Zhejiang China; | Supply Ability: | 10000 Set/Sets per Month; |
Motor Type: | DC MOTOR; | Certification: | CE; |
Key Selling Points: | Easy to Operate; | Type: | IGBT; |
Brand Name: | Decapower; | Rated Output Current: | 120 A; |
Connector: | 9mm; | Rated Duty Cycle @40°C: | 60%; |
Port: | NINGBO; | Warranty: | 1 Year; |

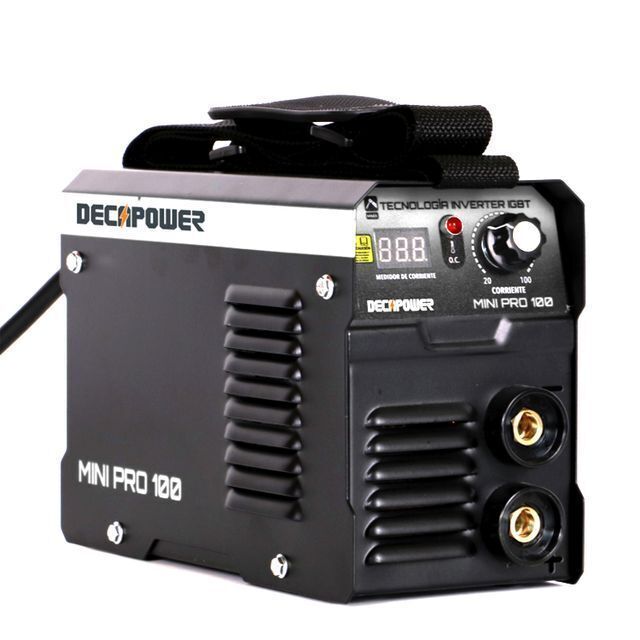

Packaging Detail: | Decapower Stick Welders Inverter IGBT Mini MMA Welder 120A for Home use DIY Portable Arc Welder Packaged in BMC BOX AND COLORCARTON; | Max. Load Power Capacity: | 4.5KVA; |
Payment Terms: | L/C,T/T,online transfer; |
Model | miniMMA-100 | miniMMA-120 | miniMMA-140 |
Type | IGBT | IGBT | IGBT |
Rated input Voltage(V) | 220V | 220V | 220V |
Rated input Frequency(Hz) | 50/60HZ | 50/60HZ | 50/60HZ |
Rated input Power(KVA) | 3.2 | 3.5 | 4.5 |
No-load Voltage(V) | 60V | 60V | 60V |
Output curent range(A) | 20-95A | 20-120A | 20-140A |
Rated Duty cycle | 60% | 60% | 60% |
Efficiency | 85% | 85% | 85% |
Class of Insulation | F | F | F |
Shell protection grade | IP21S | IP21S | IP21S |
Suggested Electrode Max | 2.5mm | 3.2mm | 3.2mm |
Connector | 9mm | 9mm | 9mm |
