RoHS Compliance: | Yes; | Rated Power: | Other; |
Selling Units: | Single item; | Single package size: | 1X1X5 cm; |
Resistance: | 10K, 50K, 100K,10 Ω to < 1 MΩ; | Circuit Type: | Not Applicable; |
Brand: | NTC Thermistor; | Insulaiton Resistance: | 100MΩ (DC 500V); |
D/C: | 2021; | Place of Origin: | Guangdong China; |
Technology: | Ceramic Composition; | Number of Pins: | 2; |
Media Available: | datasheet,Photo; | Resistance Tolerance: | 1%,1%; |
Model Number: | NTC; | Package Type: | Surface Mount; |
Application: | Temperature protection; | Output: | Analog SENSOR; |
Single gross weight: | 0.001 KG; | Temperature Coefficient: | J; |
Brand Name: | SENSTECH; | Number of Terminations: | None; |
Supplier Type: | Original manufacturer; | B constant: | 3435, 3950; |
Power Rating: | 5mW; | Composition: | Ceramic; |
Coating, Housing Type: | Not Applicable; | Type: | Ceramic Composition Resistor; |
Operating Temperature: | -40℃~+250℃,-40℃~+250℃; | Item: | MF58 NTC Thermistor; |
Dissipation Constant: | 1~1.5mW/℃(Min, in air); | | |
Product Description

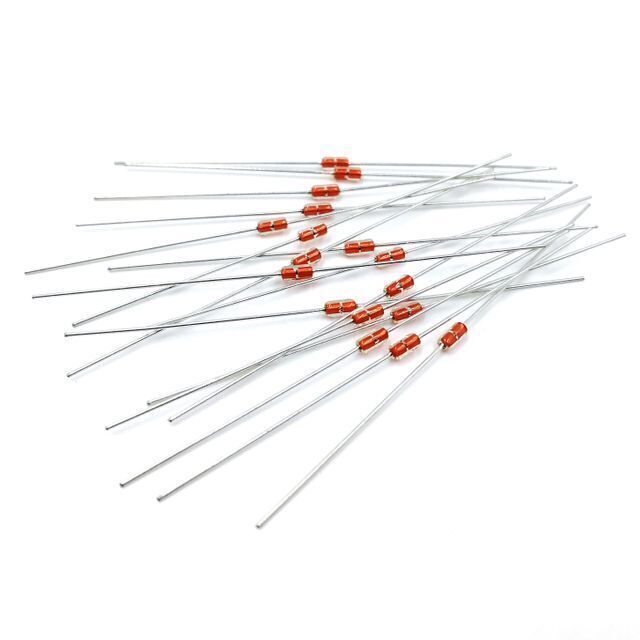

MF58 NTC Thermistor High Precision Glass 10K 50K 100K Ohms
Sensor | 10K, 50K, 100K |
Material | Glass |
Temperature Range | -40℃~+250℃ |
Insulation Resistance | 500V DC, >100MΩ |

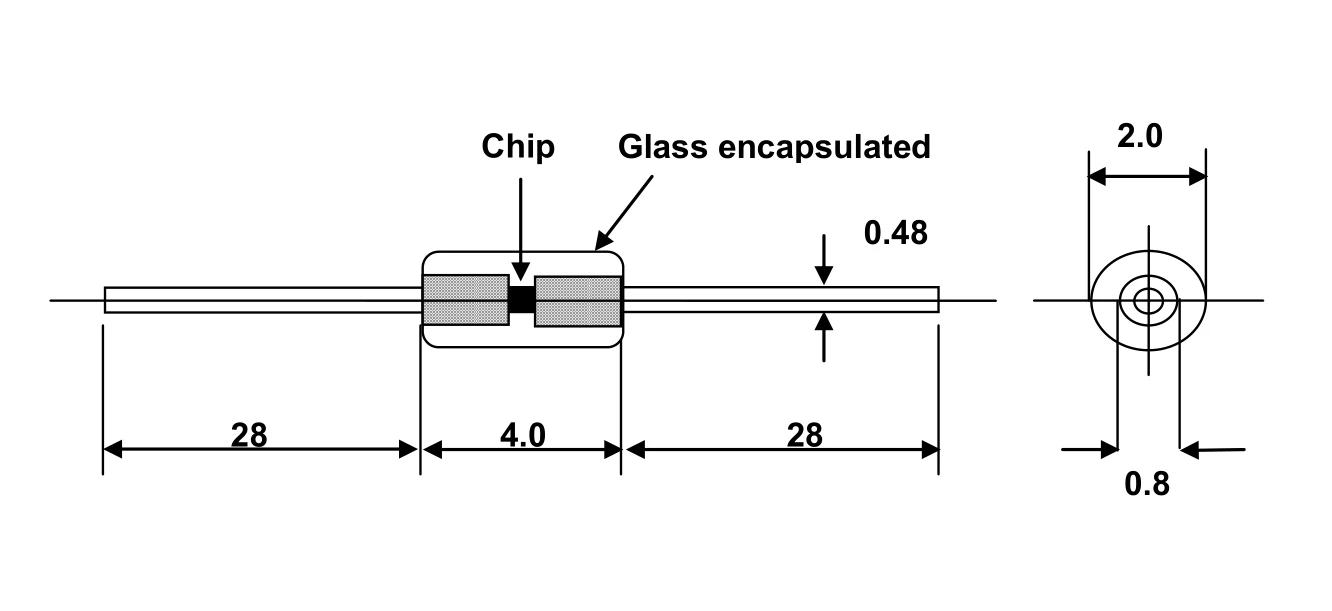

MF58 NTC Thermistor Drawing:
More Thermistor Sensor Spec Options: | | | | |
Resistance @ 25℃ | 1K, 2.252K, 2.8K, 3K, 5K, 10K, 30K, 50K, 100K, 200K, 230K, 1000K, 1388K, etc | | | |
Resistance @ 100℃ | 3.3K, 6.7K, etc | | | |
Resistance @ 200℃ | 1K | | | |
B0/50 | 3892 | | | |
B25/50 | 3375, 3380, 3470, 3950, 3990, 4100, 4200, 4300, 4600, 5121 | | | |
B25/85 | 3435, 3970, 3977, 4066, 4267, | | | |
Related Products
Certificate
Company Introduction
Senstech Ltd, founded in Foshan in 2001, and moved into Shenzhen in 2010
Production Ranges:
--NTC temperature sensors,
--RTD temperature sensors,
--Digital temperature sensors,
--Thermocouple temperature sensors,
--Temperature and humidity sensors
Factory location: Pingshan District, Shenzhen City, Guangdong province China
Scale: 4500 square meters, more than 120 workers
Our Services & Strength
--Experienced R&D and production engineers
--Well organized production line--Complete quality control system
--Responsive and strong support team for ongoing improvement and changes.
--Passion for continued alliance with our clients to help them shape and achieve their future visions and strategies.
Packing&Shipping
DS18B20 temperature sensors are usually packed 10pcs per bag, and then standard paper carton.
Or packed as per customer's requirements.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer of temperature sensors, and we have 18 years production experience.
Q: How long is your lead time?
A: Generally it is 2-3 weeks for ordinary products. For custom-made types, it might be 3 to 4 weeks for initial order.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free if we have in stock, but we do not cover shipping cost.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% T/T in advance. Payment>3000USD, 30% deposit in advance ,balance before shippment.If you have any other question, pls feel free to contact us.
