Factory Outlet PPR Pipe Welding Machine/ PPR Electrofusion Welder

Product details
Insulation resistance:≥1MΩ;Application:PPR, PE, PPC;
Power:600W/ 800W/ 1200W/ 2000W;Showroom Location:None;
Input Voltage:AC 176V-245V;After Warranty Service:Online support;
Applicable Industries:Building Material Shops,Construction works ,Energy & Mining;Warranty of core components:1 Year;
Place of Origin:Henan China;Ambient temperature:-10 ° C - +60 ° C;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Machinery Test Report:Provided;
Voltage range:AC 176V-245V;Condition:New;
Certification:ISO;Dimensions:HI;
frequency:50 ± 5HZ;Brand Name:HESU;
Leakage current:≤4mA;Supply Ability:100 Set/Sets per Month;
After-sales Service Provided:Online support;Port:Shanghai / Qingdao/ Tianjin Port;
Warranty:1 Year;Working temperature:260 ± 5% °C;
Core Components:voltage;Usage:plastic pipe welding;
Local Service Location:None;Key Selling Points:Accurate temperature control;
Current:≤4mA;Video outgoing-inspection:Provided;
Packaging Detail:standard shipping package;Marketing Type:New Product 2020;
Weight (KG):30 KG;
Product Description

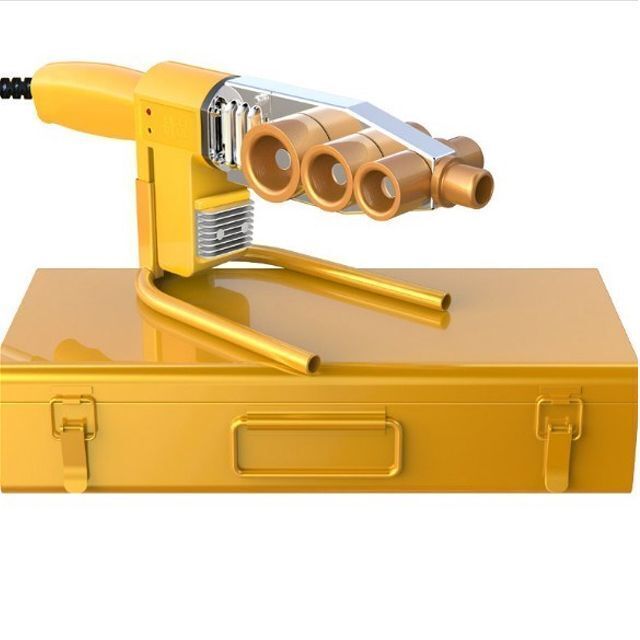

Factory Outlet PPR pipe Welding Machine/ PPR Electrofusion Welder

Product Name
 plastic pipe welding machine
Application
  PPR, PE, PPC connection
Ambient temperature
  -10 ° C - +60 ° C
Voltage range
AC 176V-245V
frequency
 50 ± 5HZ
Working temperature
  260 ± 5% °C
Insulation resistance
  ≥1MΩ
Leakage current
electric  ≤4mA   / manual ≤5mA
nominal outside diameter(mm)
Hot melt depth   (mm)
heat-up time (s)
processing Time(s)
cooling time (min)
20
14
5
4
3
25
16
7
4
3
32
20
8
5
4
40
21
12
6
4
50
22.5
18
6
5
63
24
24
8
6
75
26
30
10
8
90
32
40
10
8
110
38.5
50
15
10
Products Show

The method of use:

Ⅰ: Place the fusion splicer on the base, install the corresponding heating die according to the required pipe specifications, and tighten with the hex. Generally small at the front end is big at the back end.

Ⅱ:Turn on the power (note that the power supply must have a grounding protection wire), the heating indicator light is on, after a few minutes of heating, the heating indicator light is off, the constant temperature indicator light is on, so after two cycles, it indicates that the fusion splicer enters the computer to automatically control the temperature. Status, you can perform the welding operation.

Ⅲ:Cut the pipe vertically with a pipe cutter, and push the pipe and pipe fittings into the die without rotating the screw, and operate according to the following table. Immediately after the heating time, the pipe and the pipe fittings are removed from the die at the same time. The non-rotating straight line is evenly inserted into the desired depth to form a uniform flange at the joint.

Note:

if the operating temperature is lower than 5 ° C, heating time be prolonged by 40%.Special reminder:

1. In order to be safe, the power socket with ground wire must be inserted into the power socket and the power supply is stable. The bottom line is well grounded!

2. The user shall not change the structure of the plug of the power cord without permission. In case of any failure, the user shall start up the power line and repair it by himself.

Hand-Rotating Butt Welding Machine (Y) Type

Full Automatic Multifunction Elector Machine

Hydraulic butt welding machine160/200/250

Our Company


Hesu Piping is a professional manufacturer and exporter of plastic pipes and fittings for more than 10 years,which can provide complete ranges and provide integrated system solutions to all kinds of piping assembly problems for home,industry,agriculture.

Hesu Piping's main products is HDPE,PPR,PVC,UPVC,CPVC,MPVC pipes&fittings,manifold,valves,pipe tools etc. which is over 1000 different types.The products are widely used in water supply,floor heating,  and has good feedback in home and abroad.Currently,Our products has been exported to East Europe,middle east,South Africa,South America, Southeast Asia etc.

Our Certifications


Our Exhibition
Packing & Delivery
Packing Details : pcs/package
Delivery Details : Within 15 days after payment

PACKING

We take care of goods,put fittings into nylon bags then out of carton.For pipes we put end cap ,and packing with nylon bags.

OEM packing :We can make packing according to your order,and plating the carton according you need.
