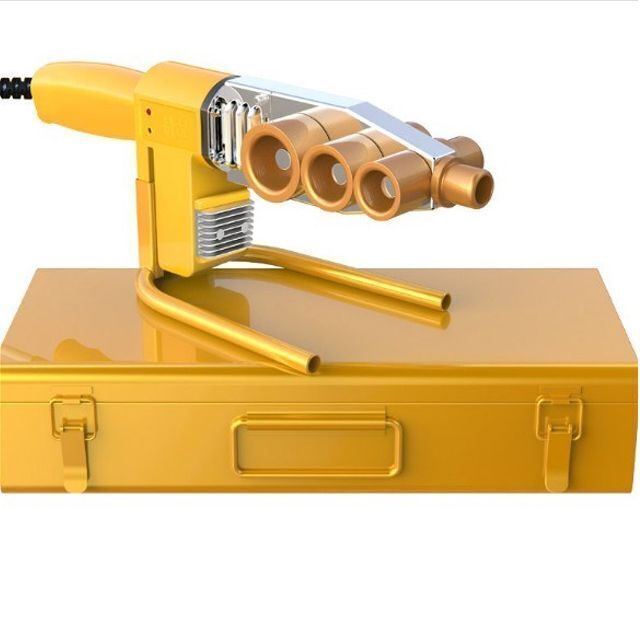

Factory Outlet PPR Pipe Welding Machine
-
Supplier: Henan Hesu Construction Material Co., Ltd. -
Region: Henan, China -
Contact: Ms HESU pipe Industry -
Price: $9.50 /set -
Min. Order: 1 set
| Core Components: | Voltage; | Condition: | New; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Input Voltage: | Customized; |
| Current: | Alternating Current; | Dimensions: | HI; |
| Application: | PPR, PE, PPC connection; | Video outgoing-inspection: | Provided; |
| Ambient temperature: | -10 ° C - +60 ° C; | Brand Name: | HESU; |
| After-sales Service Provided: | Engineers available to service machinery overseas,Online support; | Material: | Aluminum Alloy; |
| Power: | 600W/ 800W/ 1200W/ 2000W; | Leakage current: | ≤4mA; |
| Key Selling Points: | Accurate temperature control; | Place of Origin: | Henan China; |
| Local Service Location: | None; | Function: | butt fusion; |
| Supply Ability: | 100 Set/Sets per Month; | Usage: | plastic pipe welding; |
| Applicable Industries: | Building Material Shops,Construction works ,Energy & Mining; | Warranty: | 1 Year; |
| Marketing Type: | New Product 2020; | Port: | Shanghai / Qingdao/ Tianjin Port; |
| Packaging Detail: | standard shipping package; | Warranty of core components: | 1 Year; |
| frequency: | 50 ± 5HZ; | Machinery Test Report: | Provided; |
| Voltage range: | AC 176V-245V; | Working temperature: | 260 ± 5% °C; |
| After Warranty Service: | Online support; | Weight (KG): | 30 KG; |
| Showroom Location: | None; | Certification: | ISO; |
Electric / Manual ppr plastic pipe welding machine
| nominal outside diameter(mm) | Hot melt depth (mm) | heat-up time (s) | processing Time(s) | cooling time (min) |
| 20 | 14 | 5 | 4 | 3 |
| 25 | 16 | 7 | 4 | 3 |
| 32 | 20 | 8 | 5 | 4 |
| 40 | 21 | 12 | 6 | 4 |
| 50 | 22.5 | 18 | 6 | 5 |
| 63 | 24 | 24 | 8 | 6 |
| 75 | 26 | 30 | 10 | 8 |
| 90 | 32 | 40 | 10 | 8 |
| 110 | 38.5 | 50 | 15 | 10 |
| 160 |
The method of use:
Ⅰ: Place the fusion splicer on the base, install the corresponding heating die according to the required pipe specifications, and tighten with the hex. Generally small at the front end is big at the back end.
Ⅱ:Turn on the power (note that the power supply must have a grounding protection wire), the heating indicator light is on, after a few minutes of heating, the heating indicator light is off, the constant temperature indicator light is on, so after two cycles, it indicates that the fusion splicer enters the computer to automatically control the temperature. Status, you can perform the welding operation.
Ⅲ:Cut the pipe vertically with a pipe cutter, and push the pipe and pipe fittings into the die without rotating the screw, and operate according to the following table. Immediately after the heating time, the pipe and the pipe fittings are removed from the die at the same time. The non-rotating straight line is evenly inserted into the desired depth to form a uniform flange at the joint.
Note:
if the operating temperature is lower than 5 ° C, heating time be prolonged by 40%.Special reminder:
1. In order to be safe, the power socket with ground wire must be inserted into the power socket and the power supply is stable. The bottom line is well grounded!
2. The user shall not change the structure of the plug of the power cord without permission. In case of any failure, the user shall start up the power line and repair it by himself.
Hand-Rotating Butt Welding Machine (Y) Type
Full Automatic Multifunction Elector Machine
Hydraulic butt welding machine315/355
Hesu Piping is a professional manufacturer and exporter of plastic pipes and fittings for more than 10 years,which can provide complete ranges and provide integrated system solutions to all kinds of piping assembly problems for home,industry,agriculture.
Hesu Piping's main products is HDPE,PPR,PVC,UPVC,CPVC,MPVC pipes&fittings,manifold,valves,pipe tools ect. which is over 1000 different types.The products are widely used in water supply,floor heating, and has good feedback in home and abroad.Currently,Our products has been exported to East Europe,middle east,South Africa,South America, Southeast Asia etc.
Delivery Details : Within 15 days after payment
PACKING
We take care of goods,put fittings into nylon bags then out of carton.For pipes we put end cap ,and packing with nylon bags.
OEM packing :We can make packing according to your order,and plating the carton according you need.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
