handheld barcode scanner pdas SENTER Octa Core Handheld Terminal Android 8.1 OS Support NFC/4G LTE

Supplier: Shandong Senter Electronic Co., Ltd.
Region: Shandong, China
Contact: Ms Anthea Liu
Price: $250.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

CPU:	Quad-Core 1.8GHZ;	Certification:	FCC,ce,RECH,RoHS;
Products Status:	Stock;	Weight:	304g;
Camera:	13MP;	Style:	PDA;
Model Number:	S917V2.0;	Single package size:	25X16X18 cm;
Pistol Grip:	4800mAh battery inside with scan button;	Barcode scanner:	1D 2D Optional;
Warranty:	1 Year;	Packaging Detail:	S917V2-HGF-1pcs USB Cable--1pcs Charger--1pcs Carrying Carton--1pcs BOX;Carton;
Screen Size:	5.5 Inch 1920*1080 IPS;	WiFi:	IEEE 802.11b/g/n/ac;
Selling Units:	Single item;	Package Preview:	;
Operating System:	Android 8.1;	Brand Name:	SENTER;
Communication:	Wifi/3G/4G LTE/GPS;	Place of Origin:	Shandong China;
RFID reader:	LF HF UHF OPTIONAL;	Battery:	Li-ion Battery 3.8V 5000mAh;
Product name:	pdas;	Memory Capacity:	64MB;
Single gross weight:	1.5 KG;	Processor Type:	Qual;

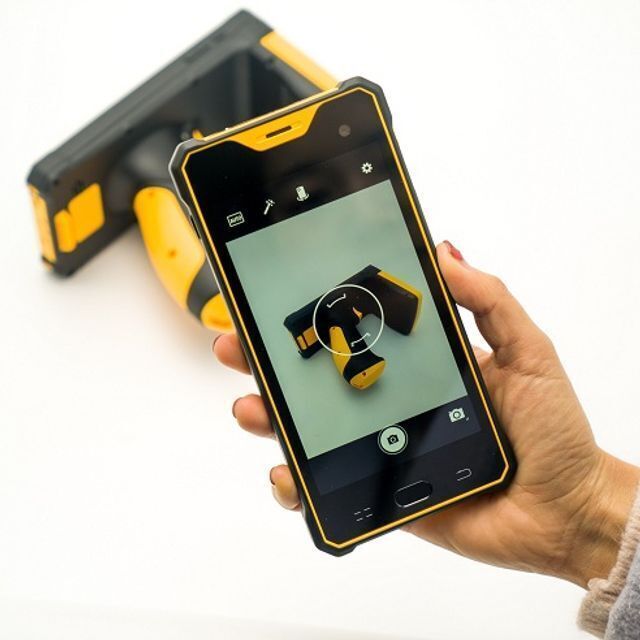

SENTER S917V2 Rugged mobile android phone PDA

Android 8.1 pda rugged mobile phone with 4G comunication ,optional LF/NFC/UHF RFID reader, 1D 2D barcode scanner, Pistol grip

Product Description

Specification list

SENTER S917V2 Rugged mobile android phone PDA
Type	Details	Standard Configuration
Product Form	Type	Rugged Phone
	Device Color	Black & Orange
LCD	Screen Size	5.5 inch LCD
	Resolution	1920*1080 IPS touch screen
Camera	Front	5MP with automatic focus and light function
	Rear	13MP with automatic focus and lighting function
Speaker	Built-in	Support
Mic	Built-in	Support
Indicator	Built-in	A breathing light, a charging indicator.
USB OTG	Built-in	U disk, mouse, keyboard, RS232, 485, support external YUV camera support network card 9500 chip, etc.
Key	Buttons description	Button: One scan button on the side (the bar code and UHF can be used together), one power button, volume plus or minus button. The 3 physical function keys (Back Menu HOME)
Battery	Capacity	3.8V 5000mAh,Support fast charging (QC3.0)
	Endurance	standby current less than 10mA
Appearance	Weight	304g(host), 704g(host+UHF reader+ Pistol grip)
	Size	1708415mm(host)
System Hardware Configuration
Type	Details	Description
CPU	Type	Qualcomm Snapdragon 625 SDM450, 8 core
	Speed	1.84GHz
GPU	Type	Qualcomm® Adreno™ 509 GPU
RAM	DDR3L	4GB(optional 2GB, 3GB )
ROM	Emmc	64GB(optional 16G, 32GB)
SD	Emmc	Max 128GB
Sensor	Built-in	G_sensors, compass, accelerometer and gyroscope, light and distance (two in one)
Interface Configuration
Type	Details	Description
TF slot	Extensive External Memory	IF choose two sim card,can not choose TF card,only choose two from three
SIM card slot	3G/4G communication	SIM card slot ,Nano
USB interface	Extensive External Memory and data transmission	USB 2.0
Earphone Jack	Audio Output	3.5mm standard earphone jack x1
Software Configuration
Type	Details	Description
Operation System	OS version	Android 8.1 os
Network Connections
Type	Details	Descriptions
WIFI	WIFI Module	Support IEEE 802.11a/b/g/n/ac 2.4G/5G
Bluetooth	Built-in	BT4.0 (BLE) class1 transmission distance:10m
3G	Built-in	Support CDMA 1X/EVDO BC0 GSM 850/900/1800/1900 WCDMA B1/B2/B5/B8 TD-SCDMA B34/B39 FDD-LTE B1/B3/B5/B7 TD-LTE B38/B39/B40/B41


4G	Built-in
GPS	Built-in	GPS+BDS+A+GPS+GLONASS
NFC	Built-in	Support 13.56MHZ ,ISO14443A,B, ISO15693 Protocol,Support mifare card,reading distance 0-3cm
Fingerprint	Built-in	Unlock
Standard Accessories
Type	Details	Description
handle belt	handle	handle belt
Power Adaptor	Standard	AC100V ~ 240V,50Hz/60Hz output DC 12V/4A
Additional Optional functions
Data Collection
Type	Details	Description
2D Barcode Scanner	Optional	2D,Newland NLS-EM3296, N3680
Infared Meter	Optional	Working frequency: 37.9K
RFID	UHF RFID (Optional)	Working frequency: 902-928MHz or 865-868 MHz (M2600, Impinj R2000 chip) Reading distance: no more than 6m
	LF RFID (Optional)	Working frequency: 125k/134.2KHz Reading distance: 0-10cm

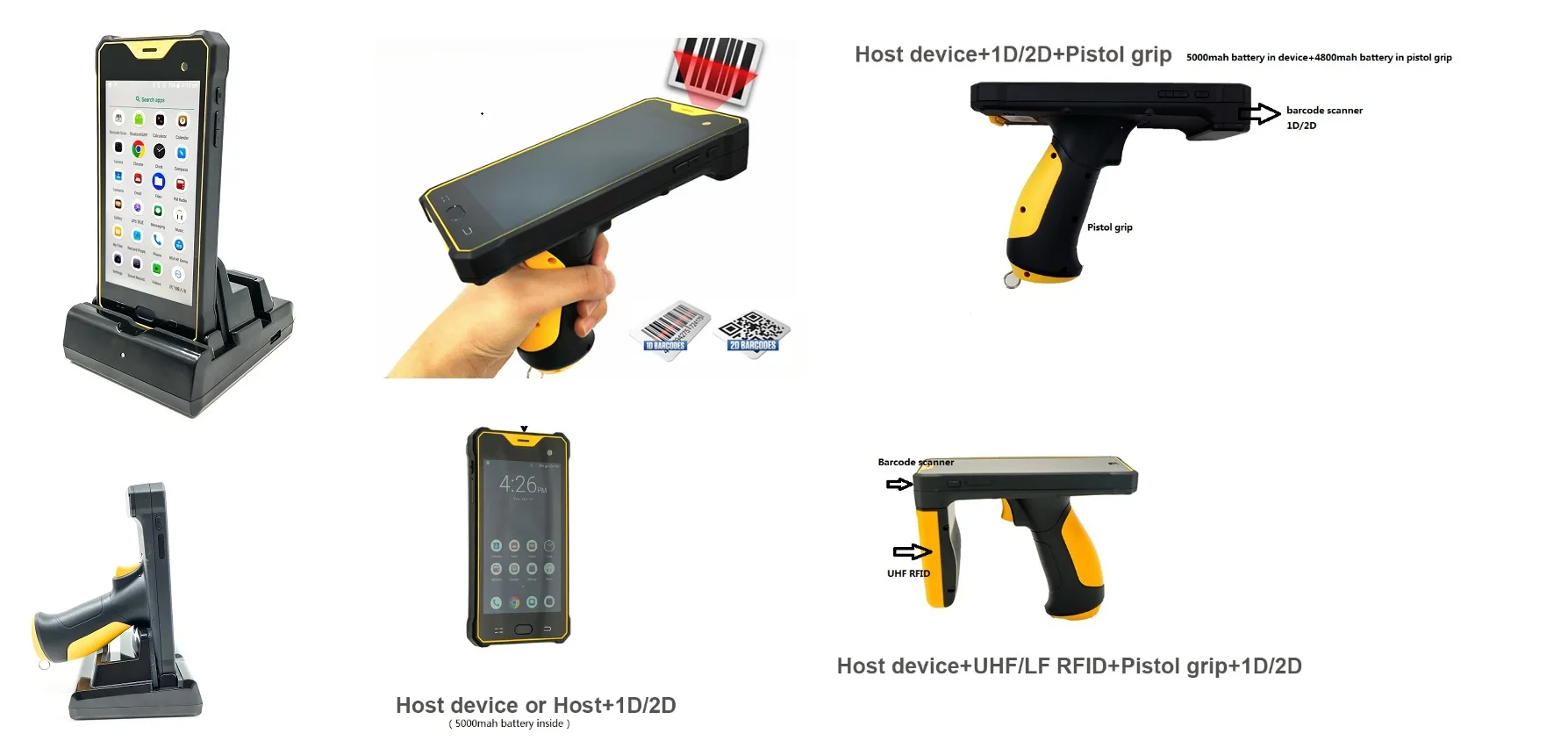

Pistol Grip	Optional	With internal batteries and scan button (4800mAh battery inside)
Docking Station	Optional	Charging Docking Station
Enviromental Characteristic
Drop hight		120cm composite wood floors, in operation status
Working Temp.		-10°C to + 50°C
Storage Temp.		-40°C to + 60°C
Humidity		5%-95%
