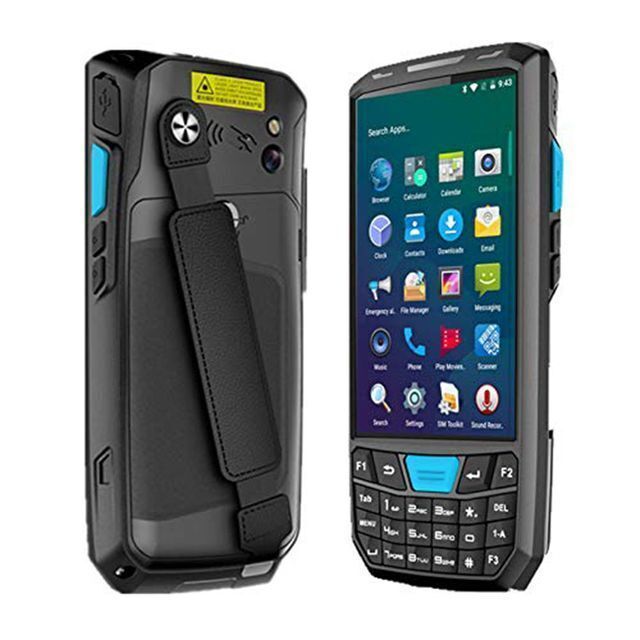

Android 9.0 4G Smartphone Handheld PDA 1D 2D qr Barcode Scanner inventory mobile Data Terminal

  • Supplier: Shenzhen Chainmax Technology Co., Ltd.
  • Region: Guangdong, China
  • Contact: Mr Chainmax C
  • Price: $185.00 / 1 - 49 pieces
    $175.00 / 50 - 499 pieces
    $150.00 / 500 - 4999 pieces
    $135.00 / >=5000 pieces
  • Min. Order: 1 piece
Product details
Style:Handheld Computer;Memory Capacity:2GB;
Standard Functions:4G,wifi,gps,bluetooth, 8MP camera;Single package size:22X15X7 cm;
Certification:FCC,ce,RoHS,IP66;Free SDK:Yes;
Screen Size:4.5 Inch;Packaging Detail:1 pcs in 1 box ,20pcs in 1 carton (Android9.0 4G Smartphone Handheld PDA 2D qr Barcode Scanner mobile Data Terminal);
Operating system:Android 9.0;Optional Accessories:Dock cradle/ Leather case;
Optional function:Honeywell 1D/2D scanner/ NFC reader;Place of Origin:Guangdong, China;
Model Number:T80;Products Status:Stock;
Operating System:Android;Battery:4200mah Li-ion Battery;
Weight:400g;Brand Name:CMX;
Warranty:1 year;Certificate:CE,RoHS,FCC, IP66;
Package Preview:;Processor Type:2.0 GHz quad-core;
Selling Units:Single item;Single gross weight:0.900 KG;
Product name:mobile data terminal android;Storge Memory:2GB RAM+16GM ROM;

Android 9.0 4G Smartphone Handheld PDA 1D 2D qr Barcode Scanner inventory mobile Data Terminal (A version)

Product Description

PS: Dear all, price show on page is for T80 A version,if need B version or C version, plz inquiry us then we can quote price and draft order link for you accordingly, thanks!

A version without profession barcode scanner

B version with honeywell N4313 1D barcode scanner

C version with honeywell N3603/N6603 2D qr code scanner



Advantages of mobile data terminal android T80



1.Based on android 9.0 platform, user-friendly interface, and a long lifecycle that matches that of the

traditional T80.



2.Reduces user fatigue by offering all of the functionality needed in an easy -to-carry from factor.



3. Allows mobile workers to seamlessly interact with data in virtually any lighting condition.



4. Durable construction and sealing deliver reliable operation and maximize worker uptime.


5.Delivers full wireless coverage for applications inside and outside of the four walls,allowing   real-time access to critical data.



6.Delivers fast business transactions, allowing workers to complete multiple tasks quickly.



7.Provide  functions test demo and the SDK code very easy to developed your Application .



mobile data terminal android application fields:

1.Supermarkets, clothing industry



2.Bank POS



3.Logistics



4.Police, postal services, urban management, tobacco



5.Business cash registers



Specification for mobile data terminal android T80



PHYSICAL CHARACTERISTICS

Dimension and Weight

166 x 77.5x 22mm

Display and Touch Panel

4.5'' WVGA (480*854), 650000 colors Rugged dual touch capacitive touch panel

Power

Main battery: Li-ion, rechargeable, 4200mAh

Expansion Slot

2* PSAM (Optional): ISO7816 protocol , 1 SIM, 1 MicroSD (TF) slot

Interfaces

Type -C USB

Keypad

21 pcs soft silicon key

AC Adapter

Input: 100V-240V, 50-60Hz, 0.29A ,Output: 5V, 2A

PERFORMANCE CHARACTERSTICS

CPU

Cortex A-53 2.0 GHz quad-core

Storage

RAM+ROM: 2GB+16GB

Operating System

Android 9.0

USER ENVIRONMENT

Operating Temp.

 -20°C to 55°C

Storage Temp.

-25°C to 70°C

Humidity

5%RH - 95%RH non condensing

Drop Specifications

Multiple 1.5m drops to concrete across the operating temperature range

Sealing

IP66

Developing Environment

SDK

Software Development Kit

Language and Tool

Java,Eclipse / Android Studio

DATA COMMUNICATION

WWAN

4G:TDD -LTE (B38 ,B39,B40,B41) FDD-LTE (B1,B3)

3G:WCDMA 850/900/1700/1900/2100MHz

2G: GSM/dege/GPRS 850/900/1800/1900MHz

WLAN

IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna

BLUETOOTH

Support BT2.0 +EDR/3.0 +HS/4.1+HS,Transmission distance is 5-10m

GNSS

GPS/AGPS,  internal antenna

BARCODE READER(OPTIONAL)

1D Linear Scanner

Honeywell N4313

Symbol 955

Minde966

UPC/RAN,Code128 ,Code 39 ,code 93.Code11 ,Interleaved 2 of 5 ,Discrete 2 of 5 ,Chinese 2 of 5 ,Codabar ,MSI,RSS

2D imager scanner

Honeywell N3603 Honeywell N6603

Newland 3096

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX). etc.

COLOR CAMERA

Resolution

8MP autofocus camera with flash

NFC (optional)

Frequency

13.56MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

ACCESSORIES

Standard

AC Adapter,,USB cable,Cradle (Optional)



Related Products

CMX-S60 5.5inch screen Android 9.0 with 4g, wifi, gps, bluetooth, 8MP camera, 58mm thermal/label sticker printer, Quad-core 2.0G CPU, 2G RAM+ 16G ROM storge,honeywell 1D/2D barcode scanner/NFC reader optional.
CMX-T1 5inch screen Android7.0 with 4g, wifi, gps, nfc reader, bluetooth, camera, printer. MSR/IC card reader. (EMV/PCI certificate approved)
CMX-S50 5.5inch screen Android 9.0 with 4g, wifi, gps, bluetooth, 8MP camera, Quad-core 2.0G CPU, 2G RAM+ 16G ROM storge, honeywell 1D/2D barcode scanner/NFC reader is optional.

CMX-S70 5.7inch screen Android 9.0 with 4g, wifi, gps, bluetooth, 13MP camera, Octa-core 2.0G CPU, 3G RAM+ 32G ROM storge.honeywell 1D/2D barcode scanner/NFC reader/UHF reader is optional



Company Information

FAQ



1.Are you manufacturer?



Yes,we are manufacturer profession in thermal printer,pos machina,barcode scanner etc;



2.Would you provide SDK for me?



Yes,we offer free SDK if order sample.



3.What is the minimum order mobile data terminal android?



one sample order is acceptable,if require OEM.We can confirm further.



4.What the after sale service mobile data terminal android?



a.Our all products will provide 1 year warranty.



b.if there is no Man-made problem,we will replace or repair for your freely.1% extra device and spare parts will be provided when bulk order mobile data terminal android
