Construction Machinery Stucco Spray Plaster Pump Machine

Mortar spraying machine, a kind of spraying machine can be called mortar sprayer, mortar spray equipment, cement mortar spraying machine, stucco machine which has a wide range of uses. It is commonly used for indoor and outdoor wall spraying, cement mortar grouting, bridge grouting and waterproof, fireproof, ceiling, wall, paint, garden spraying, as well as relief effect coating, sound-absorbing material spraying, waterproof plugging and filling. The mortar spraying machine is very easy to operate which don’t need scaffolding, mobile equipment, even the small corners and roof can be freely spray. The use of this equipment can greatly shorten the construction period, improve work efficiency and save the expense of shelf materials.

Specification of the Spraying Machine

No.	Model	Picture	Specification
1.	YG-311		1.Maximum working pressure:3Mpa 2.Working efficiency:60-80 Square meters/h 3.Power/voltage:4kw/380v 4.Mud pellet size:≤4mm 5.Horizontal/Verticaltransport distance:30m/20m 6.Hopper capacity:70L 7.Machine weight:160kg 8.Machine size:1750*450*800mm
2.	YG-511		1.Maximum working pressure:6Mpa 2.Working efficiency:80-100 Square meters/h 3.Power/voltage:7.5kw/380v 4.Mud pellet size:3-4mm 5.Horizontal/Vertical transport distance:30m/50m 6.Hopper capacity:120L 7.Machine weight:320kg 8.Machine size:1700*600*1100mm
3.	YG-711		1.Maximum working pressure:7-8Mpa 2.Working efficiency:100-260 Square meters/h 3.Power/voltage:7.5kw/380v 4.Mud pellet size:≤7mm 5.Horizontal/Vertical transport distance:30m/60m 6.Hopper capacity:120L 7.Machine weight:360kg 8.Machine size:1700*600*1100mm
4.	YG-712		Spraying+mixing   1.Maximum working pressure:6Mpa 2.Transport flow rate:4m³/h 3.Main motor+Mixing motor:7.5kw+3kw 4.Mud pellet size:≤6mm 5.Horizontal/Vertical transport distance:30m/50m 6.Hopper capacity:100L 7.Machine weight:370kg 8.Machine size:1700*600*1200mm

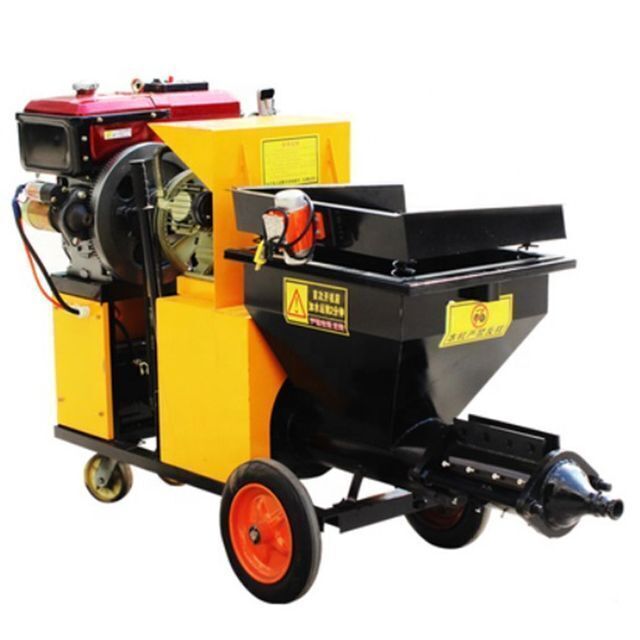

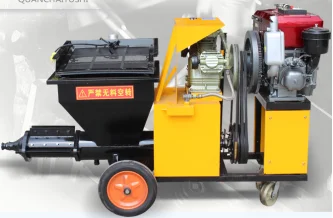

5.	YG-D811		Diesel engine Spraying Machine   1. Maximum working pressure:6Mpa 2.Working efficiency:100 Square meters/h 3.Main motor+Mixing motor:7.5kw+3kw 4.Mud pellet size:≤10mm 5.Horizontal/Vertical transport distance:60m/40m 6.Hopper capacity:80L 7.Machine weight:280kg 8.Machine size:1800*580*950mm

Machine structure showing

1.A cement spray machine mainly consists of a grouting pipe, stator, rotar, spraying gun, vibrating motor, vibrating sieve, oil pump, air hose, and electric control box.

2.The motor provide strong power for the mortar pump machine, and you can operate the cement spraying machine easily under the instructions on the electric control box.

3.For those vulnerable parts, we will ship another set for you along with the machine.

Main Features of mortar spraying machine

Rapid mortar spraying machine design is reasonable, pump and compressor integration, easy to move.
Screw mortar spraying machine continuous feeding, no pulse phenomenon
Mortar spraying machine wide applicability, can be sprayed dry powder, mortar, mortar can also be sprayed ordinary
Mortar spraying machine spraying uniform, strong adhesion, fully functional, Spraying gun and nozzle connection optional direction, easy to operate.

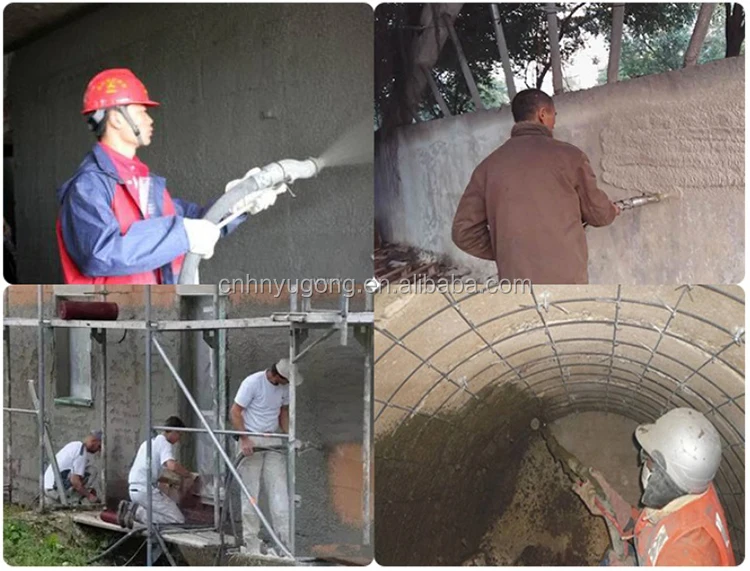

Widely Application of the Mortar Spraying Machine

The spraying machine for sale in YUGONG can be applied to wall and ceiling painting work, road painting, highways and railways painting, tunnels painting, etc. And materials like putty powder, paint, latex paint, dry mortar, cement mortar, insulation mortar, waterproof and fireproof materials, real stone paint, sound-absorbing materials, and others which are water-soluble materials are suitable materials for a mortar spray machine. So buy one set of mortar sprayer can bring many convenience for you.

Henan Yugong Machinery Co., Ltd., located in Room 2702, 27th Floor, Block B, Jingsha Plaza, Jingguang Road, Erqi District, Zhengzhou, Henan, China, gains its rapid development as a reputable machinery manufacturer. We develop from a small company with only 6 people to a company with over 100 people thanks to the trust of our customers and innovation of ourselves. We always insist that only quality can make us successful, and only innovation creates wider development direction for us.

Thanks to complete after-sale services and guaranteed quality of the machines, we have won a good reputation in our customers domestic and abroad. Up to now, we have exported our machinery to many countries around the world, such as Russia, Sri Lanka, America, South Africa, Pakistan, Guinea, Canada, Lebanon, Zambia, Ethiopia, etc.

The development principle of Yugong machinery company is "Quality First, Reputation First, Be Innovative, Be Excellent". Guided by this principle, staff in company and factory dedicate to manufacture top quality products to meet the needs of customers. From the technical design to the procurement of raw materials, and from the precision processing and manufacturing to the strict inspection of quality, all machines in YUGONG meets the requirements of ISO9001. we hope you can choose us and share success with us!

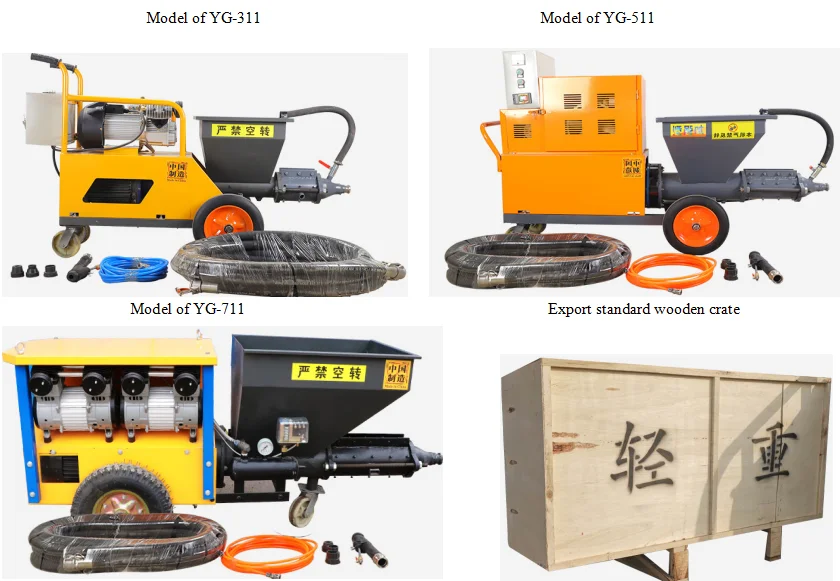

Part of goods packing list showing

Different model of motar sprayer match with a full set of accessories, so buyer can use the machine directly once receiving the machine. And we adopt to export standrd wooden crate with internal iron fram fixed. More stable and safe during transportation.
