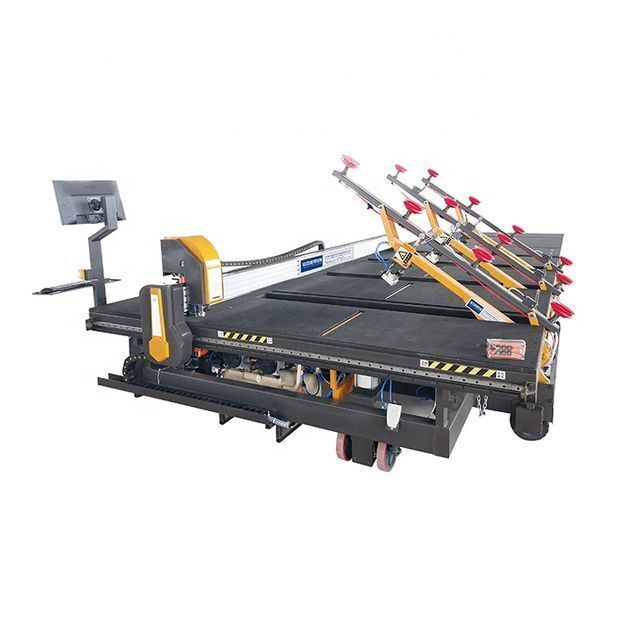

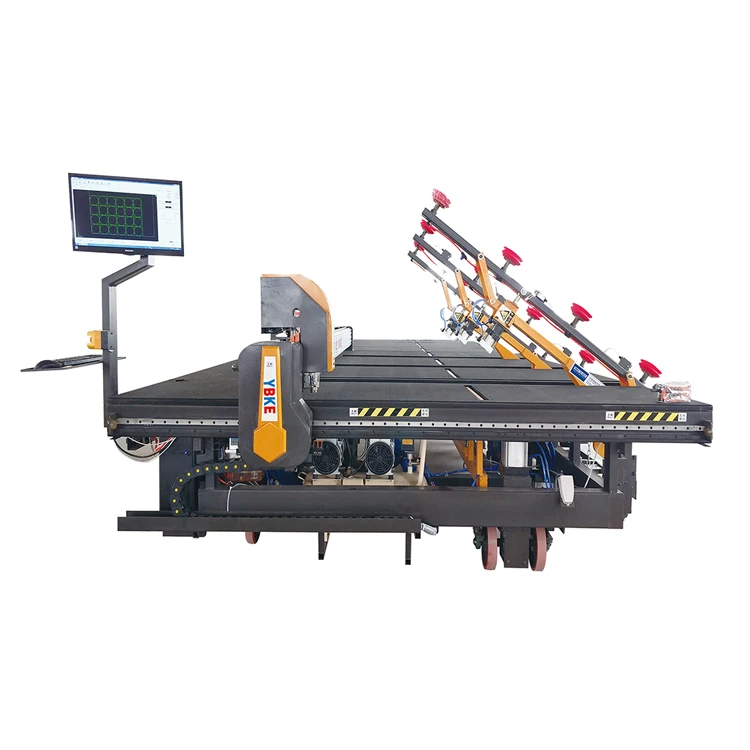

Italy technology three arms air float glass cutting table of glass machine

  • Supplier: Jinan YBKE Machinery Co., Ltd.
  • Region: Shandong, China
  • Contact: Ms Bobby Yu
  • Price: $20000.00 / 1 - 2 sets
    $15000.00 / >=3 sets
  • Min. Order: 1 set
Product details
Local Service Location:None;Place of Origin:Shandong China;
Diagonal accuracy:≤±0.2mm/m2;Video outgoing-inspection:Provided;
Certification:ISO9001;Key Selling Points:Easy to Operate;
Production Capacity:50 sets per month;Marketing Type:Hot Product 2019;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Machinery Agent;
Showroom Location:None;Acceleration of tool holder:≥10m/s2;
Positioning accuracy of cutting head:≤±0.2mm;Power:8kw;
Condition:New;Installation power:8kw;
Machinery Test Report:Provided;Packaging Detail:1.For big machine and full container load, usually wrapped in stretch film. 2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water. 3.For less than container load, iron frame fixed and standard export wooden case for optional.;
Warranty of core components:1 Year;Voltage:380V 50HZ;
Supply Ability:50 Set/Sets per Month;Cutting glass thickness:3-19mm;
Warranty:1 Year;Port:Qingdao port;
Cutting bridge speed:0-200m/min;After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;Brand Name:YBKE;
Package Preview:;Weight:800kg;
Dimension(L*W*H):2700x2700X800mm;Head speed:≥200m/min;
Payment Terms:L/C,D/P,T/T,Western Union;Air compress:0.6Mpa;
Cutting glass size:3660*2440mm;

Italy technology three arms air float glass cutting table of glass machine



Features



  • Adopt imported single shaft drive mode, 1 servo motor drive of 850 watts.
  • Japan imports SMC brand electromagnetic proportional valve, the computer control system is (Beijing baolun system) (Shanghai weihong system), Glass cutting optimization system zibo chuangying optimization system, can optimize the normal glass size and special size.
  • The pinion and rack are made with Feng Mao brand imported from Taiwan. The linear guide rail is imported from Taiwan Ding Han brand
  • Equipped with three arms to automatically load glass, it is more convenient and save labour & time.
  • Positioning optical fiber is imported from Japan panasonic brand.
  • Table is bearing whole frame to cover completely.



Technical Parameters



Cutting glass size 3660*2440mm
Cutting glass thickness 3-19mm
Diagonal accuracy ≤±0.2mm/m2
Head speed ≥200m/min
Positioning accuracy of cutting head ≤±0.2mm
Installation power 8kw
Acceleration of tool holder ≥10m/s2
Air compress 0.6Mpa
Cutting bridge speed 0-200m/min
Dimension 2700*2700*800mm



Packaging & Shipping

1.For big machine and full container load, usually wrapped in stretch film.

2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.

3.For less than container load, iron frame fixed and standard export wooden case for optional.


FAQ

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* More than 95% of the timely response rate, timely response to customer questions

After-Sales Service

* English Manual and video tutorial. Free Training how to install the machine,free training how to use the machine.

* Senior engineers available to service machinery overseas.

* 24 hours online service each day. Use online contact tools such as Skype Wechat WhatsApp Facebook to provide online services to customers.

* We provide free parts and components in one year warranty period.

* We offer consumable parts at agent price.



Our Services

♥ 12 months guarantee of the whole machine, 7*24 online free technical support;

♥ Design drawing of the factory workshop;

♥ English manual and video tutorial;

♥ Skilled engineer install the machine;

♥ Training workers for you;

♥ Local technical support or Spare parts support,We will provide the consumable parts at an agency price when you need replacement.
