FBE coated Ductile Iorn Wide Range Universal Couplings and Flange Adaptor

Supplier: Shanxi Solid Industrial Co., Ltd.
Region: Shanxi, China
Contact: Mr Haiping Liu
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shanxi China;	Standard or Nonstandard:	Standard;
Standard:	ISO2531/EN545;	Applicable Industries:	Building Material Shops;
Brand Name:	SOLID;	Application:	PVC pipe,Ductile iron pipe etc;
Product name:	Ductile cast iron wide range coupling;	Customized support:	OEM,ODM;
Body Material:	Ductile Iron;	Pressure:	PN10/PN16/PN25/PN40 etc.;
Material:	Iron;	Structure:	Universal;
Packaging Detail:	cases,pallets or as per customers' requirements;	Certification:	ISO9001;
Packing:	Wooden Case;	Port:	Tianjin,Qingdao;
Supply Ability:	10000 Piece/Pieces per Month universal couplings;	Flexible or Rigid:	Flexible,Flexible;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Flexible payment;	Type:	Flexible Clamp Coupling;
Color:	blue;

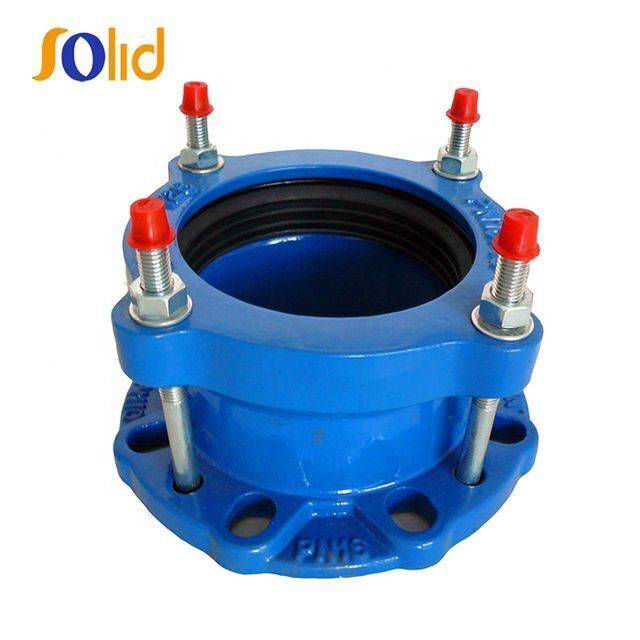

FBE coated ductile iorn wide range universal couplings

Product Description

The Universal Couplings are designed for pipelines , As a wide tolerance system it will fit most standard pipe materials and therefore dramatically reduces the number of dedicated Couplings which need to be stocked for maintenance purposes , It is suitable for steel , GRP, PVC, PE, Ductile Iron , Cast Iron and Asbestors Cement . When connecting PE pipes , It is important that pipe inserts are fitted to the PE pipes .

1) All the couplings are assembled by " D " bolts .

2)Bolts ,Nuts and Washers are in carbon steel Grade 4.8 , 8.8 with zinc plated , dacromet coating or according to customer's request.

3) Body material is Ductile iron GGG500-7 .

4) Fusion bonded epoxy powder coating in blue, black or red or according to customer's request .

5)Gaskets material : E.P.D.M. , NBR or SBR .

Specification		Unit Weight	Sealing Ranges(mm)
inches	mm	kgs	Sealing Ranges(mm)
2"	50	3.6	59~73
2 1/2"	65	4.50	72~85
3"	80	4.83	88~103
4"	100	5.51	108~128
5"	125	7.74	132~154
6"	150	8.32	159~182
7"	175	11.30	192~209
8"	200	9.95	218~235
10"	250	14.50	271~289
12"	300	18.62	322~340
14"	350	26.00	374~391
16"	400	28.85	417~437
18"	450	33.40	480~500
20"	500	50.00	526~546
24"	600	54.10	630~650
