Class B Brass Single Jet Impulse Water Meter with Pulse Output

Supplier: Shanxi Solid Industrial Co., Ltd.
Region: Shanxi, China
Contact: Mr Haiping Liu
Price: $2.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Packaging Detail:	1pc/inner carton 10pcs/outer carton;	Stucture:	Traditional;
Customized support:	OEM,ODM;	Pulse Output:	10 Liters/Pulse;
Certificate:	ISO9001;	Supply Ability:	10000 Piece/Pieces per Month Water Meter;
Color:	red/blue;	Body:	Copper, Nickel Plated, Brass;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Flexible payments;	Packing:	Wooden Case;
Type:	Dry Dial Face;	Port:	Xingang,Qingdao;
Brand Name:	SOLID;	Size:	DN15~DN25;
Standard:	ISO 4064, Class B;	Place of Origin:	Shanxi China;
Brand:	OEM Brand Is Acceptable;	Model Number:	Single Water Meter;

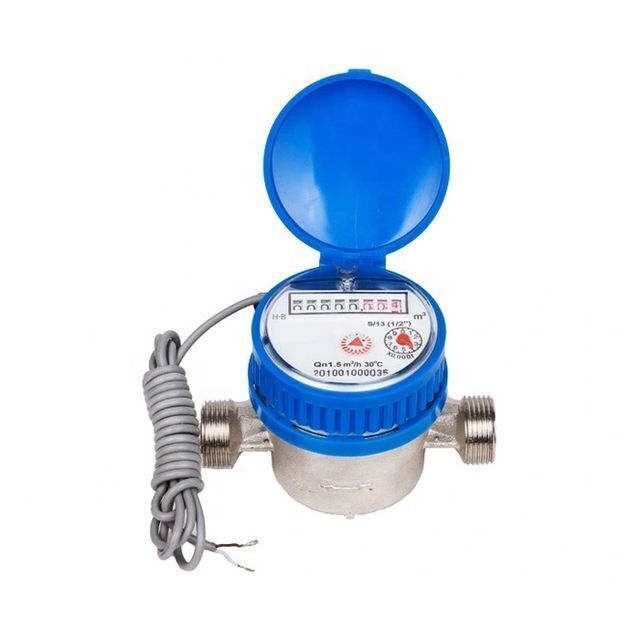

Brass Single Jet Impulse Water Meter with 1L/Pulse (DN15-DN25)

Product Description

Application:
--Measuring the volume of cold potable water passing through the pipeline.

Feature:
--Brass material or nylon material as your request
--Dry register with 5 or 8 numbered roller
--For cold and hot water
--small, light
--Single-jet, dry-dial, 360 degree free rotating register, small in size and light in weight;
--Magnetic drive, Resistance to exterior magnet interference,
--keep the reading clear in a long term service;
--Remote transmission device can be added upon request

many kinds of sensors, such as Reed Switch, Halland weeagand can be supplied upon request pulse output may be 1/L/pulse, 10l/pulse.

---ISO4064, Class B
--Available with different length on request. Available in hot water meter on request.

Working condition:
--Water temperature:0.1ºC~50ºC( 0.1ºC~90ºC for hot water meter)
--Water pressure: ≤1.0Mpa (PN1.6Mpa/16bar)

Maximum Permissible Error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2%
Hot water meter ±3%

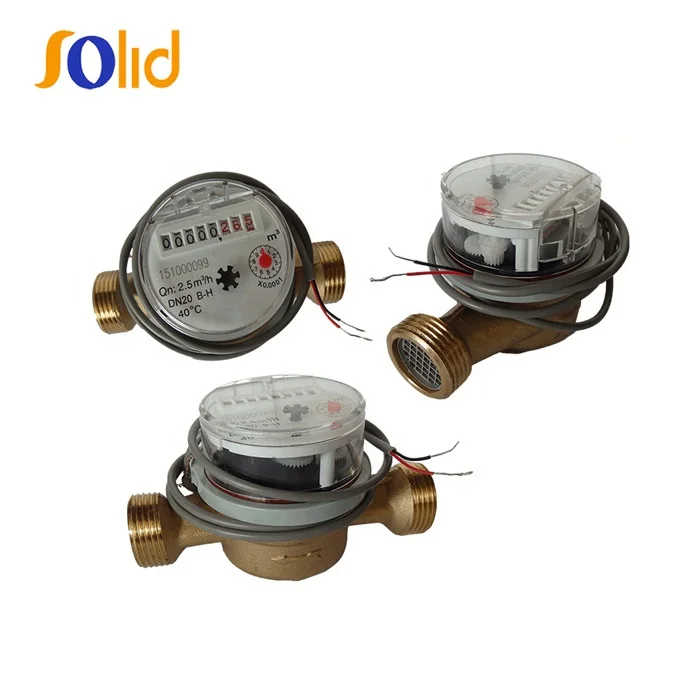

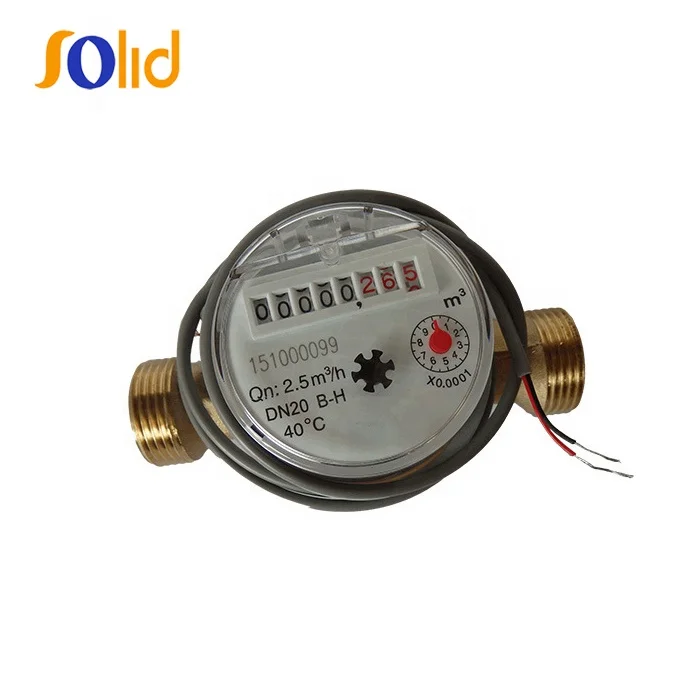

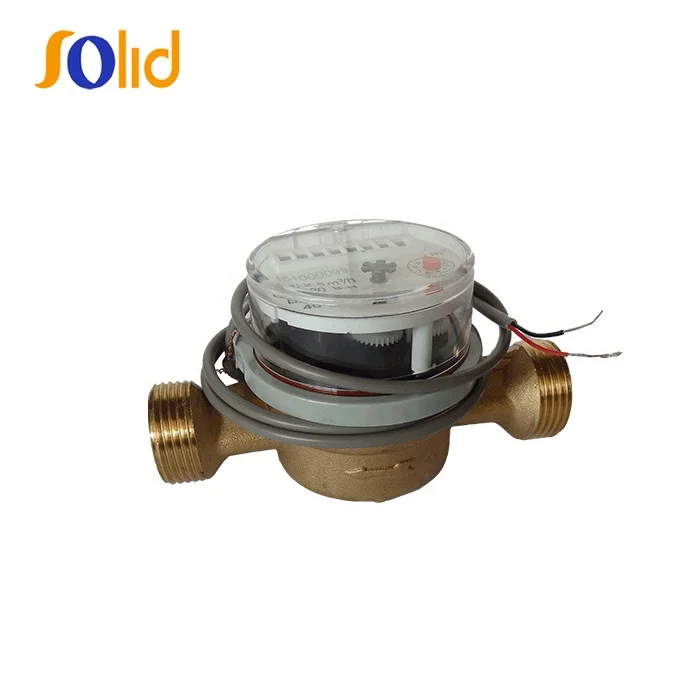

Detailed Images

Company Information

------ABOUT US------

------OUR EXHIBITION------

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.

7.Do you accept custom design on size?
A: Yes, if the size is reasonable

8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
