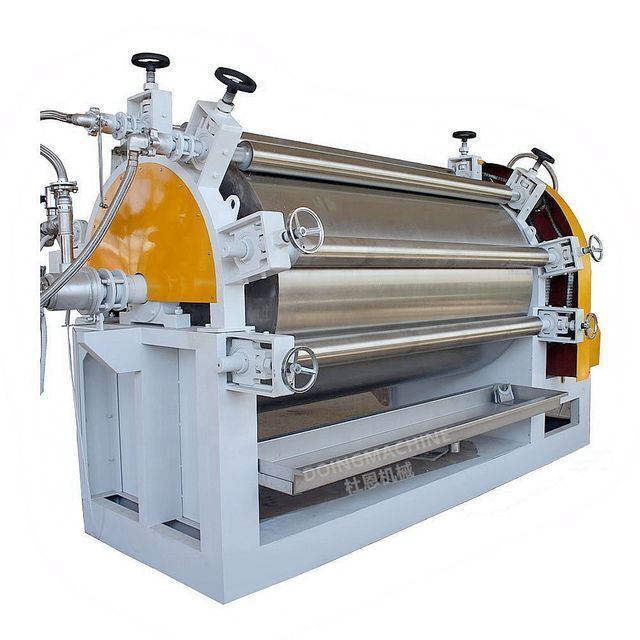

HG series food rotary drum flaker dryer industrial price

Product details
Warranty:1 Year;Payment Terms:L/C,T/T;
Packaging Detail:Wooden box;Applicable Industries:Food & Beverage Factory,Farms,chemical factory;
Condition:New;heating area:1.12-10.6 M2;
Package Preview:;Evaporation Capacity(kg/h):1000;
Core Components:Bearing,Motor,Gearbox,Engine;Certification:ISO9001,CE;
Brand Name:Doing Machine;construction material:carbon steel, stainless steel, alloy steel;
Type:Drum Drying Equipment;Port:SHANGHAI;
Marketing Type:Ordinary Product;Heating Method:Oil Heating;
Machinery Test Report:Provided;drum length:800-2500mm;
After-sales Service Provided:Online support,Field installation, commissioning and training;Material:SUS304,SUS304L,SUS316,SUS316L;
Key Selling Points:Competitive Price;Place of Origin:Jiangsu China;
Guarantee:1 year;Power:2.2-18.5KW;
Heating Medium:steam;drum diameter:600-1800 mm;
dimension:4000x2010x3500mm;Local Service Location:None;
Supply Ability:1 Set/Sets per Month;evaporation capacity:40-600 kg/h;
Video outgoing-inspection:Provided;Application:Medicine Processing,Chemicals Processing,Food Processing;
Voltage:380V,50HZ,3P;After Warranty Service:Video technical support,Spare parts;
Model:HG series;Dimension(L*W*H):4000 x 2010 x 3500mm;
Weight (KG):2000;Showroom Location:None;
Warranty of core components:1 Year;
Product Description

Main features


1. Continuously drying or cooling of viscous, pasty and sticky materials

2. Heating area: 1.12-10.6 M2
3. Evaporation capacity: 40-60 kg water/hour

4. Working type: continuous

5. Heat source: steam, thermal oil or hot water

Working principle


HG series rotary drum dryer flaker is a continuous indirect heating drying processor. The dryer body consists of rotary drum heated by steam, applicator rollers, scrapper and exhaust hood. Liquid raw meterials are fed onto the rotary drum from the top. With the kneading effect of applicator system, raw materials are evenly spread onto the heated surface of rotary drum. Moisture evaporates very quickly. Drying process is done within a single rotation of the drum and the dried product is scrapped off with the knife.


HG series rotary drum dryer flaker with its continuous indirect drying method, allows short heat retention time while evaporating all the liquid within a single rotation of the drum. It not only virtually eliminates the risk of damaging the product but also enables the product to keep its unique properties like taste, smell, texture etc. Drum dryer is unique for drying viscous, pasty and sticky materials in food, chemical and pharmaceutical industries.

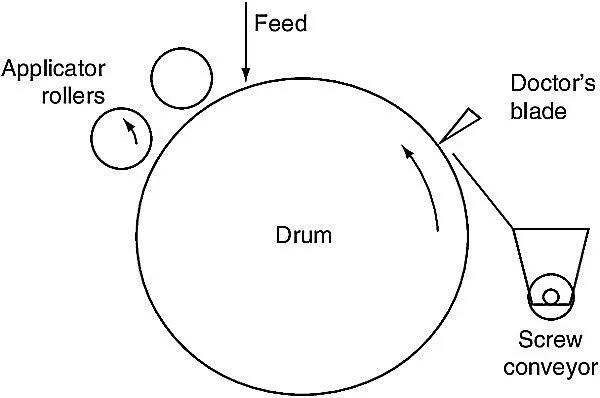

Single drum top feeding

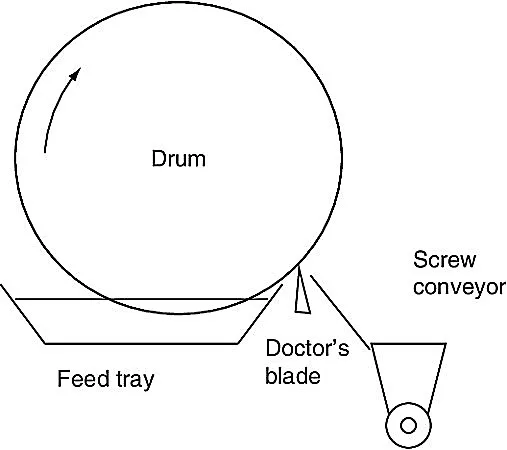

Single drum bottom feeding

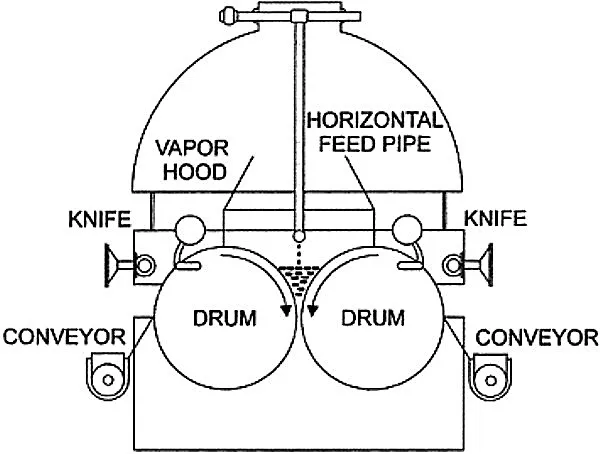

Double drum dryer

Technical advantages


1) High heat efficiency: Heat loss is mainly caused thermal radiation. Heat efficiency can be as high as 90%.

2) Short drying time: The drying process only takes 10-15 seconds. So drum dryer can be used for drying heat sensitive material.

3) Uniform drying: Heat transfer direction and coefficient all over the drum surface are the same. And wet material can be evenly spread over the drum surface. Wet material can be uniformly dried.

4) Long life span: Rotary drum is electro-polished and well heat treated to increase the smoothness and hardness.

5) Flexible application: Drum surface temperature, rotating speed, wet material film thickness are all adjustable to satisfy materials with different moisture and drying time.

6) Compact size: The drying chamber is very compact in size. Only need small installation space.

7) Low operation cost: The whole machine is very simple and reliable. It can be used for many years with little repair and maintenance.

8) Highest hygienic standard: Indirect heating and electro-polished drum surface can assure highest hygienic working conditions.


Main technical parameters:

Model
HG-600
HG-800
HG-1000
HG-1200
HG-1600
Drum size  mm
Φ600x800
Φ800x1200
Φ1000x1400
Φ1200x1500
Φ1600x1800
Heating surface  M2
1.12
2.26
3.3
4.24
6.79
Evaporation rate  kg/h
40-70
90-130
130-190
160-250
270-400
Steam consumption  kg/h
100-175
225-325
325-475
400-625
675-1000
Motor power KW
1.1
3.75
4.75
4.75
6.25
Gross weight  kg
850
1700
2100
2650
4350
Detailed Images
Rotary drum (electro-polished)
Applicator rollers
Roller Tightener
Suction hood
Scrapper
Dried flaker

Typical Applications
Yeast
 Fish feed
Sweet potato
Packing & Delivery
FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our drum dryer flaker can be customerized. Before we can work out a detailed quotation, we have to know the following information:


1) What product you are going to dry

2) Moisture content before drying

3) Target moisture content in dried product

4) Process capacity in kg/hr

5) What heat source will be used



Q: How the dryer will be delivered ?

 A: The dryer is packed in plywood box for shipping
