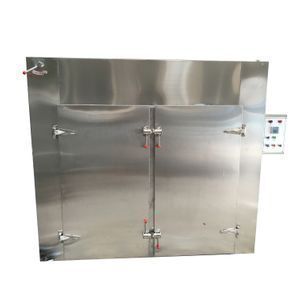

industrial hot air tray dryer

Product details
Supply Ability:30 Set/Sets per Month;tray quantity:24-192pieces;
After-sales Service Provided:Engineers available to service machinery overseas;Packaging Detail:CT-C series industrial hot air tray dryer is packed in standard wooden case package suitable for sea transportation;
Certification:ISO9001,CE;Voltage:380V/50HZ,3P;
Power(W):0.45-1.8KW;Dimension(L*W*H):2260*1200*2000MM;
Warranty:1 Year;Capacity:60-480 Kg/h;
circulation fan powder:0.45-1.8 kw;trolley quantity:1-8sets;
Weight:1800KG;Weight:820-2800kg;
Model:CT-C series hot air tray dryer;construction material:SUS304,SUS316;
Type:Tray Dryer;Brand Name:Doing Machine;
Place of Origin:Jiangsu China (Mainland);Payment Terms:L/C,T/T;
Drying Temperature:RT-150 degree;Name:Hot air tray dryer;
Port:Shanghai Port;tray size:640x460x45mm;
Condition:New;
Product Description

  Applications of CT-C series industrial hot air tray dryer:

1. For drying powder,granule and sliced products in Food,Chemical and Pharmaceutical industry ;
2. Drying temperature: RT-350 degree C (adjustable)
3. Drying capacity: 60-480 kg/batch
4. GMP design
5. Heat supply can be steam,electricity,hot water,hot oil and oil/gas fired hot air generator.



Working principle of CT-C series industrial hot air tray dryer:

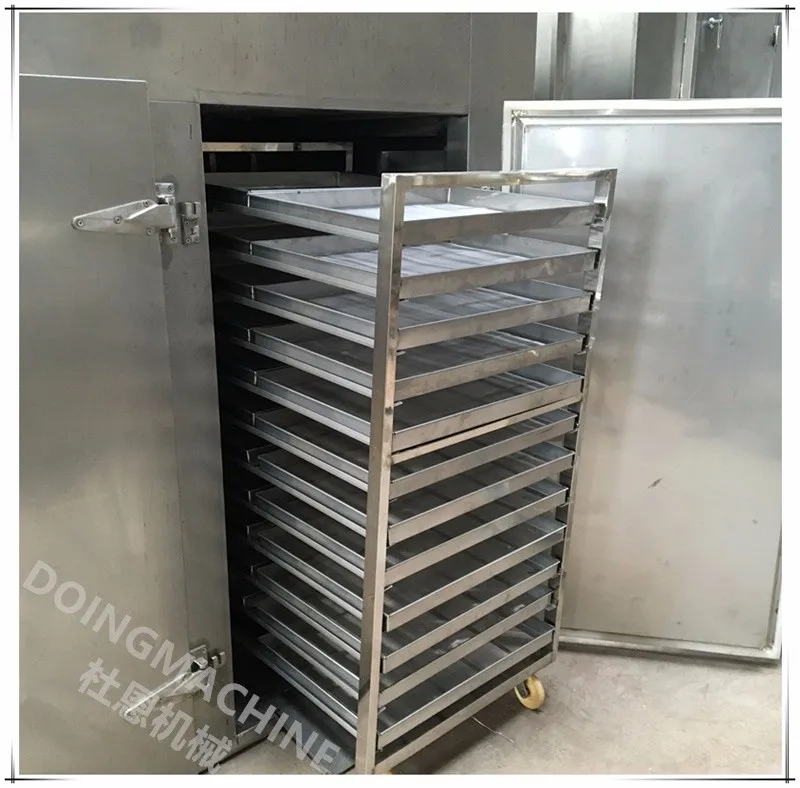

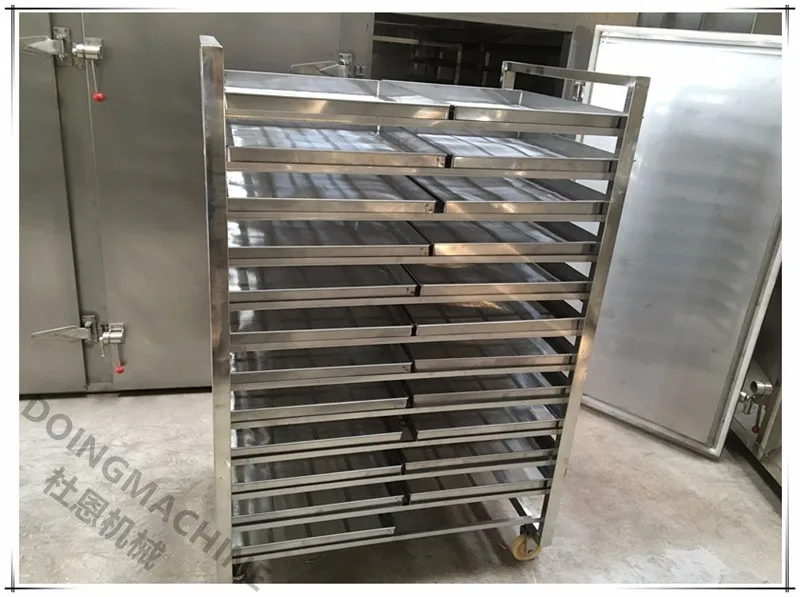

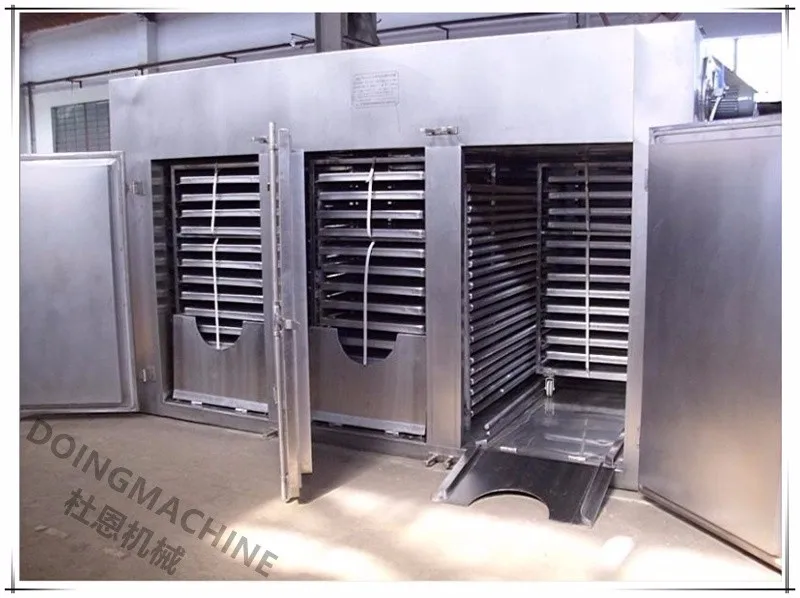

CT-C series industrial hot air tray dryer  is a widely used convection chamber dryer. Inside the drying chamber trays loaded with wet material are placed on top of each other in trolleys.

In drying process, the fresh cold air is sucked into the drying chamber by the circulation fan and flow through  the inner placed steam radiator (or electrical heating tubes) in the air channel to get required temperature.  With the help of air distributor, the hot air evenly flow through each layer of trays for heat transfer and carry  away the evaporated moisture. Most of the damp air flows back to the circulation fan for the next drying  circulation while part of the damp air will be exhausted for energy saving.

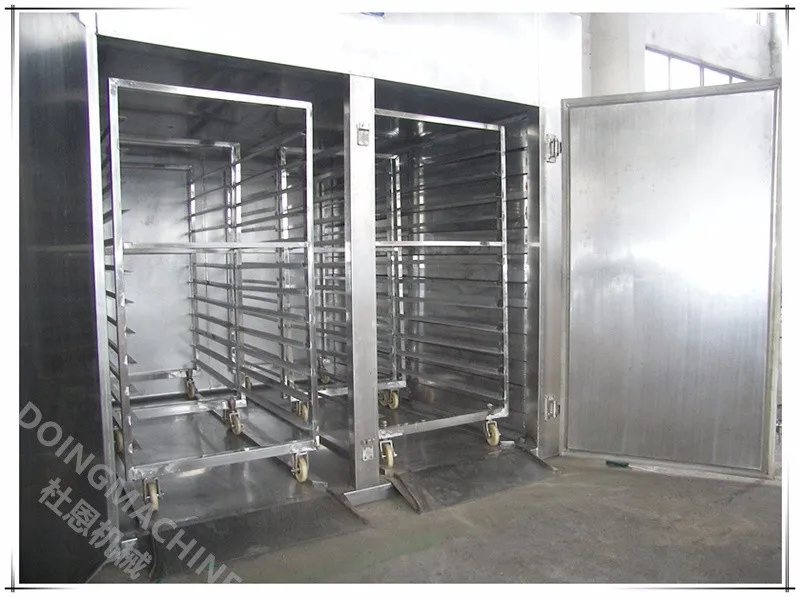

After drying, open the chamber door and pull out the trolleys for discharging. The following drawing will show  you how it works.

Technical advantages of CT-C series industrial hot air tray dryer:

1. Flexibility in heat source: Our tray dryer can be heated by steam, hot water, electricity, thermal oil, oil/gas  fired hot air generator to obtain different temperature according to special drying requirements.
2. Uniform drying: With the specially designed air distributor, the hot air flow in each layer of trays is very  uniform.The temperature difference inside the drying chamber is less than ±2 ℃. Uniform air flow and  temperature results in uniform drying.

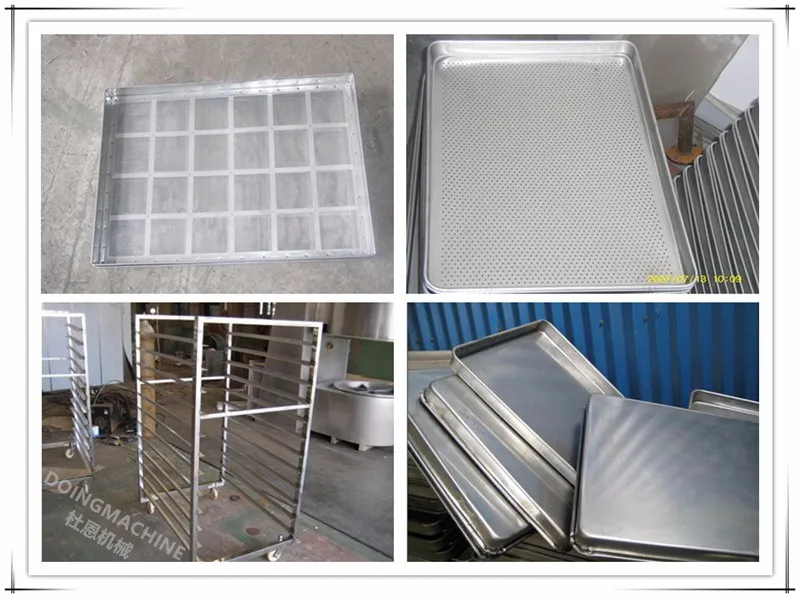

3. Flexibility in drying: Standard sized (640×460×45mm) but different types of tray are valuable to meet  different natures of wet materials.
4. Energy saving: Most of the hot air circulates inside the well insulated drying chamber and only part of it will  be exhausted via the exhaust valve. The proportion of exhaust air depends on relative humidity inside the  drying chamber.
5. Convenient operation: Control cabinet is installed on chamber body which can accurately set the drying  temperature and hot air flow rate. Touch screen and press button panel are valuable.
6. GMP standard: Drying chamber is fully welded without dead corners to meet GMP standard.

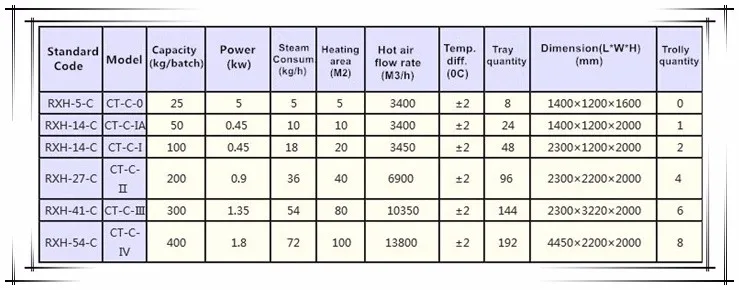

Standard Models of CT-C series industrial hot air tray dryer:

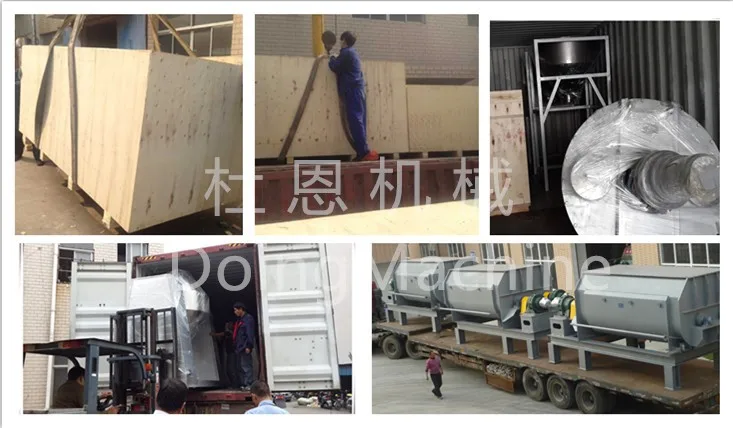

Packaging & Shipping



Company Information

 1. Company profile:


Changzhou Doing Machine Co., Ltd has been designing, manufacturing, engineering various kinds of  industrial dryers,mixers, granulators since 2005, for thousands of satisfied customer.

Attention to detail and real production data is critical in the manufacturing of drying equipments.An unique design of a drying equipment for certain wet material is always made based on real production experiences or trial production.Doing Machine has experienced technicians who has been working in this field for more than 30 years as well as advanced pilot plant.Free trial production and wet material study are available for our customers.

This is also true after the sale . Doing Machine has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, dommissioning and training services.

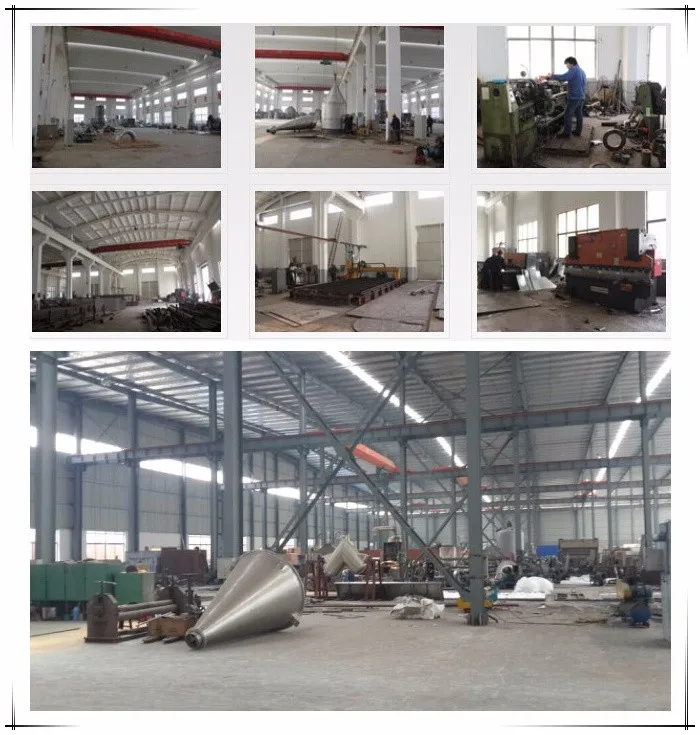

2. Our facilities:
