Detergent Soap Plodder Plant Manufacturer

  • Supplier: ATOM MACHINERY MFG. CO.
  • Region: Gujarat, India
  • Contact: Mr. Bhavik Chudasama
  • Price: $4662.00 /piece
  • Min. Order: 1 piece
Product details

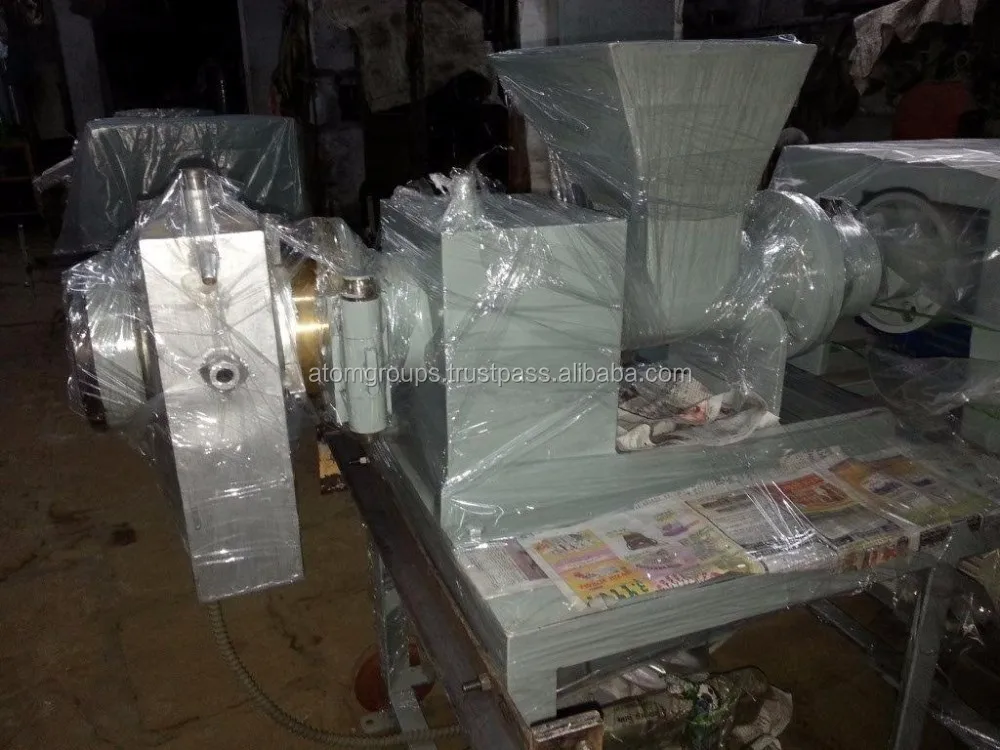

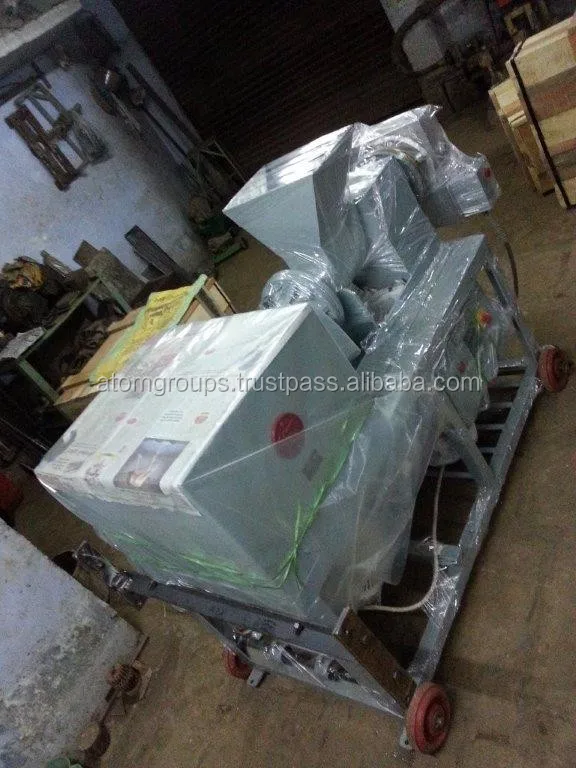

Place of Origin:India;Packaging Detail:Plastic Wrapped Seaworthy Packing in Rigid Wooden Box Net Weight : 450 kgs Gross Weight : 600 kgs Dimensions : 213 x 101 x 134. cms Above details are approximate basis.;
Type:Soap Making Machines;Material:Stainless Steel, Aluminium, Mild Steel, Brass etc.;
Payment Terms:L/C,T/T,Cash;After-sales Service Provided:Video technical support;
Brand Name:Atom;Model Number:L - 3A;
Function:Extrusion;Motor:CE Certified;
Supply Ability:100 Piece/Pieces per Month;Application:Extrude Laundry Soap, Toilet Soap, etc.;
Voltage:220V/380V 50HZ customized;After-sales Service Provided:Service Machinery Overseas;
Warranty:1 Year;Port:Mumbai Nhava Sheva, ICD Khodiyar Ahmedabad, Pipav, Mundra etc.;
Capacity:250/500/1000/2000/5000/10000 kgs / 8 hours;
Product Description



  • Detergent Soap Plodder Plant Manufacturer
  • Place of Origin: India
  • Brand Name: Atom
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Condition: New

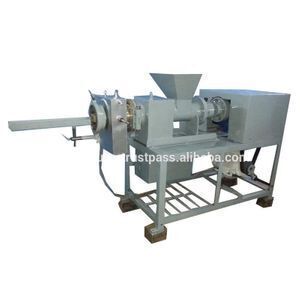

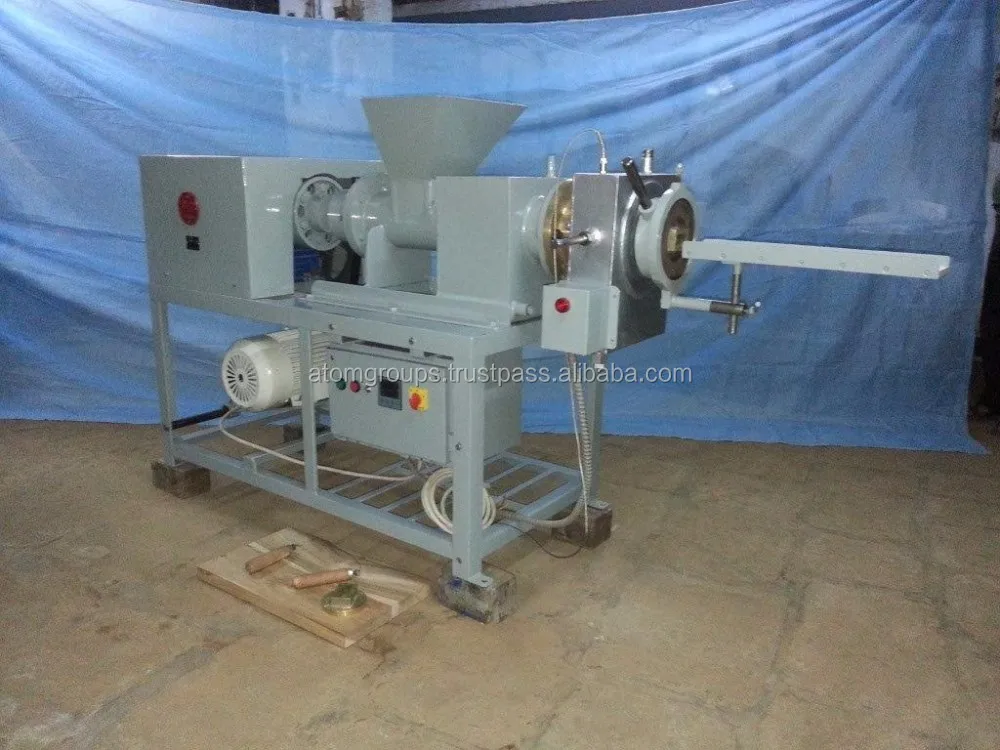

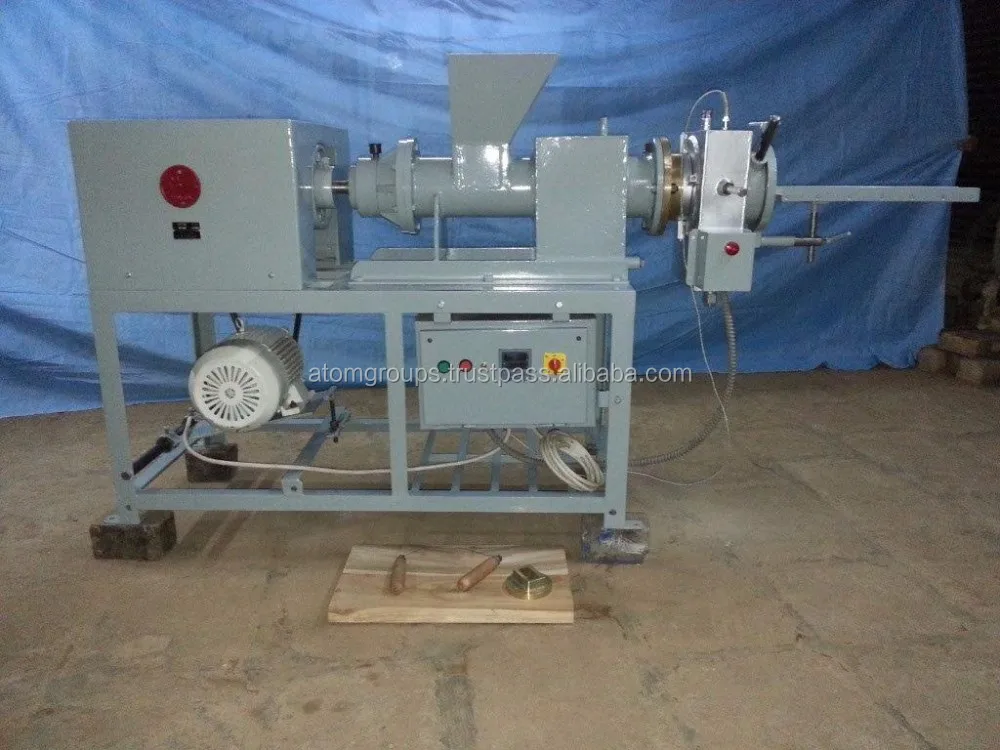

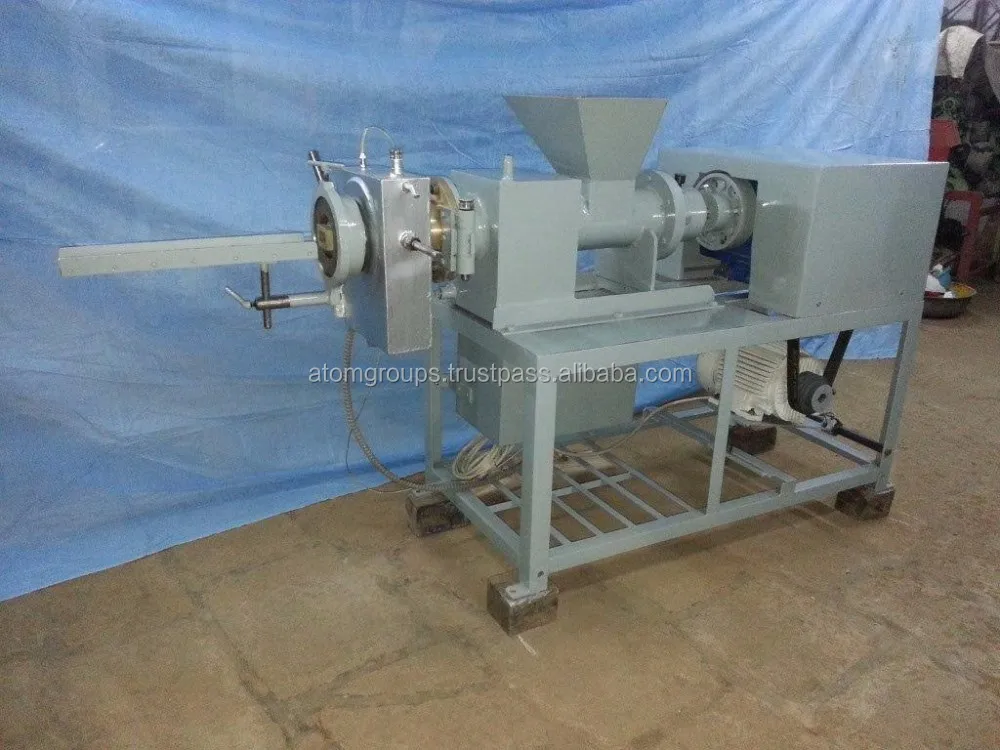

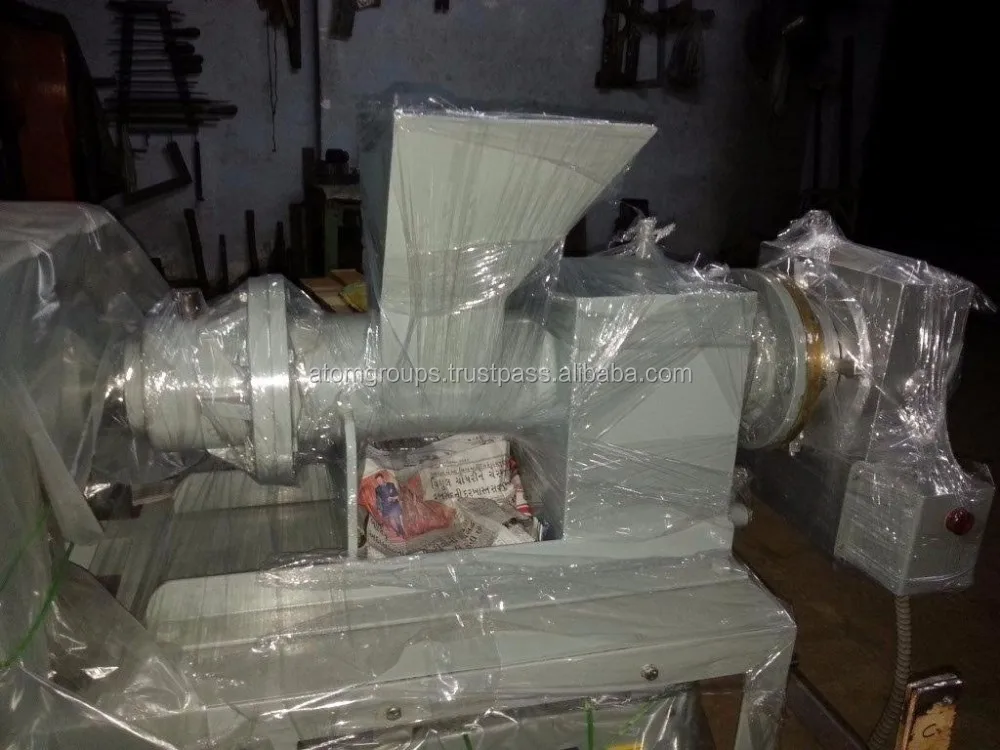

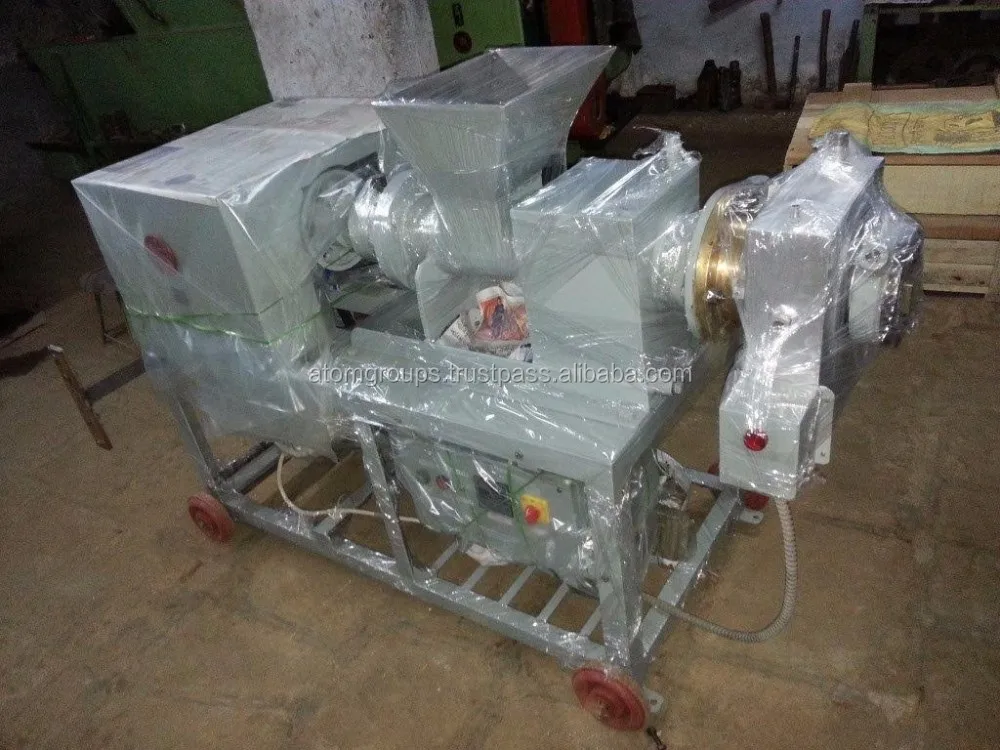

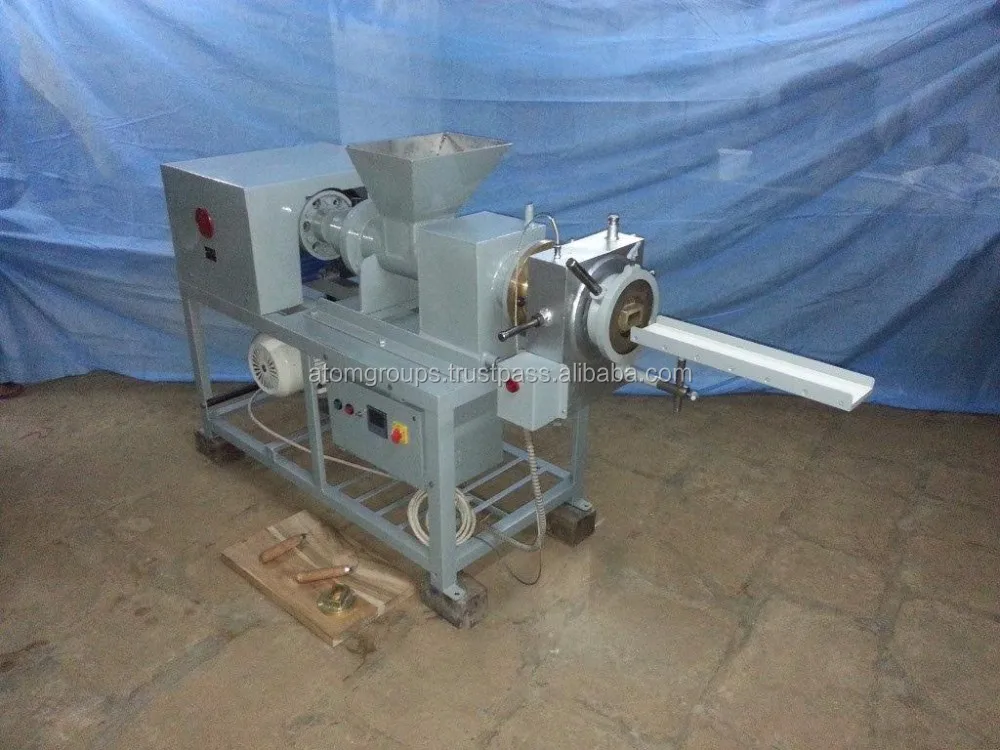

  • Toilet Soap & Laundry Soap Plodder Machine No. L-3 A, with 5HP. 3Ph. 1440 rpm Motor. With a Mouth piece. Provided for die heater, Refining screen barrel, cooling tank & Worm : 5 Inch



  • For forming of Toilet Soap.
  • Thin Soap Strips is fed to the Toilet Soap Plodder Machine.
  • Soap Strips is formed in the Soap Triple Roll Milling Machine.
  • Press worm strongly compresses & forwards the soap strips into the conical forepart through the heating device, finally it leaves the die.



  • Heating device is for maintaining proper temperature for the fed material.
  • Temperature is maintained with the Electric Thermostat device.
  • Toilet Soap & Laundry Soap Plodder Machine compresses the Soap Strips and extrudes it in the form of bars.
  • Bars extruded from the Die are of the desired shape and width, than after is cut into required length.

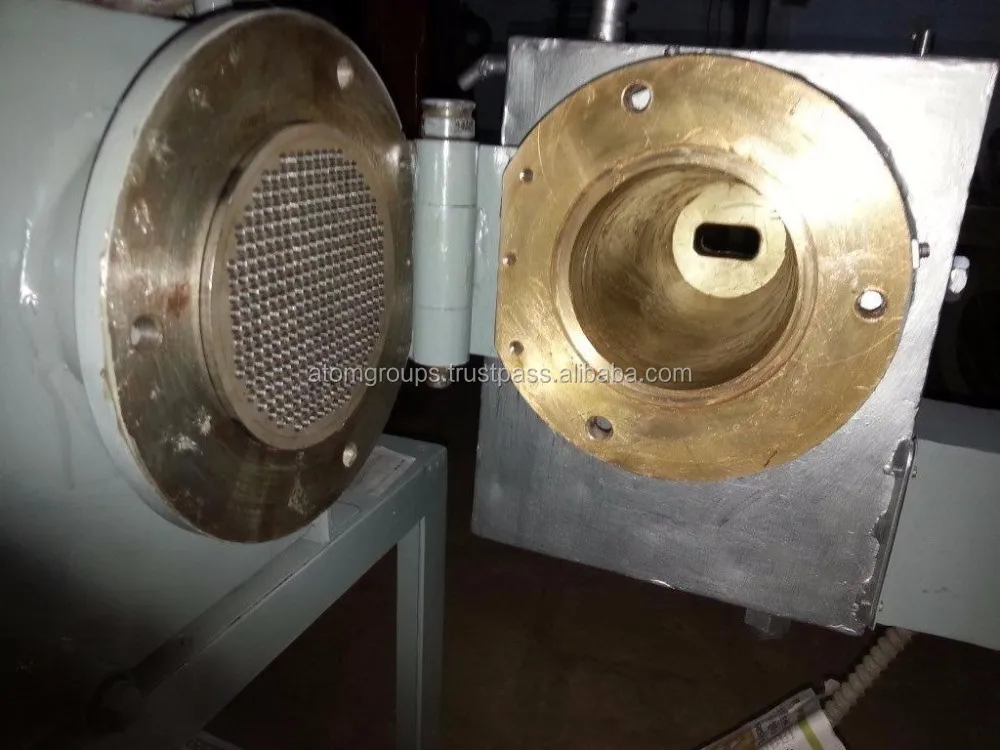

  • Changeable Die.
  • Single Worm (L-3A Worm Dia. 12.7).

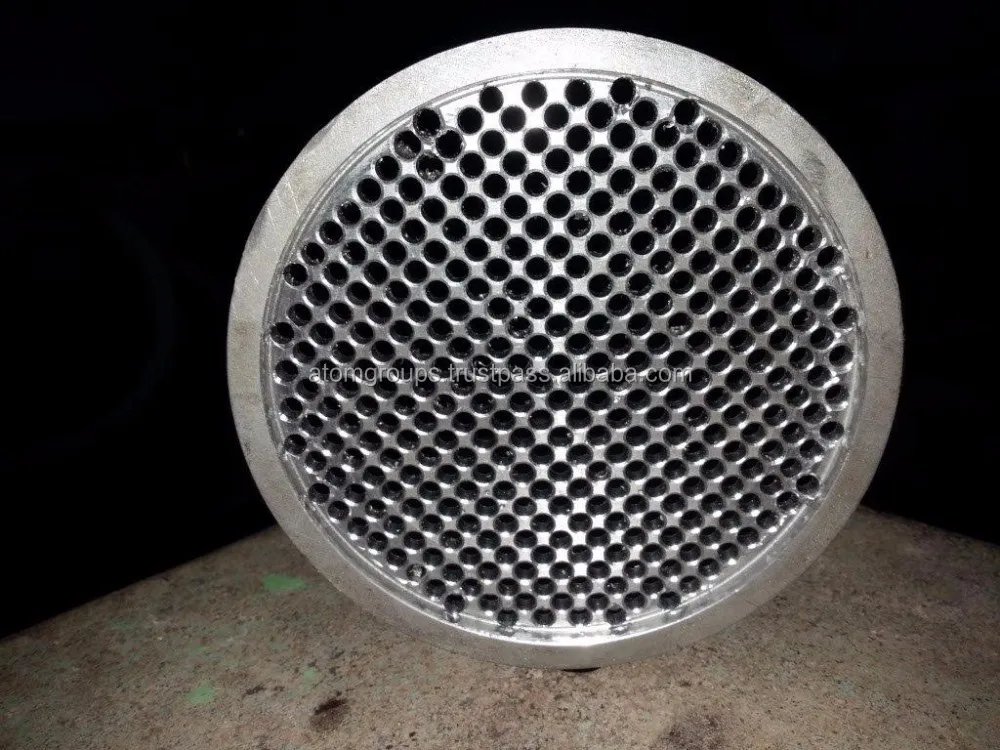

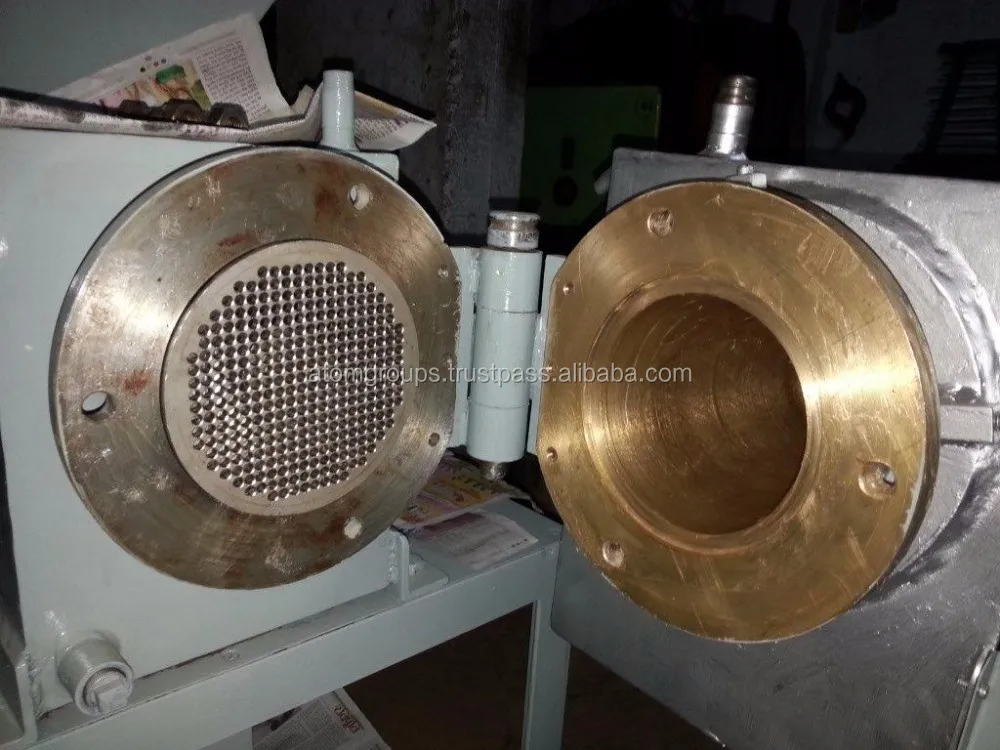

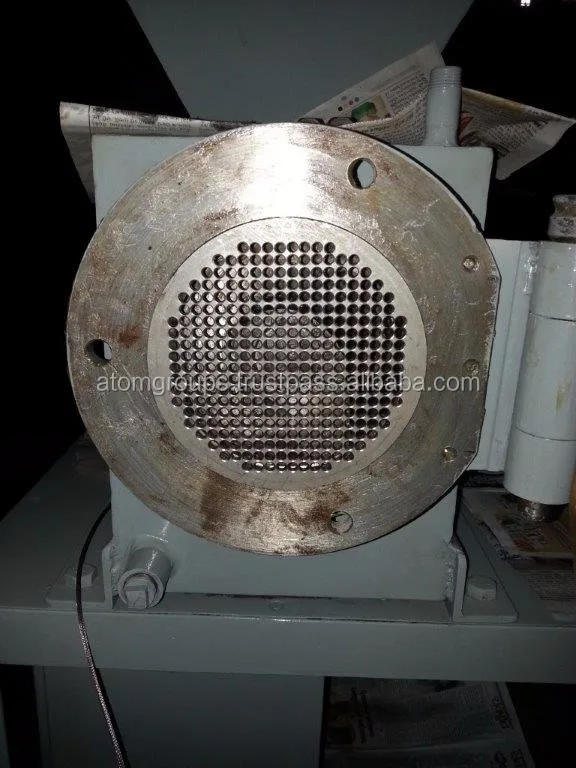

  • Screen is provided for the refining and homogenizing the soap.



  • Cooling jacket is provided at the plodder cylinder.
  • Easy and smooth in operation.









  • Minimum working space.
  • Appropriate working height.
  • Production capacity 500 kg/8 hr capacity approx.
  • Raw Material : Stainless Steel, Mild Steel, Brass & Cast Iron etc.







  • We manufacture plodder machine with capacity ranging from 250 kgs to 10000 kgs / 8 hours.
