Machinery Test Report: | Provided; | Single package size: | 100X60X120 cm; |
After Warranty Service: | Video technical support,Online support,Spare parts; | Brand Name: | XIHUA; |
Length of Roll(mm): | 520; | Dimension(L*W*H): | 1000*600*1200; |
Condition: | New; | Power: | 10KW; |
Applicable Industries: | Manufacturing Plant,plastic industry,rubber industry; | Warranty: | one year; |

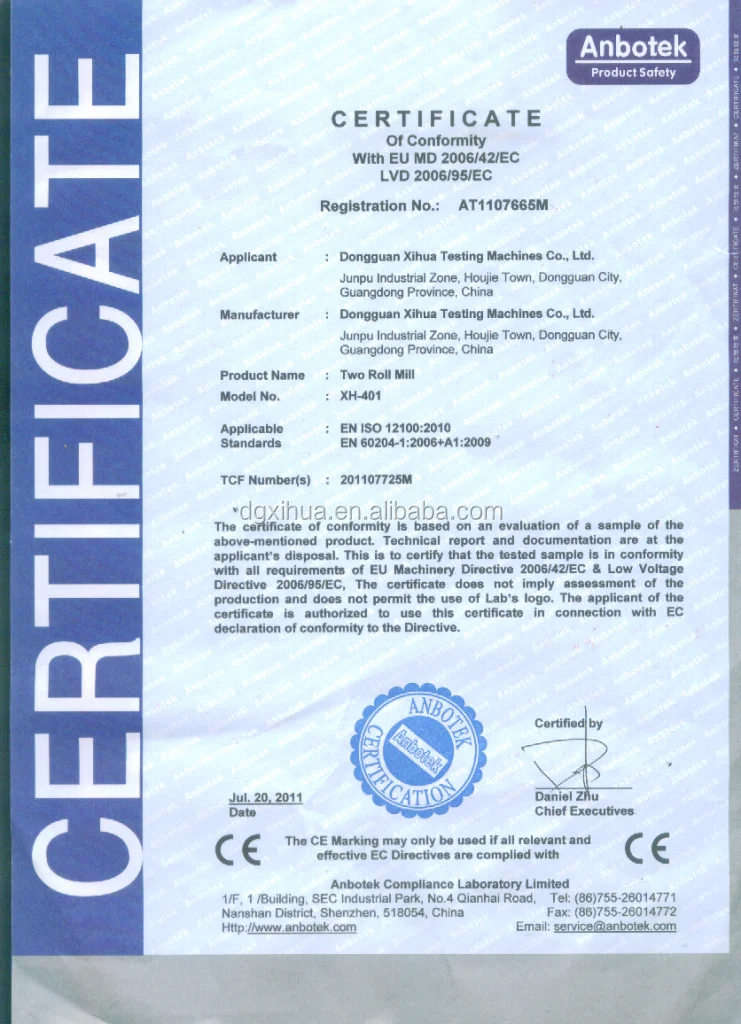

Certification: | CE; | Voltage: | 380V; |
Core Components: | Bearing,Gearbox,Motor; | Roll Ratio(Front/Back): | 1:1.12; |
Type: | Open Mixing Mill; | Place of Origin: | Guangdong China; |
Weight (KG): | 380; | Selling Units: | Single item; |
Marketing Type: | Ordinary Product; | Local Service Location: | South Korea,Egypt,Mexico,Russia,Thailand; |
Single gross weight: | 500.0 KG; | Cooling Mode: | Water Cooling; |
Key Selling Points: | Energy saving; | Video outgoing-inspection: | Provided; |
Color: | orange or customized; | Diameter of Roll(mm): | 200; |
Warranty of core components: | 1 Year; | Showroom Location: | South Korea,Peru,Indonesia,Pakistan,Mexico,Thailand; |
The machine is used to mix the raw material and additional agents uniformly for testing, and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color which specified by the customer.
Two roll mill is widely used in rubber, plastics industries. Such as polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizers, stabilizers and so on. The main purpose is to test raw materials's physical properties change and contrast after mixing. Such as color dispersion, light transmission, substance table.

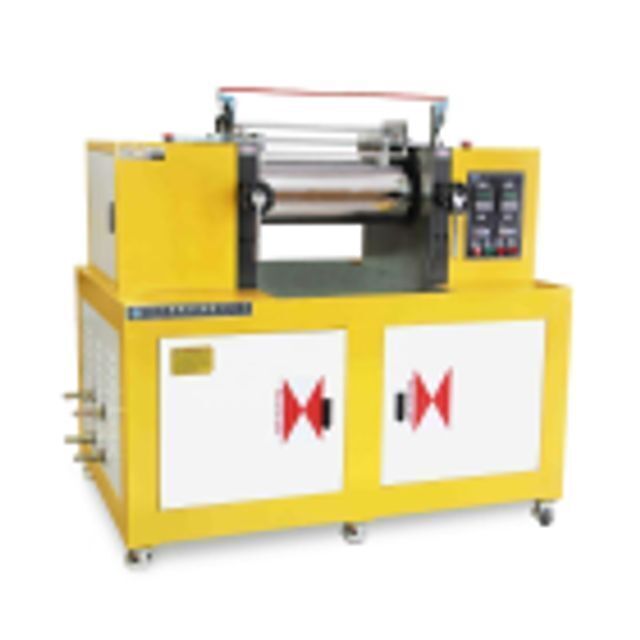

SPECIFICATIONS FOR XH-401CEW-200 TWO ROLL MILL | ||||||
Technical Parameters | Applicable materials | PP, PE, PVC, rubber, etc. | ||||
Mixing capacity | 1-2kgs or designated | |||||
Roller diameter | 200mm | |||||
Roller width | 520mm | |||||
Roller gap | 0.1 - 5mm (adjustable) | |||||
Speed of both rollers | 0-30r/min | |||||
Speed radio | adjustable | |||||
Heating mode | electric heating | |||||
Cooling mode | Water cooling | |||||
Safety device | protective cover, safety lever, reverse door, emergency stop button | |||||
Motor | 7.5KW*2 sets | |||||
Power supply | 350V/50Hz/3 phases or Customerized |
1) Built-in heater, together with LED temperature controller and high-precision
2) Taiwan Bangcheng motor, low noise, stable operation and good durability
3) A lot safety devices guarantees the operator's safety
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.
Name: Control Board
LED temperature display, the speed easy control by two frequency converter.

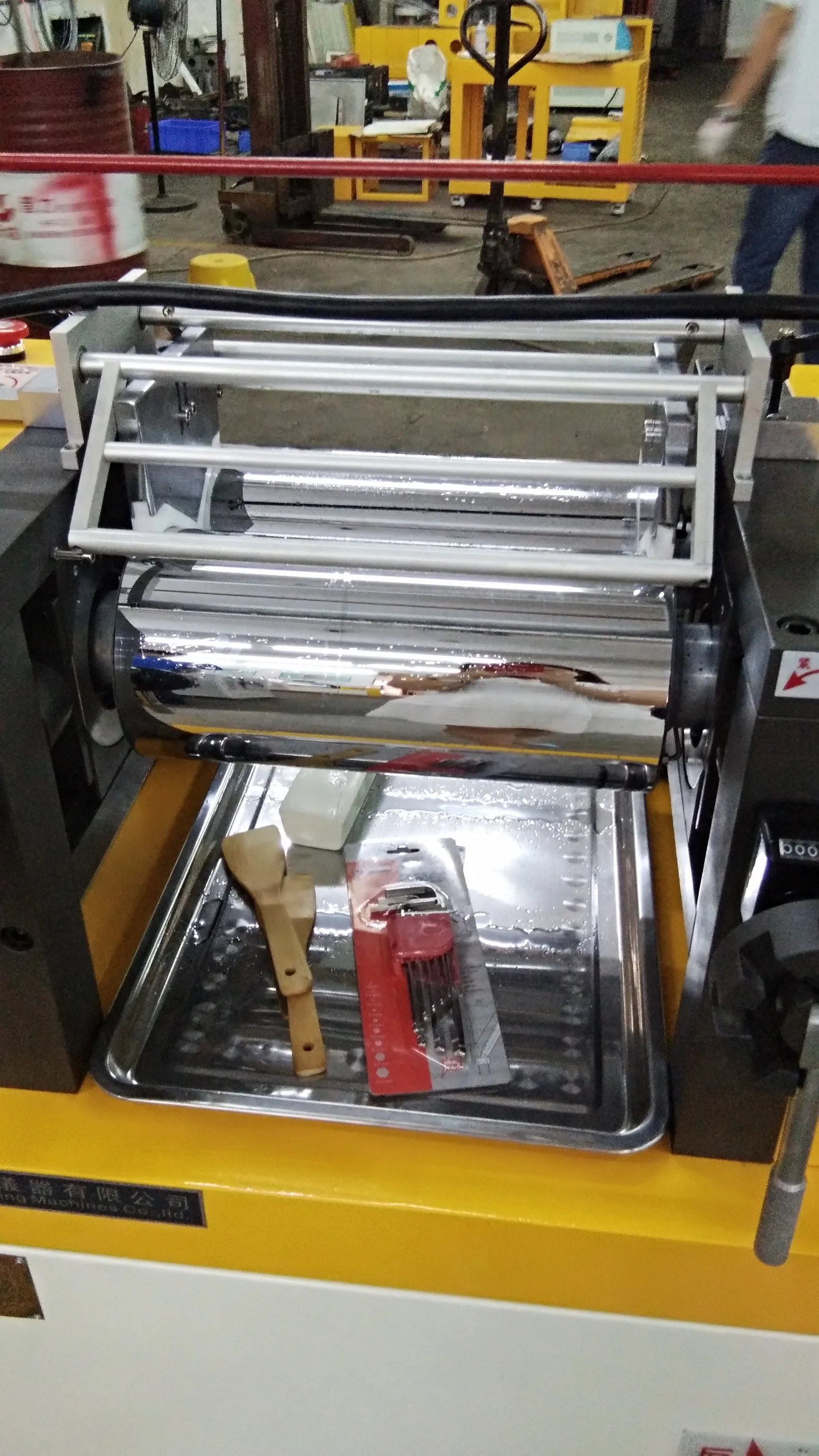

Name: Roller
Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
Name: Safety device
protective cover, safety lever

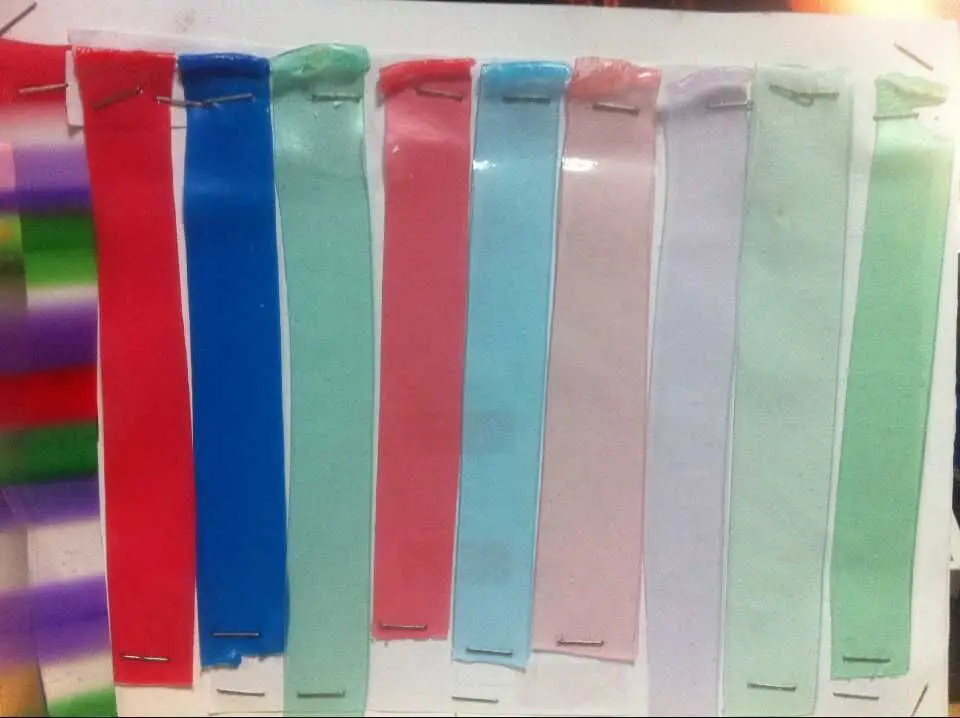

Name: Testing sample sheet
Some testing samples for matching colors
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1000 * 600 *1200mm | |
Weight | 500kgs | |
Packaging Details | The normal package is wooden box |
