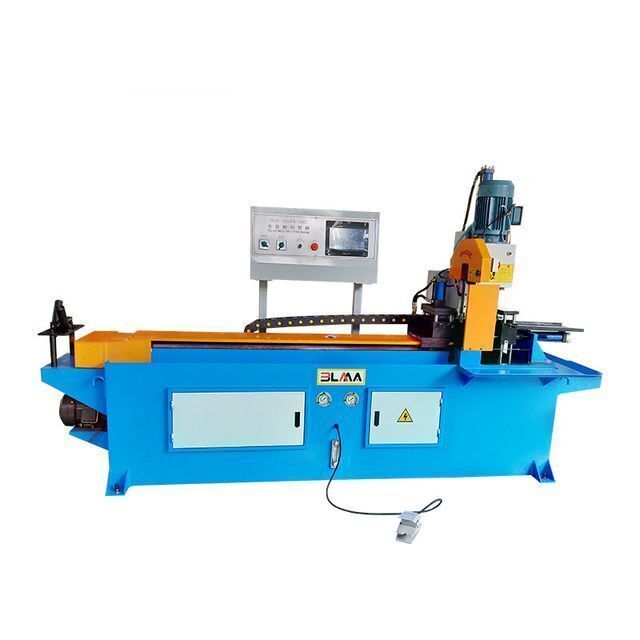

Type mc - 425cnc square profile metal steel full automatic cnc pipe tube cutting machine

Product details
Supply Ability:100 Set/Sets per Month;Payment Terms:L/C,T/T,Western Union,MoneyGram,Alibaba trade assurance;
Warranty of core components:1 Year;Warranty:1 year;
Hydraulic pump motor:4kw;Year:2019;
Marketing Type:Ordinary Product;Material / Metal Processed:Stainless Steel,Carbon Steel,Aluminum;
Key Selling Points:Automatic;Condition:New;
Item:metal steel full automatic cnc pipe tube cutting machine;Local Service Location:United Kingdom,Brazil,Romania,South Africa;
Brand Name:BLMA;Packaging Detail:hollow pipe cutting machine is packed in standard exported package.;
Core Components:PLC,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Weight (KG):1600;Video outgoing-inspection:Provided;
Rated Power:4KW;Voltage:380V/Customized;
Color:Blue or customized;Machinery Test Report:Provided;
Dimension(L*W*H):2200x1400x2200mm;Machine size:2200x1400x2200mm;
Feeding servo motor power:1kw;Feeding length:0-1000mm(Can be customized);
Certification:CE;Available Saw Blade Size:300/315/350/400/450mm;
Machine weight:1600kg;Cutting material:Steel, stainless steel, copper, aluminum, metal;
Place of Origin:Jiangsu China;Automation:Automatic;
Applicable Industries:Building Material Shops,Manufacturing Plant,Funiture facotory, transportation factory;Oil pressure(hydraulic):4Mpa;
Port:Shanghai port;Showroom Location:United Kingdom,Brazil,South Africa;

Type mc - 425cnc square profile metal steel full automatic cnc pipe tube cutting machine

Product Description

Machine features:

1. Imported hydraulic system, cutting powerful and the saw blade durable.

2. Linear Guide Raids with lube and vertical slide-way cutting make the cutting steady and accurate.

3. Separated control of cutting and clamping, special-designed clamping method make the clamping
deformation very little, especially suitable for thin pipes and stainless steel pipes.

4. Robust design ensures low vibration, low noise and long-time working.

5. Automatic water cooling system makes the cutting surface smooth and of little flash and strain, also makes the saw blade long-time use.

6. The cutting scraps are treated together and the maintance is easy.

7. Easy to operate. Extremely powerful functions makes it ideal for small lot flexible cutting requirements.

8.Human/machine interface control provides user friendly operations.

9. Touch sensing screen. Numerically controlled, provides high cutting accuracy.

10.Using for automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on

Main specification

MC425CNC

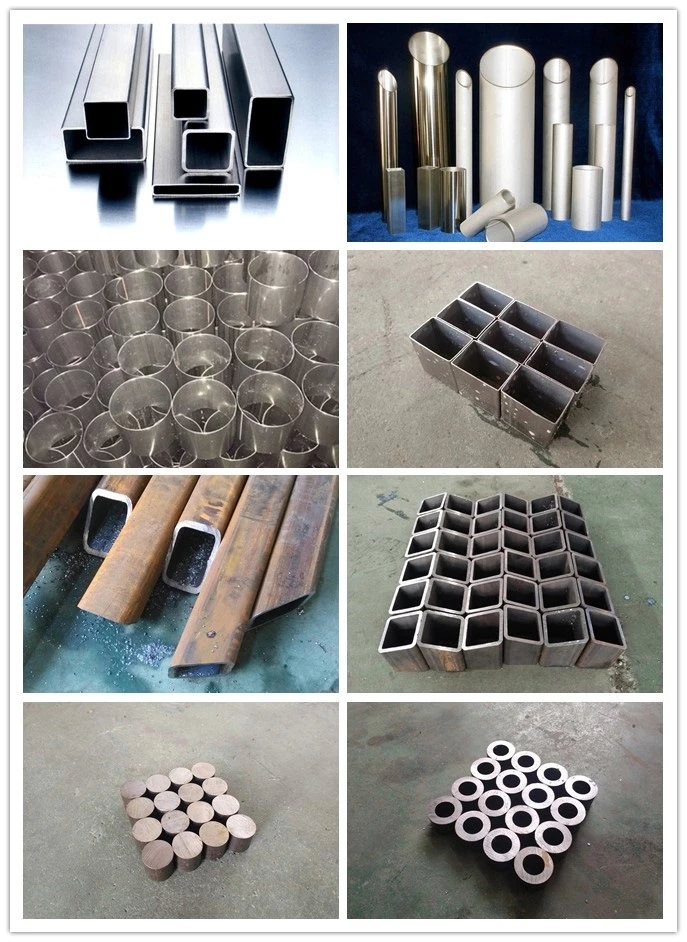

Sawing Range

Round pipe

Φ150 mm

Square pipe

120×120mm

Rectangle pipe

160×70mm

Solid round pipe

50mm

Solid square pipe

50x50mm

Available Saw Blade Size

300/315/350/400/450mm

Hydraulic pump motor

4.0KW

Oil pressure(hydraulic)

4MPa

Feeding servo motor power

1.0kw

Feeding length

0-1000mm (Can be customized)

Machine weight

1600KG

Size

2200×1400×2200mm



FAQ

FAQ:

1. Are you manufacturer or trading company?

    We are manufacturer.

 2. What shall we do if don't know how to operate your machine?
    We can dispatch our engineers to your country and you can also send your engineers to our

    factory for learning operation. Besides, there are detailed installation and operating instructions

    attached, it is very simple. We have telephone and email support at 24 hours per day.



 3. What are your payment terms?
    We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance

    before the shipment.



 4. OEM is available?

    Yes.
