Food grade yogurt production line small scale automatic yogurt making machine

Supplier: Henan Ocean Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jasmine Yuan
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	Industrial yogurt making machine;	Marketing Type:	New Product 2020;
Weight:	500 KG;	Supply Ability:	30 Sets per Month automatic powder filling and packaging machine;
Port:	All ports in China are available;	Keywords:	yogurt making machine yogurt production line;
Capacity:	300L~10000L yogurt making machine commercial;	Feature:	Automatic yogurt making machine;
Raw material:	Fresh Liquid Milk / Milk Powder;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Key Selling Points:	Easy to Operate;	Application:	All kinds of yoghurt making machine yogurt production line;
Packaging Detail:	Standard export wooden case package;	Warranty:	1 Year;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Food & Beverage Shops;	Warranty of core components:	1 Year;
Machinery Test Report:	Provided;	Certification:	ISO;
Local Service Location:	None;	Refrigeration medium:	R22;
Tank type:	Cooling, Heating, Sterilization, Fermentation Tank;	Condition:	New;
Place of Origin:	Henan, China;	Package Preview:	;
After-sales Service Provided:	Online support;	Video outgoing-inspection:	Provided;
Showroom Location:	None;	Processing Types:	Heating + Pasteurizing +Cooling;
Voltage:	220v/380v;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Dimension(LWH):	14007801530mm;	Final product:	Flavoured Milk Yogurt;
Power:	12kw;	Core Components:	PLC,Gearbox,Motor,Pump;
Brand Name:	Ocean;

Product Description

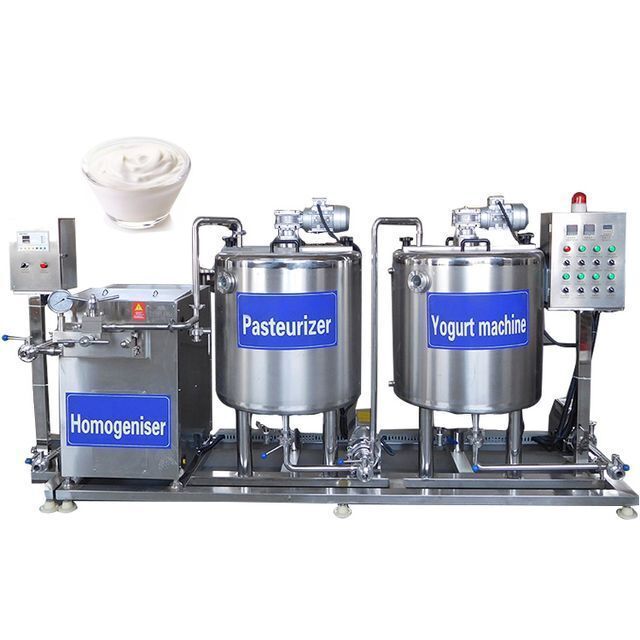

Complete Yogurt Making Machine Production Line

Related Machines

Cooling Tank

Material: SUS304 Power supply: 380v/50Hz Total power: 2Kw Cooling capacity: 5000 kcal/hour Sheet thickness: inner 2mm middle1mm outer1.2mm Installation size: 1700*1100*1950mm Refrigeration medium: R22 Thermal insulation performance: ≤1℃/3H Compressor:2P Motor power/quantity: 0.75kw/1 Insulation material/thickness: polyurethane foam/50mm Material inlet and outlet diameter: Φ32mm/ Φ38mm

Duplex filter

Filtering capacity: 5t/h Applicable temperature: ≤120℃ Filter aperture: 200 mesh Working pressure: ≤0.2MPa Filter material: 304 stainless steel Filtration accuracy: 200 (mesh/in)

Preheating tank

Material: SUS304 Power supply: 380v 50Hz Power: 9kw Thickness of heavy plate: inner 2mm middle 2mm outer 1.2mm Installation size: 1020*870*1530mm Power of stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure Material inlet and outlet diameter: Φ32mm/Φ38mm

Homogenizer

Output: 200L/H Maximum pressure: 25Mpa Motor power: 4kw Dimensions: 990*600*850mm Whole machine weight: 600kg Pump body material: 1Cr18Ni9Ti Lubrication method: splash lubrication Gear form: hardened helical gear Crankshaft material: 45# steel, surface hardened processing Plunger material: 9Cr18 Plunger diameter and frequency: 20mm, about 210 times/min Plunger sealing material: V-shaped cloth clip ring Check valve structure: cone valve Check valve material: special steel treatment Homogeneous rod and seat material: special hard alloy

Pasteurizer

Material: SUS304 Power supply: 380v 50Hz Power: 9kw Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm Installation size: 1020*870*1530 Stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure Material inlet and outlet diameter: Φ32mm/Φ38mm

Fermenter

Material: SUS304 Power supply: 380v 50Hz Power: 9kw Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm Installation size: 1400*1400*1950mm Stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure Material inlet and outlet diameter: Φ32mm/Φ38mm

Filling Machine

Material: SUS304 Working method: continuous work Filling method: automatic filling Equipment size: 1300*1300*1750mm

Air Compressor

Power: 7.5kw Wooden box size:1240*500*1060mm

Acid/Alkali/Water Tank

Water tank capacity: 500L Alkali tank capacity: 500L Acid tank capacity: 500L Pump power: 1.5kw Equipment weight: 500kg Dimensions: 4000*900*2300mm

Pump

Voltage: 380V/three-phase/50hz Flow rate: 1T/H Import and export of materials: Φ38mm Power: 0.75kw

Pipe Valve Base

Material:SUS304 Thickness: 2mm Mirror polished inside and outside

Final Product

All kinds of yogurt

Complete Production Line

Factory Real Shot

Final Products

Recommend Products

Company Profile

Henan Ocean Machinery Equipment Co.,Ltd., an ISO9001 certified and High-tech Enterprise established more than 10 years ago, is a professional manufacturer specialized in R&D, production and sales of Mechanical Equipment products such as Snack Food Processing Machine, Fruit and Vegetable Machine, Food & Packaging Machine, Water Well Drilling Rig and Poultry Equivalents, etc., which are widely sold worldwide and we have been recognized by our customers year after year. As a technology based company, Ocean Machinery is constantly developing and researching new products to meet customers' different requirements. We have obtained many national patents and have independent intellectual property rights. On the principle "Customer-oriented, Quality First", Ocean Machinery is committed to providing our customers with high good quality products and perfect after-sale service. We warmly welcome anyone who is interested in our products and willing to do business with us to contact us.

Exhibition

Customer Photos

FAQ

Question 1: What are your advantages compared with your competitors? Answer: With rich industry experience and strict Product Quality Control systems, we provide: 1. Stable and reliable product at reasonable price 2. Good customer service: Fast response to any inquiry or question 3. On-time delivery. Question 2: Are you manufacturer? Answer: Yes, we are manufacturer with more than 10 years' experience. Question 3: What are your Price Terms? Answer: Price can be based on FOB, CFR, or CIF, etc. Question 4: What are your Payment Terms? Answer: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in. Question 5: What's your Minimum Order Quantity? Answer: Any order quantity is warmly welcomed. Question 6: Do you have English Manual for each machinery? Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us. Question 7: Can I print my Logo on the machine? Answer: Yes, sure. Question 8: Can you customize the machine for me ? Answer: Yes, we can customize according to customer's requirements. Question 9: What shall we do if breakdown occurs? Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer’s requirements. Question 10: What are your modes of transportation? Answer: Courier service, Air transport, Sea Transport. Question 11: Which ports do you usually ship at? Answer: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.

After-sale Service

1. Warranty All the products have one year guarantee. 2. Training We provide training to make sure every customer can install and operate the machines. 3. Spare parts. We provide all spare parts for all machines in lifetime use. 4. Standby Service We are always ready to help. Just let us know whenever you have questions or problems.

Packing & Delivery
