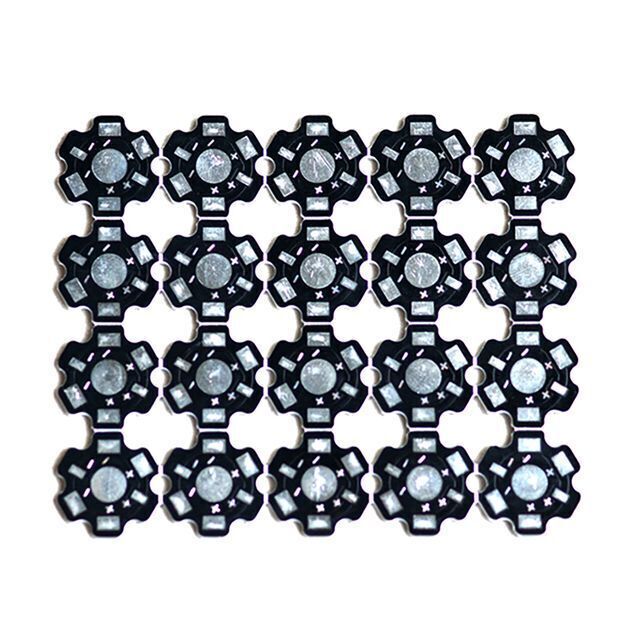

3W 1W High Power LED with 20mm Star Aluminum Base Plate Panel PCB Circuit Board

  • Supplier: Mankun Electronic Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Belinda hu
  • Price: $0.10 / 20 - 499 pieces
    $0.03 / >=500 pieces
  • Min. Order: 20 pieces
Click here to contact
Product details
Copper Thickness:1OZ;Min. Line Spacing:0.15mm;
Certificate:U-L;Board Thickness:1.6mm;
Silkscreen Color:Request;Layer:Single Layer;
Application:Led Light;Solder Mask Color:Black;
Single package size:2X2X0.16 cm;Base Material:aluminum base;
Place of Origin:Guangdong, China;Selling Units:Single item;
Other Service:One-stop PCB Assembly Service;Service:One-stop Service;
Packaging Detail:vacuumize;Package Preview:;
Surface Finishing:LF HASL;Pcb Color:Black;
Thermal Conductivity:1.5W/m;Min. Hole Diameter:+-0.3mm;
Product name:Circuit Board;Model Number:6588;
Min. Line Width:0.15mm;Brand Name:MANKUN;
Single gross weight:0.010 KG;
Aluminum Description

LED PCB

Surface: LF HASL



PCB size: 20*20 mm


Copper Foil thickness: 1oz


Metal Base thickness: 1.6mm


High thermal conductivity of aluminum substrate Certificate: Raw materials and final PCB are all

fully accord with UL standard.

Applicable products: Indoor lighting such as bulb lamp, sky lamp,

downlight, panel lamp, etc.


Prouduct display
Technical parameters and process capability of metal substarte(MCPCB)
ITEM
SPECIFICATION
Surface
LF HASL,immersion gold,immersion siliver,OSP
Layer
Single side,double sided Multilayer and special structure
Maximum PCB size
240mmx1490mm OR 490x1190mm
PCB thickness
0.4-3.0mm
Copper Foil thickness
H 1/2/3/4(oz)
Insulation layer thickness
50/75/100/125/150/175/200(um)
Metal Base thickness
AIuminum(1100/3003/5052/6061),Copper AIuminum
Metal Base thickness
0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm)
Shaping
Die punching/CNC Route/V-Cut
Test
100% open&short test
Shaping tolerance
Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm
Hole tolerance
+-0.5mm
Min.Hole DIameter
Single side 0.5/Double sided PTH0.3MM
Solder mask
green/white/black/red/yellow
Min.letter height
0.8mm
Min.line space
0.15
Min.letter width
0.15
Sile screen color
blue/white/black/red/yellow
Sopecial hole
Spot facing/cup hole/buried via hole/buried tank
File format
Gerber,Protel,PowerPCB,AutoCAD etc

Characteristics and application of METAL SUBSTRATE(MCPCB)

Metal substrates (aluminum substrates, copper substrates, iron substrates) for their excellent heat dissipation, machinability, electromagnetic shielding, dimensional stability, magnetic properties and multifunctional properties in LED lighting, hybrid integrated circuits, automobiles, Motorcycle, office self-cutting, high-power electrical equipment, power supply equipment and other fields, has been more and more used, especially in LED packaging products as the substrate is widely used.



Prouduct environment


Ciruit Layer: Copper foil of the gel-treetment.

Dielectric Layer: Fberglass support & Unsupport.

Metal Substrate: Aluminum,Ferrum,Stainless steel,Copper,elc.


Company Information
Packing & Delivery

Lead time:
Pcb production time =Sample:3-4days mass production:7-8 working days
Pcb assembly time= sample:1-2days mass production:3-4days
Remark :mass production exact delievry time depends on the quantity.

Mankun Electronic Co., Ltd. is a high-tech enterprise specializing in researching & producing metal substrates.
We focus on personnel training and absorbing superior techniques. We have an excellent management team. We strictly implement ISO9001 international quality standards to guide the entire company at all levels of management. We built an all-round quality control system to guarantee production quality with strong technical force, advanced production & testing equipment and rich experience.
