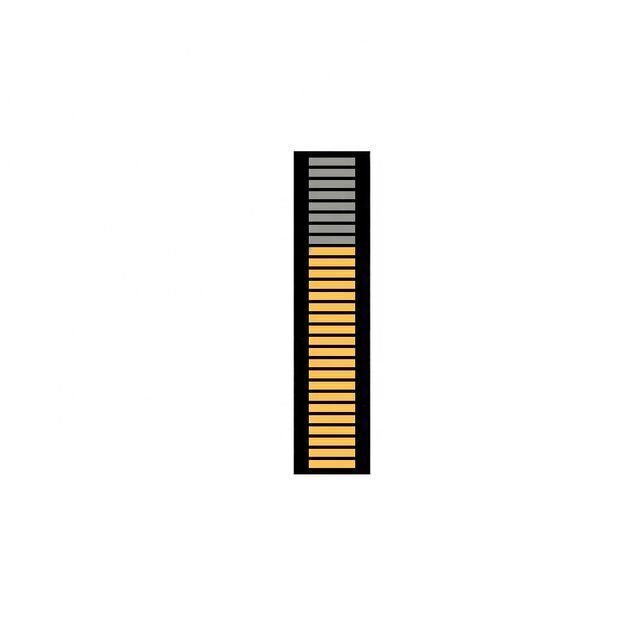

Taidacent BL28-3005SK04Y 28 Segments LED Bar Graph Display Panel Meter Yellow VU Meter LED Beam for Audio Equipment Display

  • Supplier: Shenzhen Taida Century Technology Co., Ltd.
  • Region: Guangdong, China
  • Contact: Mr Abe Lee
  • Price: $6.18 / 5 - 49 pieces
    $5.79 / 50 - 99 pieces
    $5.22 / 100 - 499 pieces
    $4.83 / >=500 pieces
  • Min. Order: 5 pieces
Click here to contact
Product details
Dimensions:Other;Supply Ability:1000 Pieces per Week;
Module:LED Bar Graph;Brand Name:Taidacent;
Display Type:Analog Only;Place of Origin:Guangdong, China;
Payment Terms:L/C,Western Union,T/T,MoneyGram;Model Number:BL28-3005SK04Y;
Supply Voltage:0~5V / 0~12V/ 0~24V;Accuracy Class:Other;
Packaging Detail:BOX PACKAGE;Operating Temperature:Other;
Package Preview:;Measuring Range:0~5V / 0~12V/ 0~24V;
Taidacent BL28-3005SK04Y 28 Segments LED Bar Graph Display Panel Meter Yellow VU Meter LED Beam for Audio Equipment Display
Product Description
The BL series of LED Bargraph display, using high brightness LED chips and semiconductor encapsulations processing technology , is the ideal display device to replace moving coil indicators. Widely used in electronic display meters and instruments. The feature is as follows.
Features
The use of sub-block scattering techniques, wide angle of view
Clearly display,uniform brightness
Antimagnetic,aseismatic,impact resistance
High reliability,maximum mean life
Specification
item
value
Model Number
BL28-3005SK04Y
Bargraph length
32mm
Effective beam number
28 segments
Color
Red /Green /Orange
Absolute Maximum Rating(TA = 25℃ )
Peak forward current : 30~100mA, Typ 80mA
Reverse voltage : 5V
Power dissipation : Typ 0.2W (F.S) , Max0.3 W
Operating temperature range : -25 ~ 70 °C
Soldering time at 260°C : 3sec .
Electro-optical Characteristics(TA = 25℃ )
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Red(E80)
Green(G80)
Yellow(Y80)
Emerald(N200)
Peak wavelengh:
625nm
570nm
590nm
510nm
Segment brightness:
80mcd
60mcd
80mcd
200mcd
Forward voltage
1.9V
2.0V
2.0V
3.2V
Details Images
Packing & Delivery
BOX PACKAGE
