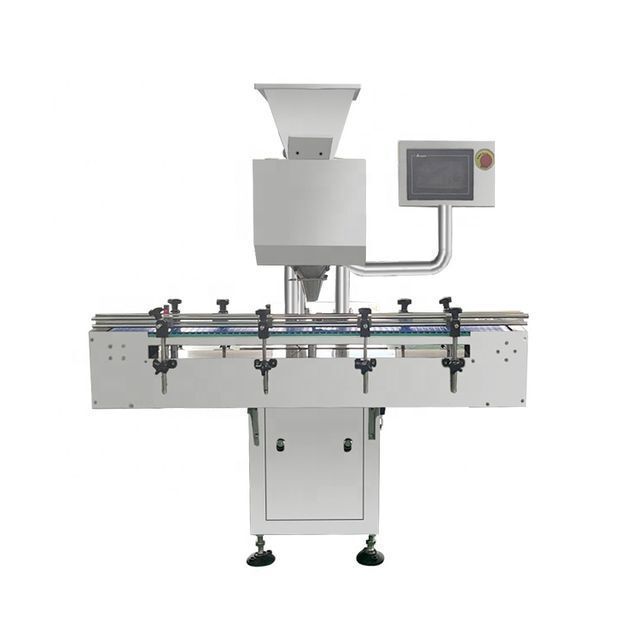

Fully Automatic Electronic Tablet Pill Capsule Counting Bottling Machine Line

Product details
Certification:CE;Warranty of core components:1 Year;
Machine Size:1360*1530*1700mm;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Energy & Mining,Food & Beverage Shops,Pharmaceutical Industry;
Video outgoing-inspection:Provided;Machinery Test Report:Provided;
After-sales Service Provided:Video technical support;Usage:Capsule/tablet;
Capacity:20-30bottles/min;Power (kW):0.5;
Port:Ningbo Or Shanghai Port;Filling Quantity:2-9999pcs/bottle (adjustable);
Packaging Detail:Exported Standard Wooden Case;Dimension(L*W*H):1360*1530*1700mm;
Weight (KG):320;Hopper Volume:20L;
Warranty:1 Year;Supply Ability:30 Sets per Month;
Voltage:220V 50Hz;Capacity (bottle/min):20 - 30 bottle/min;
Place of Origin:Zhejiang, China;Core Components:Engine,Motor;
Compressed air:0.5Mpa;Brand Name:SED-Pharma;
Condition:New;Applicable Material:plastic;
Package Preview:;Showroom Location:None;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Machine Weight:320KG;
Marketing Type:New Product 2020;After Warranty Service:Video technical support;
Key Selling Points:High-accuracy;Capacity (pcs/h):100000 pcs/h;
Product name:Automatic Electronic Counting Machine;Bottle Capacity (pcs/bottle):2 - 9999 pcs/bottle;
Product Description

    Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 8 sets imported counting sensor for counting with 8 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.

Model
SED-8S



Application
1. Filled capsule(00-5#)
2. Soft Gelatin capsule
3. chewing gum
4. tablet
5. other solid object under machine range
Hopper Volume
20L
Capacity
20-30bottles/min
Filling Quantity
2-9999pcs/bottle

Bottle Size
Diameter: 35-90mm
Height:30-180mm

Counting Size
Thickness: 3-10mm
Diameter: 3-15mm
Length: 3-30mm
Compressed air
0.5Mpa
Machine Weight
320KG
Machine Size L × W × H (mm)
1360*1530*1700mm
Product Details
1.HIGH POWER
PHOTOELECTRIC DETECTION DEVICE
Adopting elecrtonic counting technology of high dust resistance,still running normally in high dust environment,accuracy rate >
99.5%
2.MUTI-STAGE VIBRATION BLANKING DEVICE Can be used to separate and count the large,irregular and viscous materials effectively.
3.FLIP BOARD STRUCTURE The top and bottom closed design obtains the national new patent,does not damage the material when working.
4.MATERIAL
Contact with the material all use 316 stainless steel material
5.TOUCH SCREEN
Taiwan Delta Touch screen can be used to set the parameters according to the need.
6.BOTTLE DETECT SENSOR
Count accurate,do not appear omission phenomenon.
Machine Type:
8 channel
12 channel
16 channel
24 channel
32 channel
48 channel
Application
Feature

1)Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling; 2)Vibratory cutting drugs do not damage; 3)A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions; 4)Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost; 5)To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick; 6)Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special; 7)Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices. 8)Low prices, especially for small-volume, variety and more manufacturers use. Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
