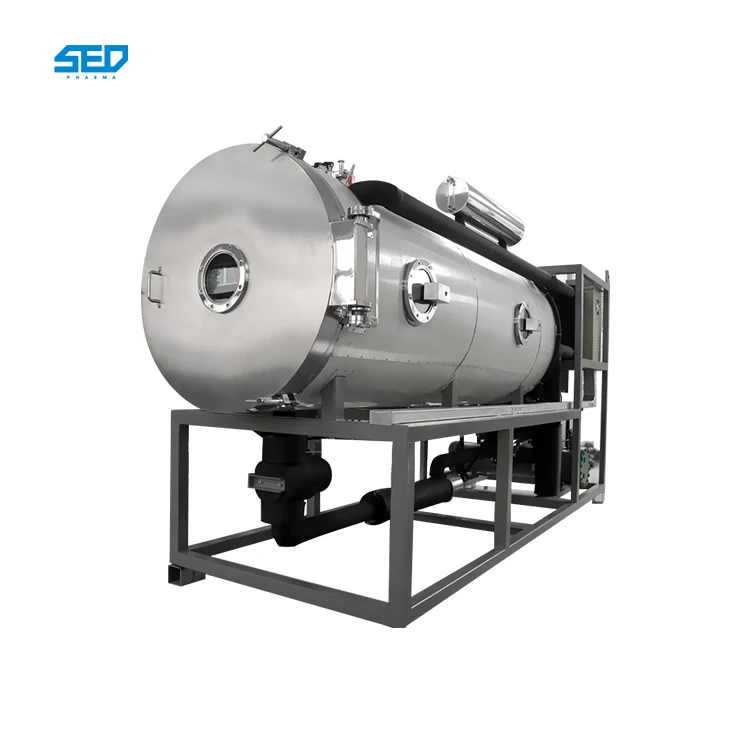

Food Fruit Vacuum Freeze Drying Machine Freeze Dryer Equipment

Supplier: Hangzhou Shengde Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms SED Machinery
Price: $64000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Maximum water capacity:	≥100Kg/batch;	Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;
Showroom Location:	None;	Dimension(LWH):	420014002100mm;
Supply Ability:	30 Sets per Month;	Place of Origin:	Zhejiang, China;
Chamber type:	Horizontal cylinder;	Marketing Type:	New Product 2020;
Drying Capacity (kg):	50;	Total weight:	4000kg(Approx.);
Brand Name:	SED Pharma;	Chamber design pressure:	-0.1Mpa;
Applicable Industries:	Hotels,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Food & Beverage Shops;	Condition:	New;
Product Name:	SED-5DG Vacuum Freeze Dryer;	Type:	Vacuum Drying Equipment;
Lock type:	Manually tighten;	Packaging Detail:	Export Standard Wooden Case;
Warranty of core components:	1 Year;	Weight (KG):	4000;
Machinery Test Report:	Provided;	Opening angle:	>110°;
Video outgoing-inspection:	Provided;	Total Power:	20.9Kw, 380V±10%, 50HZ, 3Phase, 5Wire;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Voltage:	380V±10%, 50HZ, 3Phase, 5Wire;
Compressed air:	≥40L/min(P=0.5~0.8Mpa);	Port:	Ningbo Or Shanghai Port;
Warranty:	1 Year;	Package Preview:	;
Food loading capacity:	≥50Kg/batch;	Core Components:	Motor,Engine;
Key Selling Points:	High Productivity;	Power:	20.9Kw;

Product Description

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.

Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will not longer change until the "solid bridge" completely disappear.

Product Name	SED-5DG Vacuum Freeze Dryer
Total Power	20.9Kw, 380V±10%, 50HZ, 3Phase, 5Wire
Compressed air	≥40L/min（P=0.5~0.8Mpa）
Whole volume(L×W×H)	4200mm×1400mm×2100mm Final dimension based on design
Total weight	4000kg（Approx.）
Chamber design pressure	-0.1Mpa
Total usable area of shelves	5M2
Food loading capacity	≥50Kg/batch
Maximum water capacity	≥100Kg/batch
Shelf spacing	60mm
The number of shelf	8+1 (Compensation Board)

Product Details

Products Show

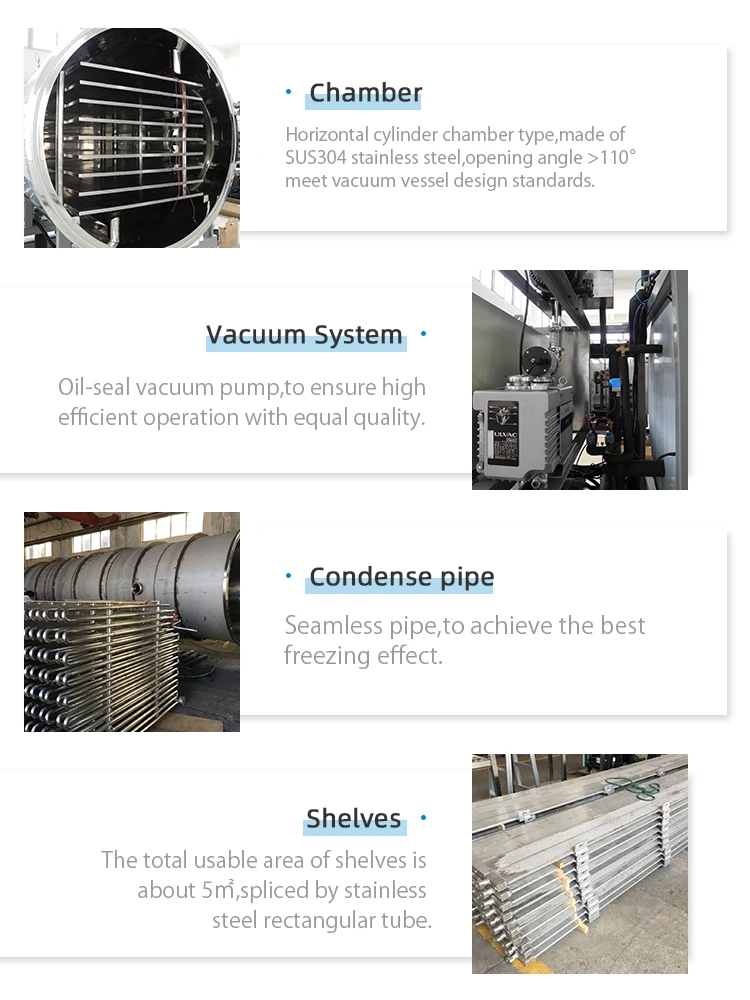

Feature

1. Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements

2. 3D design, consistent with CGMP requirements of complete sterilization.

3. Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage

4. Germany imported automatic welding machine is the best guarantee for the quality of the products you

Main Products

If you want more informations,please click here and contact us!!!

Our Company

FAQ

Q1:Are You A Factory or A Trading Company?
A: We Provided Perfect OEM and After-sale Service.

Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan

Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine

Q4:How Can I Know Your Machine Is Designed For My Product?
A:You Can Send Us Samples of Your Product and We Test It On Machine

Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods

Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated

Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
