Name: | Digital tensiometer; | Type: | measure instruments,measure instruments; |
Packing: | Boxing Packing; | Certificate: | ISO; |
Place of Origin: | Zhejiang, China; | Port: | Ningbo,China; |
Warranty: | At least one year; | Supply Ability: | 300 Pieces per Month; |
Packaging Detail: | Exported Boxes; | Model Number: | 22305; |
Model: | 22305; | Customized support: | OEM; |
Material: | Steel; | Payment Terms: | L/C,Western Union,T/T; |
Brand Name: | Donghuan; | Certification: | ISO; |
Usage: | Weighing and measurement; | Application: | Used to measure tension and weight; |

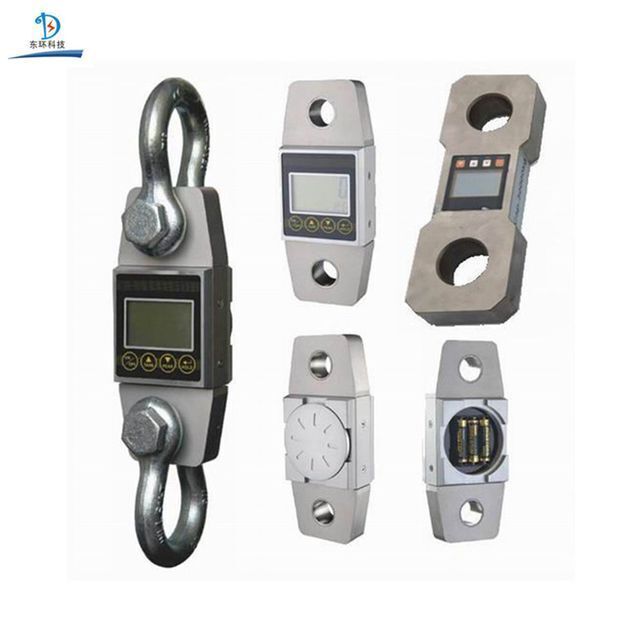

Digital tensiometer Used to Measure Tension And Weight For Construction Works
Uses: Use to measure tension and weight
Feature
1.Smart figure .light weight .
2.Cylinder structure , Industrial-grade high precision dynamometer and tensiometer.
3.Integral metal structure design, more durable, 4 times the ultimate load, waterproof panel keys.
Technical Data
Item number |
Max. measurement (T) |
Min. measurement (kg) |
Graduation value (kg) |
Wide (mm) |
Thickness (mm) |
Long (mm) |
Internal diameter (mm) |
Weight (kg) |
22305 | 1 | 10 | 0.5 | 90 | 30 | 230 | 25 | 2.0 |
22306 | 2 | 20 | 1 | 90 | 30 | 230 | 25 | 2.0 |
22306A | 3 | 20 | 1 | 90 | 30 | 230 | 25 | 2.0 |
22307 | 5 | 40 | 2 | 90 | 30 | 230 | 32 | 3.5 |
22308 | 10 | 100 | 5 | 90 | 48 | 280 | 32 | 7.0 |
22309 | 15 | 100 | 5 | 90 | 60 | 350 | 50 | 15.0 |
22310 | 20 | 200 | 10 | 90 | 60 | 350 | 50 | 15.0 |
