Dyna-link wireless 1t 2t 3t 5t 10t 20t 50t 100t 200t dynamometer

Supplier: Taixing Aida Import And Export Co., Ltd.
Region: Jiangsu, China
Contact: Ms Yinghua Ni
Price: $200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

model:	DL-R	Dynamometer:	Dynamometer
brand:	Aida	shackles:	High Voltage Industry Standard G2130
Delivery Details:	Ships within 7 days of payment	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
port:	Shanghai	Supply capacity:	100 pieces per quarter
accuracy:	1-50t 0.05%	Operating temperature:	-20°C to 50°C
Sell:	Sales	capacity:	1T~200t
Material:	aluminum	color:	silver
Packaging Details:	Dynamometer 1. Export standard packaging 2. Inner exquisite box packaging	place of origin; place of origin:	Zhejiang, China
Battery:	"LR6(AA)" size alkaline batteries. 1.5Vx3	exhibit:	25mm 5-digit LCD screen

wirelessDynamometer

Model: DL-W3

aspect(dimensions shown are nominal and subject to tolerance)

Model	cap	partition	a (mm)	B(mm)	C(mm)	depth (mm)	φ(mm)	Well)	Material
DL-W3-1	1 ton	0.5kg	245	112	37	190	43	335	aluminum
DL-W3-2	2 tons	1 kilograms	260	123	37	195	51	365	aluminum
DL-W3-3	3 tons	1 kilograms	260	123	37	195	51	365	aluminum
DL-W3-5	5 tons	2KG	285	123	57	210	58	405	aluminum
DL-W3-10	10 tons	5kg	320	120	57	230	92	535	alloy steel
DL-W3-20	20 tons	10 kg	375	128	74	260	127	660	alloy steel
DL-W3-30	30	10 kg	420	138	82	280	146	740	alloy steel
DL-W3-50	50 tons	20kg	465	150	104	305	184	930	alloy steel
DL-W3-100	100 tons	50kg	570	190	132	366	229	1230	alloy steel
DL-W3-200	200 tons	100kg	720	265	183	440	280	1362	alloy steel

contour:

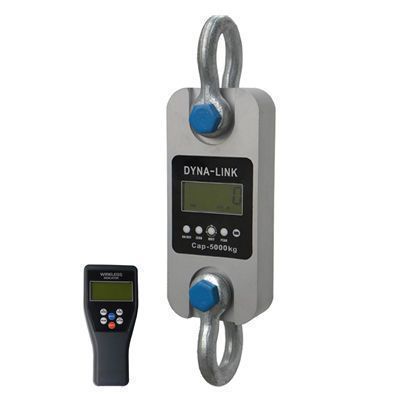

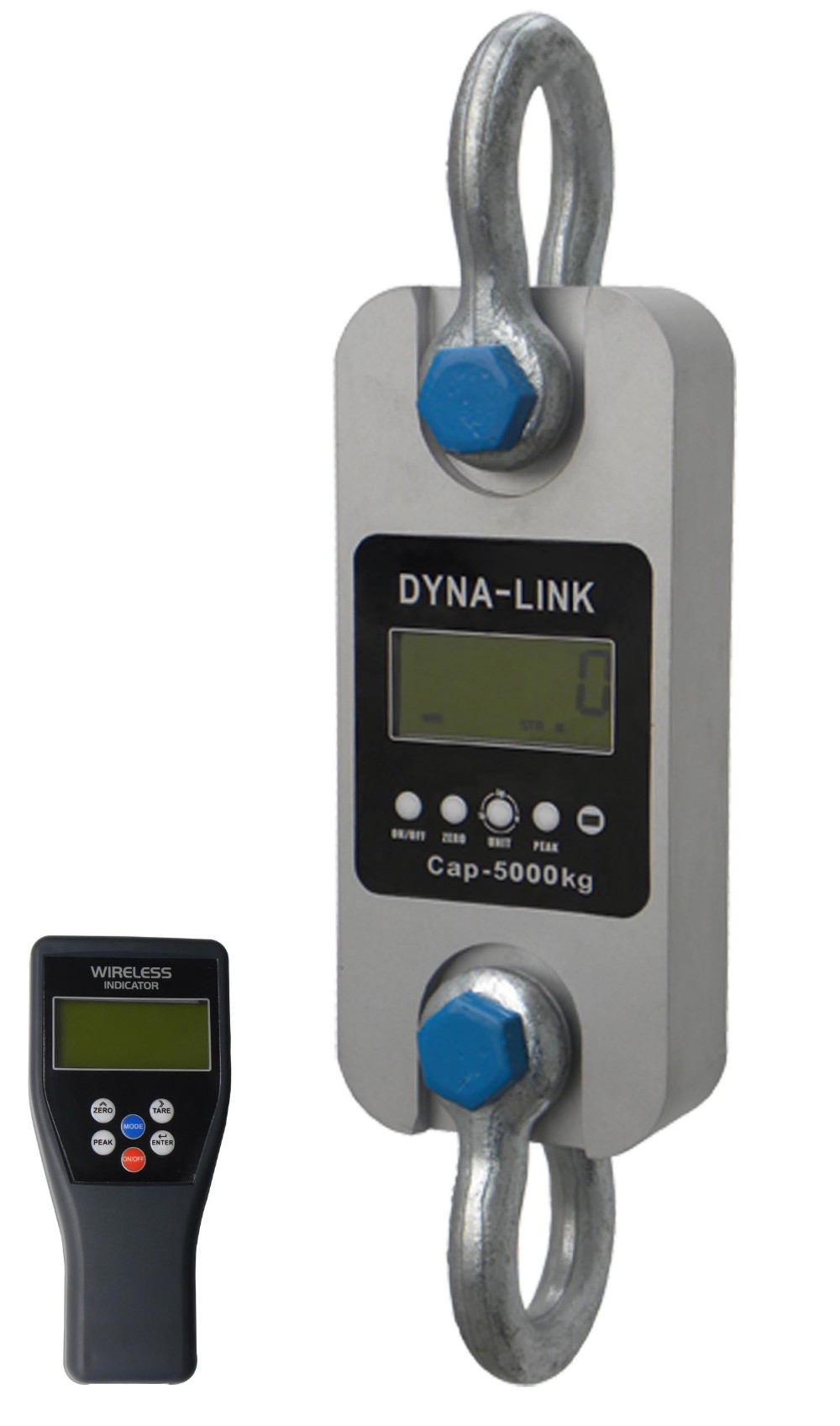

The DL-W3 wireless dynamometer is an instrument ideal for industrial use, providing general purpose applications as a standard wireless tool, whether used as a traditional crane weighing or measuring force, the DL-W3 wireless dynamometer is microprocessor controlled For high accuracy, calibration is easier using the wireless handheld indicator 380.

Body Protection:Aluminum and alloy steel volumes are powder coated.

accuracy:0.05% for 1-50 tons, 0.1% for more than 50 tons.

unit:Units are clearly displayed on the screen,The following measurement readings are available: kilograms (kg), short tons (t) pounds (lb), newtons and kilonewtons (kN)

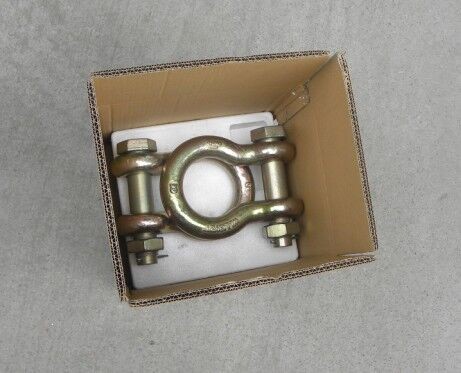

shackles:High Tension Industry Standard G2130 Anchor Shackle Bow, Galvanized Finish.

Gravity Adjustment: The gravitational acceleration can be adjusted according to different position values through the index parameter setting.

Function:Wireless indicator with multiple functions: zero, tare, low battery warning, peak hold, overload warning. User calibration (with password).

put-View:Two user programmable set points are available for safety and warning applications or limit weighing.

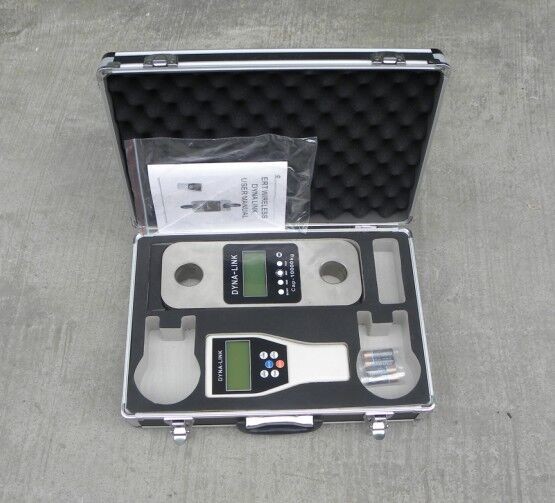

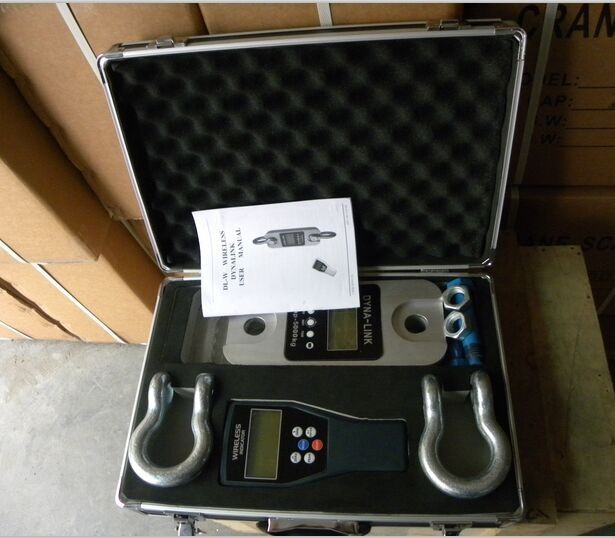

pack:Comes with a suitcase for easy portability.

Indicator key:4 local mechanical keys: "ON/OFF", "ZERO", "PEAK" and "Unit Change".

Main technical data:

body display	25mm (1'') 5digits LCD with backlight
380 indicator display	25mm (1'') 5digits LCD with backlight
Power up zero range	20% full
Manual zero range	4% full
Tare range	100% full
stable schedule	≤5 seconds
Overload indication	100% FS + 9e
maximum. Safe load	125% full
ultimate load	400% full
Battery Life	≥50 hours
body battery	"LR6(AA)" size alkaline batteries. 1.5Vx3
indicator battery	"LR6(AA)" size alkaline batteries. 1.5Vx4
Operating temperature	- 20℃ ~ +50℃
Working humidity	≤85% RH under 20℃
wireless distance	minute. 80m (default) [200m (optional)]
radio frequency	2.4GHz (default), 433MHz, 868MHz (optional)
