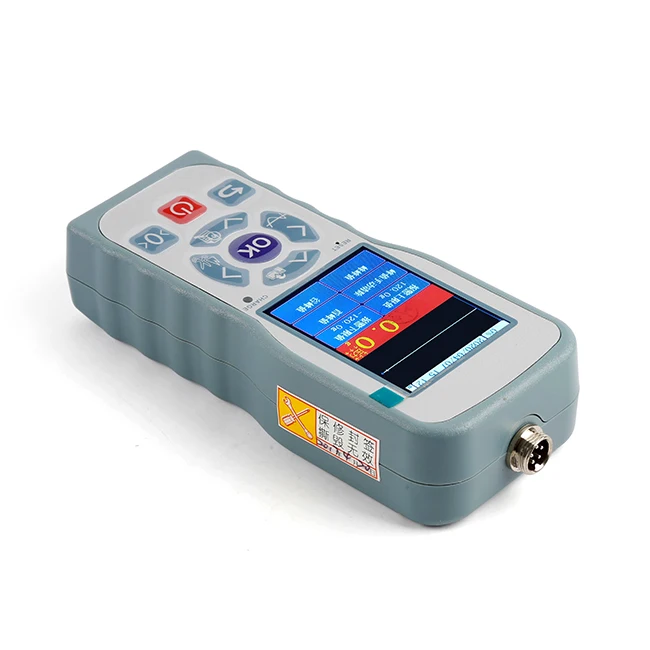

CPR-TX400 Push Pull Tester testing machine Digital Force Gauge weight indicator

Product details
Sensor structure:outside sensor with digital display;Place of Origin:Guangdong, China;
Application:testing machine,fixture etc.;Model Number:CPR-TX400;
Product Name:handheld Meter (chargeable);Style:Digital force gauge;
measurement unit:N, kg, lb, Mpa;Warranty:1 year;
Selling Units:Single item;Brand Name:CPR;
Single gross weight:2.000 KG;Apply to:Push Pull/insertion force test etc.;
Single package size:29X24X8 cm;Customized support:OEM;
Measurement:Peak Value Measurement,Real Time Measurement;
Company Profile

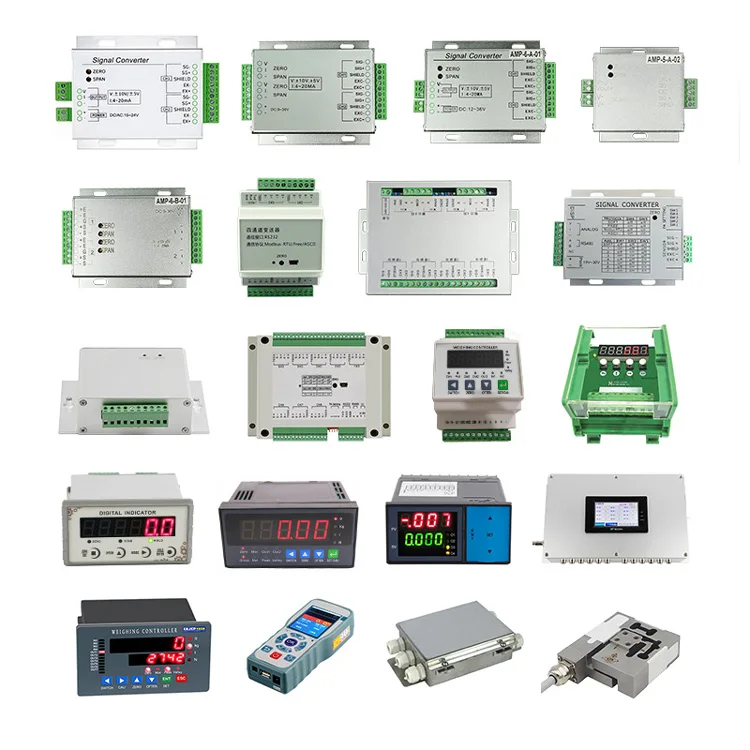

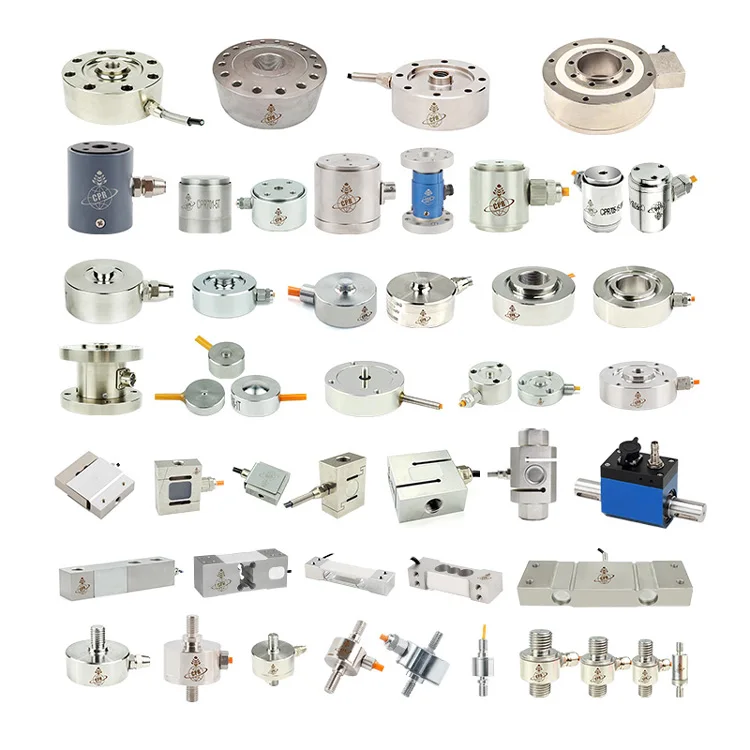

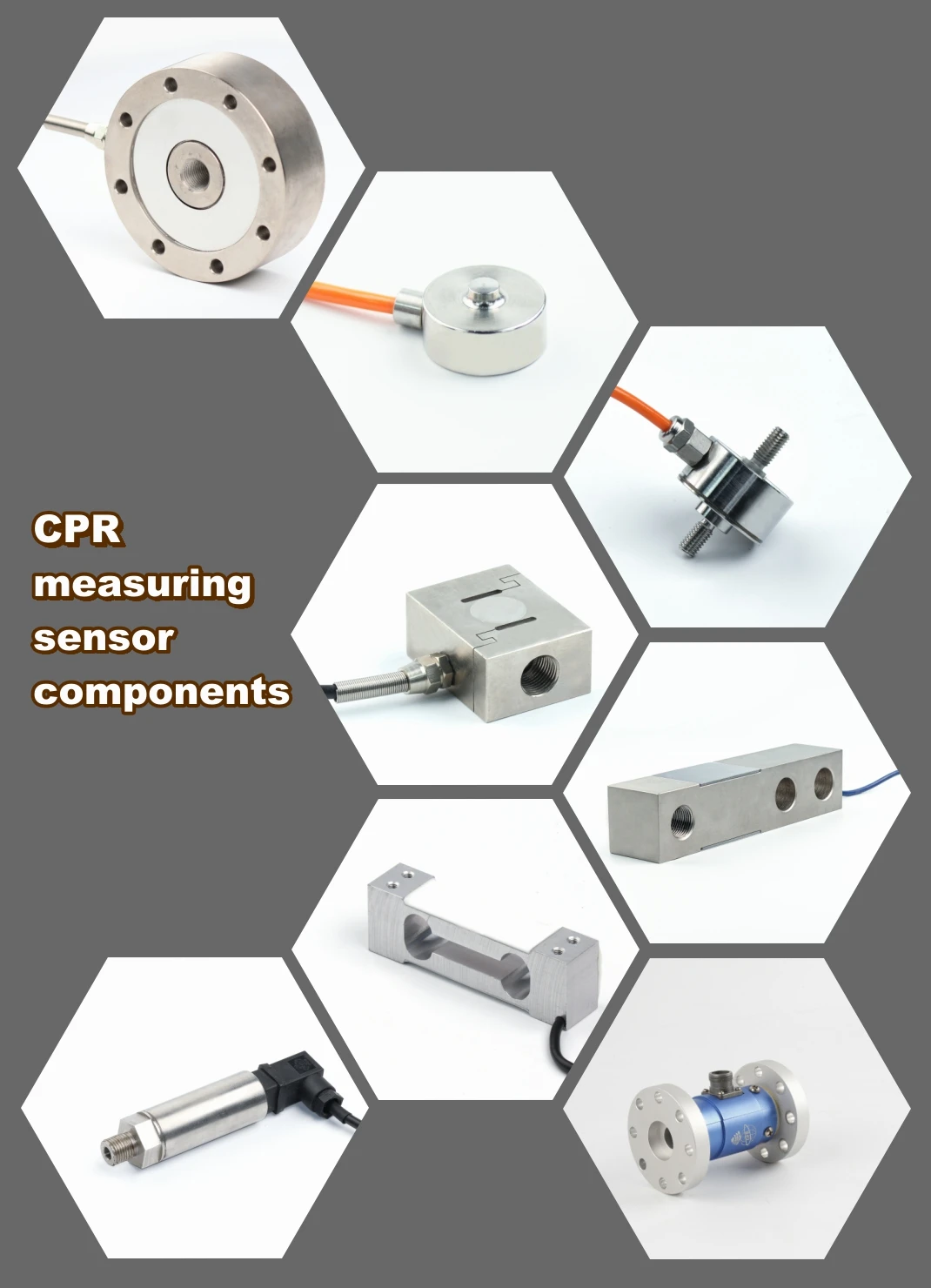

-National high-tech enterprise, R&D and manufacturing capabilities Shenzhen Cooperation Sensors Instruments Co., Ltd., was origined from 1995, recognized as high-tech enterprise in the design and manufacture of sensor technologies. There are 80% professional technicians in our total staff so that strong technology support could be offered to our clients. Our factory has modern sensor production line using global advanced manufacturing technology and management concepts to ensure our various types of sensors and detection instruments qualifies different market requirements. We look forward to establishing a long term and reliable trade cooperation on the principles of win-win. -Product categories and market services, agents of well-known foreign brands Our leading products include pressure sensors, miniature load cells, digital sensors, microcontroller multi-function miniature pressure display indicator, all-electric injection molding machine series sensors, intelligent GPRS module sensor signal transmission, intelligent fire-fighting instruments, software engineering support etc. Our company's marketing network covers all over 32 provinces of China after nearly 10 years of continuous development with the aim of providing customers with high-quality products and perfect after-sales service. We are also the agent of world well-known brands from Japanese and European, such as Japanese NMB load cell series, pressure sensors and meters, and American TRANSCELL, CELTRON's load cells and meters. Japanese NMB series sensors have been accepted widely in domestic market because of its reliable quality and economic price also as the first choice for national defense and high-precision control product. -Development history and important achievements In 2004, authorized by Japan NMB for long-term operating in China. In 2006, launched into foreign markets successfully. In 2007, became a special distributor of Freescale (formerly MOTOROLA) on pressure sensors. In 2014, our expansion force test system gained a national patent. In 2017, became a strategic partner with Harbin Institute of Technology. In 2018, became a national high-tech enterprise and developed a variety of new energy sensors and software, launched a new product which can monitor expansion force and displacement at the same time. In 2019, the expansion force test system successfully entered the field of new energy vehicles, and the newly developed products are installed distributed force and constant force test systems.
Features & Applications
* Suitable for various push-pull force test, plug-in force test, destructive test etc.
* Combined with various testing machines and fixtures to form small testing machines for different purposes

Product Description * The digital display force gauge is a digital display, easy to use push-pull load test instrument, push-pull load test with various products, plug-in test, destructive test.

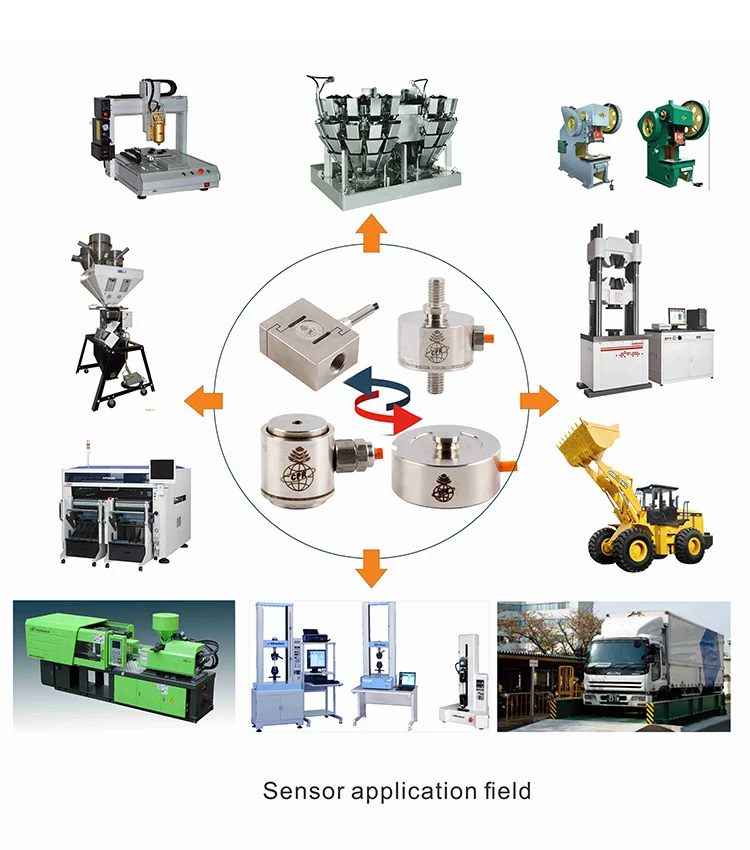

Applications: * The CPR series are digital force gauge with compact size, high accuracy, They are easy to operate and handy to carry out. * Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.

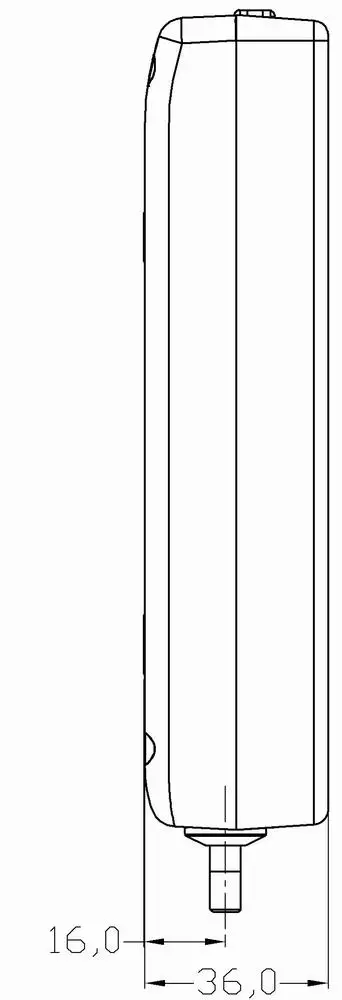

Dimensions
Specifications
1
Small size, light weight, easy to carry, multi-function, high precision and high resolution;
2
2.8-inch TFT true color display; direction buttons and display screen can be turned 180°;
3

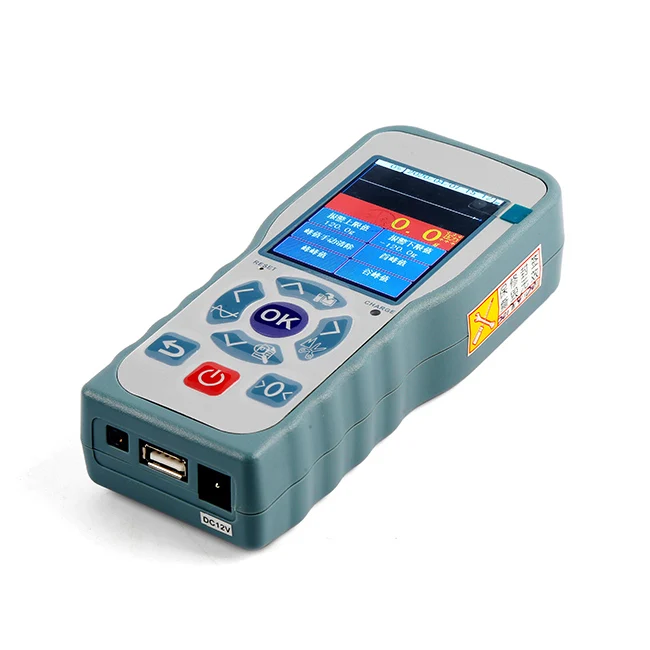

Built-in real-time clock, can display real-time time and date; USB data interface, support hot swap;
4

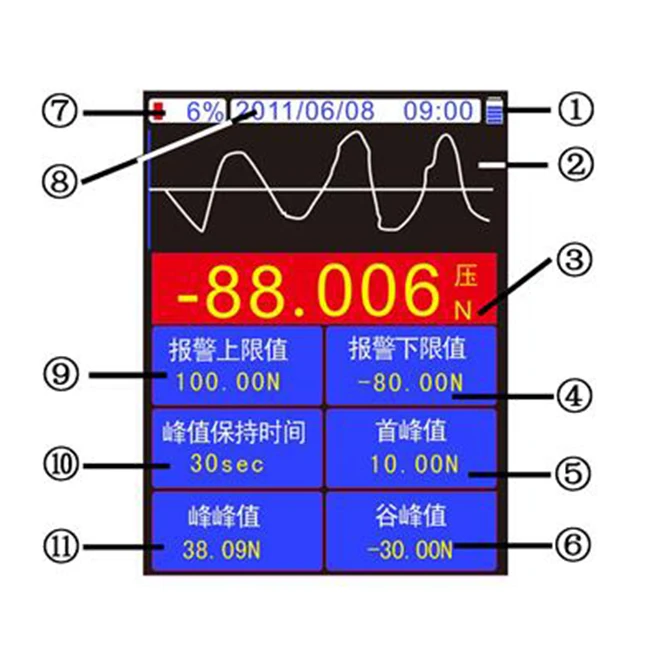

Peak value, real-time value and test process curve are displayed on the same screen, which can monitor and trace the entire test
process;
5
Upper and lower limit setting, break alarm value, break alarm dead zone/upper and lower limit deviation value freely set;
break/in-limit/out-of-limit alarm can be selected arbitrarily; when the alarm value is reached, the buzzer and display screen will
prompt an alarm at the same time. Equipped with two open-collector level outputs, which can directly drive actuators such as DC
12V relays or solenoid valves, each with a drive current of 50mA. Use the output port, please connect the power adapter to use.
6
Three units of N, kg, lb are automatically converted, and the strength unit Mpa can be automatically converted;
7
With peak hold function, peak automatic release and release time can be set;
8
100 sets of test reports can be saved permanently, the test report content includes test time, peak value, valley value average
value, etc., and 1 set of curves can be saved to trace the whole process.
9
Test the strength of the material by entering the cross-sectional area of the material;
10
You can arbitrarily set power saving functions such as automatic shutdown without operation, automatic backlight, etc.
11
Chinese/English switch; built-in graphic description, various operations are intuitive and clear
12
Through PC supporting special test software, unlimited storage, transmission and traceability of test curve data
13
Optional various test machines to realize various tests
14
Power saving design for automatic shutdown without operation, free setting of shutdown time and other functions
15
Switch output
16
Using a 1600mAh 6V Ni-Hi rechargeable battery pack, it can be used continuously for about 10 hours in the on state after fully
charged, and can be maintained for about 3 months in the off state.
17
Software: It can be connected to the PC serial communication port through a USB connection line, and unlimited storage,
transmission, and tracking of curve data can be realized through the matching software package.
18
Rechargeable (8-10 hours of use on a single charge)
