Displacement accuracy: | ±0.5% | Supply capacity: | 1 set per month |
type: | Testing Machine | port: | Qingdao Port |
Place of origin: | Shandong | Package preview: | |
Customization support: | OEM, ODM, OBM | payment terms: | Western Union, D/P, D/A, T/T, MoneyGram |
Test accuracy: | Level 1 | Warranty: | 1 year |
Packaging details: | Standard export wooden box | Test Range: | 0.2%~100%FS (maximum load) |
Maximum load: | 40000KN | brand: | CB |

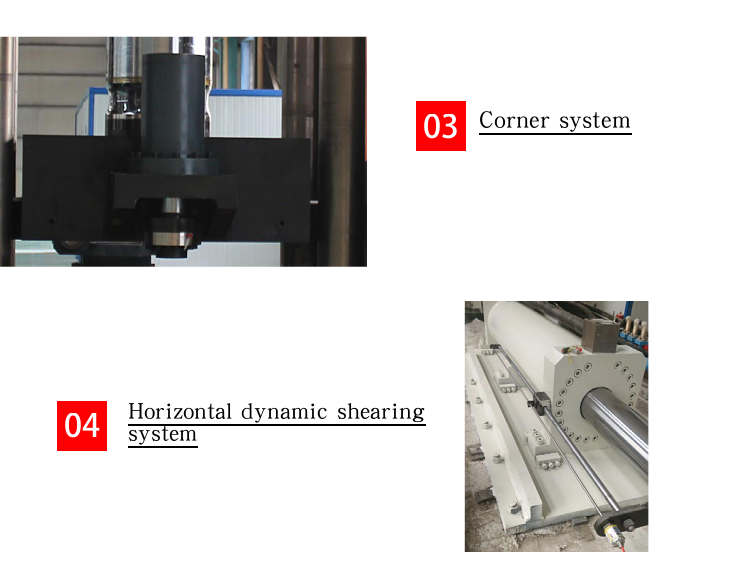

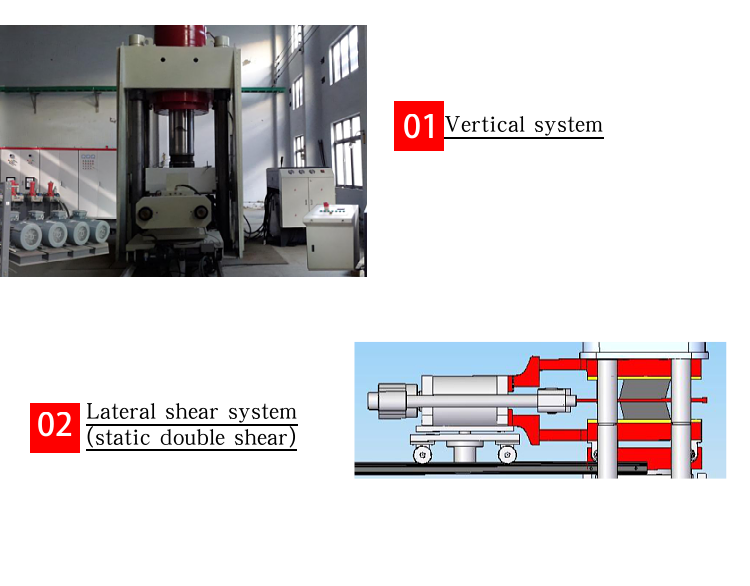

CBWY-20000J(D) microcomputer controlled electro-hydraulic servo dynamic compression and shear testing machine adopts a four-column, upper oil cylinder self-balancing frame structure, and a vertical cylinder stroke of 1200mm to meet the space adjustment requirements. The horizontal dynamic single shear system uses a double-acting servo cylinder, using Low damping and large gap design technology ensures good dynamic performance, and adopts imported seals such as gray rings, Stirling seals, and dust rings, which have good sealing performance, long service life, and high safety factors; Static double shear part It can move up and down through the floating cylinder, which increases the accuracy of the shear test; the floating cylinder is guided by four guide rods to ensure the stability of the up and down movement of the shear cylinder. The corner system uses a double-acting servo cylinder to apply force and is fixed on the upper template. The double-acting servo cylinder, corner plate, spherical rod, and bearing seat constitute the main system of the corner; the corner cylinder is a single-rod double-acting servo cylinder, using imported gray rings, stern seals, and dust ring seals, with good sealing performance, long service life, and safety High coefficient; The oil source consists of seven motor oil pumps connected in parallel, and the cooling system adopts water cooling to ensure that the entire system meets the dynamic test requirements. The static load control system adopts a control system independently developed by Chuanbai, which is controlled by a microcomputer to coordinate loading, stable and continuous loading, multi-level test force maintenance, automatic continuous and stable loading, automatic loading protection, automatic data collection and storage, storage and curve drawing, automatic Print the test report, the computer controls the test progress in time, displays the test force and test curve, the operation is simple, reliable and convenient. The dynamic control system adopts the German Dolly EDC580 dynamic controller. This system is a new generation product with excellent functions and superior cost performance. It is a dedicated electronic system for full closed-loop control and data acquisition of materials and structural testing machines.
feature
Test type: This machine is used to test the mechanical properties of rubber bearings on highway bridges. Can be carried out separately 1.1 Plate bearing compression elastic modulus test Ultimate compressive strength test Shear modulus test Shear bonding performance test Shear aging test Friction coefficient test Allowable angle test 1.2 Basin bearing finished bearing vertical bearing capacity test Friction coefficient test of finished bearings Rotation test of finished bearings 1.3 Ball steel bearings Vertical bearing capacity test of finished bearings Friction coefficient test of finished bearings Rotation torque measurement of finished bearings 1.4 This product can also be used for tests specified in national standards for plate and basin types and for railway bridge spherical supports. seat.
Vertical loading section
Maximum test force | 40000kN |
Test force measurement range | 0.4%-100% fs (80 ~ 20000 kN) |
Test force measurement accuracy | 1% of the test force indication |
Maximum test space | 1200mm |
Displacement measurement accuracy | 1.0% full scale |
Upper platen size | 1500mm×1500×300mm |
Trolley pressure plate size | 1500mm×1500×300mm |
Constant speed test force control range | 0.5kN/s~25kN/s (control accuracy 1%) |
Lateral static double shears
Maximum test force | 4000kN |
Test force measurement range | 1%-100% fs, (40 kN ~ 4000 kN) |
Test force accuracy | ≤1% |
Working piston advancement speed | 0~60mm/min |
Floating cylinder piston stroke | 400mm |
Horizontal dynamic single shear parts
Maximum dynamic test force | ±3000kN |
Test force measurement range | 2%-100% fs, (60 kN ~ 3000 kN) |
Indication accuracy | Better than 1% (1%-100% fs) |
Maximum stroke of working piston | ±700mm |
Displacement accuracy | better than 1% |
Displacement resolution | 0.003 mm |
corner
Maximum cornering force | 1200kN |
Test force measurement range | 2% ~ 100% fs (24 kN ~ 1200 kN) |
Test force accuracy | ≤1% |
Deformation measurement range | 0~50mm |
Deformation measurement index value | 0.001 mm |
Deformation measurement accuracy | 0.5% full scale |
Maximum stroke of working piston | 200mm |
Working piston moving speed | 0~60mm |
Displacement measurement range | 0~200mm |
Displacement measurement accuracy | Better than 1.0% fs |
Jinan Chuanbai Instrument Equipment Co., Ltd. is located in Jinan City, Shandong Province, the largest testing instrument and equipment production base in China. It is a high-tech manufacturing enterprise integrating scientific research, development and manufacturing. Since its establishment, the company has been committed to the research and development of mechanical testing instruments. Its leading products include screen display hydraulic universal testing machines, electro-hydraulic servo universal testing machines, electronic tensile testing machines, microcomputer-controlled electronic universal testing machines, artificial panel universal testing machines, semi-automatic ( Fully automatic) impact testing machines, plastic and rubber and other non-metal testing machines, electronic spring tension and compression testing machines, geogrid testing instruments and other products. Over the years, the company has closely followed the development of international material testing machines and detection technology, boldly used high and new technologies, attracted high-tech talents, increased investment in technology research and development, and is committed to improving intrinsic quality. , and has made great progress in various series of testing equipment in a perfect, honest and trustworthy manner, allowing the company to lead the industry with excellent product performance and applications. In line with the tenet of "no picky customers, only imperfect products", with development as its mission and customer service as its purpose, the company provides a complete set of considerate services from design, production to installation and training to make what users really need. product. All employees of the company are determined to achieve mutual benefit and win-win results with customers with "high-quality products, preferential prices, and excellent services" to build a better future together! We sincerely welcome new and old friends to contact us!
