API 7K KT24500 Hydraulic casing power tong Teda Brand for the pipe size 9 5 / 8 -24 1 / 2 Catch big size

Product details
Marketing Type:Ordinary Product;Payment Terms:L/C,Western Union,T/T;
Certification:API;Video outgoing-inspection:Provided;
Supply Ability:85 Sets per Month;Core Components:Engine,Motor;
Packaging Detail:Standard export package or as your request;Local Service Location:Egypt,Canada,United States,Italy,France,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Japan,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Kyrgyzstan,Uzbekistan,Tajikistan;
Condition:New;Showroom Location:Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Romania,South Africa,Ukraine,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia;
Model Number:KT24500;Port:Qingdao port;
Type:Power Tong;Applicable Industries:Machinery Repair Shops,Energy & Mining;
Package Preview:;Machine Type:Drilling Tool;
Warranty of core components:1 Year;Brand Name:TEDA;
Warranty:1 Year;Machinery Test Report:Provided;

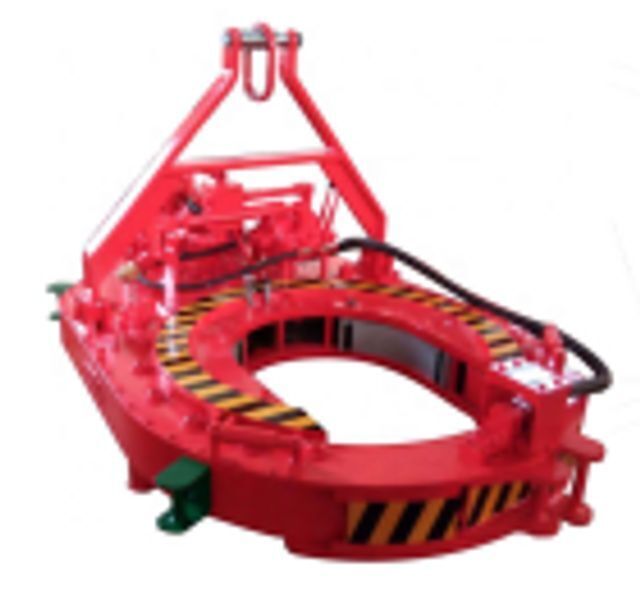

API 7K KT24500 Casing  tong

Product Description



KT24500 Casing Power Tong is used to make up and break out for casing operation in oil fields. It has
greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in
inappropriate casing operation. The power tong has the following features as well:
1.Opening type, convenient and prompt to enter and slide off the working position, with an integral tong
head of great strength and rigidity.
2. Double swing head jaws, convenient to assemble and disassemble.
3.Brake belt assembly, easy to operate and convenient to maintain and replace.
4. Open gear supporting structure, improving the strength and rigidity.
5.Wholly hydraulic mode and mechanical gear shift.
6.High strength steel plate used on the shell,increasing the strength. The jaws are cast with precise
technology, artistic and strong.
7. With hydraulic torque indicator and also installation interface, convenient to realize the computer
management.
8. U se safety door hydraulic safety device,of great safety performance.
9.Large torque range,can meet the requirement of larger torque use.



 2. Specifications
2.1 Application Range: 9 5 / 8 ″-24 1 / 2 ″
2.2 Opening size 26.4″
2.3 Tong head rotation speed: high gear 30rpm
low gear 5.5rpm
2.4 Max. torque: high gear 8800ft.lbs
low gear 50000ft.lbs
2.5 Rated pressure: 2320PSI
2.6 Working flow: 50GPM
2.7 Overall dimension(L×W×H): 83.5 ″ ×53.2 ″ ×31.5 ″
2.8 Weight 1800 kg(including spring suspension)
2.9 Specification of j aw pl ates: three kinds equipped with tong 18 5 / 8 ″,20″,24″
The others 9 5 / 8 ″,10 3 / 4 ″,11 3 / 4 ″,12 3 / 4 ″,13 3 / 8 ″,14 3 / 8 ″,
14 3 / 4 ″,16″,24 1 / 2 ″are optional.
2.10 Torque arm: 52″
2.11 Measured velocity ratio: 2.844
