Aluminum Profile Cutting Saw Machine Single Head Cutting Aluminum Window Door Machine

Supplier: Jinan Sinon CNC Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Steve Song
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Sinon;	Showroom Location:	Egypt,Pakistan,Chile;
Power:	2.2kw;	Packaging Detail:	Export standard packing or can be custumed;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Warranty:	1 Year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ,aluminium cutting saw;
Port:	qingdao;	Weight:	1800KG;
Application:	Aluminium Window Profile;	cutting length:	0-4200mm;
Core Components:	Gearbox,Pressure vessel,Pump,Gear,Bearing,Engine,Motor,PLC;	Voltage:	380V;
Input Power:	2.2(kW);	cutting width:	max 135mm;
Product name:	Aluminum Profile Cutting Saw Machine Single Head Cutting;	Certification:	CE;
Dimension(LWH):	120013001200mm;	Power supply:	380V 50Hz;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Key Selling Points:	Easy to Operate;
Local Service Location:	Egypt,Italy,Viet Nam,India;	Production Capacity:	100%;
Warranty of core components:	1 Year;	Keyword:	aluminum cutting machine;
Condition:	New;	Supply Ability:	500 Sets per Year;
Video outgoing-inspection:	Provided;	Applicable Material:	PVC,UPVC,Aluminum;
weight:	1800kg;	Machinery Test Report:	Provided;
Marketing Type:	Hot Product 2019;	Usage:	Aluminum Window profiles cutting;
cutting height:	45degree max 200mm 90degree max 300mm;

Related Products

Product Description

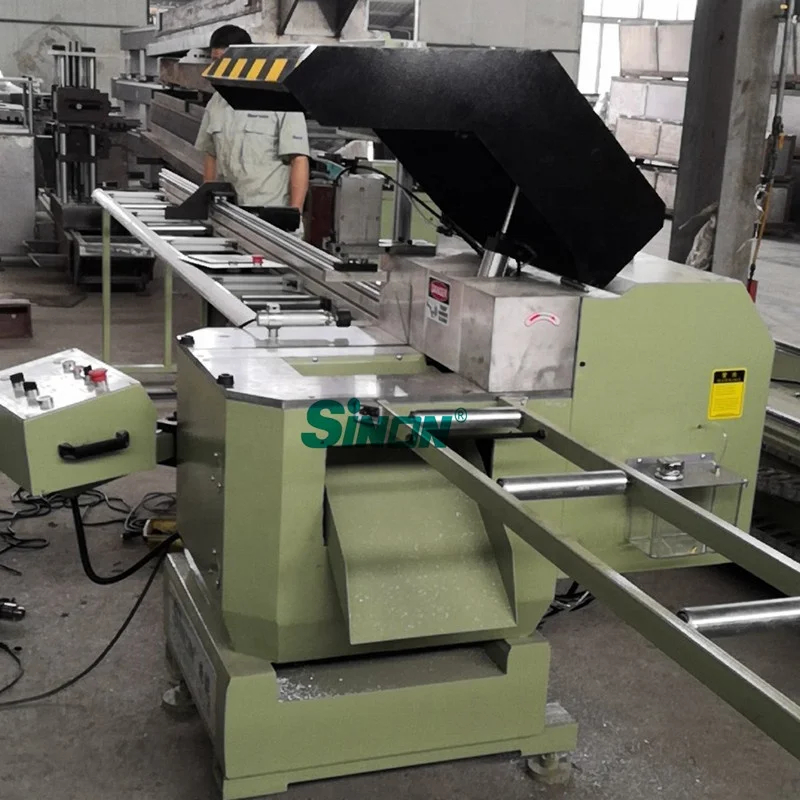

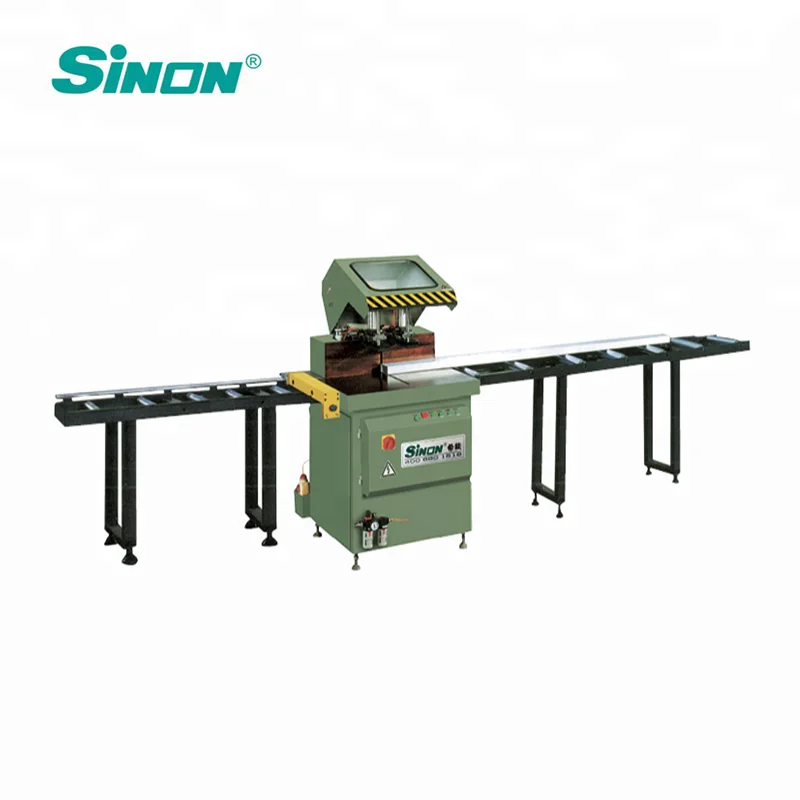

Aluminum Profile Cutting Saw Machine Single Head Cutting Aluminum Window Door Machine

Features

1- This window and door making machine is primarily used for cutting industrial profile and aluminum alloy curtain wall and window profiles.
2- Imported carbide saw blade is of accurate processing and high efficiency, the linear speed is high, and the processing precision is high.
3- The window and door making machine is equipped with positioning rack, and optional digital display device can be installed on the machine as per the customer’s request, resulting in accurate positioning.
4- It is an ideal choice for cutting extra-thick industrial profile, aluminum doors and windows and curtain walls profiles.

Name	aluminium cutting saw
Input Power Source	380V/50Hz
Total Power	2.2kw
Working Air Pressure	0.5-0.8Mpa
Air Consumption	200L/min
Diameter of blade	Φ500mm×φ30mm×4.4mm
Principal axis rotate speed	3200r/min
Feeding speed	0~3m/min
Cutting angle	-45°,90°
Cutting width	220mm

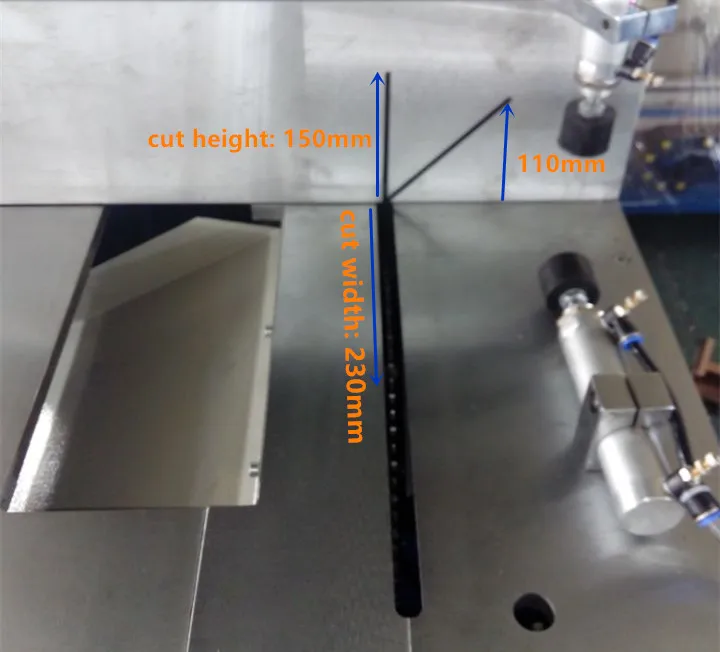

Cutting height	45° Max 150mm 90° Max 90mm
Dimesion	120013001200mm
Weight	300KG

Detailed Images

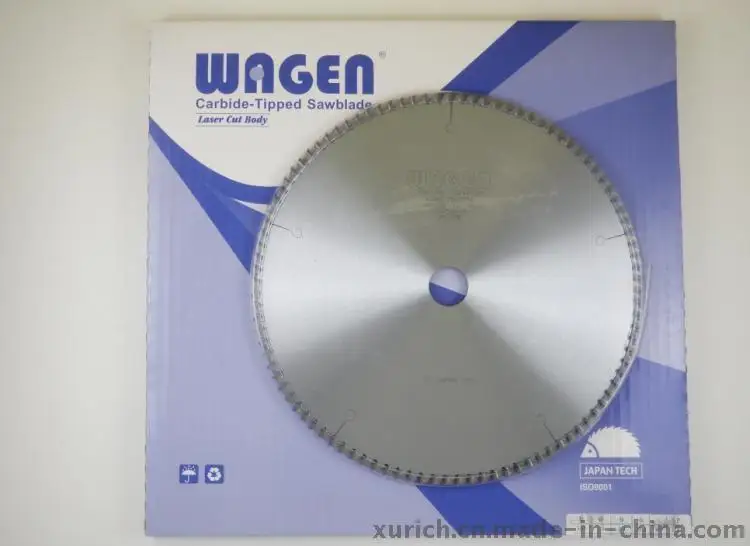

Japan / Germany saw blade

The machine bed is precision welded and aging treated with thick rectangular steel

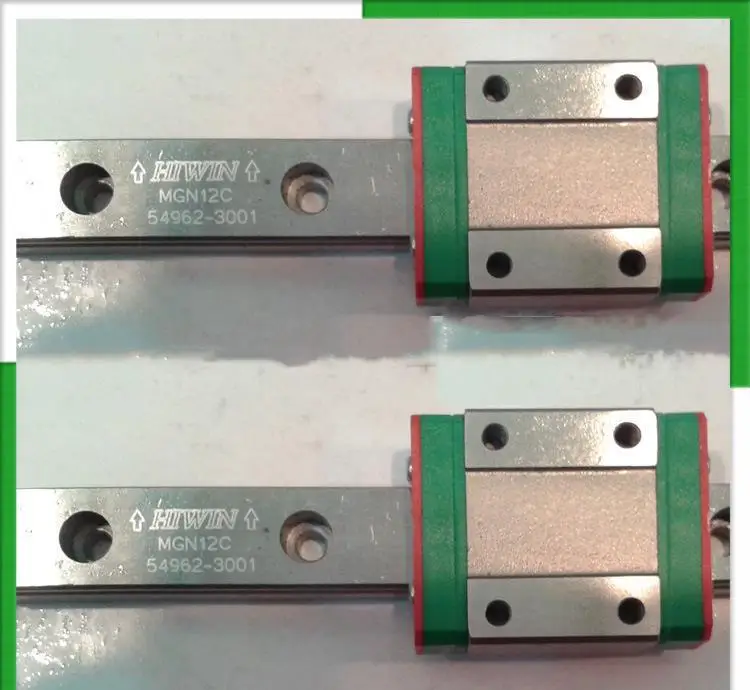

HIWIN linear

AIRTEC pneumatic system

Quality assurance and service

Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
* From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.

Core components

Just 3 steps for install machines after arrive customers factory

1. Unpacking

2. Install the necessary accessories

3. Connect power and air source (No need to adjust the accuracy or other)

Pre-sales service:

-- Free contact for the most suitable machine
-- Free professional design for each customer especially.
-- Free design drawings for factory

-- Free layout Plan for complete sets of equipment

After sale service
-- 24 hours technical support by phone, email or skype .
-- Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
-- By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Our customer feedback

Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.

Packing&Shipping

Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.

Certifications

Why Choose Us

Sinon--machines for aluminum, PVC and insulating glass

Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.

Sinon--machines for aluminum, PVC and insulating glass

We have been in machine manufacturing for 15 years , from a small workshop to a big factory which have our own machining center, We have more than 30 offices in China and in Vietnam, Russia and India. So far, we have exported to more than 40 countries and regions.
