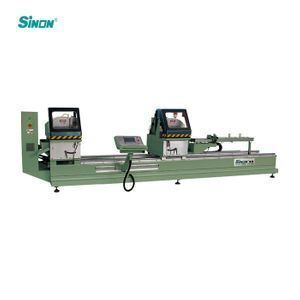

Sinon Brand CNC Cutting Profile Aluminium Window Machine

Supplier: Jinan Sinon CNC Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Steve Song
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	2000KG;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Applicable Material:	PVC,UPVC,Aluminum;	Supply Ability:	50 Set/Sets per Month;
Port:	Qingdao Port;	Packaging Detail:	Standard Packaged for Sinon Brand CNC Cutting Profile Aluminium Window Machine;
Voltage:	380V;	Application:	Miter Saw;
Control system:	Germany SIEMENS system;	Power supply:	380V or customized;
After-sales Service Provided:	Engineers available to service machinery overseas;	Product name:	Sinon Brand CNC Cutting Profile Aluminium Window Machine;
Cutting mode:	Machenical;	Warranty:	1 Year;
Dimension(LWH):	553017501950mm;	Cutting material:	Aluminum or PVC profile;
Cutting Length:	400~4200mm;	Production Capacity:	100;
Cutting width:	135mm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Certification:	CE;	Power(W):	5.5KW;
Brand Name:	Sinon;	Weight:	2000KG;

ALUMINUM MACHINE

PRODUCT CATEGORIES

GET BEST QUOTE →

Cutting Machine →

End Milling Machine →

Milling Machine →

Corner Crimping Machine →

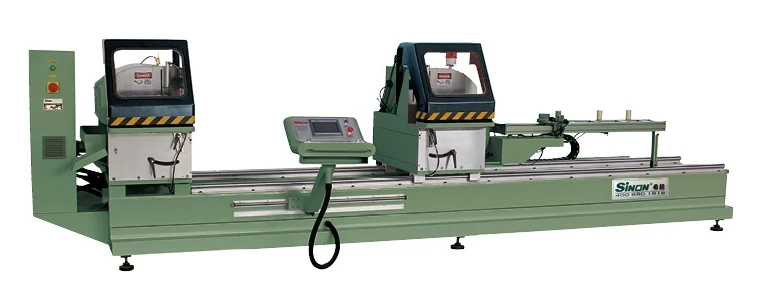

Sinon Brand CNC Cutting Profile Aluminium Window Machine

Product Description

Details

Used for the profile cutting of aluminum windows and doors,curtain wall and industrial aluminum.

Adopts industry grade computer system, closed-loop controlled, the user can set the processing parameters according to profile, the cutting size shift quickly, locating precision high, the repeat locating precision is ±0.1mm.
Adopt Push-button operation screen, and with USB interface, it can realize the data interchange via by input external memorizer.
Optimized function: optimizing to cut according to the working list.
Tabulation cutting function: several kinds of profiles can be selected quickly.
Continuous feeding: auto feeding profile at 90°cutting.
Angle automatic indexing: -45°, 90°.
High precision linear guiding pair ensured steady and long-term processing accuracy.
Adopt imported air-hydraulic conversion device, so that ensure running stably.
Stability high precision machine body, the design of machine body conform to the aesthetic point and human body engineering principle.
Auto-opening shield with rubber seal makes the operator more safety.
the middle profile supporter and movable carrier make the loading convenient. it’s compact structure follows the operation custom in better way.
Equipped with phase sequence protection device, so as to protect the machine once shut off or misconnect the phase.

Technical Specifications

Product Name	Sinon Brand CNC Cutting Profile Aluminium Window Machine
Input power source	380V/50Hz
Total power	5.5Kw
Working air pressure	0.5~0.8MPa
Air consumption	200L/min
Diameter of blade	500mm
Principal axis rotate speed	3200r/min
Feeding speed	0~3m/min
Cutting length	400~4200mm
Cutting angle	-45°,67.5°,90°
Dimension	5530×1750×1950mm
Weight	1850kg

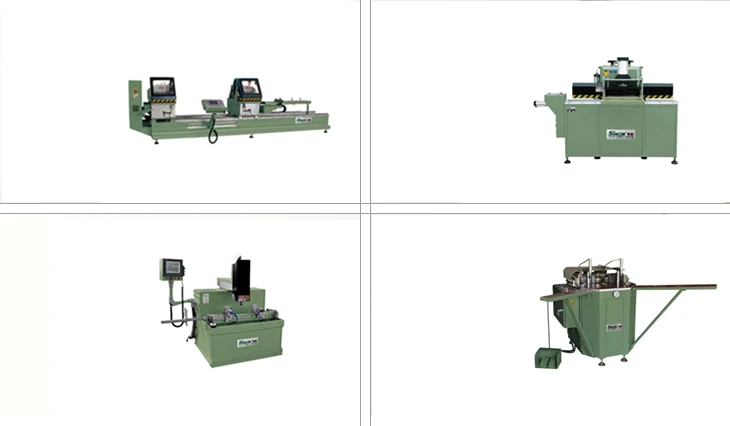

Optional Models

Single head aluminum / pvc profile cutting machine LJZ2E-500
Double head aluminum profile cutting machine LJZ2C-CNC-500*4200
Auto feeding corner connector cutting machine
Industrial aluminum profile cutting center

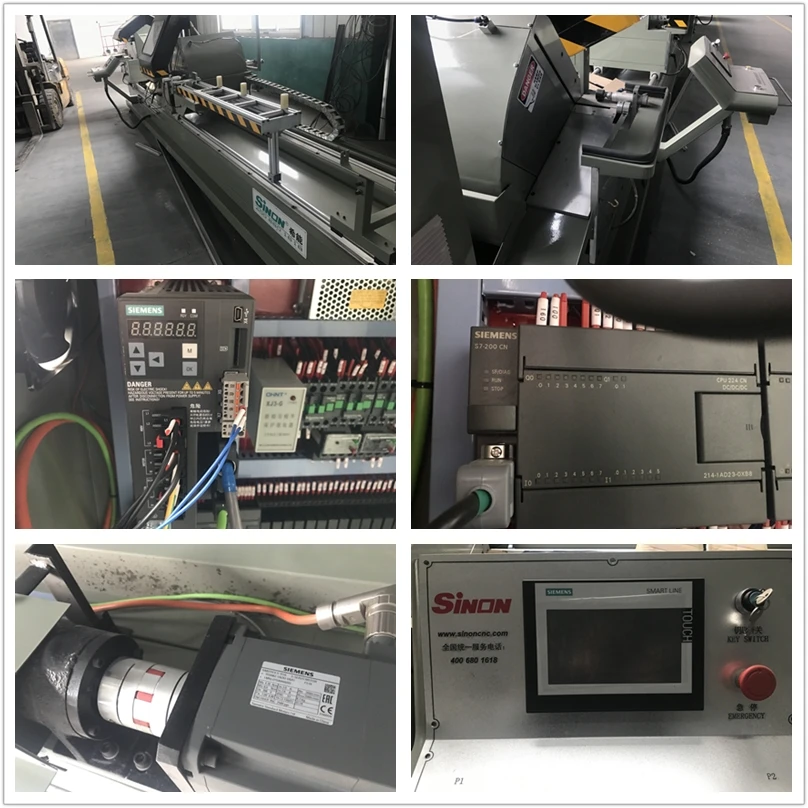

Details Photo

Hot sales

Sinon Brand Double Head CNC Aluminum Cutting Machine

China Four Head Welding PVC UPVC Door Window Making Manufacturing Machine

cnc aluminum Drilling and Milling Machine with CE certificate

ADVANTAGE

High capacity

High standard

OEM &ODM

Professional service team

Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.

Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.

From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.

Packaging & Shipping

Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.

COMPANY

About

Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.

Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.

The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.

Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.

History

HISTORY

Since its establishment, Sinon has been committed to the R&D and manufacturing of aluminum / PVCdoors and Windows processing equipment in the industry first proposed aluminum / PVC doors and Windows standardized production solutions and industry 4.0 intelligent machine tools solutions.Sinon is the advocate and forerunner.

2003

Set up

The company was born in a machining workshop in jinan. As the founder was a technical background, the complete set of PVC doors and Windows processing equipment was shut down within half a year. At that time, we mainly worked as OEM for import and export trading companies to win customers' trust.

2008

Develop and grow stronger

Gradually perfect into an enterprise with technology and quality as the core, and cooperate with shandong technology college, and set up a machining workshop.

2013

Expand

Sinon owned 20 mu of industrial land in the development zone of jinan lingang, and built more than 7000 square meters of plant in the same year

2015

Keep Moving

The company has successfully developed the sunlight room large section cut saw, the system door window assembly line special equipment and so on, and obtained many national technology new patent.

FAQ

FAQs

Are you trading company or manufacturer ?

We are manufacturer and trading (integration).

How long is your delivery time?

Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

If I want whole production line for alulminum window, what machines do I need?

At least 5 machines, they are

1.Double / single head cutting machine 2. End milling machine 3. Copy routing machine 4. Punching machine 5. Corner crimping machine

What can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

How does your factory do regarding quality control?

We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.

What is your terms of payment?

30% TT deposit,70% balance before shippment . Or L/C or Western Union

What is your term of delivery?

We accept EXW, FOB or CNF. You can choosethe one which is the most convenient or cost effective for you.

If I want whole production line for upvc windows,what machine do I need?

At least 7 machines, they are

1. Double / single head cuttng machine 2. Welding machine 3. V cutting / end milling machine 4. Glazing bead machine 5. Lock hole machine 6. Water slot milling machine 7. Corner cleaning machine
