Core Components Warranty: | 1 year | strength: | 1.1kw |
type: | automatic | payment terms: | L/C,Western Union,T/T |
Marketing Type: | Variable angle | weight: | 300 kg |
Production capacity: | 50 doors and windows per day | Core components: | motor |
weight: | 300kg | Supply capacity: | 60 sets per month |
Mechanical test report: | if | Certification: | ISO9001/CE |
Showroom location: | Egypt, Canada, USA, Thailand, Chile, UAE, Sri Lanka, Malaysia, Australia | Video external inspection: | if |
Warranty: | 1 year | port: | Qingdao, Shanghai, Tianjin, Yiwu, Guangzhou, Shenzhen |
Packaging Preview: | Saw blade diameter: | 35mm | |
color: | custom made | Name: | High quality aluminum window cutting machine with low price |
Dimensions: | 1000*1120*1450(mm) | use: | upvc and aluminum |
Packaging Details: | Plywood packaging or wrapping film packaging or customized | Health status: | new |
application: | Window profile cutting | Main selling point: | easy to operate |
Applicable industries: | factory, construction | Motor speed: | 3300 rpm |
Voltage: | 380V / 50hz / three phase or can be customized | brand: | Charon |
Dimensions (L*W*H): | 1000*1120*1450(mm) | Applicable materials: | PVC, UPVC, Aluminium |

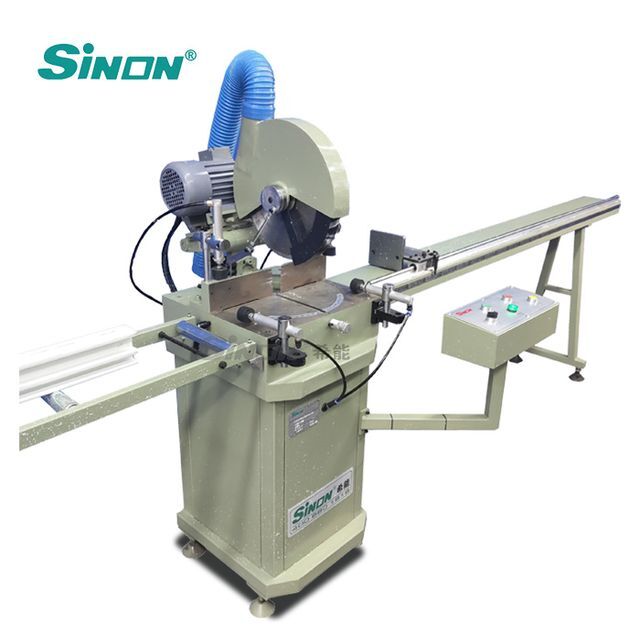

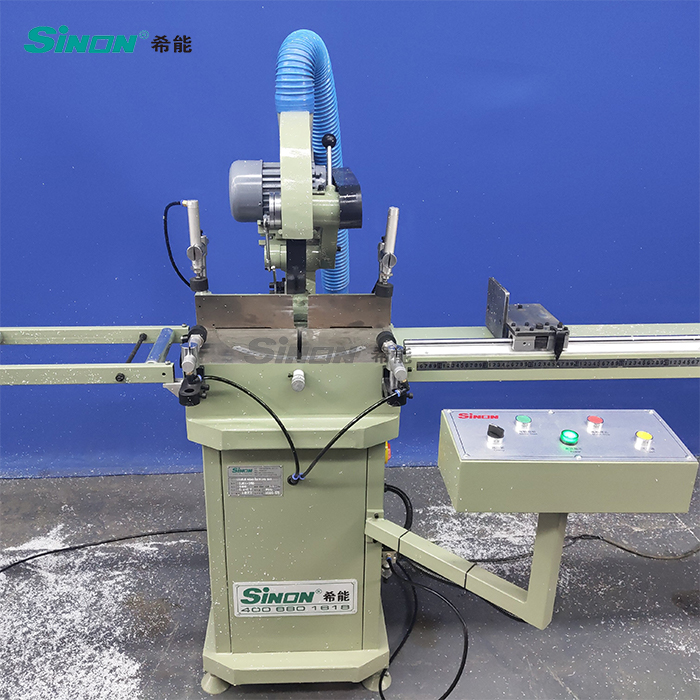

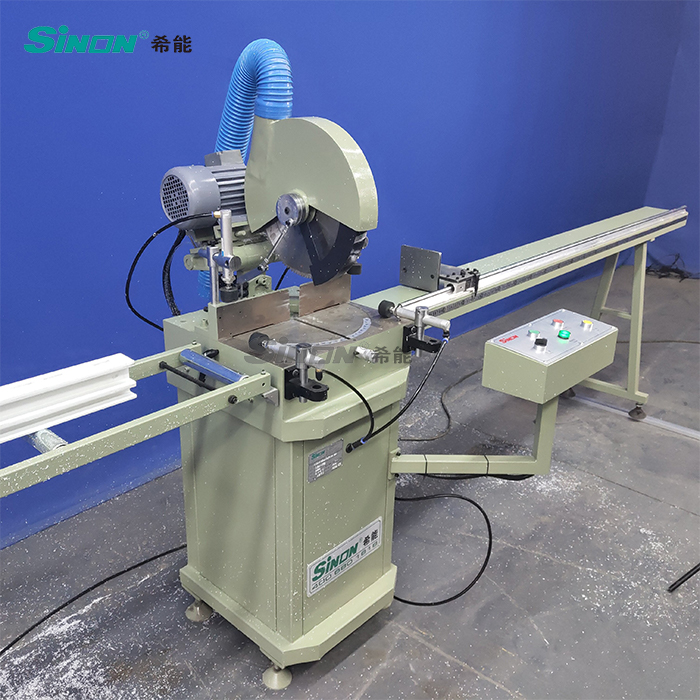

SJ02-350 Single head UPVC and aluminium profile cutting saw |
Technical Information | ||
product name | Single head UPVC and aluminium profile cutting saw | |
Model | SJ02-350 | |
type | automatic / manual | |
Function | Cut UPVC and Aluminum Profiles from 45-135 | |
input power | 220V/380V/50Hz or can be customized | |
total power | 1.5kW | |
working pressure | 0.5-0.8Mpa | |
Air consumption | 200L/min | |
Blade diameter | Φ350mm | |
Spindle speed | 3200 rpm | |
cutting angle | 45-135 degrees | |
cutting width | 200mm | |
cutting height | 100mm | |
size | 1000×1120×1450(mm) | |
weight | 300KG |
Function | |

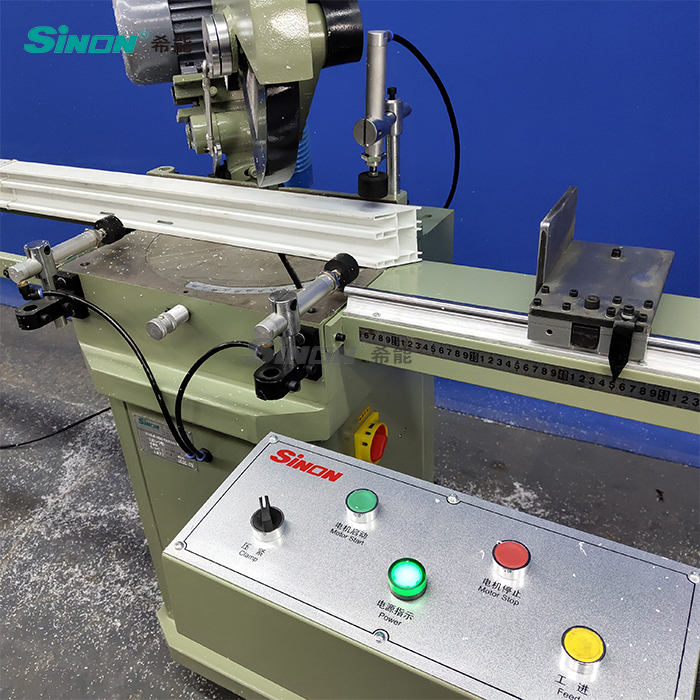

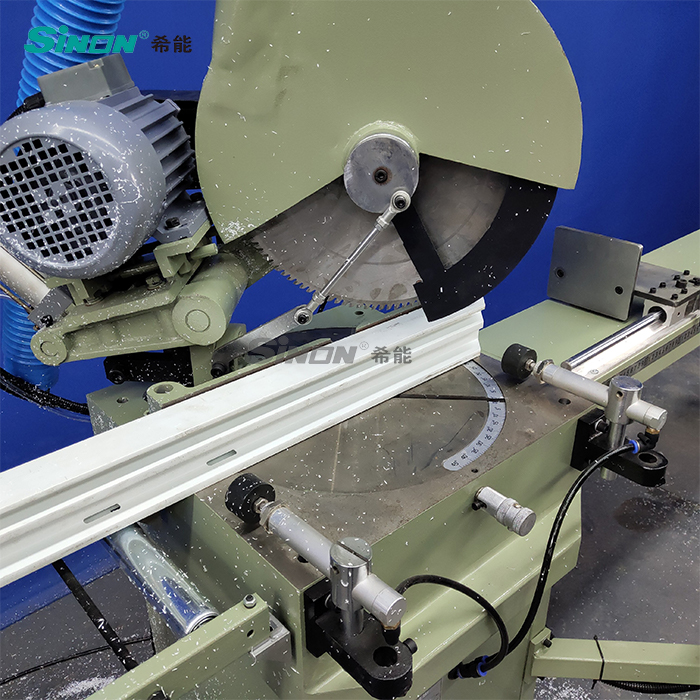

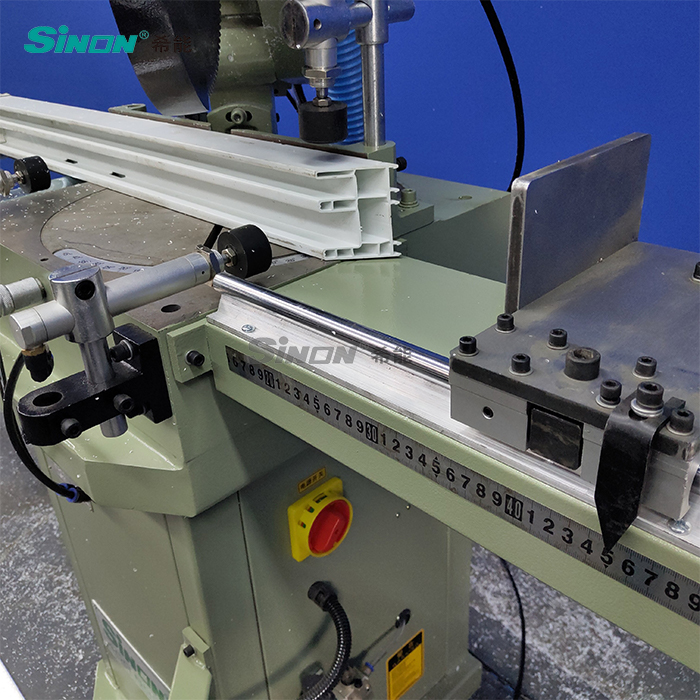

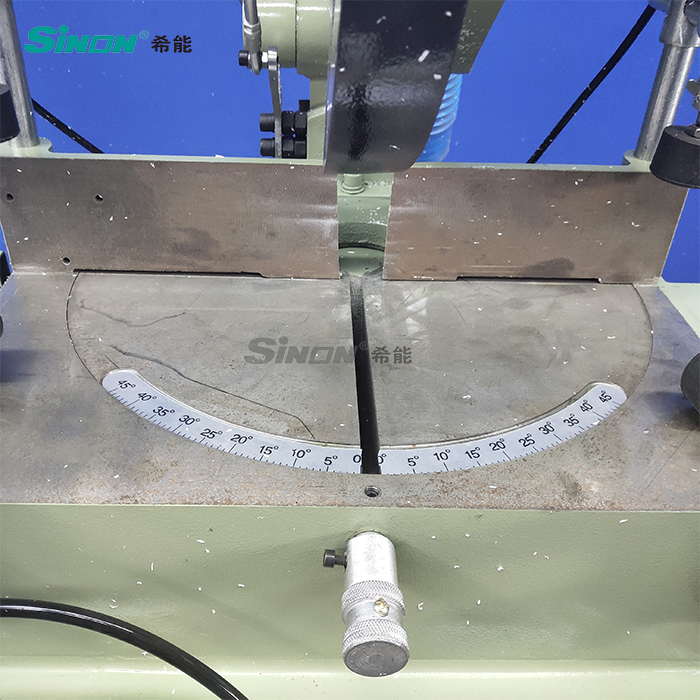

1.For 45°~90° cutting plastic and aluminum profiles 2. Using turntable positioning technology, the cutting precision is high. 3. Pneumatic clamping mechanism is adopted, which can run smoothly, reliably and quickly. 4. The shaft is made of high-quality carbon structural steel with good durability. 5. The saw head performs fixed-axis cycloid feeding on the vertical side of the worktable, and the cutting operation is stable and reliable. |

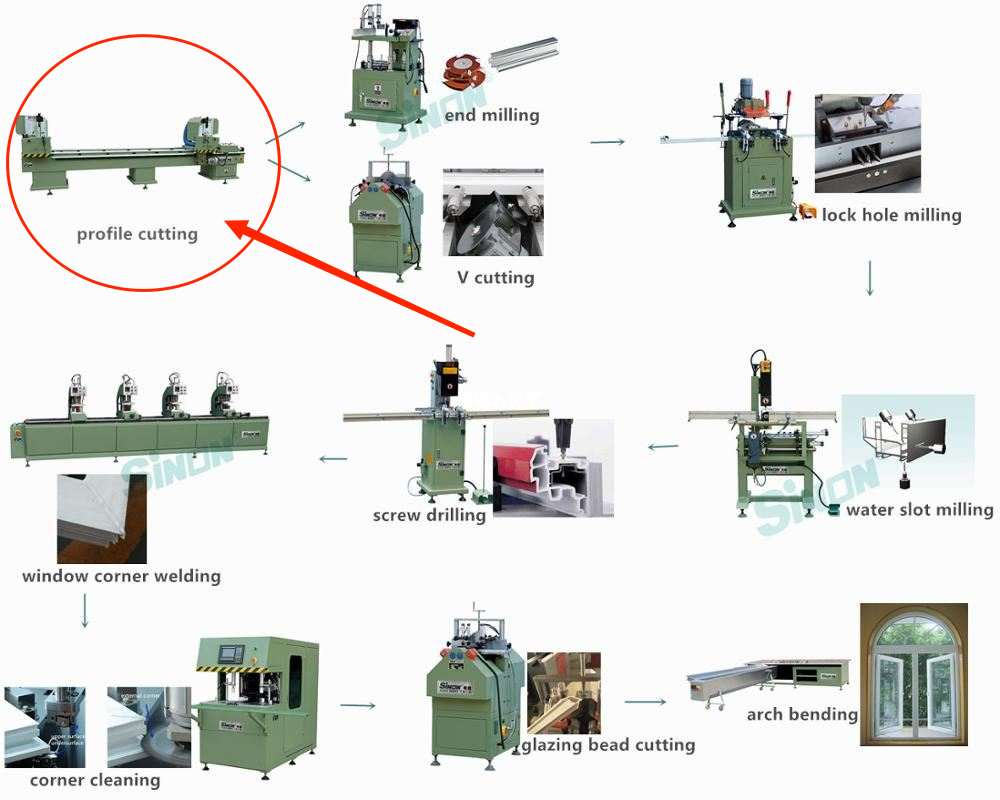

What machines are needed to make upvc doors and windows? | |
1. SSJ07-450*3600 (SSJ06-3700) double head cutting saw 2. LJVW-60 PVC window V-cutting machine (vertical milling machine) 3. SCX03-3*60 automatic three-axis sink milling machine 4. SSK02-100 (LSKC03-120) keyhole processing machine 5. HJ02-4500*4/4*A 4-head welding machine 6. JQK04-CNC-120 PVC Corner Guard Cleaning Machine 7. SYJ03-1800 PVC Window Glass Bead Saw 8. SYH1800 PVC arch bending machine (for arch windows) |
