4U Rackmount Server case with 24 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector

Product details
Dimension:650 x 482 x 176mm;Power Supply Support:ATX/ mini redundant power supply;
Products Status:Stock;Material:Steel;
Fan:2X8025, 3X12025;Packaging Detail:Carton box with PE/Polyfoam Pallet (optional);
Place of Origin:Guangdong, China;Customized Items:LOGO and others;
Motherboard Supporting:ATX\Micro ATX\Server;Application:Server;
Backplane:S-ATA or SAS backplane (12Gbit / s max);Style:With Fan;
Type:Rack;Drive Bays:3.5 "or 2.5" external (hot-swap) X24pcs;
Brand Name:NOTCHPOWER/ OEM;Form Factor:ATX;
Front Panel:Control button, Indicator, USB Ports;Front Ports:usb;
USB:USB 3.0X2;Certification:FCC.ROHS.CE;

Product Description

Model NP-S424650
Form Factor 4U Rackmount Server case with 24 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector
Material Metal material  SGCC
Metal thickness 1.2mm
Panel material Metal
Handle material Metal
M/B support EEB (12″ x 13″), microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)
Size D*W*H(mm) 650 x 482 x 176
D*W*H(inch) 25.5  x 19 x 7
Drive Bay 3.5 "or 2.5" external (hot-swap)  24
Internal 3.5" /2.5"  1/2
Power Supply support ATX power supply / mini redundant power supply
Front panel Control button Power ON/OFF x 1, system reset x 1
Indicator Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
Ports USB3.0 x 2
Expansion Riser Slot 7pcs (full size)
Hot-swap Backplane S-ATA  or  SAS backplane (12Gbit / s max)
System cooling(optional) Front NO
Middel 3x 120mm or 4 x 80mm  ball bearing fans PWM (hot-pluggable)
Rear 2x 80mm (standard)
Net weight 15kg
Gross weight 18kg
Packing size D*W*H(mm) 830*555*240
D*W*H(inch) 32.7*21.8*9.4
Packing Material Polyfoam with carton box
Environment Temperature 0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity 5% to 95%,non-condensing
Vibration ( 5-500 Hz ) 1 Grms (Operating), 2 G (Non-Operating)
Shock  10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

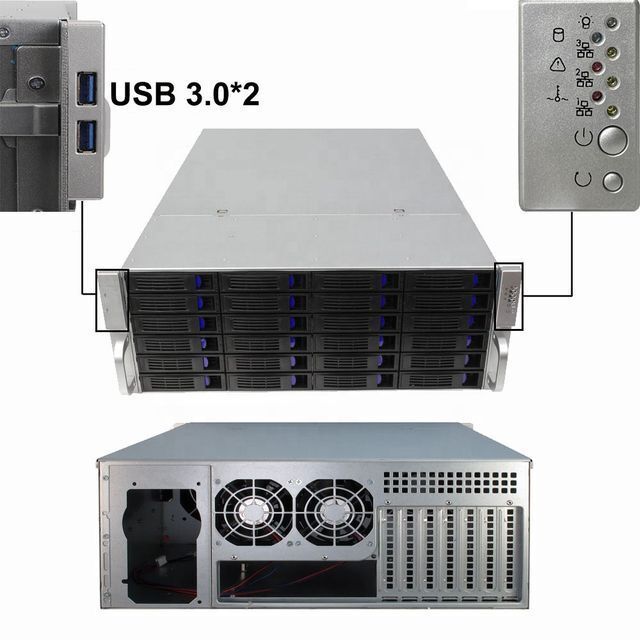

Detailed Images
