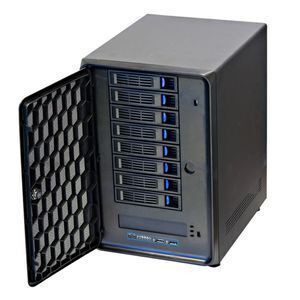

hot swap nas storage server servidor case rackmount 8 bay sas storage

Product details
Customized Items:LOGO and others;Power Supply:1U / Flex 1U power supply ( max length 19cm);
Place of Origin:Guangdong China;Brand Name:NOTCHPOWER/OEM;
CPU:Height CPU cooler (max.) 43mm;Interface Type:USB;
Packaging Detail:Carton box with PE/Polyfoam Pallet (optional);Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:China;Certification:FCC.ROHS.CE;
USB:USB 2.0X1, USB 3.0X1;Dimension:259*203*337mm;
Front Panel:Control button, Indicator, USB Ports, Security Lock;Fan:8025 with the PWM 4pin function *2pcs;
Products Status:Stock;Model Number:NP-ITX NAS8;
Supply Ability:1000 Piece/Pieces per Day;Motherboard Supporting:Mini ITX (17cm*17cm);
HDD bays:3.5 "or 2.5" external (hot-swap) 8pcs;

Product Description



ModelNP-NAS8
Form FactorITX-NAS8 Black Mini-ITX Form Computer Storage server Case Chassis
MateialMetal material SGCC
Metal thickness1.0mm
SecurityMesh front metal door with lock
M/B supportMini ITX (17cmX17cm)
CPU supportHeight CPU cooler (max.) 43mm
Length graphics card (max.) 190mm
SizeD*W*H(mm)259*203*337
D*W*H(inch)10.2*8*13.25
Drive Bay3.5 "or 2.5" external (hot-swap) 8
Internal 2.5"  bays1
Power Supply support1U / Flex 1U power supply ( max length 19cm)
Front panelControl buttonPower ON/OFF x 1, system reset x 1
IndicatorPower ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
PortsUSB 2.0 x 1 , USB3.0 x 1
ExpansionRiser Slot1pc (full size)
Hot-swap BackplaneS-ATA / SAS backplane (up to 12Gbit / s)
System cooling(optional)Rear80x80x25 mm with the PWM 4pin function 2pcs
Net weight5.4kg
Gross weight6.8kg
Packing sizeD*W*H(mm)410*290*345
D*W*H(inc)16*11.5*13.5
Packing MaterialPolyfoam with carton box
Environment Temperature0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity5% to 95%,non-condensing
Vibration ( 5-500 Hz )1 Grms (Operating), 2 G (Non-Operating)
Shock 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)



Detailed Images
