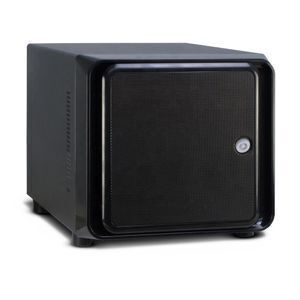

ITX- NAS case 4 bays Black Mini-ITX Form Computer Storage server Case USB 2.0

Click here to contact

Product details

Products Status:	Stock;	Selling Units:	Single item;
USB:	USB 2.0X2;	Customized Items:	LOGO and others;
Model Number:	NP-ITX NAS4 USB 2.0;	Fan:	8025 with the PWM 4pin * 1 function;
CPU:	Height CPU cooler (max.) 43mm;	HDD bays:	3.5 "or 2.5" external (hot-swap) 4pcs;
Brand Name:	NOTCHPOWER/OEM;	Place of Origin:	China;
Packaging Detail:	Carton box with PE/Polyfoam Pallet (optional);	Dimension:	191197254mm;
Power Supply:	1U / Flex 1U power supply ( max length 19cm);	Single package size:	32X24X24 cm;
Certification:	FCC.ROHS.CE;	Interface Type:	USB;
Motherboard Supporting:	Mini ITX (17cm*17cm);	Front Panel:	Control button, Indicator, USB Ports, Security Lock;
Single gross weight:	3.4 KG;

Product Description

Model	NP-NAS4 USB 2.0
Form Factor	ITX-NAS4 Black Mini-ITX Form Computer Storage server Case
Mateial	Metal material	SGCC
	Metal thickness	1.0mm
Security	Front door withou lock
M/B support	Mini ITX (17cmX17cm)
CPU support	Height CPU cooler (max.) 43mm Length graphics card (max.) 190mm
Size	DWH(mm)	191197254
	DWH(inch)	7.57.7510
Drive Bay	3.5 "or 2.5" external (hot-swap)	4
	Internal 2.5" bays	1
Power Supply support	1U / Flex 1U power supply ( max length 19cm)
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB 2.0 x 2
Expansion	Riser Slot	0
Hot-swap Backplane	S-ATA / SAS backplane (up to 12Gbit / s)
System cooling(optional)	Rear	80x80x25 mm with the PWM 4pin x 1 function
Net weight	3kg
Gross weight	3.4kg
Packing size	DWH(mm)	313235240
	DWH(inc)	12.39.259.4
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
