ZNJ2030 Energy Saving Vertical Insulating Glass Machine Automatic Sealing Robot

  • Supplier: Shandong GHL CNC Machinery Co., Ltd.
  • Region: Shandong, China
  • Contact: Ms Mary Zhao
  • Price: $44000.00 / 1 - 4 sets
    $42000.00 / 5 - 7 sets
    $41000.00 / >=8 sets
  • Min. Order: 1 set
Product details
Color:Red or customize;Dimension(L*W*H):9500*1400*2950mm;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;Warranty:12 months;
Certification:CE/SGS;Package Preview:;
Supply Ability:100 Sets per Year;Production Capacity:100%;
Voltage:380V;Air pressure:0.6-0.8MPa;
Condition:New;Working speed:5-40m/min;
Squeeze pressure:32Mpa;Power:7KW;
Min. glass size:300*300mm;Packaging Detail:Wooden container;
Payment Terms:L/C,T/T;Max. glass size:2000*3000mm;
Brand Name:GHL;Key Selling Points:Energy saving;
Port:QINGDAO;After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Weight:5500kg;Glass thickness:12-56mm;
Control system:PLC;Place of Origin:China;
Product Description

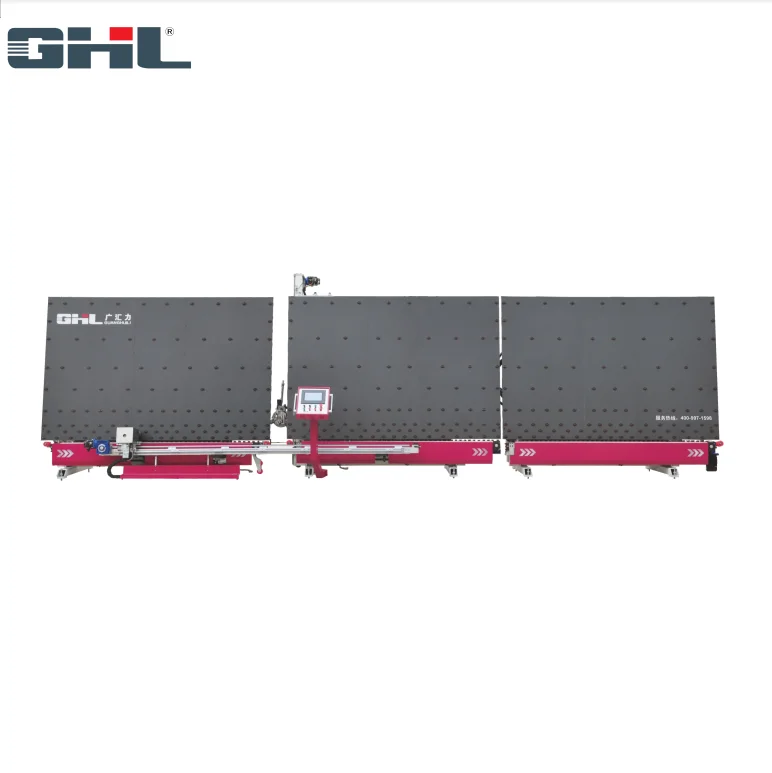

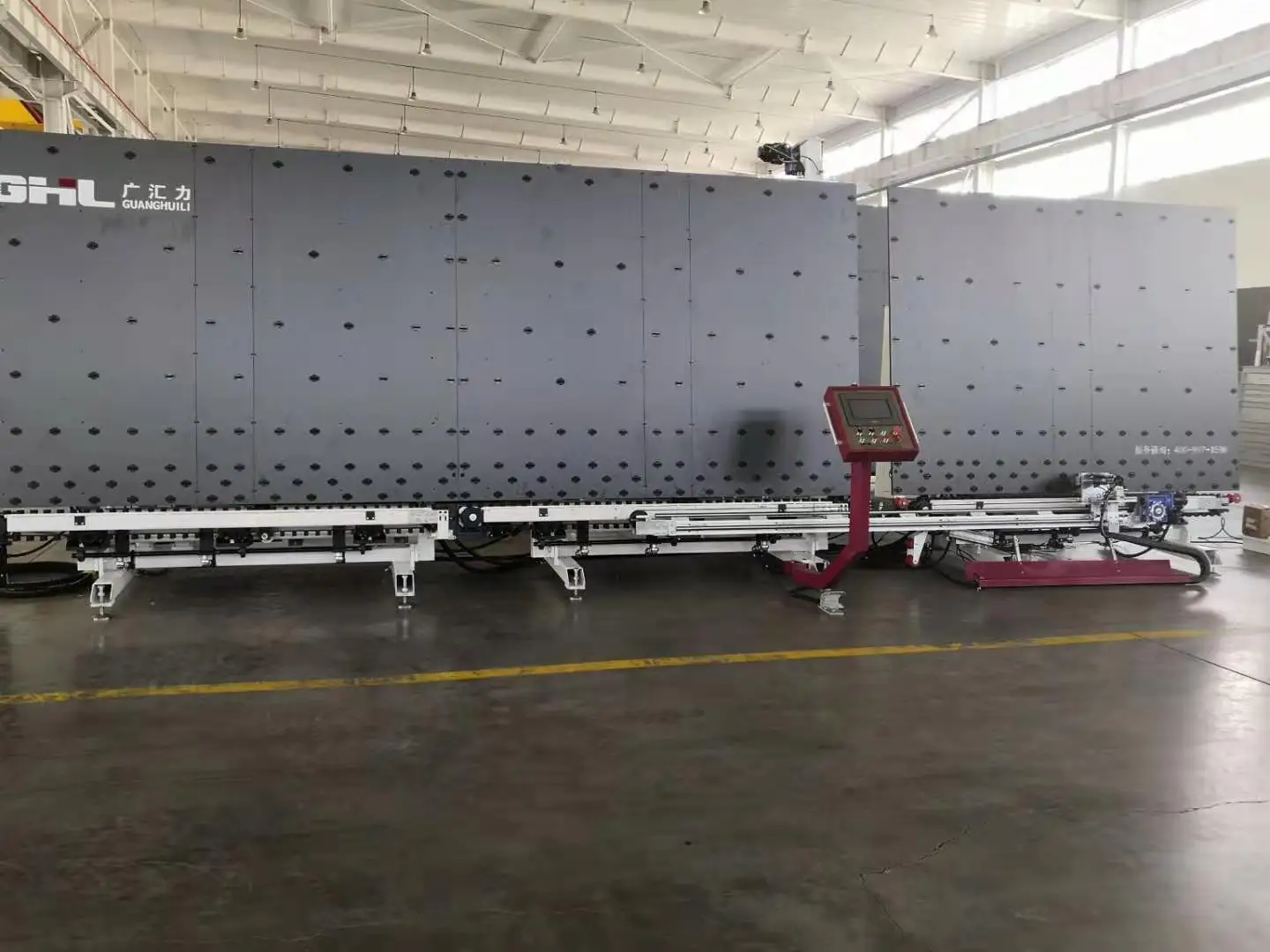

ZNJ2030 Energy Saving Vertical Insulating Glass Machine Automatic Sealing Robot

Model
ZNJ2030
Input Voltage
380V
Glass Thickness
12~56mm
Working Speed
5~40m/min
Total Power
7KW
Min. Glass Size
300*300mm
Max. Glass Size
2000*3000mm
Air pressure
0.6-0.8MPa
Total Weight
7000kg
Squeeze pressure
32Mpa

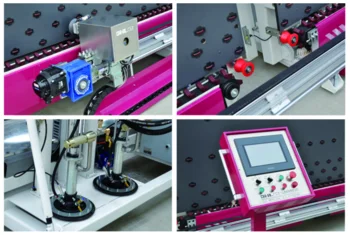

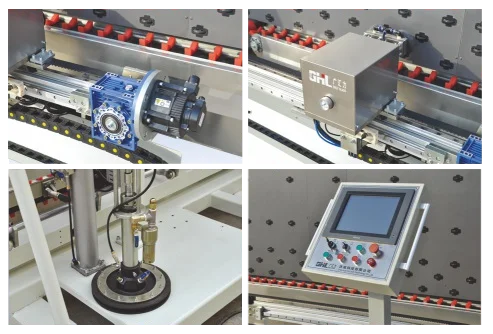

Machine feature:

● High sealing performance, high automation, reduce labor cost, save manpower cost, improve production efficiency.

● Fully intelligent and smart HMI in touching screen, with memory function and easy operation.

● Best sealing quality without air bubbles,smooth surface, avoid time for corner correction!

● For Model II: Using two sealant supply systems, switch fast and one-key
operation!

● The width of machine is 1.4m, small floor area, save space.

● The sections is one production line, it can prestore three pieces glass to improve the efficiency effectively.

● The smallest insulating glass size can be processed is 300×300mm.

● Equipped with anti blocking device in the mixer, easy to clean.

● Servo control system adopts world famous brand (Japan YASKAWA ),
the performance is stable, counting speed is fast, sealant output with high precision, surface with high smoothness.

● Shaft transmission to make the glass being transferred smoothly with accurate positioning.

● Special V type transmission belt to avoid
the sealant sticking on the belt, ensure the glass edge clean, V type block is changeable.

● The spare parts are produced with high
standardization and high precision, ensure the machine can be used with long-term stability.

● Suitable for triple glazing.

● Conveying wheel on backboard adopts embedded wheel, to make sure the glass be transported smoothly.

● Equipped with high speed
positioning function, glass can be located accurately when transport fast.

● Touch screen adopt ethernet communication, sensitive operation, suitable for popular operation.

● Keep machine service and upgraded timely with our own R&D departments.

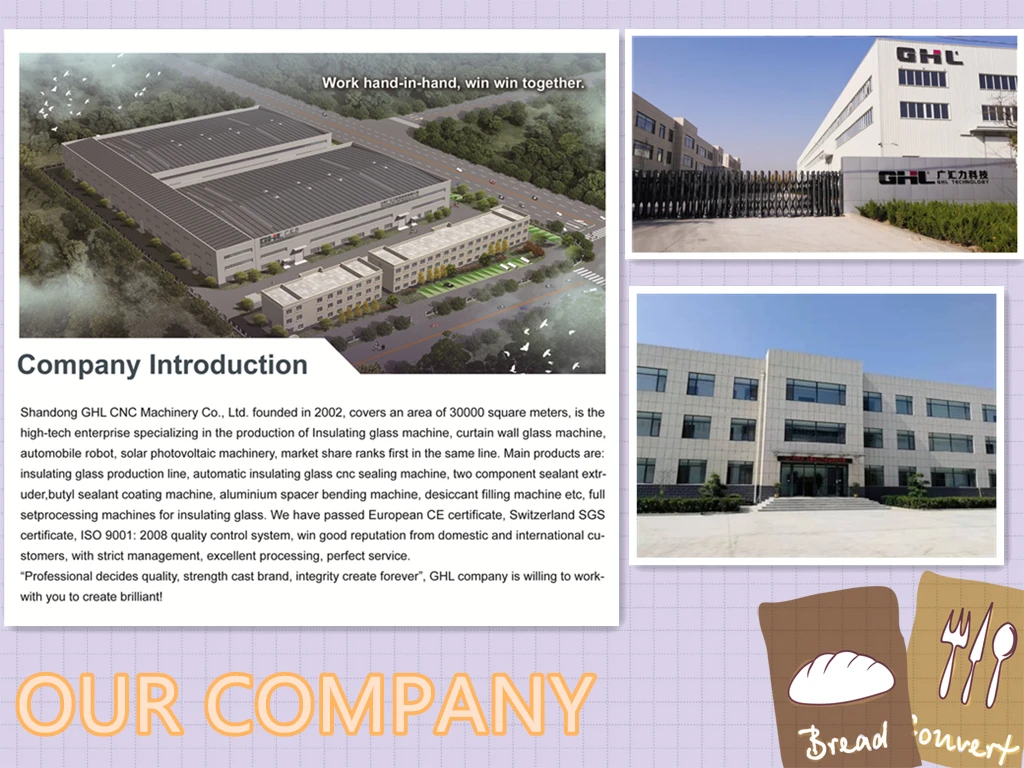

Our Company
Our Serviers

We will provide the best machine for you.

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.

Exhibition
Why Choose Us

1.The spare parts are produced with high standardization and high precision,ensure the machine can be used with long-term stability

2.Servo control system adopts world famous brand(Japan YASKAWA),the performance is stable,counting speed is fast,sealant output with high precision,surface with high smoothness.

3.17 years experience in extruding system to make the system more stable

4.All low-voltage appliance adopt France Schneider to make the performance stable.

5.Keep machine service and upgraded timely with our own R&D departments.

6. Company not only provide customers with high-quality equipment, and also provide free installation, training staff operating machines etc, a full range of after-sale service, to make the customers without worries.

Cooperation Partner

Product packaging

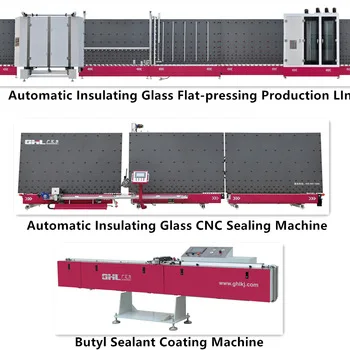

Related product link
