TF03K 48V 350A battery monitor

Supplier: Shanghai Baiway Electronic Co., Ltd.
Region: Shanghai, China
Contact: Mr han Liu
Price: $45.00 / 10 - 49 units
$38.00 / 50 - 199 units
$33.00 / >=200 units
Min. Order: 10 units

Click here to contact

Product details

Package Preview:	;	Model Number:	BW-TF03K;
Brand Name:	Baiway;	Weight:	420.0g;
Working voltage:	10.0V-100.0V;	Accuracy:	±1.0%;
Place of Origin:	Shanghai, China;	Port:	shanghai;
Function:	Test capacity voltage current;	Standby dissipation:	5.0mA-8.0mA;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Sampling mode:	Voltage type;
Application:	ups e-bike car;	Working current:	0A-500.0A;
Packaging Detail:	Each packed in ESD Bag, bag size: 15155cm, weight: 420g.;	Working dissipation:	12.0mA-20.0mA;
Supply Ability:	3000 Pieces per Month;	Size:	1006218mm;

NEW Related products

LY4 battery indicator

TH01 battery indicator

LY6W battery indicator

TF01 battery tester

TF03 battery tester

TK15 battery tester

Product Description

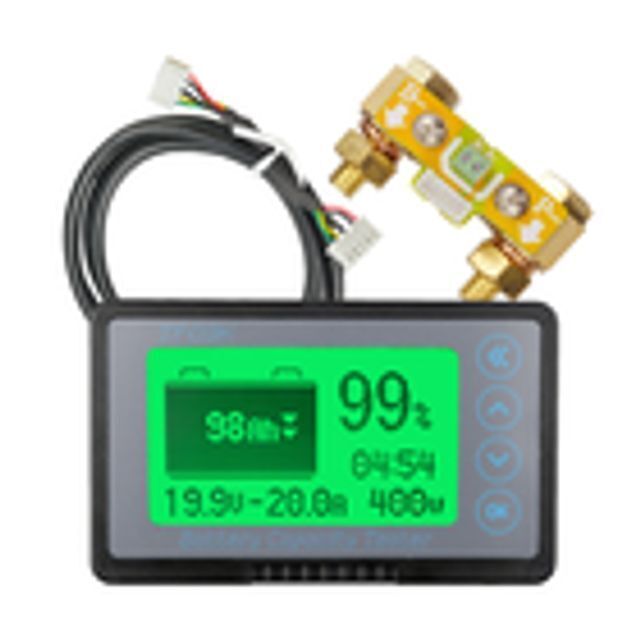

TF03K Battery Indicator(100V 350A)

TF03K is a kind of high accuracy current type battery indicator, TF03K can test the voltage, current and capacity of lead-acid/lithium-ion battery, and display them with intuitive battery symbol and percentage. Users can know the state of battery in time. TF03K has function of memory.This battery indicator is suitable for mobile and portable equipments、ups、electric vehicles、ebike、 battery cars、balance cars、cleaning machines and so on.

TF03K is different with voltage type battery indicator, TF03K has high accuracy and high reliability.So it is expensive than voltage type battery indicator like LY4,LY6......

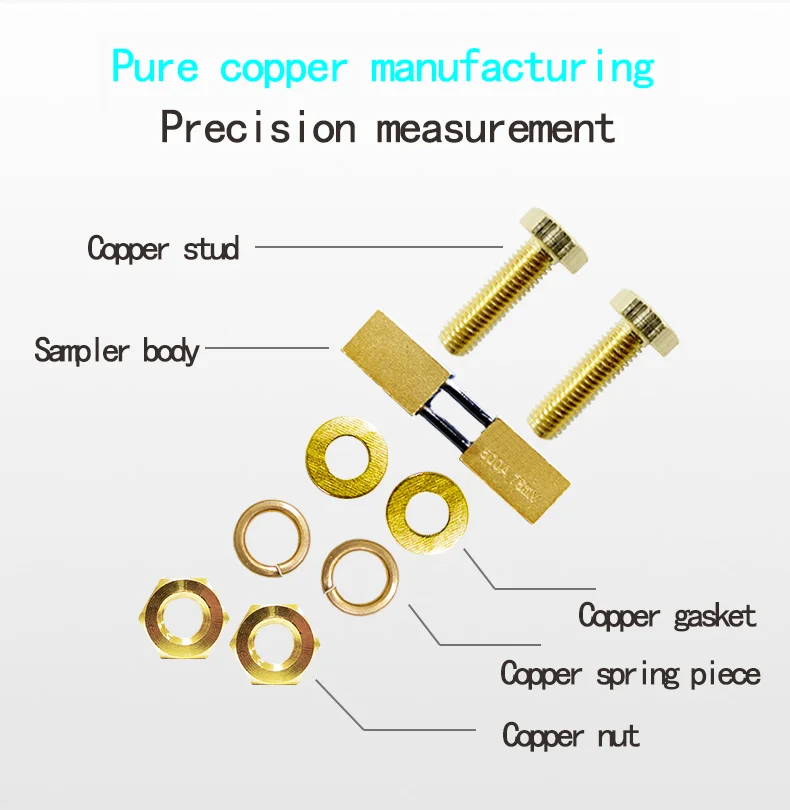

Note:This product contains 350A sampler and 0.5 m shielded cable( default 0.5m, 1m, 2m, 3m, 4m, 5m, 8m, 10m can select,Please contact us in advance). The price is according to the length.

Basic parameters：

Parameter	Min	Type	Max	Unit
Working voltage	10.0		120.0	V
Working dissipation		10.0	15.0	mA
Standby dissipation		1.0	2.0	mA
Capacity accuracy		±1.0		％
Voltage accuracy		±1.0		％
Current accuracy		±1.0		%
Backlight on current		80.0	100.0	mA
Backlight off current		50.0	60.0	mA
Capacity setting value	0.1		9999	Ah
Current of 50A sampler		350.0	500.0	A
Temperature range	-10	20	60	℃
Weight	420.0				g
Size	100×62×18				mm

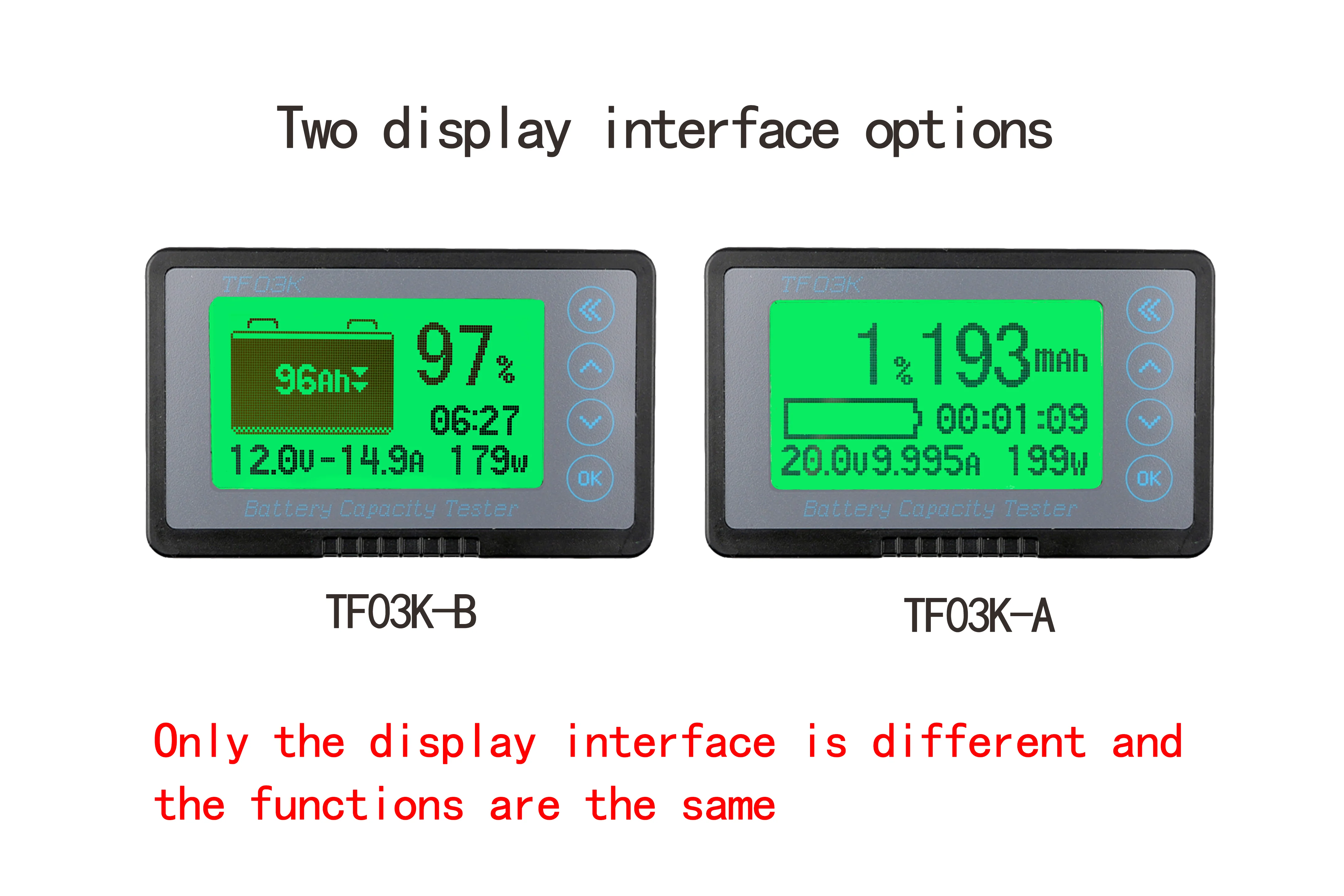

Working interface：

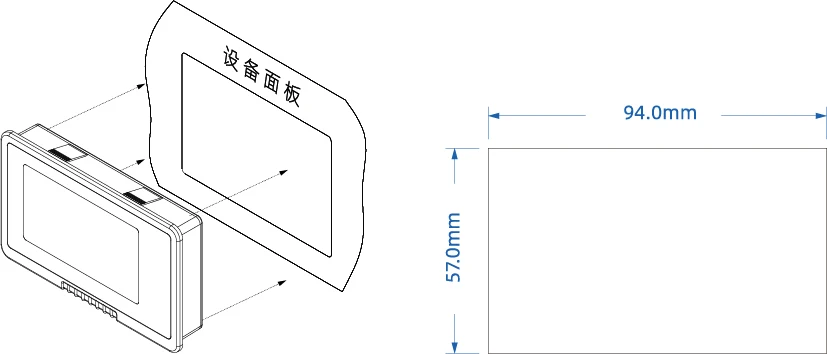

Install:

1. In the device panel to open a rectangular hole and two screw holes,

2. Then install the battery indicator from the front of the panel and place the indicator housing into the rectangular opening;

Connect:

1. Prepare a shielded wire and a ordinary wire (0.3-0.75 mm²);

2. One end of the ordinary wire connects to B+ of battery;

3. Another end connects to B+ of sampler (any one is ok);

4. The B- of sampler connects to B- of battery;

5. P- of sampler connect to P- of output;

6. Finally connect sampler to indicator by the shielded wire.

Connection diagram of 350A sampler

Attention: Please connect as shown strictly. The sampler must be connected to the negative circuit, it is forbidden to connect to the positive circuit. If you want to extend the shielded wire, you must use 4 lines of same specification.

Our Company

Shanghai Baiway electronic CO., LTD was founded in 2009. Our company has been focused on the production, design and development of battery applications for years, have rich experience.

The company has a strong development of technical strength, and constantly introduce new products to meet the needs of various customers. Shanghai Baiway electronics Co., integrity, strength and quality of products recognized by the industry. Welcome friends from all walks of life come to visit, guidance and business negotiation.

High quality partner

Our products have been unanimously confirmed by users and established a good long-term cooperation relationship.

Order Process

From the time the order is established, the order information is transferred to the warehouse, the warehouse starts to pick according to the order information, (usually in stock, large batch orders are determined in advance for the delivery cycle), and then the electricity is turned on for product inspection, and after the test, the packaging is started and the box is sealed. The goods will be delivered to your hands through logistics.

Certifications

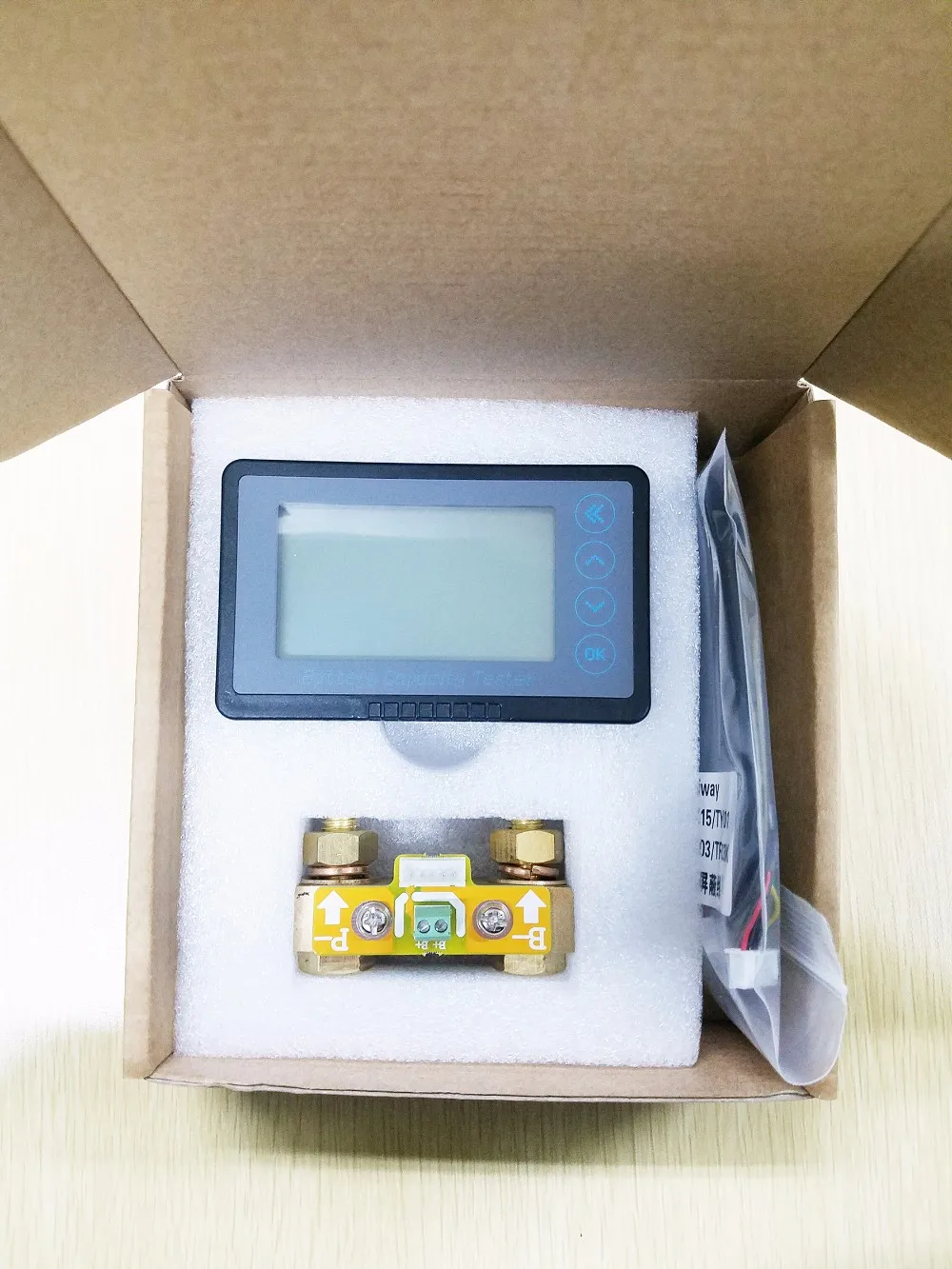

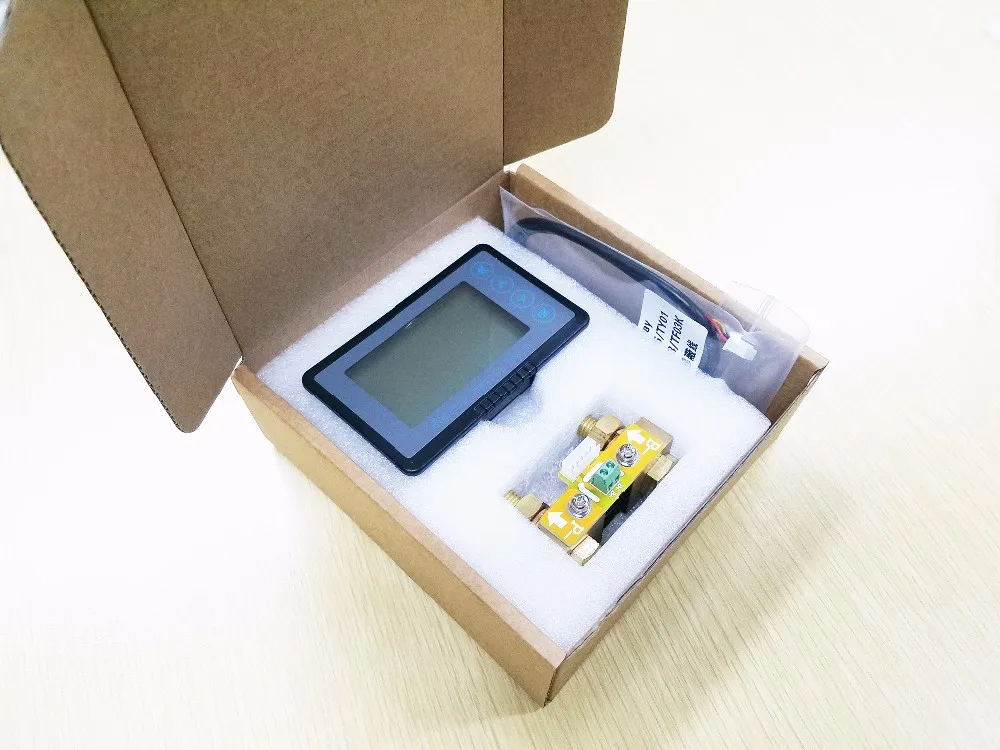

Packing & Delivery

Packing: Each packed in sealing bag, bag size: 15*15*5cm, weight: 420g.
Delivery: We can send goods off by sea, land, air and post according to you need.
Receiving: Please make sure the goods are in good condition before sign for.Please contact us if you have any question about the products.

FAQ

1. Are you manufacturer or trader?
We are manufacturer, and our company is established in 2009.
2. What is your delivery time?
10-30 working days depends on your order quantity.
3. Where is your factory?
Locate in Shanghai, China. You are welcome to visit our factory.
4. What are your main products?
Our products include voltage type battery capacity tester, current type battery capacity indicator, etc.
5. Why do you choose us?
Our company's products are independent R&D and manufacture, have high performance.
