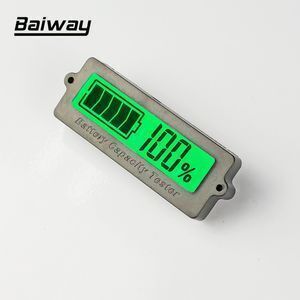

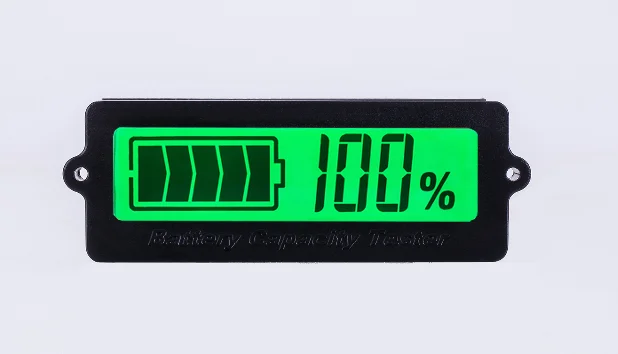

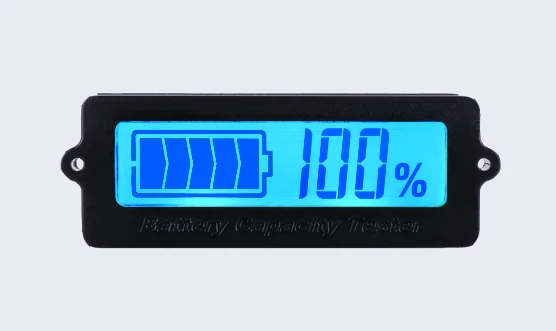

BW-LY6N 12V 24V 36V 48V Digital Acid Lead Lithium Battery Capacity Indicator tester meter 2s-15s

Applification

Lead-acid battery:12V, 24V, 36V, 48V
Lithium-ion battery:3Cells~15Cells(Except Lithium iron phosphate battery)
Note: Other specifications (1cell, 2cells and more than 15 cells) should be customized, and the specifications can't be adjusted.

Specification adjustment :

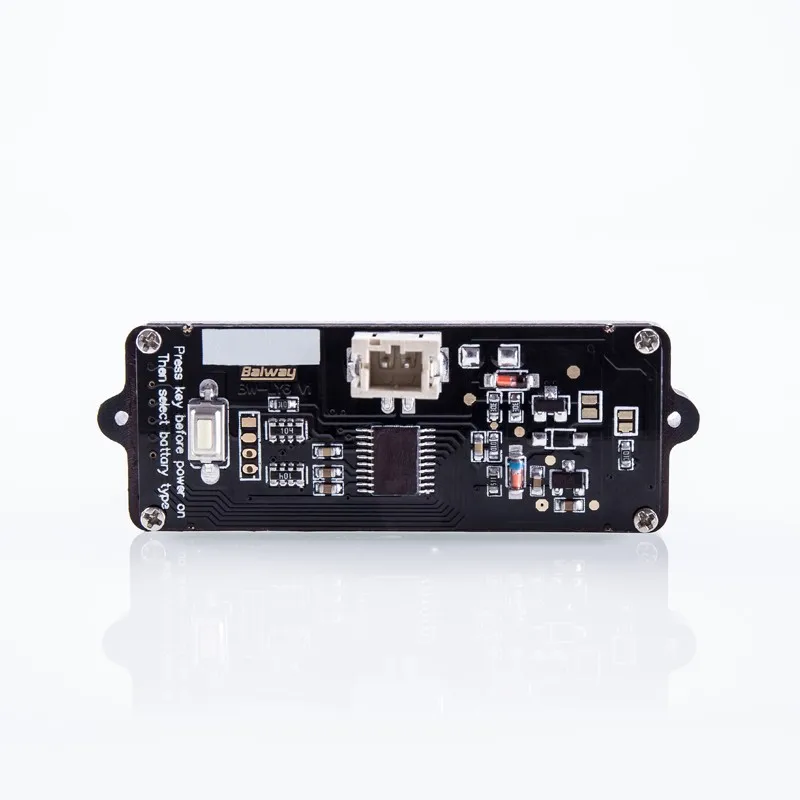

Press and hold the down key on the back when turn off, then power on. LCD displays the present specification. Then use the key to adjust specifications, select suitable specification you need, then turn off and power on again. The battery tester will be work normally (correspond code as below form).

Connect:

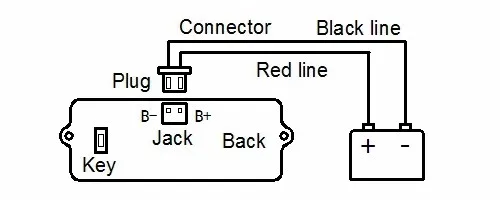

The battery tester provides a connector consists of plug, black line and red line. Connect the black line to the negative, the red line to the positive, the plug to the socket of battery tester. Then, power on or turn on the switch, it will be work. As shown below:

High quality partner

Our products have been unanimously confirmed by users and established a good long-term cooperation relationship.

Order Process

From the time the order is established, the order information is transferred to the warehouse, the warehouse starts to pick according to the order information, (usually in stock, large batch orders are determined in advance for the delivery cycle), and then the electricity is turned on for product inspection, and after the test, the packaging is started and the box is sealed. The goods will be delivered to your hands through logistics.

Company environment

Packing

5 pieces a ground, packing with sealing bag, weight 76g.

Delivery

We can send goods off by sea, land, air and express according to you need.

Receiving:

Please make sure the goods are in good condition before sign for.Please contact us if you have any question about the products.
