High performance air jet gauze weaving loom for medical use

Click here to contact

Product details

Certification:	ISO9001 CE;	After-sales Service Provided:	Video technical support,Online support;
Warranty:	1 Year;	Supply Ability:	500 Set/Sets per Month;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Weight:	3 TONS;
Dimension(LWH):	4500x2000x1800mm;	Application:	all kinds of fabric;
Brand Name:	LEBON;	Power(W):	3.6 kw TO 4.8 kw;
Packaging Detail:	export packing;	Type:	Air Jet Loom;
Place of Origin:	Shandong China (Mainland);	Condition:	New;
Production Capacity:	300~600meters Per Day;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Qingdao;

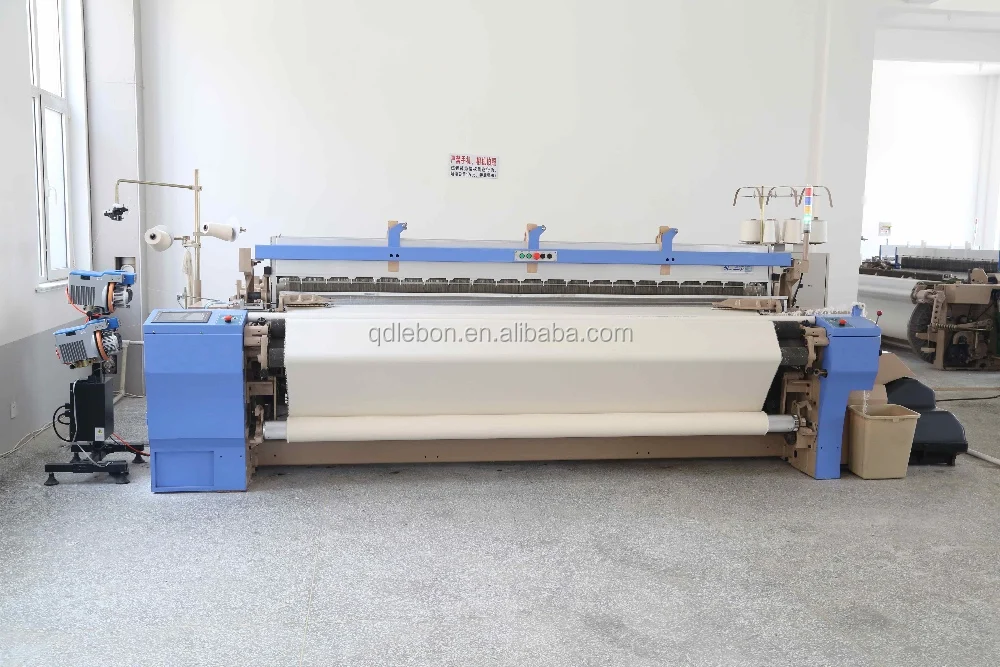

Top manufacture gauze air jet weaving loom

Nominal reed space(cms)	150 / 170 / 190 / 210 / 230 / 260 / 280 / 340 / 360
Connected electirc power(kw)	3.5 KW TO 4.6 KW SELECTED ACCORDING TO MODEL
Inching	STOP CONTROL IN POSITION AND OPERATION BY STOP BUTTON
Frame Structure	BOX TYPE
Weft accumulation	TWO NOZZLE ELECTRONIC WEFT ACCUMULATOR (ROJ)
	SIX COLOUR ELECTRONIC WEFT ACCUMULATOR (ROJ)
Water pump	by order
Nozzle & needle	by order
Weft packages holder stand	FLOOR MOUNTED HORIZONTAL STAND FOR FOUR AND SIX PACKAGES
Shedding	POSITIVE CAM 4-10 HEALD FRAMES
	POSITIVE DOBBY SHEDDING 2-16 FRAMES
Let-off	ELECTRONIC LET OFF / MECHANICAL LET-OFF
Weft density	6-60 PICKS/CMS
Beam flanges diameter(mm)	800 MM
Leno device	PLANETARY GEAR TYPE WITH PROXIMITY SWITCH
Drying/Dehydration
Weft yarn cutting	MECHANICAL CUTTERS ON BOTH SIDES
Electric power source	380 V - 420 V
Electric motors	3.6 kw TO 4.8 kw
Mechanical speed/working speed	1100 RPM / 900 RPM
Control panel	LOGIC & PC TYPE
Indicator signal lamp	4 COLOUR LED TYPE
Weft feeler	PHOTO ELECTRIC SENSOR
Weight	3 TONS
