High speed disposable plastic plates and cups making machine

Click here to contact
Product details
After-sales Service Provided:Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;Place of Origin:China;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Brand Name:HUA XIANG;
Product Type:Blister;Forming area:610*560mm;
Automatic:No;Usage:Platic Blister Plastic Tray Forming;
Type:Vacuum Forming Machine;Warranty:1 Year;
Machine Name:Vacuum forming machine;Voltage:380V;
Selling Units:Single item;Power:16kw;
Material Thickness:0.2-2.0mm;Certification:CE;
Application:blister forming machine;Single gross weight:68.000 KG;
Dimension(L*W*H):180*180*120(cm);Package Preview:;
Single package size:50X50X50 cm;Condition:New;
Color:Customized;Material:Roll/sheet;
Material type:PP,PS,PET,PVC,ABS,ACRYLIC,PE;Plastic Type:PVC,PET,PP,PS,ABS;
Packaging Detail:1.Machine only transit by sea; 2.Buyer had to clear customs;pick goods from customs warehouse; 3. Wooden box or wooden frame, box: 40USD/CBM, wooden frame: 18USD/CBM; 4. Woodwork will be fumigated in many country; 5. If container is too tightly, we will use PE- film for packing or pack it according to customers special request; 6. Machines will be Split to facilitate placement;;Machine type:Thermoforming machine;
Key Selling Points:Low Maintenance Cost;Weight:400Kg/500Kg;
Related Products
Product Description

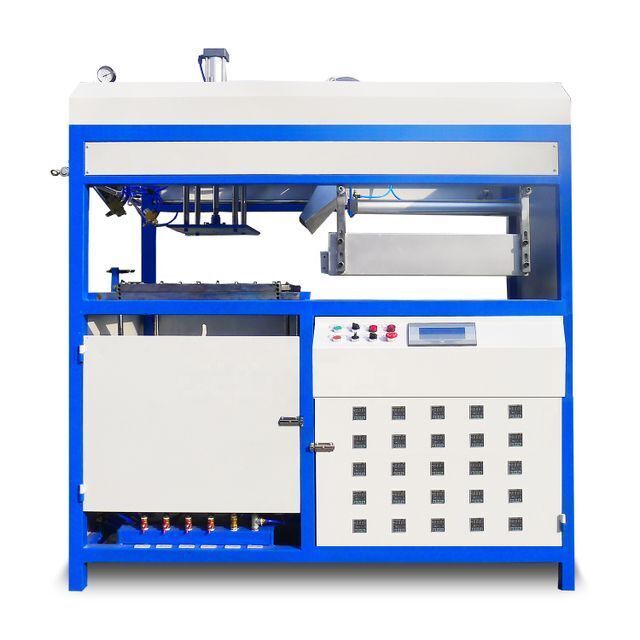

HX-2224 Series Semi-automatic Vacuum Forming/Thermoforming Machine

PLC touch screen control, HX-2224A a user friendly machine with the power and capability to form demanding shapes and materials. Rapid, energy efficient ceramic heaters with variable standby ,pneumatic table and clamping provides effortless operation, whilst the vacuum tank system fitted as standard facilitates ultra-fast response for demanding applications and fast cycle times.

Application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.

Types of  molds:
Wood Patterns;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;

HX-2224C Lower cost

HX-2224B automatic oven

HX-2224A PLC control

Model
HX-2224C
HX-2224B
HX-2224A
Forming Length (mm)
610
610
610
Forming Width (mm)
560
560
350-560 adjustable
Roll Material width
610
610
400-610 adjustable
Heater(pcs)
25*600w
25*650w
25*650w
Heating Power (Kw)
15
16.25
16.25
Vacuum Pump(M³)
20
40
40
Cooling Fan
1
1
1
Upper Mold
●
●
●
PLC Control
N/A
N/A
●
Mold table with cooling
N/A
N/A
●
Width adjustable
N/A
N/A
●
Safety Cover
N/A
●
●
Spray Gun(pcs)
N/A
●
●
Pneumatic Oven
manually
●
●
Digital temperature
 Setting Control
N/A
●
●
Material
PET,PVC,PP,PS,ACRYLIC,ABS
Material type
Sheet / roll, thickness:0.1-2.0mm
Machine Size (mm)
L1800×W1480×H1800
Machine Weight(Kg)
350
400
450


Function:

Ceramic Heaters with Full Temperature 25 Independently Controllable Heating Zones Pneumatically Powered Clamping Frame Mold 20m³/40m³ Vacuum Pump Powerful Cooling Fan

Vacuum Receiver Tank
Vacuum Flow Regulator
Vacuum and Pressure Gauges
Digital Timer

Extra function for HX-2224A/B

Oven move automatic
Digital tempetature control

2 spracy gun
Safety cover

Extra Function for HX-2224A

Oven move automatic
Digital tempetature control


Electronic mold table with Width adjust

Main feature
1) 25pcs ceramic infrared heating boards which can be controlled separately, suitable for different size or different thickness material.

2) 25pcs Solid state voltage regulators, control heating boards simple and visualized.

3) Large-scale cooling fan which can cool the products quickly.

4) Cooling system which suitable for thick material. (optional)

5) Manual and Semi-auto style.

Forming part

Semi-Automatic Vacuum Forming Machine. HX-2224 series max. forming area 610 x 560 mm.
1.HX-2224A and 2224B setting pneumatically powered heating oven, HX-2224C move by human hand.
2.HX-2224A and 2224B with digital temperature control,HX-2224C micro temperature control

Adjustable mold table

1.HX-2224A forming width can be adjust from 350mm to 560mm;
2.HX-2224B and HX-2224C forming width invariable;

Detailed Parts

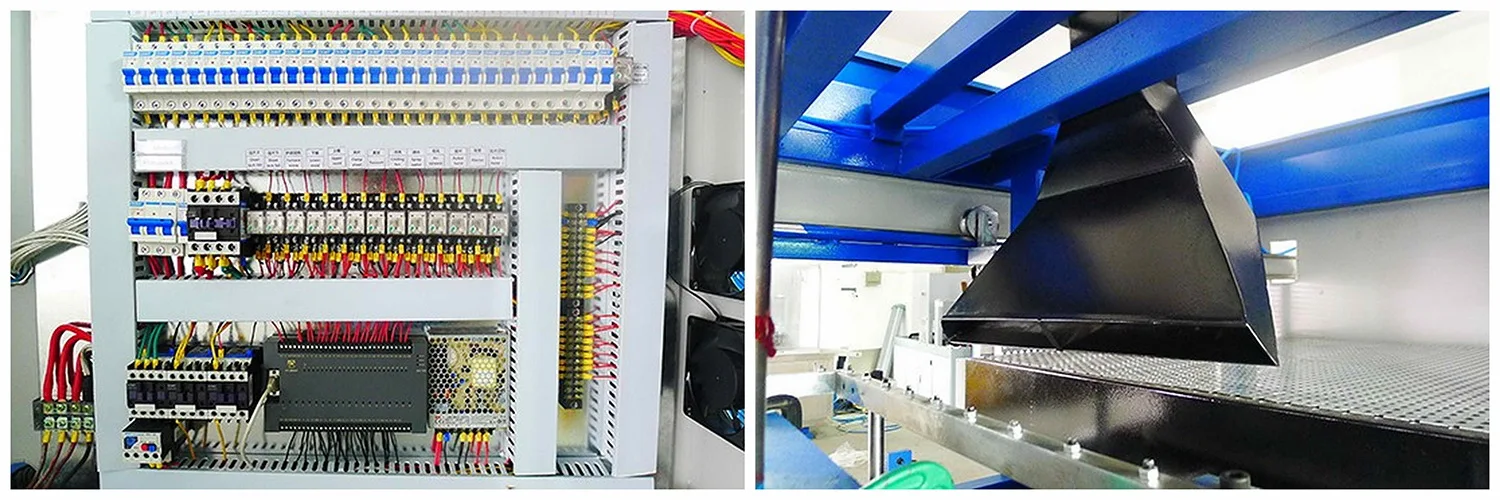

Electricity box
Brand: CHNT,OMRON
Original: Chinese,Japanese
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
Japanese accessories
Industry Cooling fun
Name: cooling fan
Brand: HUAXIANG
Original: CHINA
Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable;

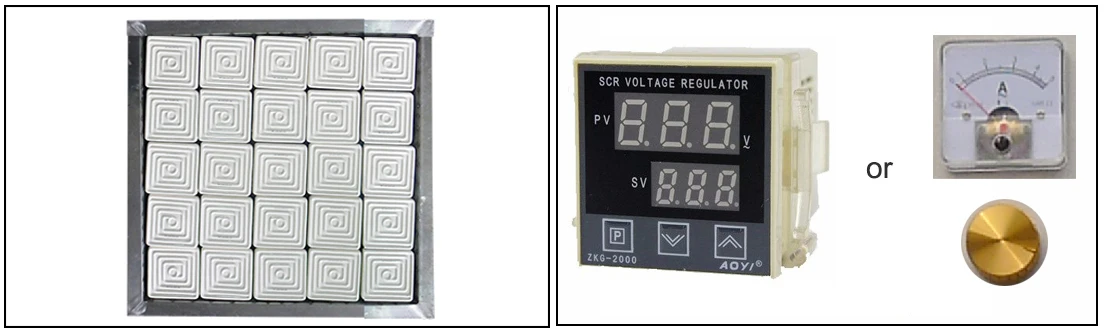

Ceramic heater/oven
Name: Heating system
Original: Germany or Chinese(Optional)
25 pcs Ceramic Heaters;
Power:16kw or 19Kw (every 0.65kw);
Heater size:12cm*12cm;
Save 10% power compare with competitors;
Temperature control
Name: Digital temperature or micro controller
Brand: AOYI
Original: Chinese
Digital temperature controller convenient, high precision ;25 Independently Controllable Heating Zone
Sample
Packing & Delivery

SIZE

1) The machine overs an area of 2.664m²;
2) Requires 20m² of space to place ;
3) In the open air environment;
4) Weight: 400kg

Packing

1. Wooden box or wooden frame, box: 30 USD/CBM, wooden frame: 15 USD/CBM;
2. Woodwork will be fumigated in many country;
3. If container too tightly, we only use PE- film for packing or pack it according to customers special request.
4. Machines will be Split to facilitate placement.

Our Factory

HUAXIANG is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the professional enterprise that specializ in the production of Vacuum Forming/Thermoforming Machine. Our machine are used a lot in plastic forming,plastic packaging field;


In order to help you choose the most suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material?
Q2: The size of your sample; length, width and thickness?

More about us, click our website below:
https://huaxiangjx.en.alibaba.com/
