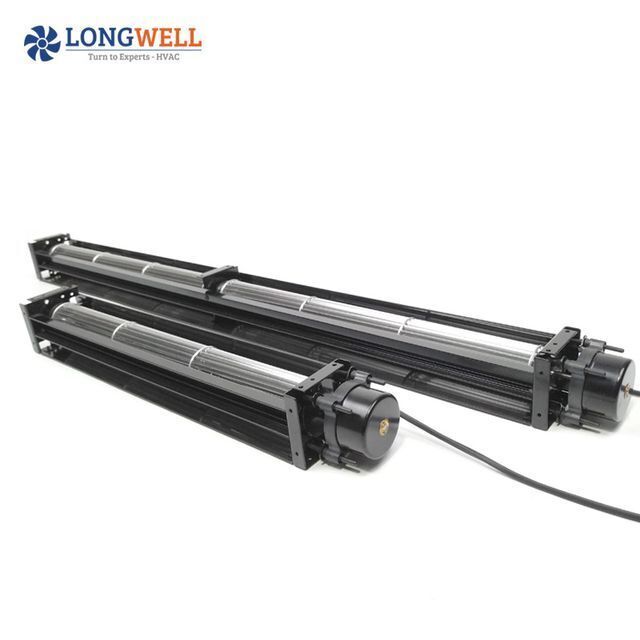

High quality DC 12v 24v Tangential fan metal impeller mini cross flow fan low noise ventilation tangential blower fan

Supplier: Ningbo Longwell Electric Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Angela Li
Price: $30.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Brand Name:	LONGWELL;	Model Number:	LW-30~150mm AC/DC Cross flow fan;
Package Preview:	;	Type:	CROSS FLOW FAN;
Electric Current Type:	DC;	Mounting:	FREE STANDING;
Customized support:	OEM,ODM,OBM;	Housing material:	Galvanized Metal;
Motor:	BLDC motor;	Warranty:	1 Year;
Bearing type:	Ball bearing;	Speed Control:	PWM / 0~10V Speed control / Regulator;
Fan length:	As required ( up to 1400mm);	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Voltage:	115/120/220/230/12/24/48;	Impeller Material:	Aluminum alloy;
Packaging Detail:	Fan packed in cartons or individual box if required , cartons packed on pallets Tangential impelle;	After-sales Service Provided:	Free spare parts;
Blade Material:	Aluminium alloy;	Supply Ability:	100000 Pieces per Month;
Fan type:	mini cross flow fan;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Certification:	ce,GS;	Feature:	Low Noise Energy Saving;
Place of Origin:	Zhejiang, China;	Application:	Exhaust Ventilation;
Port:	NINGBO/SHANGHAI;

Products Description

High quality DC 12v 24v Tangential fan metal impeller mini cross flow fan low noise ventilation tangential blower fan

Nominal Impeller Diameter:	from 30mm to 200mm ( impeller diameters )
Nominal Impeller Length:	150mm - 1450mm
Max Length of the blower :	Up to 1450mm
Fan Speeds :	0-3600 rpm
Drive Motor Types :	Shaded Pole Motor ( AC ) ; Brushless DC ( BLDC/EC)
Standard supply voltages:	DC 12V / 24V / 48V~50/60 Hz ; AC 115V / 230V~50/60 Hz ; EC 115V / 230V~50/60 Hz.
Motor and Impeller Bearing Type:	Ball Bearings
Optional heater elemtns :	PTC Heater or Aluminum Fan heaters
Typical Applications :	Trench Heaters / Floor Convectors / Wall Convector /Domestic ventilation /Catering equipment / Electronic cooling / Heat recovery ,etc
Special Features :	Compact Desin with low noise ( down to 20 dBA ) . Coupled fans for extended length applications ; 0-10v / pwm speed control system
Other Options Include ；	Finger guard , mounting brackets , special electrical connector .

Certifications

Company Profile

LONGWELL is a manufacturer of HVAC fans, blowers , motors and components ,such as centrifugal fans, axial fans, cross flow fans, single/double forward curved fans ,AC/BLDC/ECM motors as well as industrial fan blowers ，established in 1990 ,equipped with high advanced testing and production facilities ，automatic welding machines , CNC machining centers ,injection machines . with over than 28 years manufacturing experiences , LONGWELL is very skilled in designing, developing and manufacturing ,and exporting to over 30 countries including many Fortune Global 500 customers in HVACR application . and products passed CCC，CE ,ETL and UL .

LONGWELL EMC Technology is giving more energy saving to our world .
the advantages are :
1.Our ECM motorized fans’effiency are 30%-60% higher than the traditional motors .
2.the build-in PCBA achieved stepless speed control,and communication with customers products .
3.longer life span up to 600,000hours .
4.IP55,IP68 can be customized .
5.Sine wave ,three phase eliminate electromagnetic-acoustic and lots of other protection functions like soft start ,overload,motor block … .
