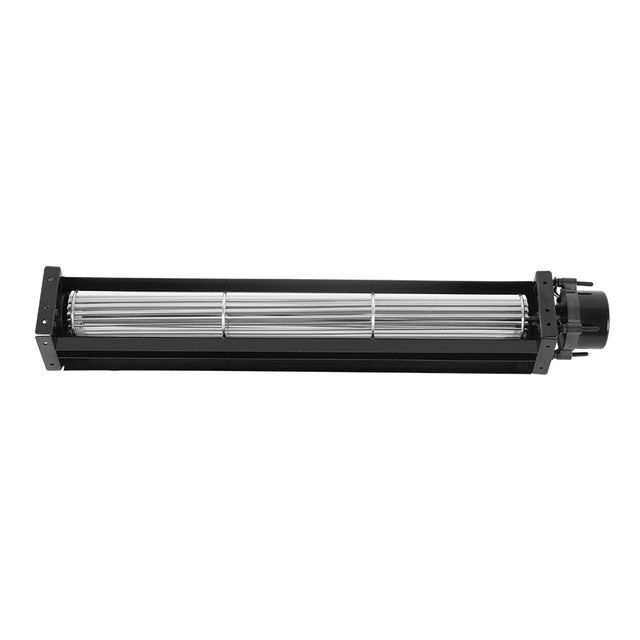

30mm DC 12V 24V 48V Ventilation Cooling Cross Flow Fan Blower for Oven Heating, Convection, Air Curtain, Ventilation System

Supplier: Ningbo Longwell Electric Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Angela Li
Price: $20.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Impeller/Blade Material:	Aluminum alloy	brand:	Longway
Blade material:	plastic	Motor Type:	DC brushless external motor
port:	Ningbo/Shanghai	Packaging Details:	Fans come in cartons or separate boxes if needed, cartons are on pallets
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Advertising Agencies, Others	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram

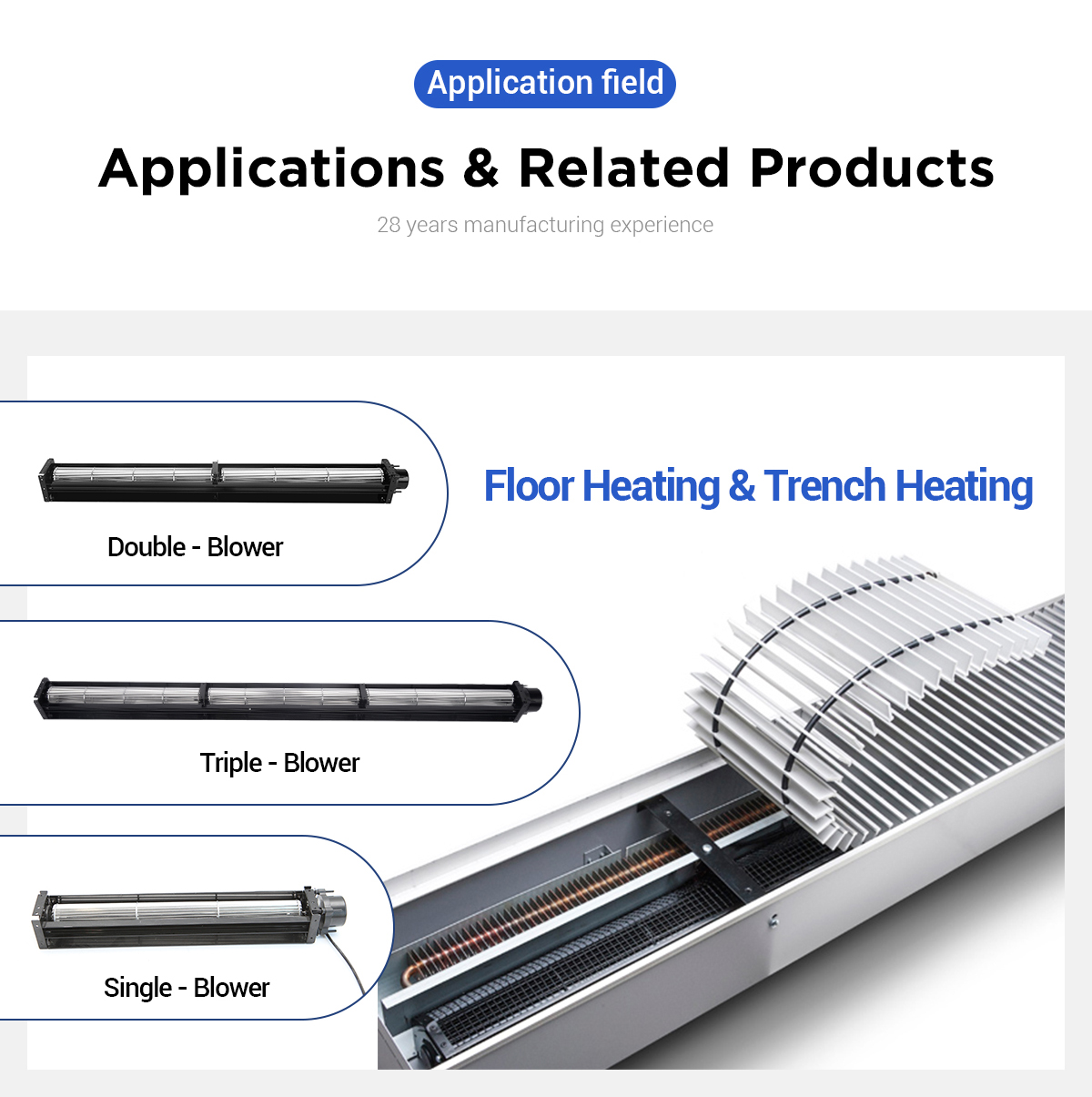

Related Products:	25~200mm diameter optional	application:	Floor heating/air curtain/air purifier/microwave oven
Voltage:	other	Length range:	up to 1300 mm
Warranty:	1 year	Supply capacity:	100000 pieces/month
model:	LWCD-30	After-sales service provided:	Video technical support
Packaging Preview:		Bearing Type:	ball bearing
type:	cross flow fan	place of origin; place of origin:	Zhejiang, China
Operating temperature:	- 25℃～+60℃	Install:	Detached
Custom Support:	OEM, ODM, OBM	Current type:	DC
OEM/ODM:	Ventilation cooling cross flow fan	speed of the fan:	0~10V /PWM variable speed
Building Materials:	Aluminum/Galvanized Metal

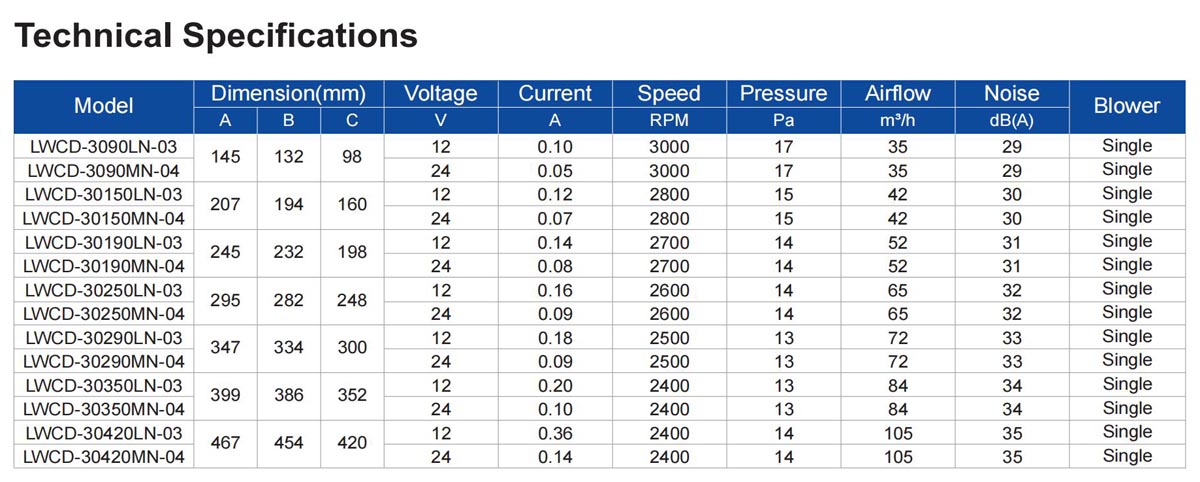

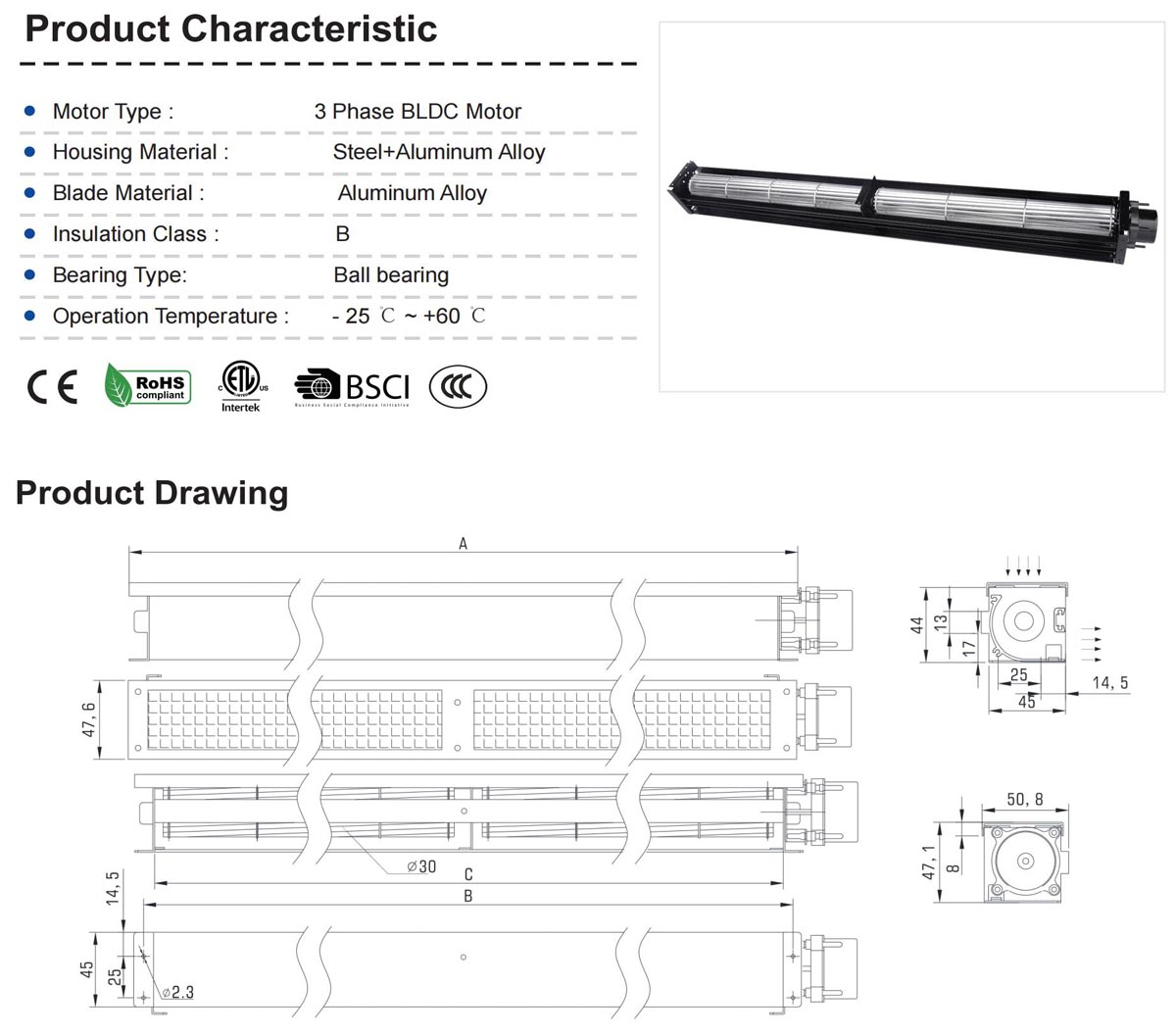

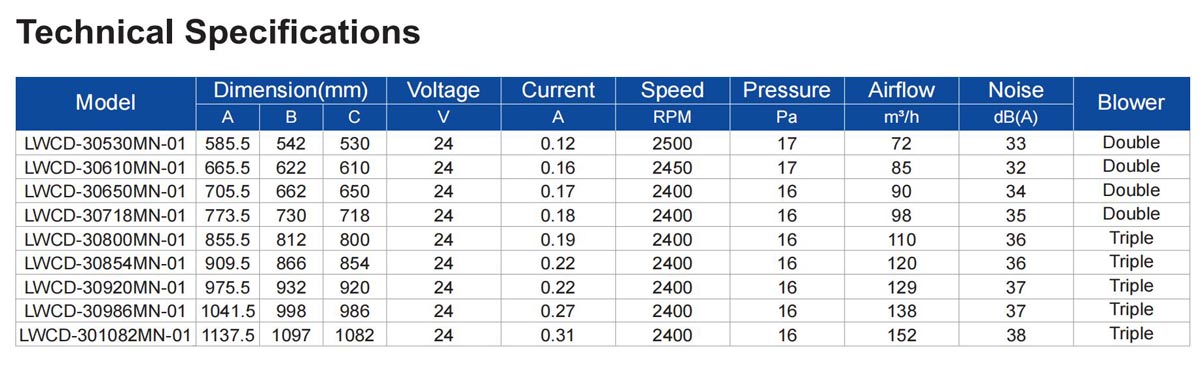

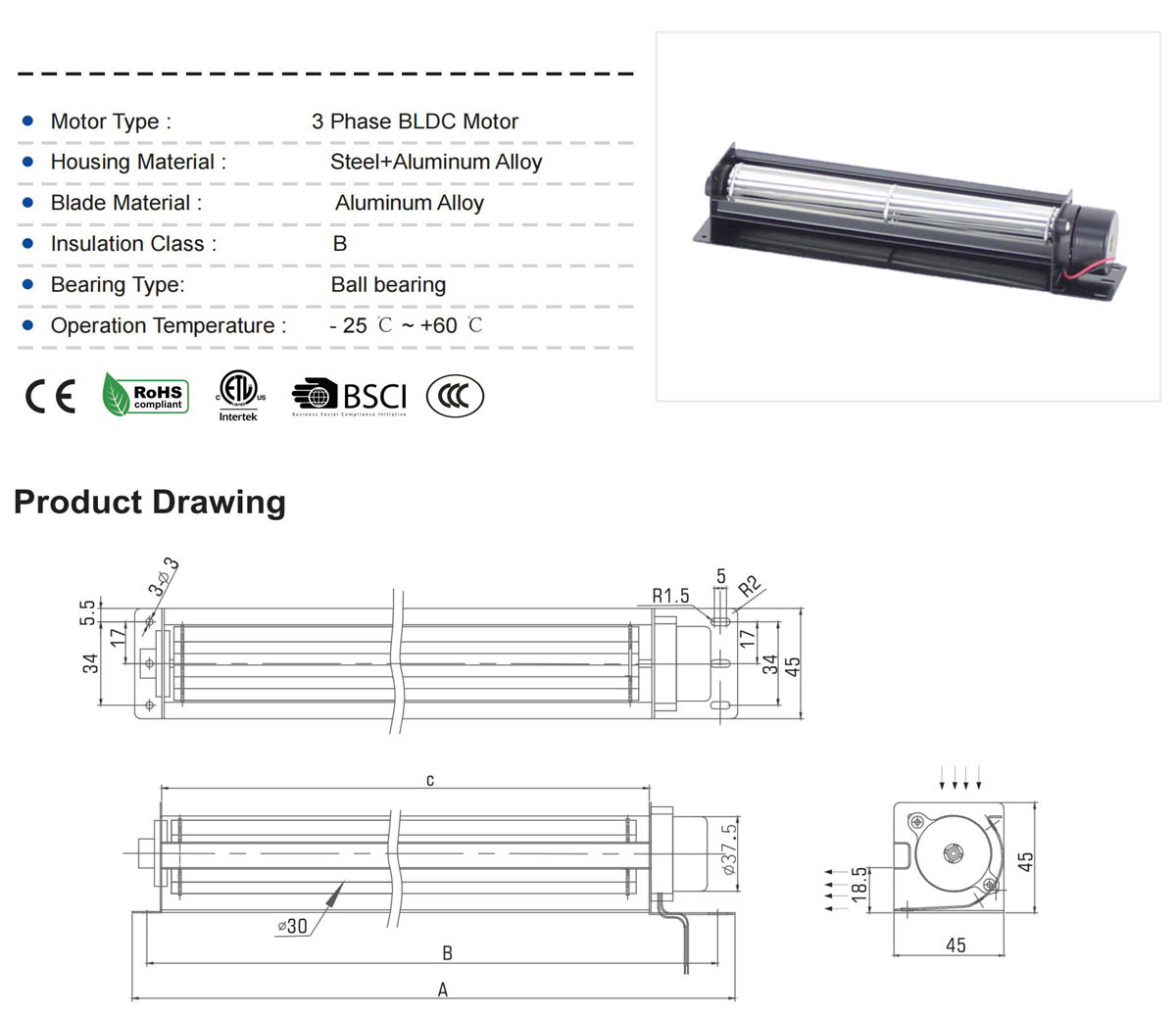

30mm DC 12V DC24V Cross Flow Fan - Single and Double (Length up to 1050mm)

What is the difference between an AC cross flow fan and a DC cross flow fan?

- DC fan motors are 70% less efficient than AC fans - Quieter operation, down to 19 dBA levels. - Suitable for extreme temperature environments; - Provides more variable, uneven airflow with minimal electromagnetic interference - Low voltage operation - Integrated PCB control system.

Longwell offers different types of DC cross flow fans with 3-phase BLDC motors. This tangential fan has the option of a safety barrier and a speed controller.

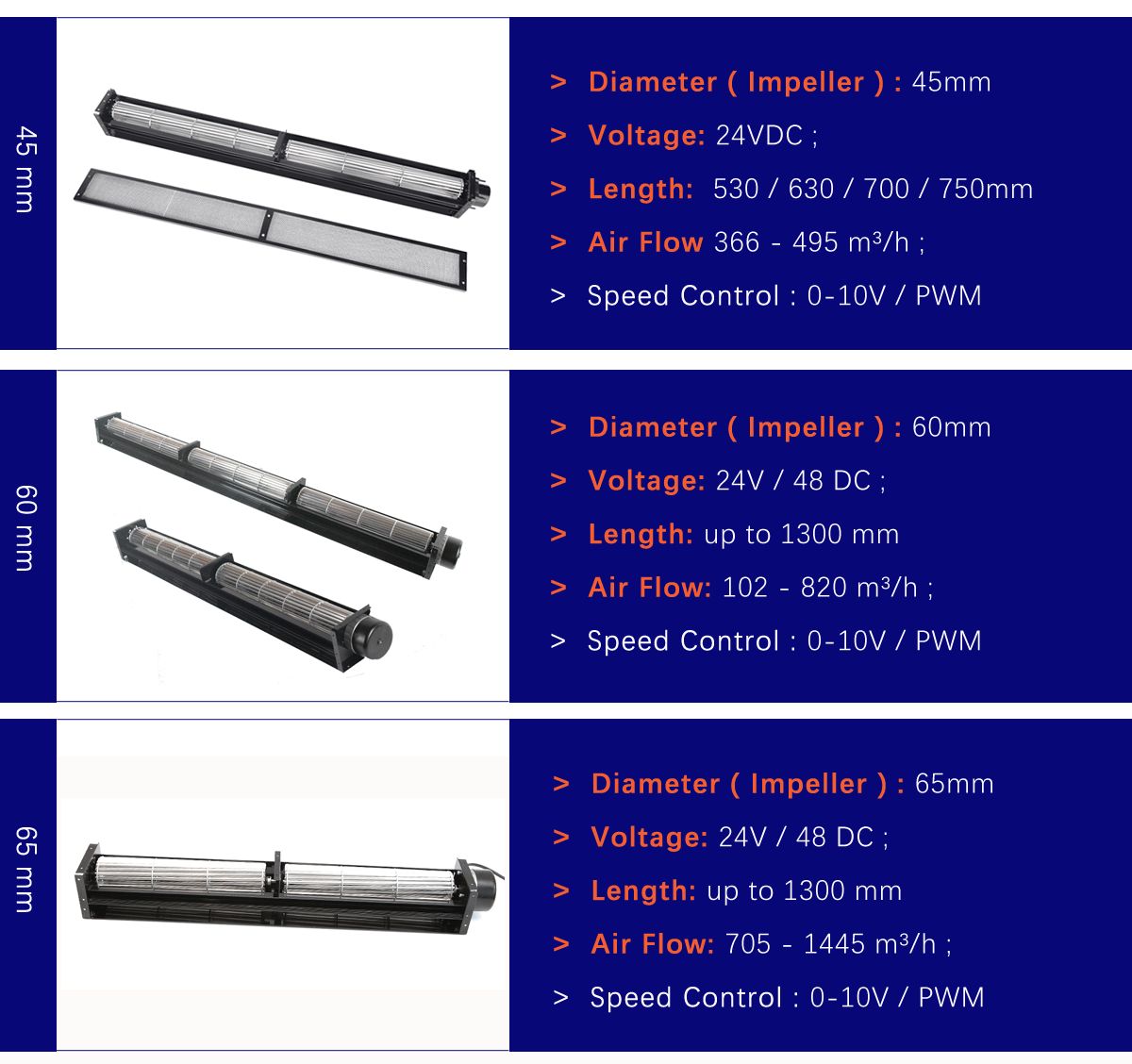

housing:We supply metal housings, mostly aluminium.impeller:Our impeller diameters range from 25mm to 150mm and lengths from 76mm to 1200mm (single double triple type).Bearings:We offer NMB or NSK ball bearings for tangential fans.Voltage:Our DC cross flow fans are available for 12V, 24V and 48V.

Speed Control System: 0-10V/PWM

Crossflow Fan Governor #1

PWM / 0-10v governor

Crossflow Fan Governor #2

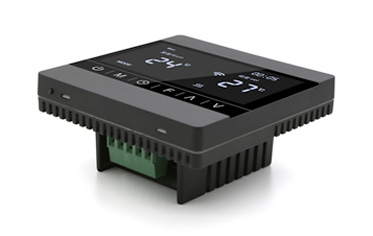

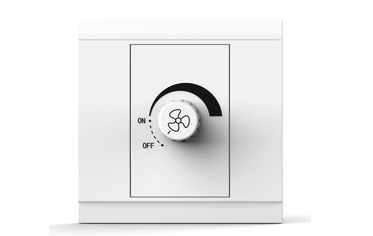

Thermostat

AC Cross Flow Fan Series - AC 115V / 230V Tangential Fan

Motor Type:AC shaded pole motor/AC motor;

Bearing Type:Ball or sleeve bearings;

Insulation level:basement

Diameter range:30mm - 150mm;

Impeller length:120mm - 1200mm;

Air flow range:22 - 4250 m³/h

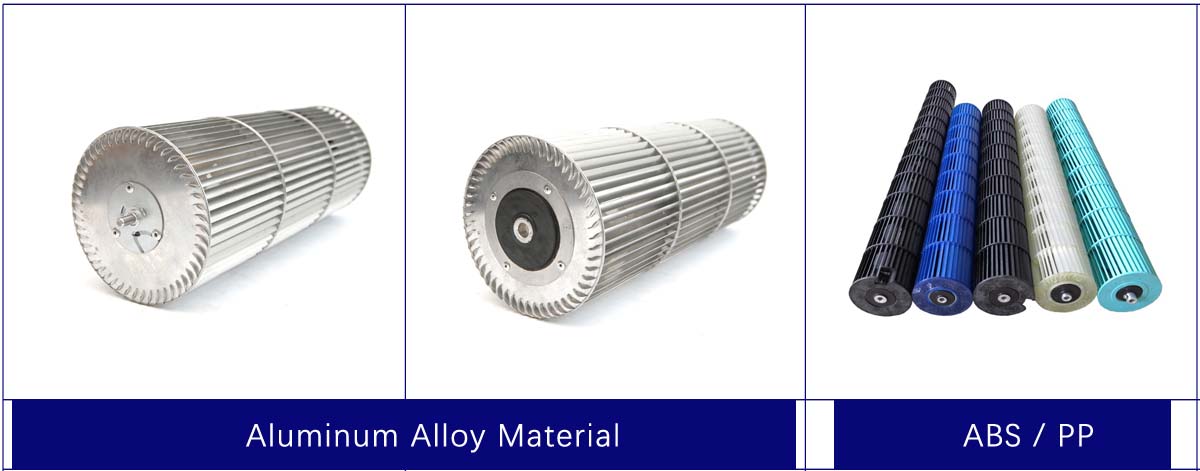

Metal cross flow impeller

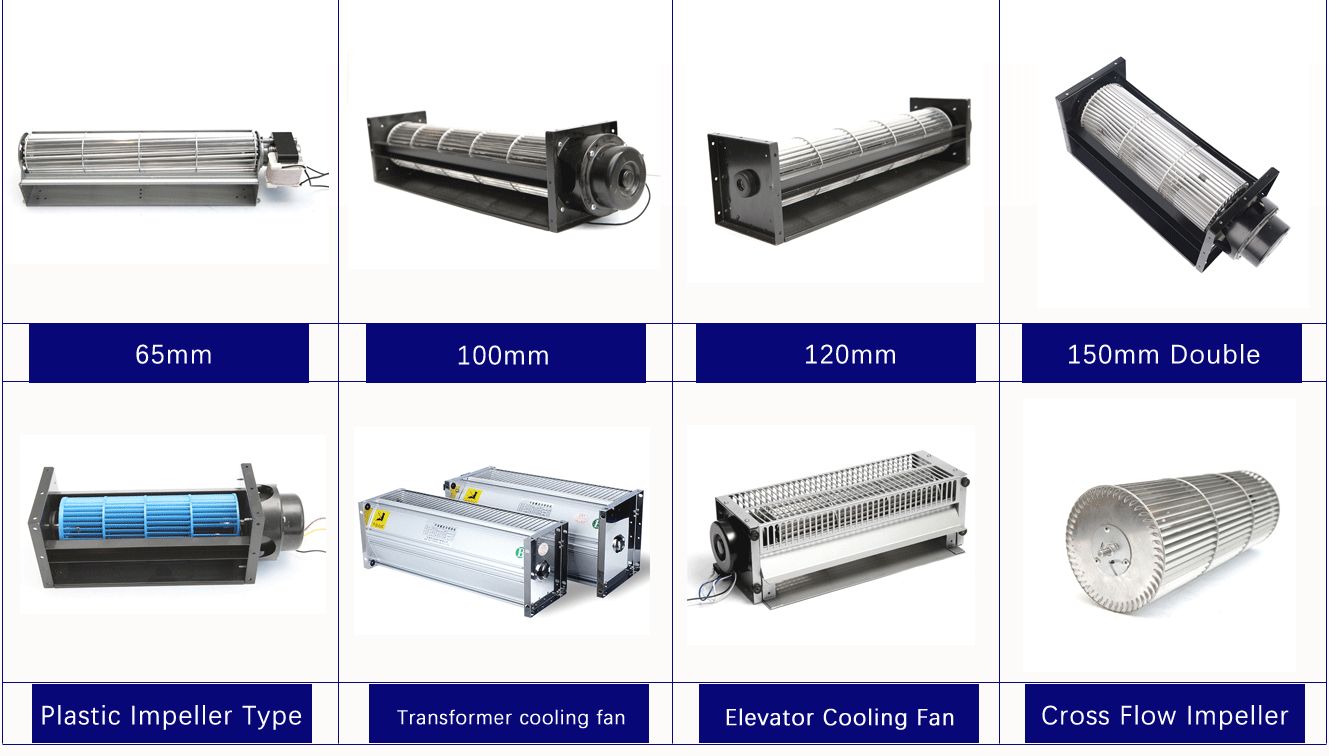

Specification:30*L,40*L,43*L,45*L,50*L,60*L,65*L,80*L,90*L,100*L,110*L,120*L,150* Length, 180*L, 200*L

(100≤L≤1200)

Material:Aluminum alloy/ABS plastic;

Wheel diameter:6mm,8mm,10mm,12mm,12.7mm

Shaft diameter:6mm,8mm,10mm,12mm

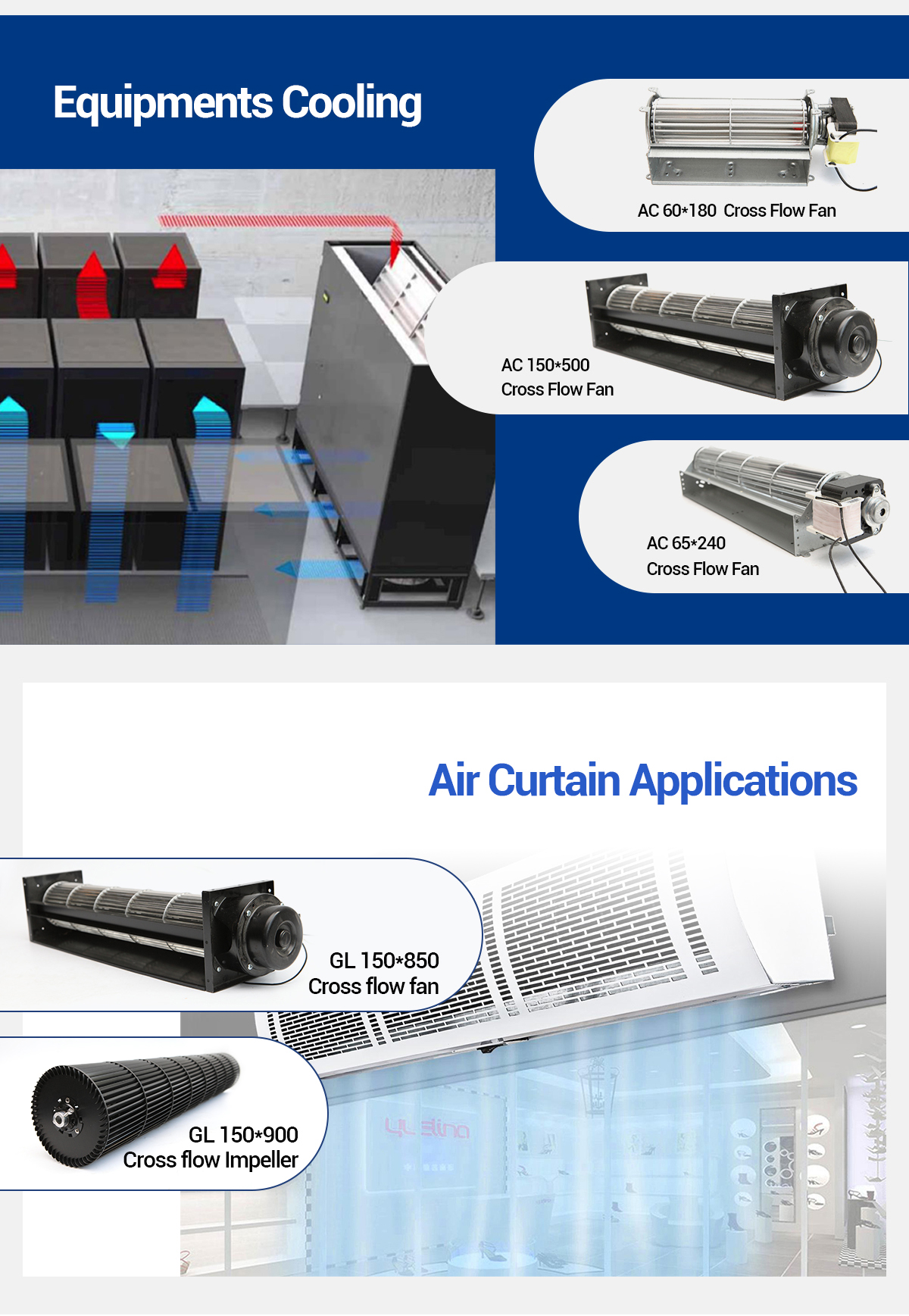

application:Air Curtain, Electric Fireplace, Heater, Floor Heating, Cooling Equipment, Air Conditioner

Governor/Thermostat

Designed for DC tangential fans, suitable for 0-10V / PWM Soeed control

Security Grid

Black coating, specially designed for DC cross flow fans, light weight and rust proof

Other OEM parts

3-phase BLDC motor with ball bearings;

Designed for DC low noise cross-flow fans as low as 19 dVA

FAQ:

Q1. What are the advantages of your cross flow fan? -LONGWELL cross flow is specially designed for low noise purpose. The noise is even as low as 19 dBA; - Our production range is from 20mm to 200mm; - We have heavy duty design with 4000rpm for fans with diameter less than 60mm and over 2700rpm for fans with diameter of 150mm.

Q2. Does Longwell offer any speed control options for DC cooling fans?

Re: Yes, Longwell can provide some speed governor solutions according to customer's requirements, such as: - 0-10V/pwm controller for full range of cross flow fans/DC cooling fans. It is powered by 10VDC and provides infinitely variable manual speed control between 0% and 100%; - can control multiple fans to run at the same speed; - infinitely variable control knob for infinitely variable settings.

Q3.How do we connect the tangential fan to our application, is there a wiring diagram?

Reply:

Please check the speed control of your application first (is it PWM or 0-10V),Please refer to the 0-10v series wiring diagram as follows:

For more details, please contact us for professional engineer services,

Q4.The life of this DC cross flow fan?

Re: Longwell EC outer rotor motor exceeds efficiency class IE4, no rare earth magnets, maintenance free ball bearing (sealed) long term lubrication, theoretical nominal service life of at least 40,000 hours of operation, horizontal and vertical motor shafts installed; soft start, integrated current limiting. Integrated electronics, quiet commutation logic; 100% speed controllable; control signal 0-10 V DC/PWM; speed output.

Q5. Are there any other AC DC EC cross flow fan options or solutions to choose from?

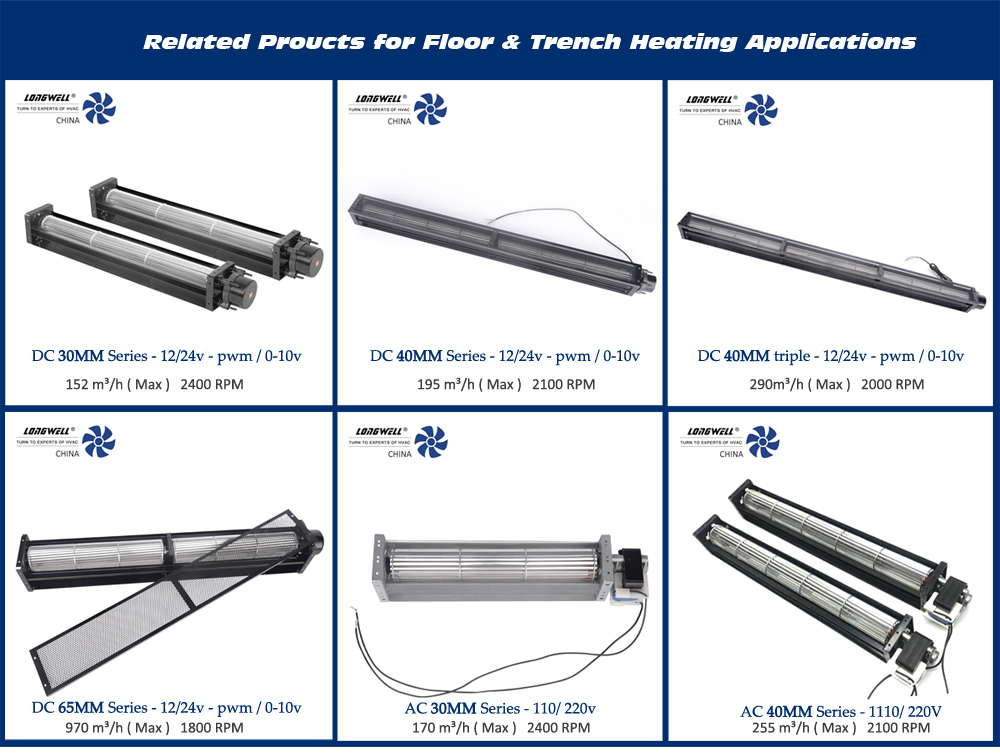

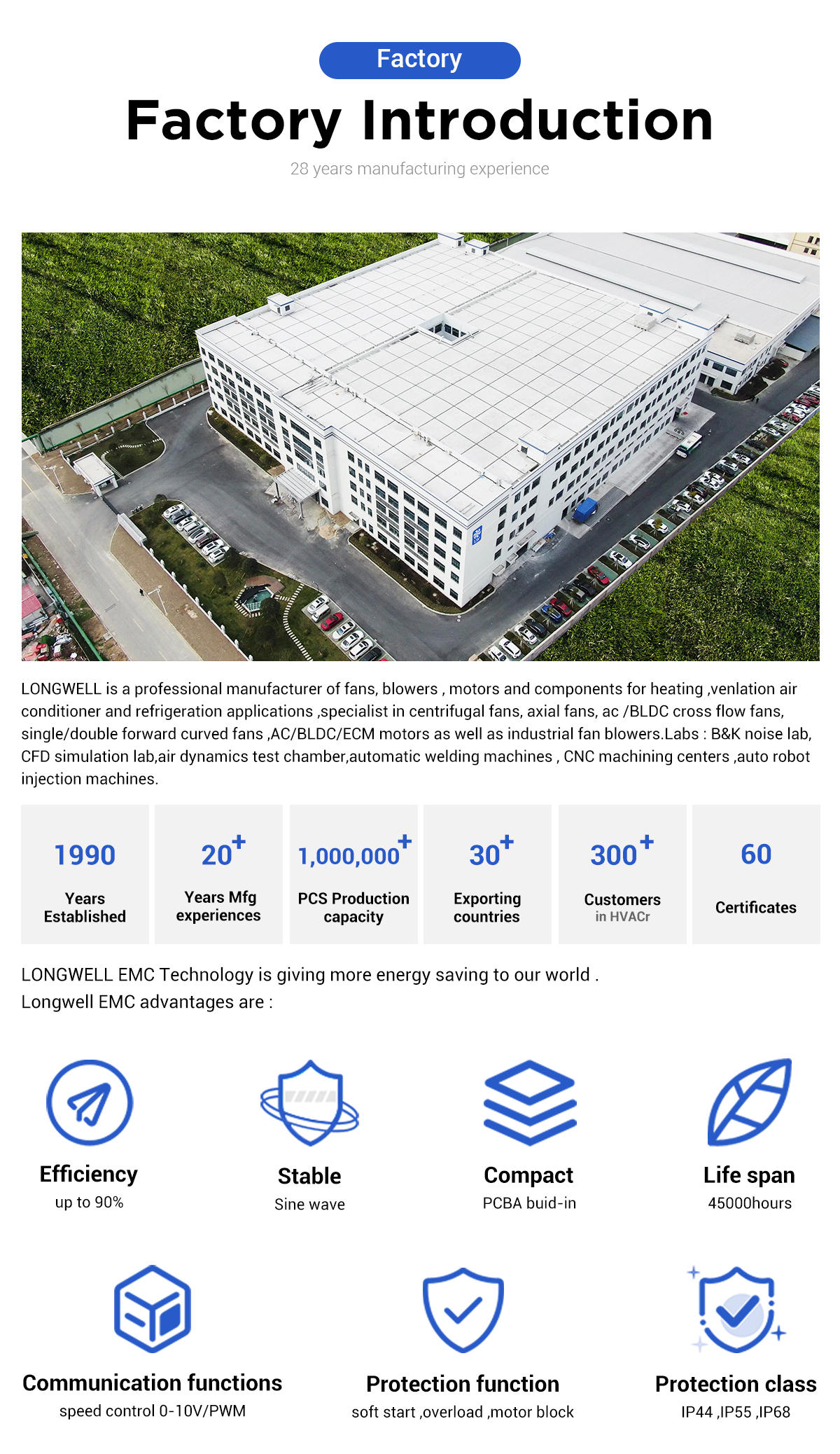

Yes of course. LONGWELL is a professional manufacturer of fans, blowers, motors and components for heating, ventilation, air conditioning and refrigeration applications, specializing in centrifugal fans, axial fans, AC / BLDC cross flow fans, single / double forward bending fans BLOWERS, AC /BLDC/ECM motors as well as industrial fans, duct fans, poultry fans (AC/DC/EC), etc. Please check the following photos for reference: Longwell As a well-known and trusted DC cross flow fan supplier in China, we guarantee you the best product quality and service. If you are looking for a DC cross flow fan for your manufacturing application or electronic equipment, please read the features and specifications of our various models of DC cross flow fans. If you need any further information or have technical questions, you can contact us directly:
