Ansi 150# a216 cast steel wcb 4inch knife gate valve

Product details
Operation:Pneumatic Operator;Media:Gas;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Model Number:PZA100;
Temperature of Media:High Temperature;Structure:Gate;
Certificate:ISO 9001: 2008/API6D;Design:MS SP-81;
Specification:API, ANSI, Asme, Bs, DIN, JIS, GB etc.;Packaging Detail:Standard Seaworthy Packing;
Port:Shanghai;End Connection:Wafer Type:RF Flanged:RF;
Place of Origin:Shanghai, China;Type:Knife gate valve,Gate Valves;
Application:Industrial Usage, Water Industrial Usage, Household Usage,General;Body material:Ductile Iron/Cast Iron WCB,CF8.,CF8M;
Brand Name:KS/OEM;Power:Pneumatic;
Customized support:OEM,ODM,OBM;Product name:Ansi 150# a216 cast steel wcb 4inch knife gate valve;
Port Size:DN100;Supply Ability:2500 Tons per Year;
Warranty:18months;End:Asme B16.25, Asme B16.5/16.47;

Ansi 150# a216 cast steel wcb 4inch knife gate valve

Product Description

 Standards Compliance
MSS SP-81, JB/T 8691
Face to Face Dimension: MSS SP-81
Pre-temperature Rating: ANSI B16.34
Flanged Dimension: ANSI B16.5, DIN2533; JB79; GB/T 9113; HG20592
Inspect & Test: API 598, GB/T 13927; JB/T 9092



Quality Assurance

Accredited with ISO 9001 and API Q1 & CE Quality Assurance Programmes.



DESGN & MFT. API ENDS CONNECTION wafer
PRE-TEP. RATING ASME B16.34 INSPECT & TEST API 598
F-F DIMENSION ANSI B16.10 END CONNECTION ANSI B16.5
MARKINGMSS MSS SP-25 FIRE SAFE DESIGN --
MARKINGMSS TBA SPE. REQUIREMENTS N.A



Main Part & Materials
Part Names Part Materials
Body Cast Iron Ductile Iron WCB CF8 CF8M CF3 CF3M SAF 2205
Knife SS304/SS316 SS304 SS316 SS304L SS316L SAF 2205
Stem F6a or Required
Seat/Seat Ring NBR/EPDM/PTFE or Metal Seat
Packing Graphite/PTFE
Bolts/Nuts B7/2H L7/4 B16/4 B8/8 B8M/8M B8/8 B8M/8M B8M/8M

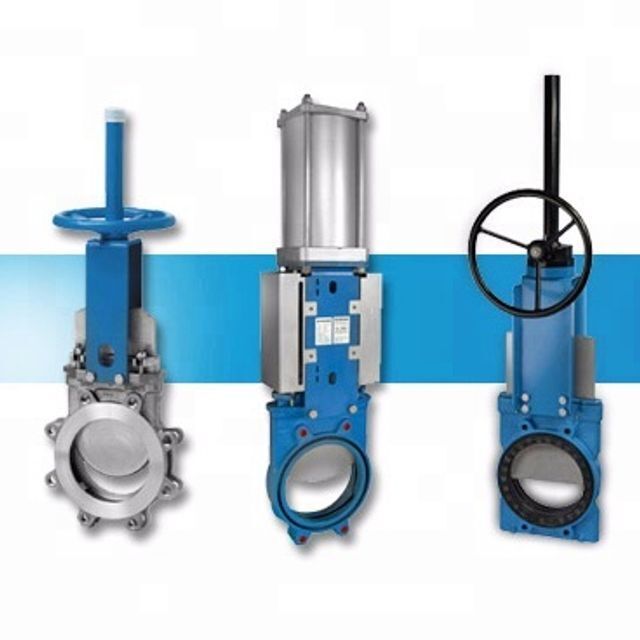

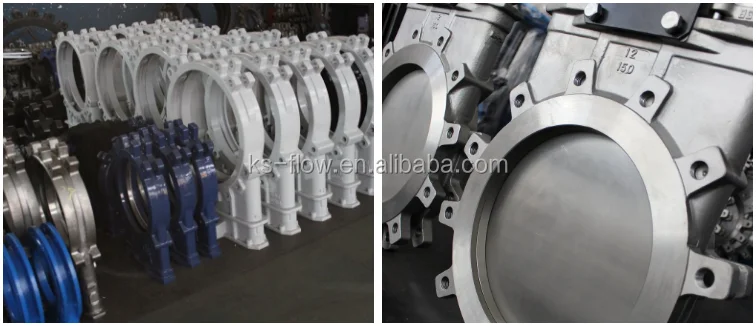

Product Pictures

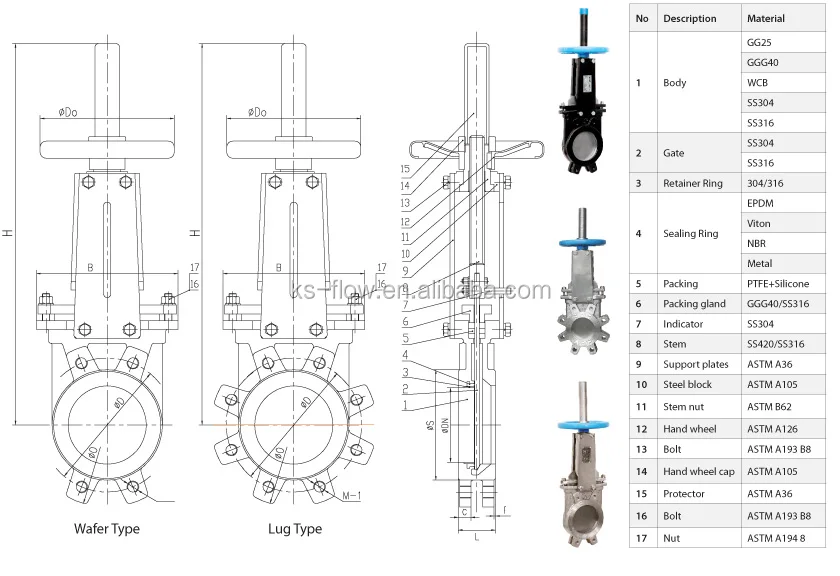

Structure Drawing

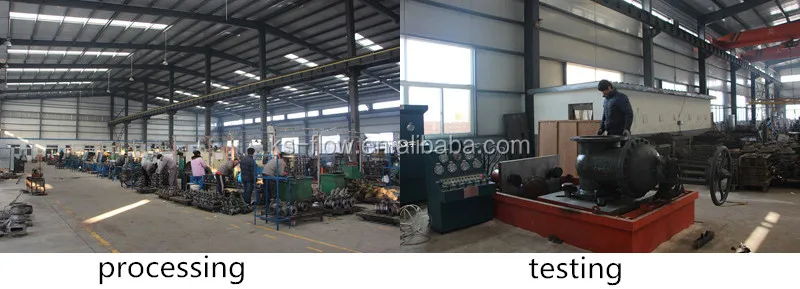

Production Process

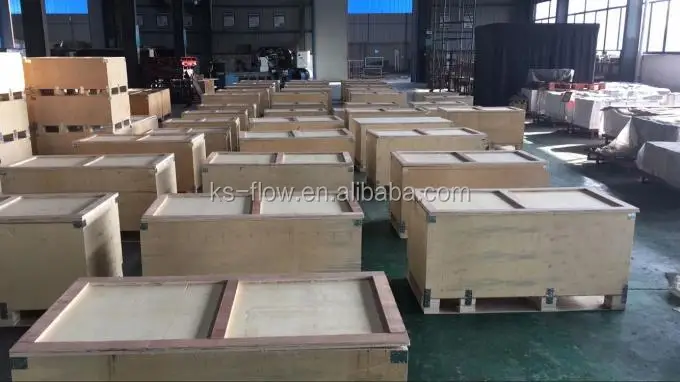

Packaging & Shipping

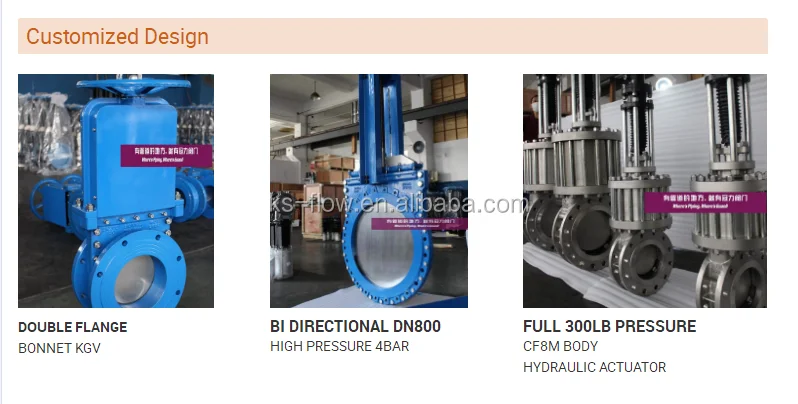

Related Product





Certifications

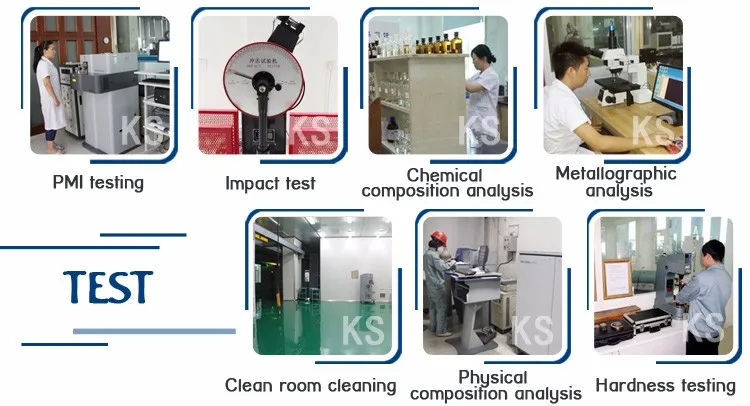

Product Testing
