China Electrodeionization EDI Pure Water Purification System Treatment Plant

Supplier: Qingdao Jinhuimo International Trading Co., Ltd.
Region: Shandong, China
Contact: Mr Rui Liu
Price: $325.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Max. pressure:	0.4Mps;
Place of Origin:	Shandong, China;	Weight:	According to reality;
Showroom Location:	None;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Condition:	New;	Supply Ability:	10000 Sets per Month Industrial Seawater RO Filter Systems Water Purifier Treatment P;
Size:	According to reality;	Core Components:	PLC,edi;
Package Preview:	;	Port:	qingdao;
Core process:	EDI;	Name:	Electrodeionization EDI Pure Water Purification System Treatment Plant;
style:	Concise;	After Warranty Service:	Video technical support;
Applicable Industries:	Manufacturing Plant,Energy & Mining,Other,water treatment,industrial water,lab;	Current:	0.5-1.0HZ;
Brand Name:	HUIJIN;	Application:	Water Purification;
Resistivity:	bigger than 15MΩ.cm;	Video outgoing-inspection:	Provided;
Productivity:	5000L/Hour;	Warranty of core components:	1 Year;
Packaging Detail:	seaworthy ocean shipping;	Marketing Type:	New Product 2020;
Power:	According to reality;	Recovery rate:	70-80%;
Flow:	5000L/H;	Material:	According to reality;
Machinery Test Report:	Provided;	Weight (KG):	38 kg;

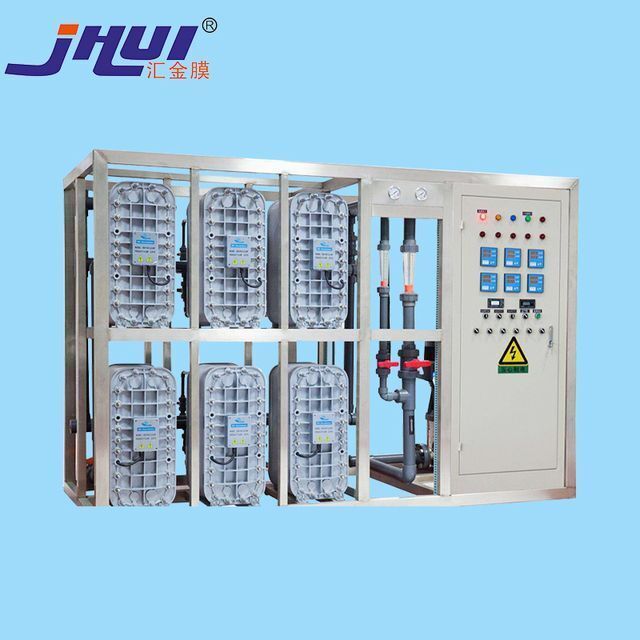

^{China Electrodeionization EDI Pure Water Purification System Treatment Plant}

Product Introduction

1.Brief Introduction

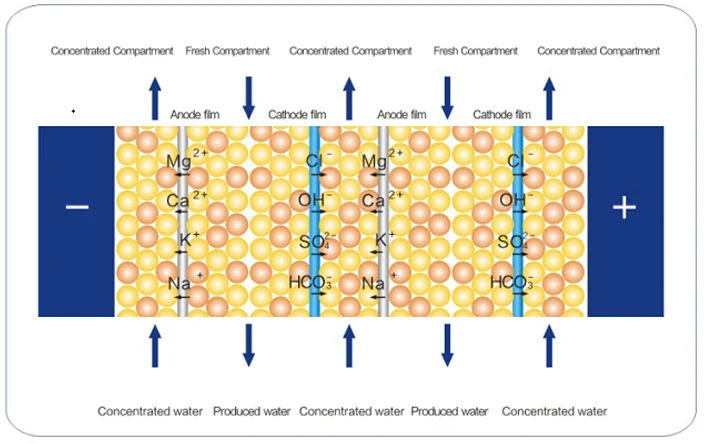

EDI is a kind of pure water manufacturing apparatus that applies to ion exchange/ ion exchange membrane technology and ion electric migration technology. It is wisely combined electro dialysis with ion exchange technology, by using of high-voltage electrodes at both ends to drive charged ion in the water to move, and with the ion exchange resin and selective resin membrane to accelerate ions moving, so as to achieve the purpose of water purification. EDI has the features of easy operation and excellent environmental protection. It is a green revolution in high pure water producing.

2. Technology Specification

Mini-type EDI

Item	EDI-P-50L	EDI-P-100L	EDI-P-200L
Product Flow (L/H)	50	100	200
Recovery (%)	70-80	70-80	70-80
Resistivity (MΩ.cm)	≥15	≥15	≥15
Voltage (DCV)	24-30	32-40	40-50
Current (DCA)	0.5-1	0.5-1	0.5-1
Max. Pressure (Mpa)	0.4	0.4	0.4
Size of Fresh/Produced Pipe	DN6	DN6	DN8
Size of Concentrate Inlet/Outlet Pipe	DN6	DN6	DN8

HP Series EDI

Item	EDI-P&F-0.5-HP	EDI-P&F-1.0-HP	EDI-P&F-2.0-HP	EDI-P&F-3.0-HP	EDI-P&F-4.0-HP
Product Flow (L/H)	0.5	1	2	3	4
Min. Product Flow (L/H)	0.3	0.7	1.4	2.4	3.2
Max.Product Flow (L/H)	0.7	1.5	2.5	3.8	4.8
Recovery (%)	85-95	90-95	90-95	90-95	90-95
Voltage (DCV)	9-18	15-30	30-60	45-90	60-120
Current (DCA)	2-5	2-5	2-5	2-5	2-5
Inlet Pressure (Mpa)	0.1-0.3	0.1-0.3	0.15-0.4	0.15-0.4	0.15-0.4
Max. Pressure (Mpa)	0.7	0.7	0.7	0.7	0.7
Size of Fresh/Produced Pipe	DN25	DN25	DN25	DN25	DN25
Size of Concentrate Inlet/Outlet Pipe	DN15	DN15	DN15	DN15	DN15

LX Series EDI

Parameter	LX-04Z	LX-10Z	LX-18Z	LX-24Z	LX-30Z	LX-45Z	Unit
Designed Flow	0.44-0.67 (rate: 0.5)	1.0-1.65	2.0-3.1	2.8-4.2	3.4-5.1	5.1-7.7	M3/h
Designed Flow	0.44-0.67 (rate: 0.5)	(rate: 1.0)	(rate: 2.0)	(rate:3.0)	(rate: 4.0)	(rate: 5.0)	M3/h
Max Flow	0.67	1.65	3.1	4.2	5.1	7.7	M3/h
Min Flow	0.22	0.55	1.1	1.4	1.7	2.55	M3/h
Voltage DC	0-55	0-135	0-240	0-320	0-400	0-600	V
Electricity DC	0-6	0-6	0-6	0-6	0-6	0-6	A
Rated Current DC	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0	A
Recovery Rate	80-90%	80-90%	80-90%	80-90%	80-90%	80-90%
