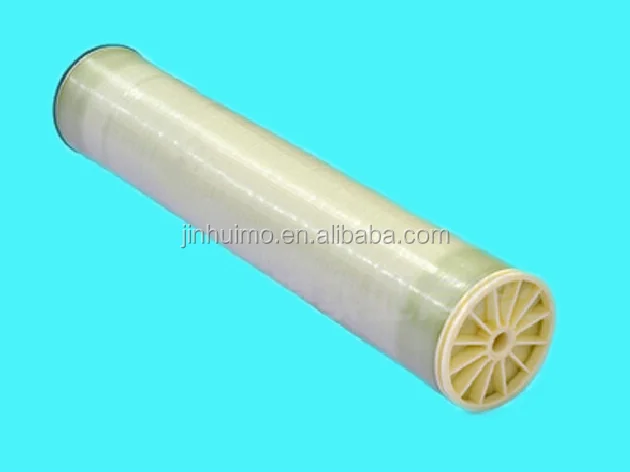

ULP ro membrane 4040 reverse osmosis for sale

Supplier: Qingdao Jinhuimo International Trading Co., Ltd.
Region: Shandong, China
Contact: Mr Rui Liu
Price: $67.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Productivity:	300L/Hour;	Port:	qingdao;
Warranty of core components:	3 years;	Product name:	reverse osmosis membrane;
Core Components:	RO MEMBRANE;	Configuration:	Low Fouling Spiral Wound;
Weight:	3.8kgs;	Permeate Flow:	1,900gpd (7.2M3/D);
Brand Name:	JHM;	Maximum Feed Flow:	16GPM (3.6 m3/h);
Supply Ability:	100000 Pieces per Month;	Material:	Composite Polyamid,export package;
Applicable temperature:	5-40 ℃;	Place of Origin:	Shandong, China;
Machinery Test Report:	Provided;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Warranty:	2 years;	Showroom Location:	None;
Video outgoing-inspection:	Provided;	Applicable Industries:	Hotels,Manufacturing Plant,Food & Beverage Factory,Restaurant,Home Use,Construction works ,Food & Beverage Shops,Other,Environmental Engineering Company,Environmental Protection Company,water treatment;
Available membrane area:	85ft2 (7.9 M2);	Condition:	New;
Weight (KG):	3.8 kg;	Marketing Type:	New Product 2019;
Outline design:	90*1060 mm;	Packaging Detail:	in carton & wooden case, standard export packaging, or depend on client's requirement;
Size:	4"*40";	Application:	Water Purification;
Maximum Applied Pressure:	600psi (4.14Mpa);	Power:	0;

ULP 4040 ro membrane for sale

Production Description

Reverse Osmosis, for Reverse Osmosis in English, is to spend hundreds of millions of dollars and after years of carefully developed in high-tech water procession technology. This kind of film separation technology, it is to rely on through the film under the pressure of the solvent solution and the process of the solute separation. Penetration is a physical phenomenon.The membranes can work under ultra low pressure to reach as high permeate flow and salt rejection as regular low pressure composite membrane, and achieves a salt rejection rate of up to at least 97%, which can decrease the investment costs for such relevant facilities as pump, piping, and container etc, and operating cost for the RO system, thus increasing the economic efficiency.

ULP(Ultra Low Pressure) series is the latest company, which is used in the research and development of surface water and groundwater desalting of ultra-low Pressure aromatic polyamide composite membrane element, can operate in Low Pressure reach and conventional low-pressure membrane under the condition of the same high water flux and desalination rate.Its operation pressure of about two-thirds of conventional composite membrane operation pressure, desalination rate can reach 99.5%.Lower the associated pumps, pipe, container equipment investment cost and operation cost of reverse osmosis system, improve the economic benefit.ULP series of membrane element used in salt content about 2000 parts per million of surface water, groundwater, water treatment and municipal water water desalination, is mainly used in all kinds of the size of the boiler make-up water, pure water, food processing and pharmaceutical industry and other fields.

1. Material: Polypropylene;

2. corrosion resistance,rust resistance;

3. specification: 50G/ 75G/ 100G/150G/200G/300G/400G

4. anti-aging, long service life;

5. superb surface finish;

6. adequate thermal stability;

7. Replacement Cycle: 3 to 6 months, depending on local water quality and quantity;

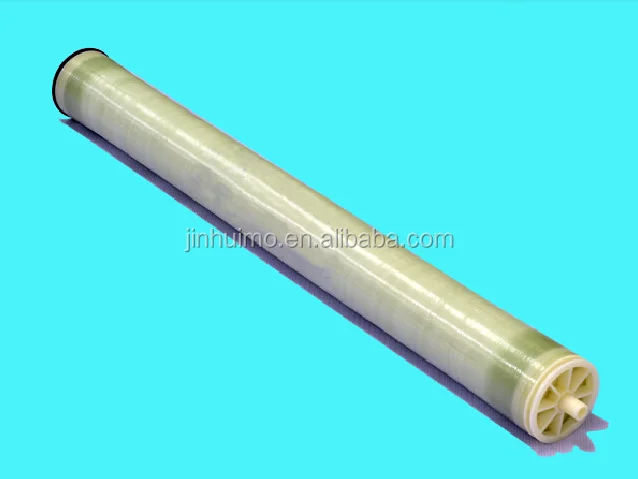

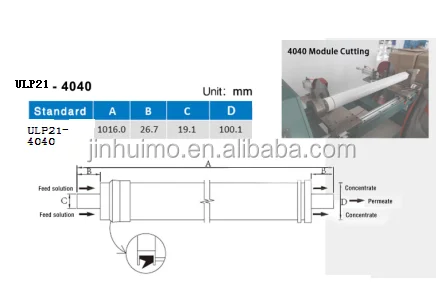

ULP 4" MEMBRANE ELEMENTS

Model	ULP11-4040	ULP21-4040	ULP31-4040
Effective membrane area ft²(m²)	85(7.9)	85(7.9)	85(7.9)
Operating pressure psi(MPa)	150(1.03)
Average yield GPD(m³/d)	2700(910.2)	2400(9.1)	1900(7.2)
Salt rejection (%)	98 (min97.5)	99(min 98.5)	99.4(min 99.0)
Recovery rate (%)	15
Max. operating pressure psi(MPa)	600(4.14)600(4.14)
Max. inflow temperature(°C)	45
Max. inflow SDI	5
Max. water flow GPM(m³/h)	16(3.6)
Free chlorine concentration	<0.1
Continuous running water pH range	3-10
Chemical cleaning water pH range	2-11
Max. single membrane element pressure drop	15 (0.1)

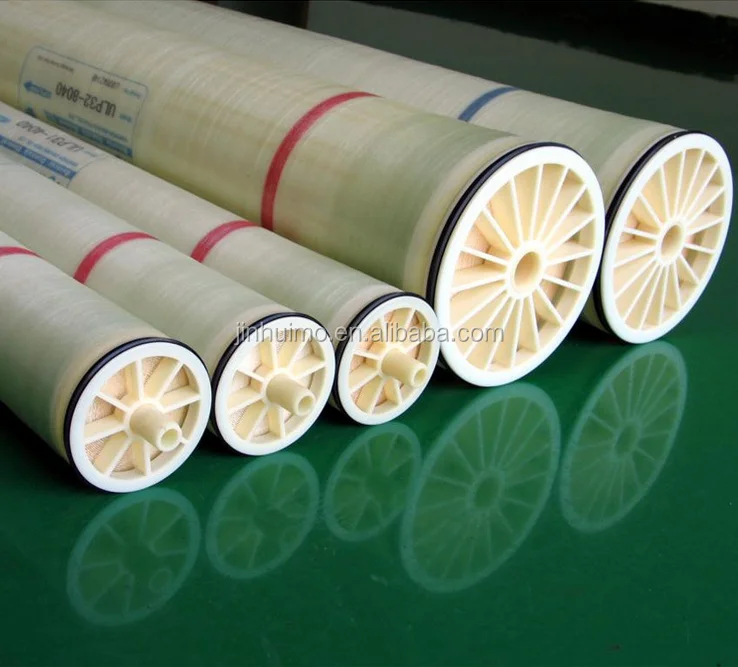

ULP 8" MEMBRANE ELEMENTS

Model	ULP21-8040	UL12P-8040	ULP22-8040	ULP32-8040
Effective membrane area ft²(m²)	365(33.9)	400(37.0)	400(37.0)	400(37.0)
Operating pressure psi(MPa)	150(1.05)
Average yield GPD(m³/d)	11,000(41.6)	13,200(49.9)	12,100(45.7)	10,500(38.7)
Salt rejection (%)	99(MIN98.5)	98(min97.5)	99(min98.5)	99.5(min99.0)
Recovery rate (%)	15
Max. operating pressure psi(MPa)	600(4.2)
Max. inflow temperature(°C)	45
Max. inflow SDI	5
Max. water flow GPM(m³/h)	75(17)
Free chlorine concentration	<0.1
Continuous running water pH range	3-10
Chemical cleaning water pH range	2-11
Max. single membrane element pressure drop	15 (0.1)
